Raven RP52F Meeting Stile Seal Brush Strip Black - Available in Various Sizes

Raven RP52F Meeting Stile Seal Brush Strip

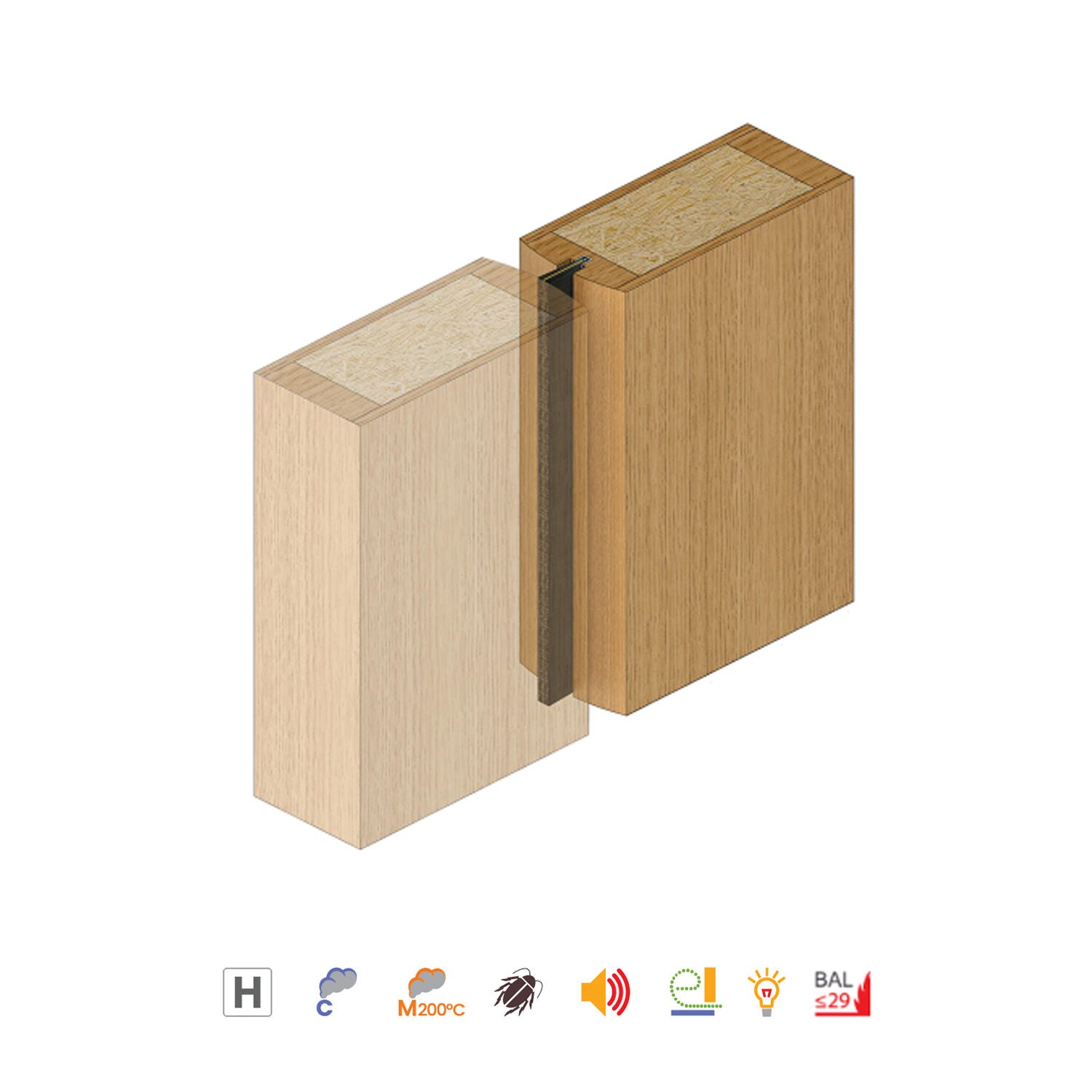

Brush Strip is commonly used in commercial double door setups to seal the gap where the doors meet, helping to block drafts, dust, and noise.

Brush Strip Functions - as a meeting stile seal to reduce air, dust, and sound infiltration between double doors.

Features:

• Nylon brush strip without holder
• Concealed installation into a machined groove in the doo
• Requires double morticing in tight clearance areas to allow flexin
• Includes a unique medium-temperature fin for enhanced sealin
• Effective against medium-temperature smoke, noise, and weathe
• Ideal for meeting stile or door edge applications where discreet sealing is needed

Specifications:

• Location:
  • Stiles or bottoms of single, double, sliding or double acting doors
  • Suitable for hard, flat surfaces
• Available Size:
  • 1250mm
  • 3000mm
• Fixing: Adhesive Fixed, Push-in Friction Fit

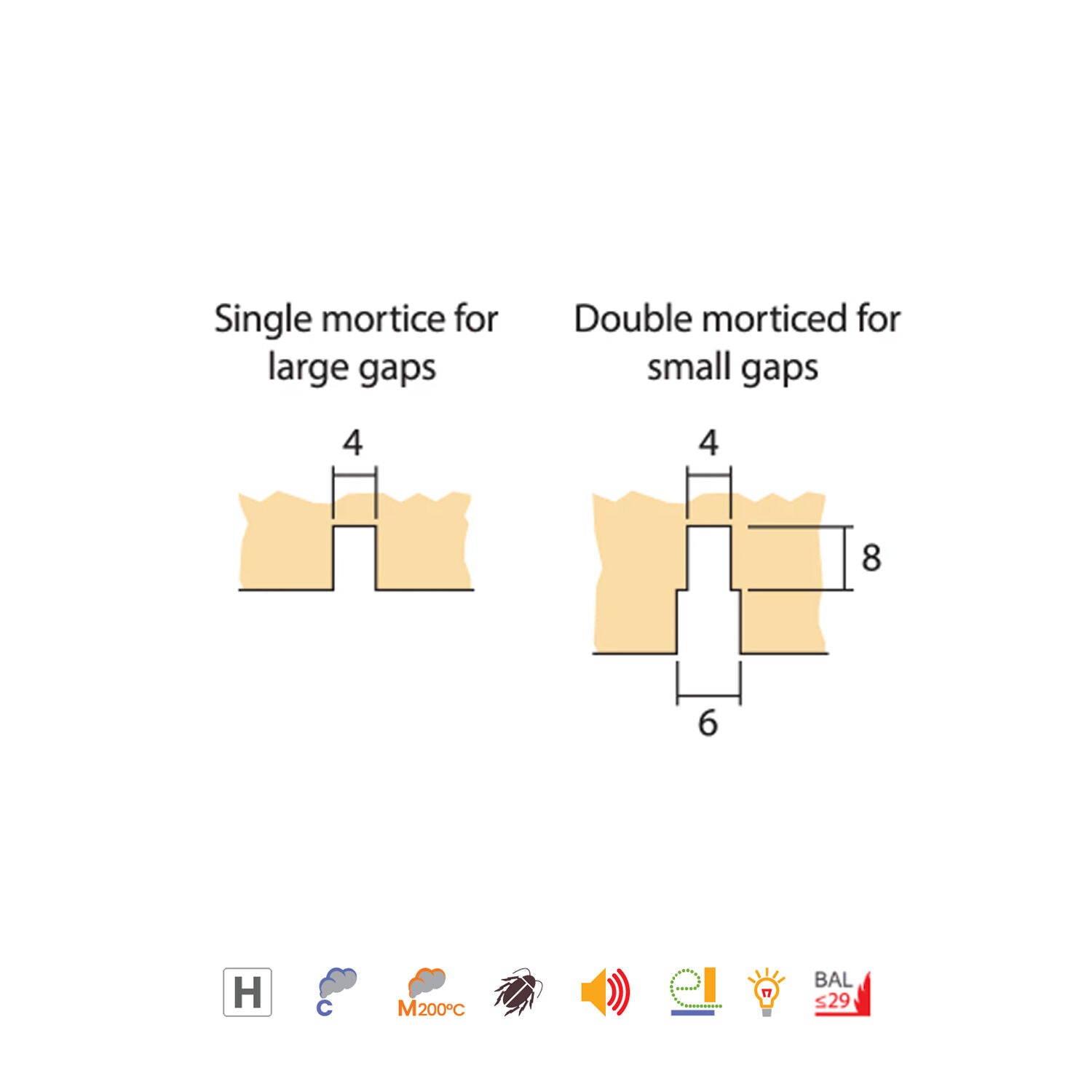

  • Inserted into morticed groove (optional adhesive if required). Where a small clearance is encountered, the groove should be double morticed to allow the brush to flex.
• Min and Max Gap: 0mm to 13mm
• Material: Nylon Brush
  • Black fine, dense, UV stabilised nylon filaments with a medium temperature smoke barrier fin within a galvanised spine.
• Door/Frame Construction: Timber, Aluminum
• Door Type:
  • Single Inward Opening
  • Single Outward Opening
  • Double Inward Opening
  • Double Outward Opening
  • Sliding, Pivot
  • Security Screen
  • Bi-fold

Approvals:

• Fire Flammability Index: Brush Strip flammability index 1 when tested to AS1530.2
• Smoke AUS/NZ: NCC S12C4
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• BAL Statement: BAL FZ when used on a garage in accordance with AS 3959
