Raven RP53 Intumescent Fire and Smoke Seal

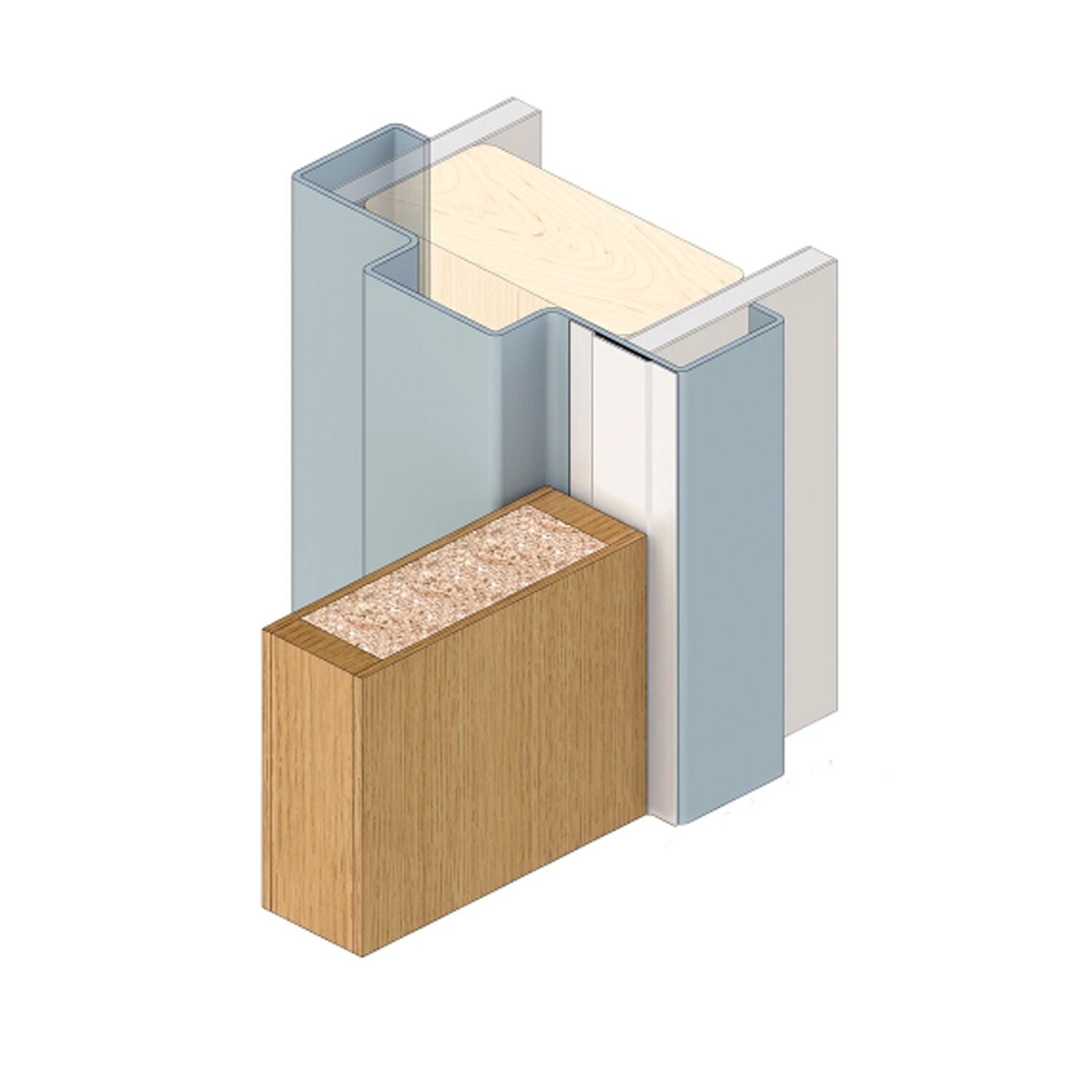

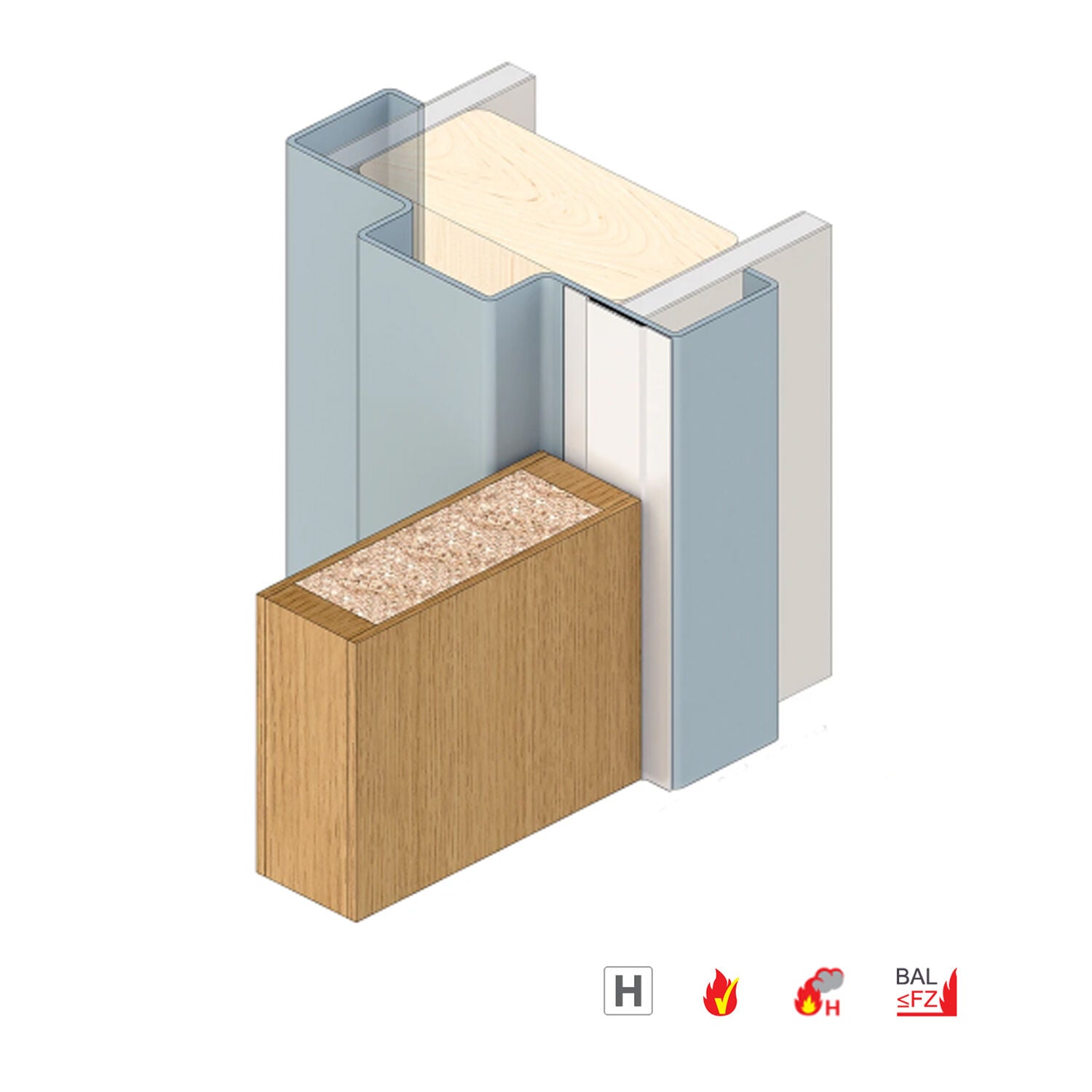

Door Stop Frame Seal are used to seal gaps at door perimeters. By sealing the gaps along the door frame you can significanly cut down on the infiltration of sound, light, drafts, moisture, fire and smoke.

Door Stop Frame Seal Function - to ensure a fire escape route free from smoke and the intumescent seals the gap between the door and frame to inhibit the spread of fire.

Features:

• An intumescent seal in a PVC holder which is ideal for upgrading proprietary door perimeter gaps where the clearance exceeds the maximum 3mm as specified by AS1905.1
• When exposed to heat, the seal expands to fill in the gap
• Use in conjunction with Raven Si rated door bottom smoke seals or brush strip seals for pivot doors

Specifications:

• Available Size:
  • 2100mm
  • 3000mm

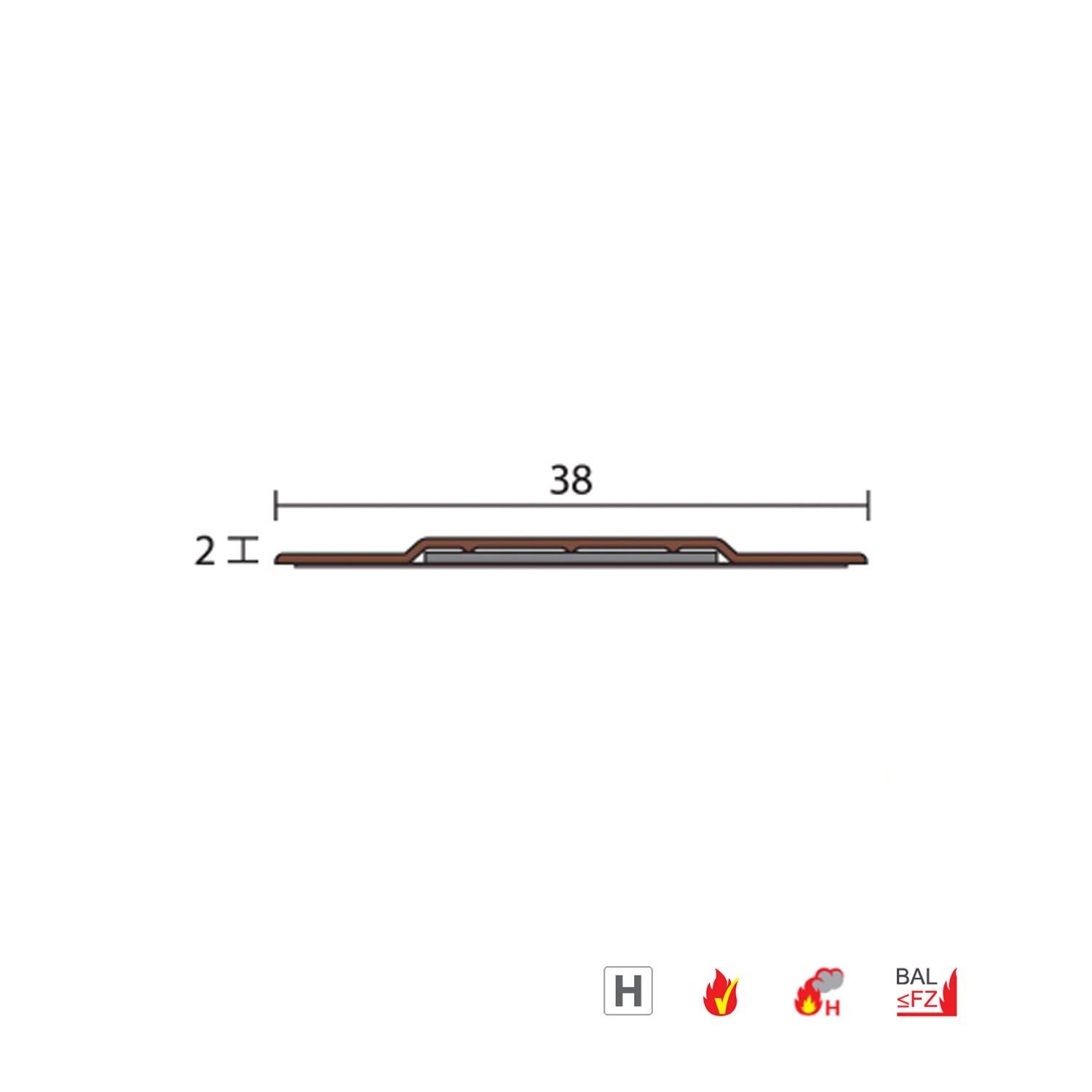

• Min and Max Gap: 2mm to 6mm
• Material: Rigid and Flexible PVC
• Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening
• Door/Frame Construction: Steel
• Fixing: Self-adhesive
  • Note: Contact surface must be clean, smooth and if painted, well cured. Self-adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.
• Available Finish:
  • Brown
  • White

Approvals:

• Accreditations: UL: R37913
• Fire and Smoke AUS/NZ: NZBC C/AS2 4.16.2(a) and App C6.1.1 and App C6.1.2
• Fire and Smoke UK/EU: Approved Document B, BS 476 Pt. 20 and 22 (similar to BS EN 1634-1)
• Fire AUS/NZ: NCC Spec C3.4, AS 1530.4:2005 and earlier
• Fire Rating: Up to FRL and FRR-/240/30, Up to FD120
