Raven RP56 Door Perimeter Seals - Available in Various Sizes

Raven RP56 Door Perimeter Seals

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

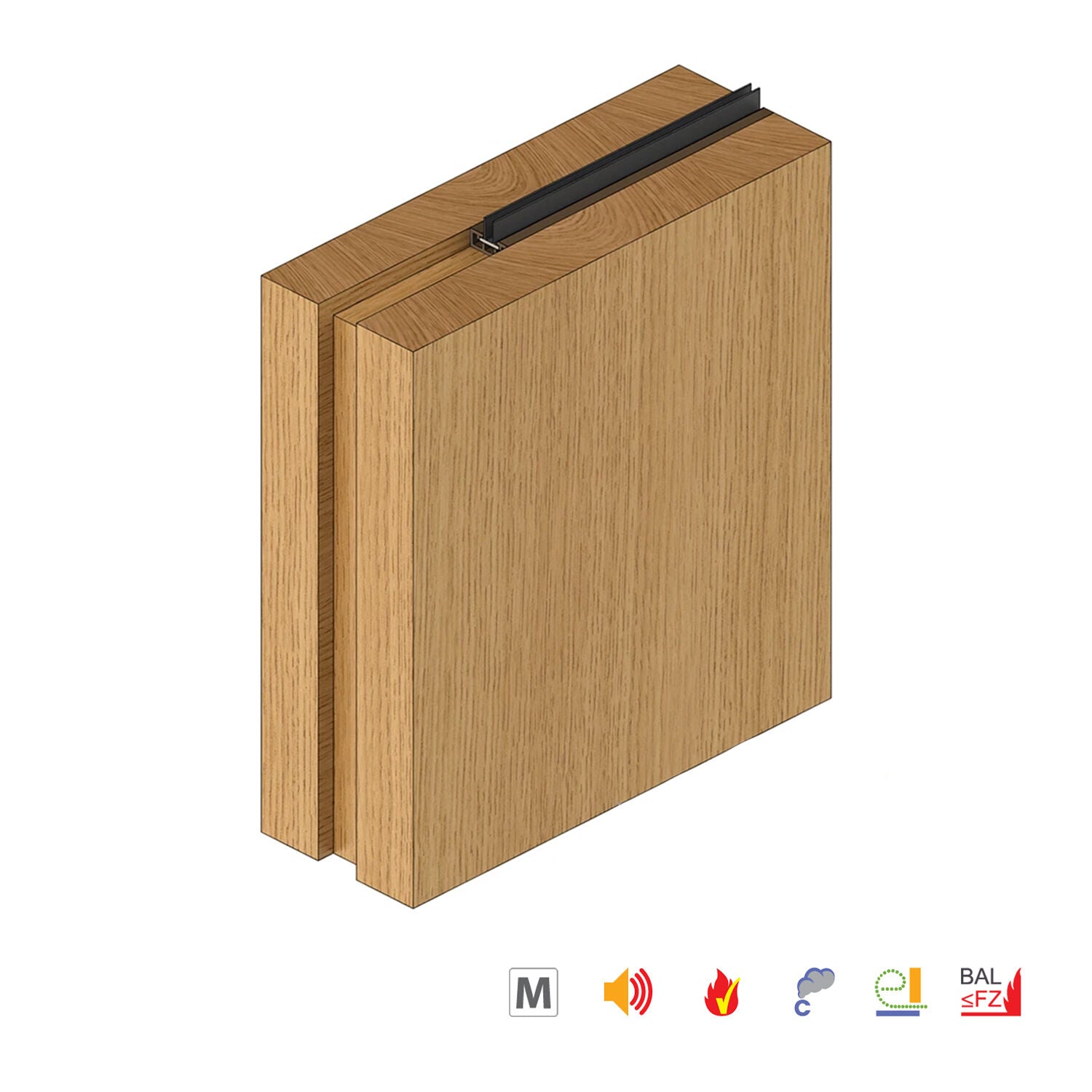

• A PVC finned sweep seal designed to fit into a groove around the perimeter of a timber door or frame to reduce noise and air movement
• This unobtrusive seal is discrete in appearance and does not restrict the doors operation
• The RP56 can be used in conjunction with Raven automatic door bottom seals and brush strip seals

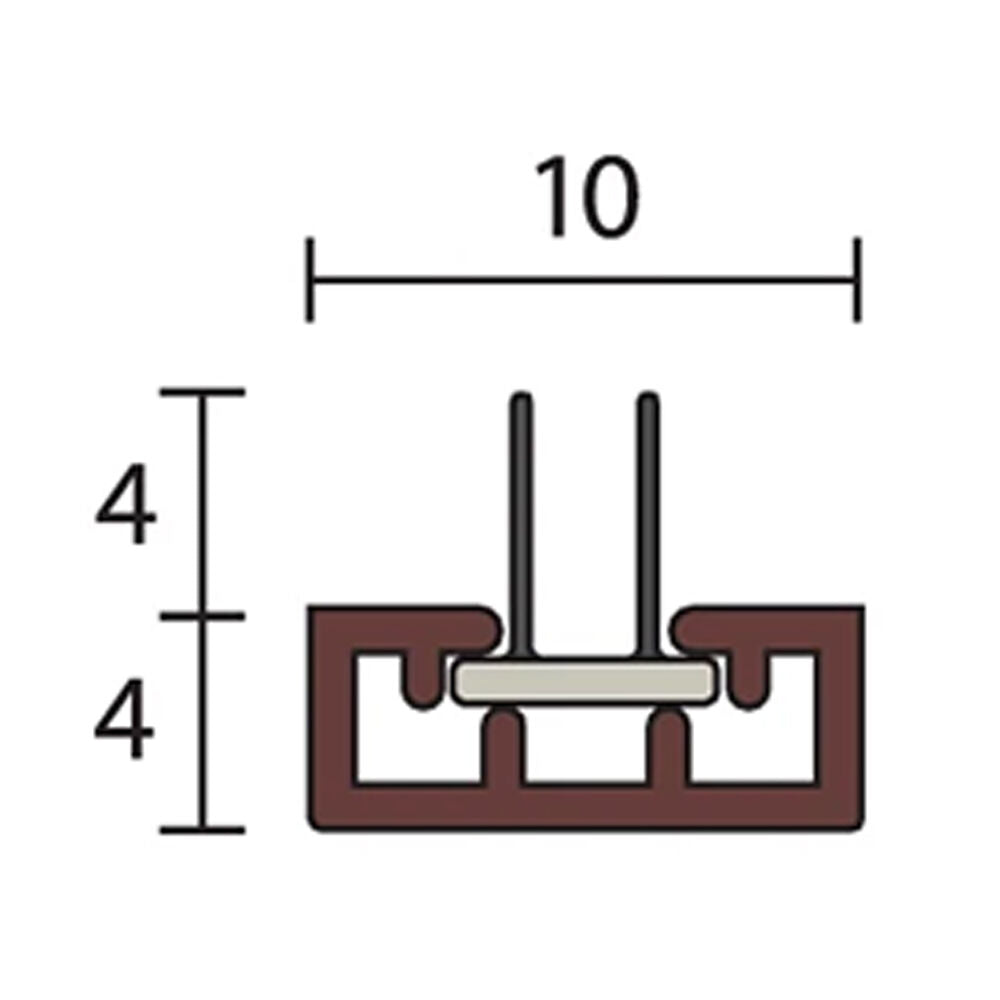

Specifications:

• Min and Max Gap: 2mm - 4mm
• Width: 10mm
• Projection: 4mm
• Length:
  • 1000mm
  • 2250mm
  • 3000mm
• Finish: Bronze

Approvals:

• AS 1530.4, AS 1905.1, NCC S12C2, NZBC C/AS2 4.16.2(a) & App C6.1.1
• Approved Document B, Tests above are similar to BS EN 1634-1 & BS 476 Pt. 20 & 22
• Up to FRL & FRR-/90/30, Up to FD60 (on door bottom only)
• NCC J5D5, ABCB Housing Provisions Standard 2022 13.4.4
