Raven RP560 Compression Silicon Weather Stripping 100m Coil White B560W

Raven RP560 Compression Silicon Weather Stripping
B560W

Silicon Weather Stripping is commonly used on double doors in commercial buildings to prevent air, sound, and light from passing through the gap where the doors meet.

Silicon Weather Stripping Function - a seal between double doors to block light, sound, smoke, and weather, improving energy efficiency and privacy.

Features:

• A compression seal, made from silicon
• Raven silicon has a high resistance to permanent set (memory)
• It will not absorb water and is resistant to ozone and ultra-violet light deterioration

Specifications:

• Location: Aluminium, PVC or timber door and window frame grooves where dimensions suit.
• Size: 100m coil
• Fixing: Push-in Friction Fit

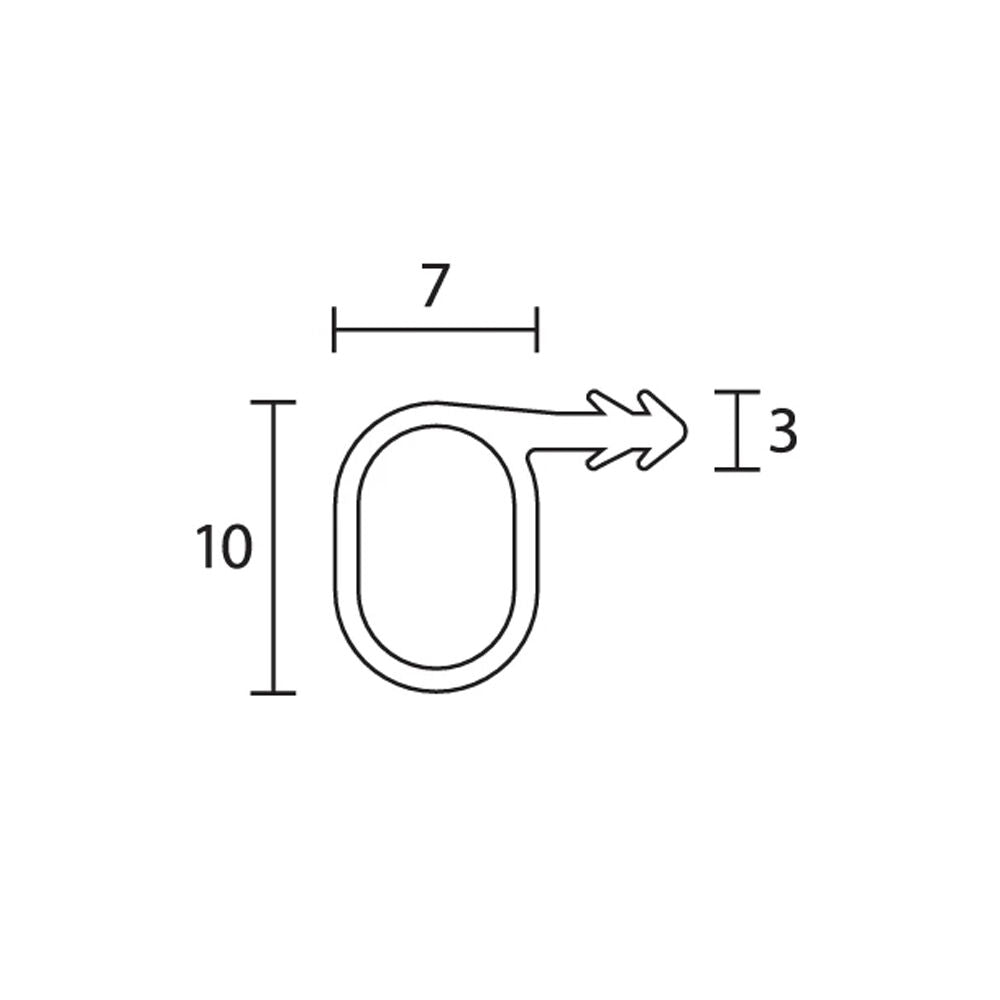

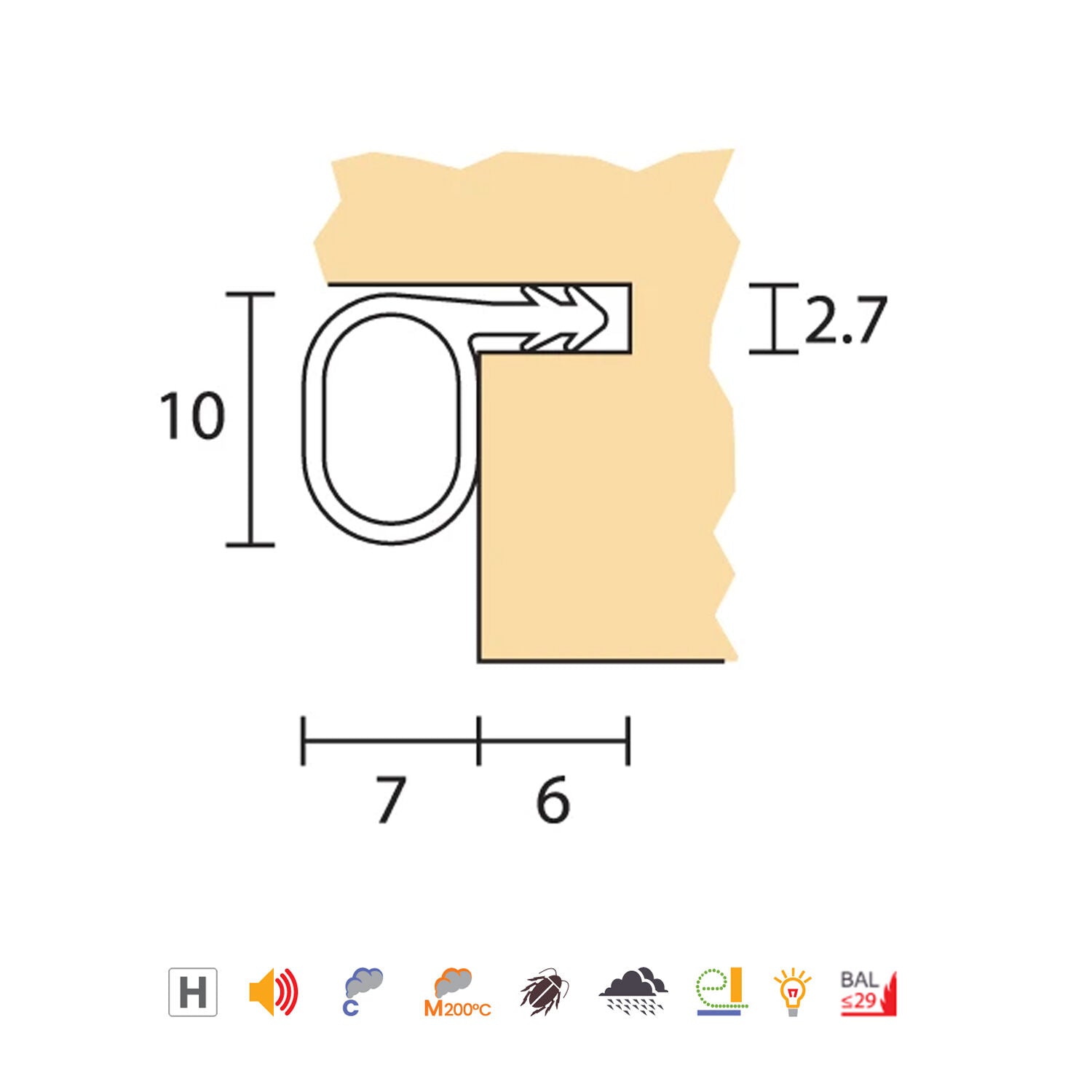

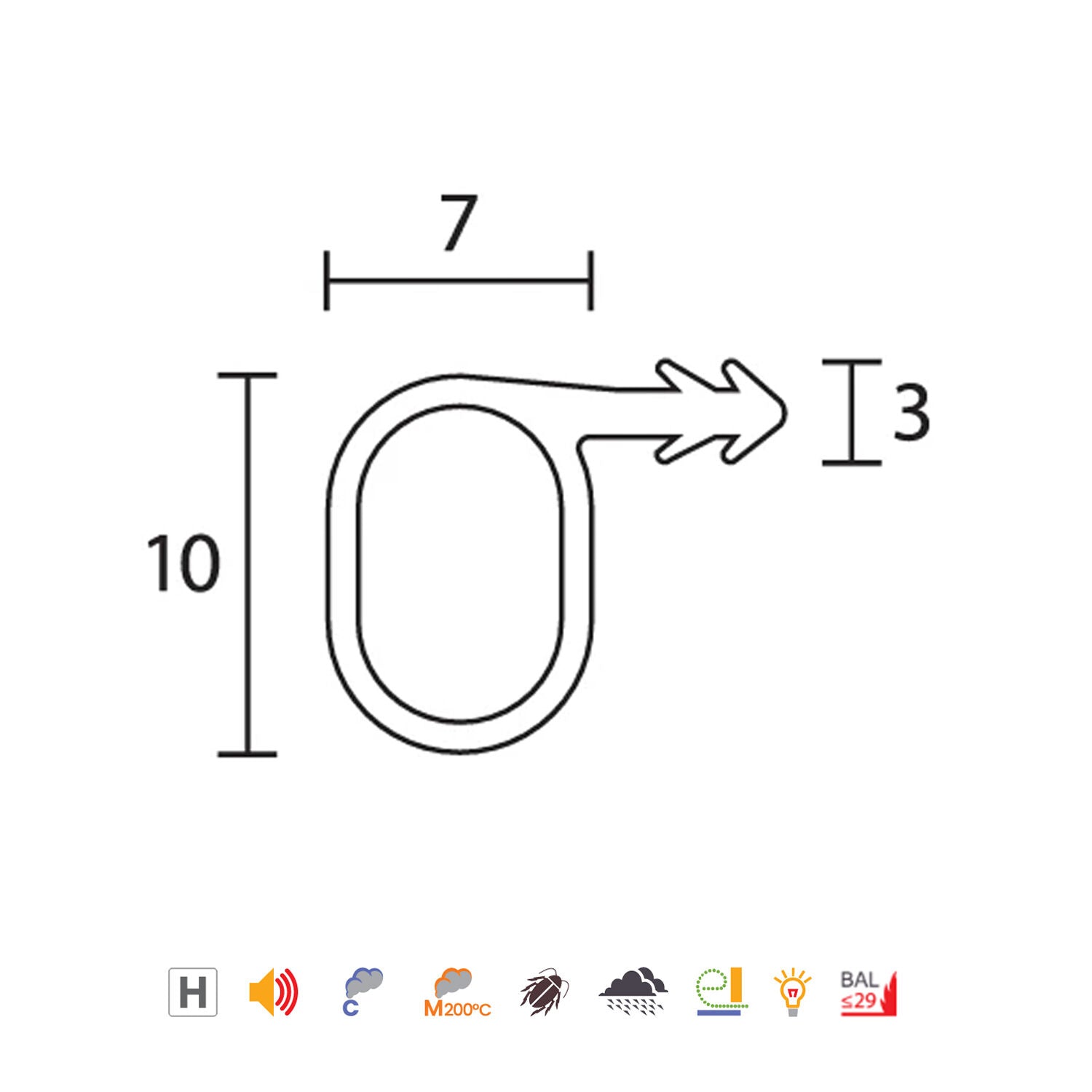

  • Push-in locking fit into a 2.7mm x 6mm deep kerf groove.
• Min and Max Gap: 4mm to 7mm
  • Compression: 1mm to 3mm
• Material: Silicon Rubber
• Door/Frame Construction: Timber, Aluminum, PVC
• Door Type:
  • Single Inward Opening
  • Single Outward Opening
  • Double Inward Opening
  • Double Outward Opening
  • Sliding, Pivot
  • Security Screen
  • Bi-fold
• Window Type:
  • Awning (Outward Opening)
  • Casement (Side Hung),
  • Hopper (Inward Opening)
• Finish: White

Approvals:

• Weather AUS/NZ: NCC various sections, AS 2047, AS 4055, AS 4420 Pt. 0 to 5, AS/NZS 1170
• Weather UK/EU: Approved Document L1 and L2, Tests above are similar to BS 5368 & BS 7386
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
