Raven RP610 TPE W/Strip Silicon Weather Stripping - Available in Various Sizes

Raven RP610 TPE W/Strip Silicon Weather Stripping

Weather Stripping is commonly installed in timber, aluminium, or PVC door and window frame grooves for weatherproofing and energy efficiency.

Weather Stripping Function - A compression seal used to close gaps between doors or windows and their frames to prevent air drafts and water infiltration.

Features:

• Compression seal made from co-extruded flame-retardant TPE rubber

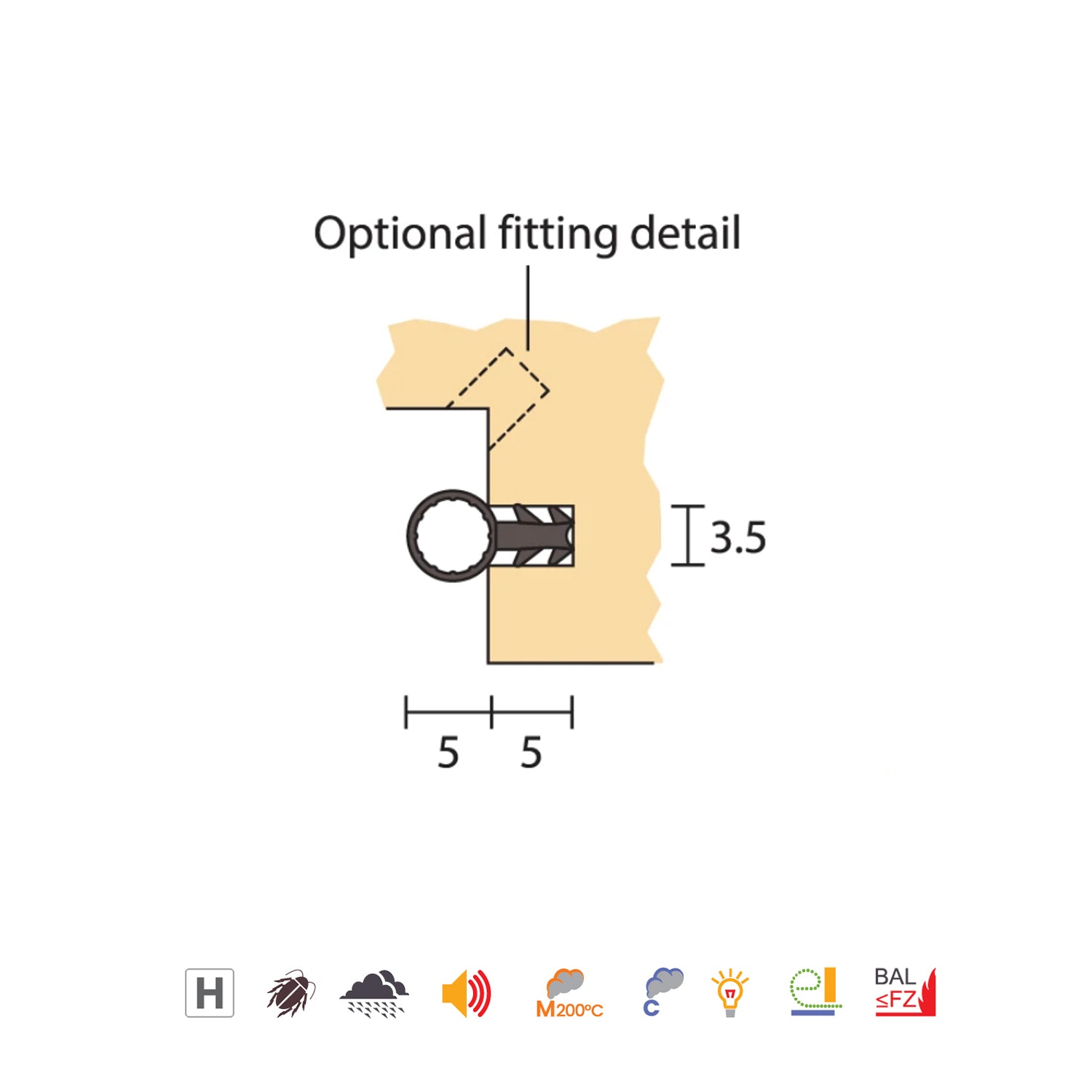

• Push-in locking fit installation into a 3.5 mm × 5 mm kerf groove
• Suitable for timber, aluminium, and PVC door or window frames
• Compression range: 1–2 mm for tight sealing performance
• Improved resistance to UV, abrasion, chemicals, and biological deterioration
• Does not shrink and provides long-term sealing durability
• Flammability index ≤5, suitable for bushfire-prone areas

Specifications:

• Location: Aluminium, PVC or timber door and window frame grooves where dimensions suit
• Available Size/Length:
  • 6m coil
  • 100m coil
• Fixing:
  • Push-in Friction Fit
  • Push in locking fit into a 3.5mm x 5mm deep kerf groove.
• Min & Max Gap:
  • 3mm to 5mm
  • Compression: 1mm to 2mm
• Material: TPE
• Door/Frame Construction: Timber, Aluminium, PVC
• Door Type:
  • Single Inward Opening
  • Single Outward Opening
  • Double Inward Opening
  • Double Outward Opening
  • Sliding, Pivot, Security Screen, Bi-fold
• Window Type:
  • Awning (Outward Opening)
  • Casement (Side Hung)
  • Hopper (Inward Opening)
• Finish: Brown

Approvals:

• Fire Flammability Index: Flammability index ≤ 5 when tested to AS1530.2
• Weather AUS/NZ: NCC various sections, AS 2047, AS 4055, AS 4420 Pt. 0 to 5, AS/NZS 1170
• Weather UK/EU: Approved Document L1 & L2, Tests above are similar to BS 5368 & BS 7386
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
