Raven RP62 Finger Guard Seal 2100mm Black A62C2100

Raven RP62 Finger Guard Seal
A62C2100

Finger Guard Seal used to protect against the terrible injuries that might result from catching fingers in hinged doors.

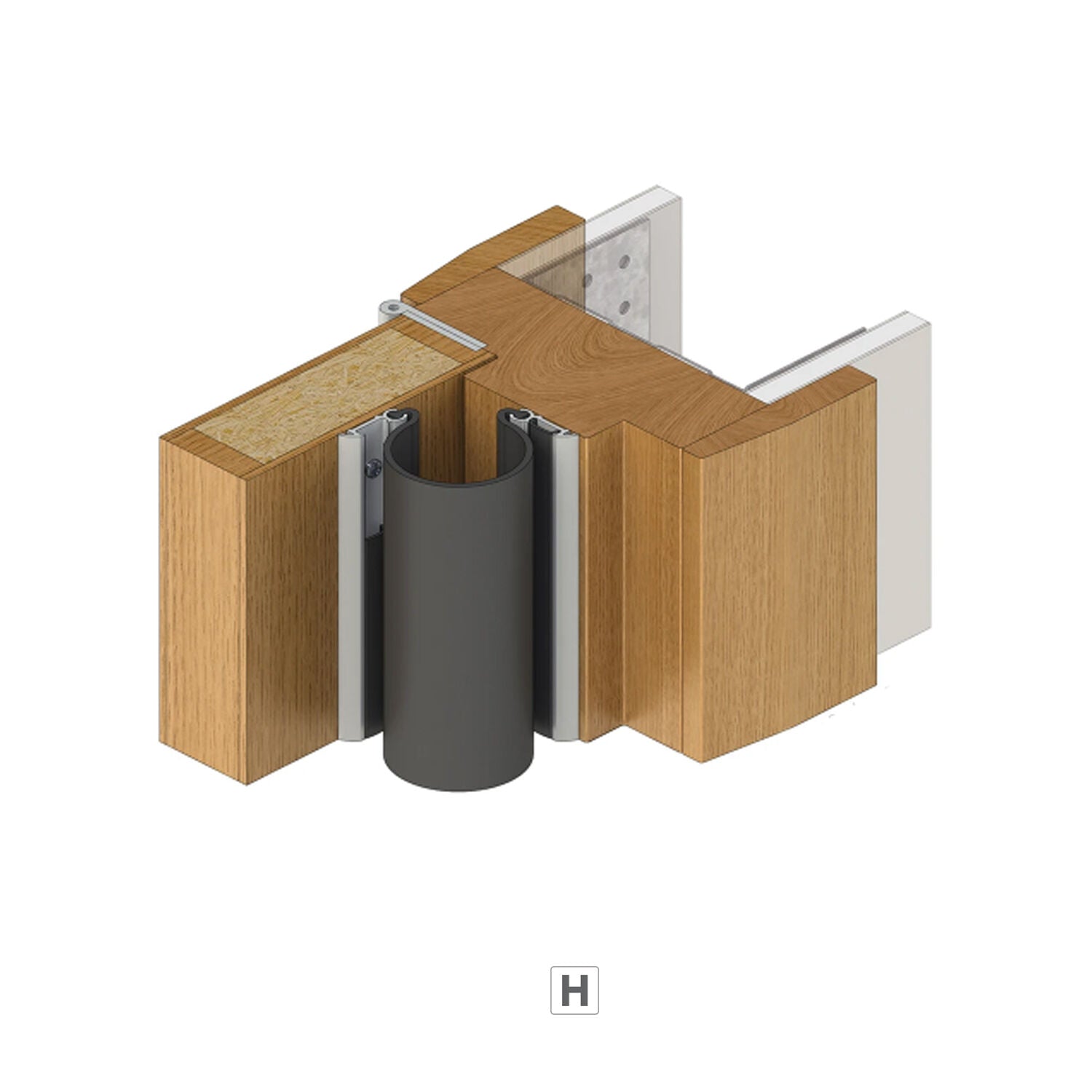

Finger Guard Seal Function - prevents fingers from getting stuck on the door's hinge cavity side. On the side with the hinge cavity, the product is fastened to the door and the jamb.

Features:

• A safety strip which prevents fingers being jammed on the hinge side of a door
• It is fixed to the door and the jamb on the hinged side

Specifications:

• Location: Door and jamb of 0-180 degree opening butt hinged or centre pivot doors.
• Size: 2100mm
• Fixing: Screw Fixed
  • Screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted.
• Replacement Seals: RP362
• Material: Aluminum, Solid EPDM
• Door/Frame Construction: Aluminum, Timber
• Door Type:
  • Single Inward Opening
  • Single Outward Opening
  • Double Inward Opening
  • Double Outward Opening
  • Pivot
• Finish: Black

Note: It is recommended to fit RP62 to the full height of the door/jamb for maximum protection. For longer lengths, butt join together.

Approvals:

• Durability: Tested to BS 8613:2017 Class 1 Finger protection devices for pedestrian doors, Tested to over 200,000 operating cycles without failure
