SKU: RAVA62BW2500
Raven RP62 Finger Guard Seal 2500mm Brown/White A62BW2500
Restocking Soon: ETA Mid October
RRP: $166.32
Payments accepted:
Couldn't load pickup availability
Raven RP62 Finger Guard Seal
A62BW2500
Finger Guard Seal used to protect against the terrible injuries that might result from catching fingers in hinged doors.

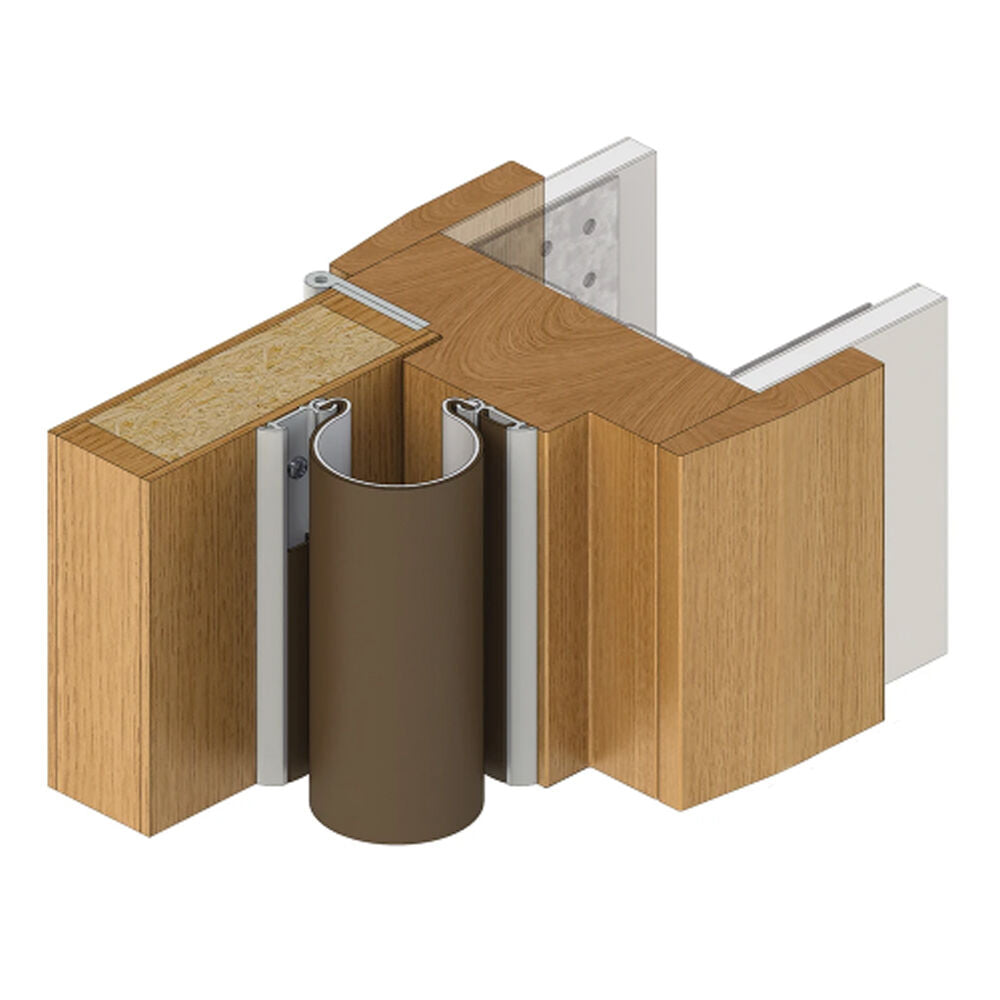

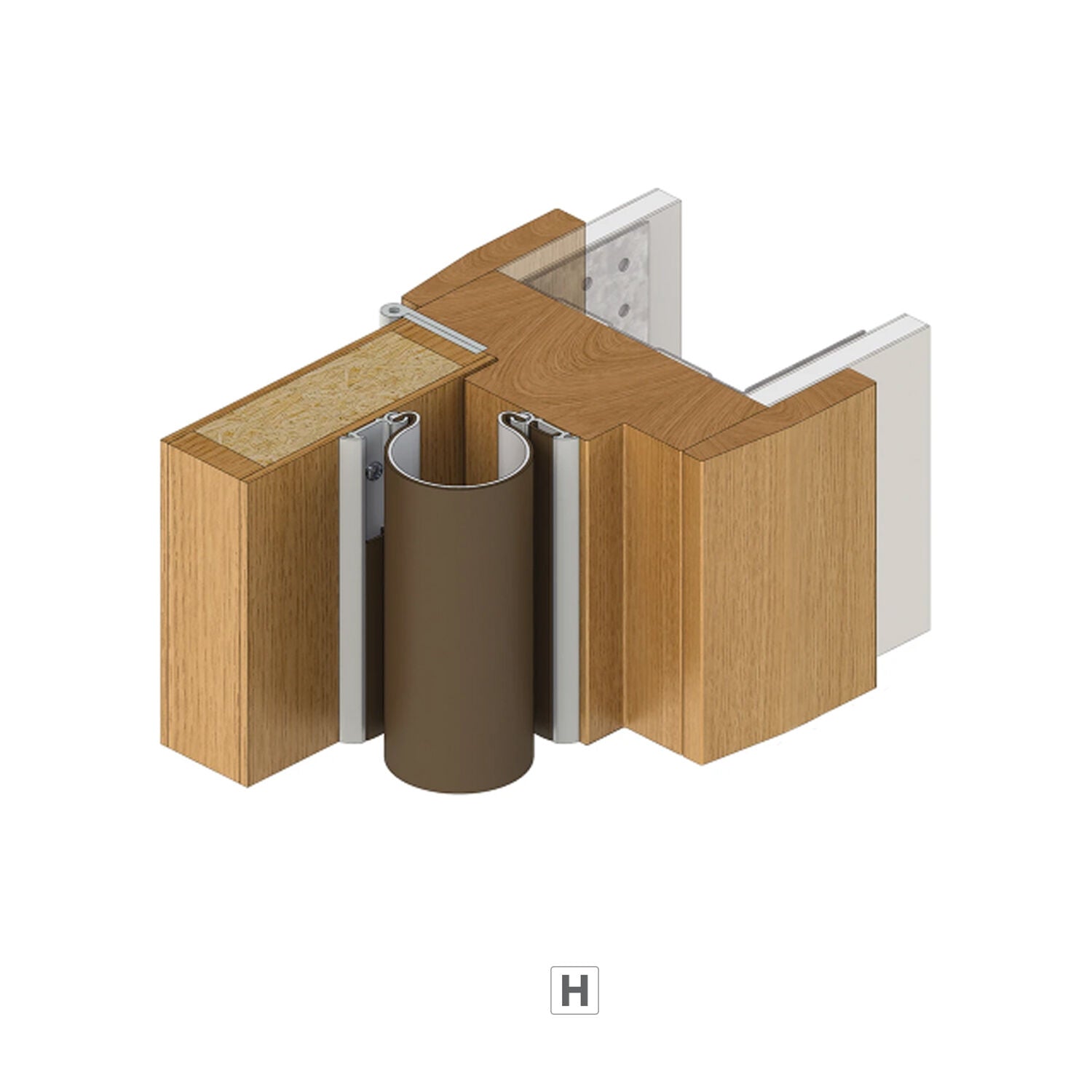

Finger Guard Seal Function - prevents fingers from getting stuck on the door's hinge cavity side. On the side with the hinge cavity, the product is fastened to the door and the jamb.
Features:
- A safety strip which prevents fingers being jammed on the hinge side of a door
- It is fixed to the door and the jamb on the hinged side
Specifications:
- Location: Door and jamb of 0-180 degree opening butt hinged or centre pivot doors.
- Size: 2500mm
-
Fixing: Screw Fixed
- Screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted.
- Replacement Seals: RP462 BW
- Door/Frame Construction: Aluminum, Timber
-
Door Type:
- Single Inward Opening
- Single Outward Opening
- Double Inward Opening
- Double Outward Opening
- Pivot
- Finish: Brown / White
Please Note:
- It is recommended to fit RP62BW to the full height of the door/jamb for maximum protection. For longer lengths, butt join together.
- RP62BW is reversible for a brown or white finish.
Approvals:
- Durability: Tested to BS 8613:2017 Class 1 Finger protection devices for pedestrian doors, Tested to over 200,000 operating cycles without failure.
Raven RP62 Finger Guard Seal
A62BW2500
Finger Guard Seal used to protect against the terrible injuries that might result from catching fingers in hinged doors.
Finger Guard Seal Function - prevents fingers from getting stuck on the door's hinge cavity side. On the side with the hinge cavity, the product is fastened to the door and the jamb.
Features:
- A safety strip which prevents fingers being jammed on the hinge side of a door
- It is fixed to the door and the jamb on the hinged side
Specifications:
- Location: Door and jamb of 0-180 degree opening butt hinged or centre pivot doors.
- Size: 2500mm
- Fixing: Screw Fixed
- Screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted.
- Replacement Seals: RP462 BW
- Door/Frame Construction: Aluminum, Timber
- Door Type:
- Single Inward Opening
- Single Outward Opening
- Double Inward Opening
- Double Outward Opening
- Pivot
- Finish: Brown / White
Please Note:
- It is recommended to fit RP62BW to the full height of the door/jamb for maximum protection. For longer lengths, butt join together.
- RP62BW is reversible for a brown or white finish.
Approvals:
- Durability: Tested to BS 8613:2017 Class 1 Finger protection devices for pedestrian doors, Tested to over 200,000 operating cycles without failure.
