Raven RP62 Finger Guard Seal Light Grey/Black 2500mm A62LGBK2500

Raven RP62 Finger Guard Seal
A62LGBK2500

Finger Guard Seal used to protect against the terrible injuries that might result from catching fingers in hinged doors. Most commonly used in areas where young children are present like child care centres

Finger Guard Seal Function - prevents fingers from becoming stuck on the door's hinge cavity side. On the side with the hinge cavity, the product is fastened to the door and the jamb.

Features:

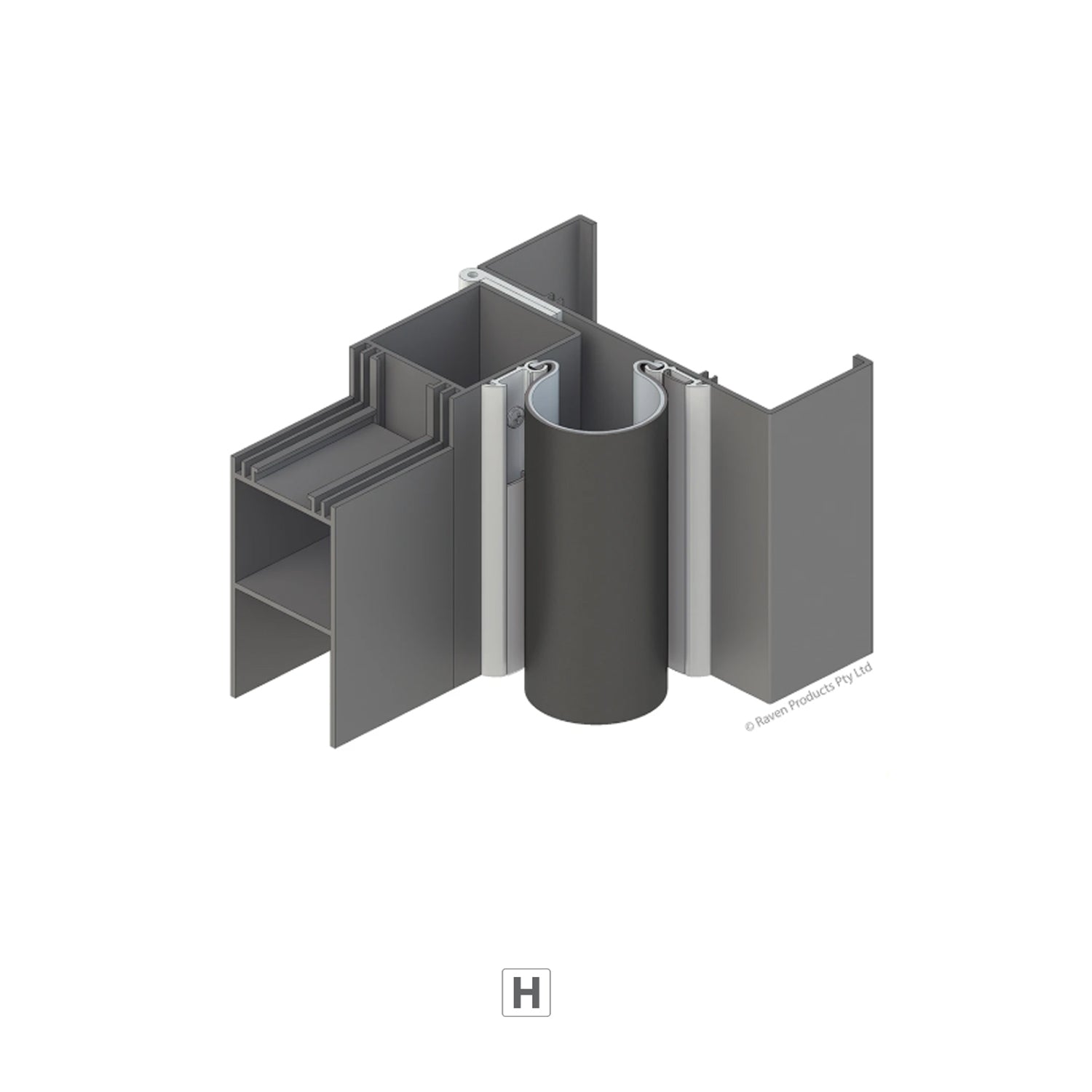

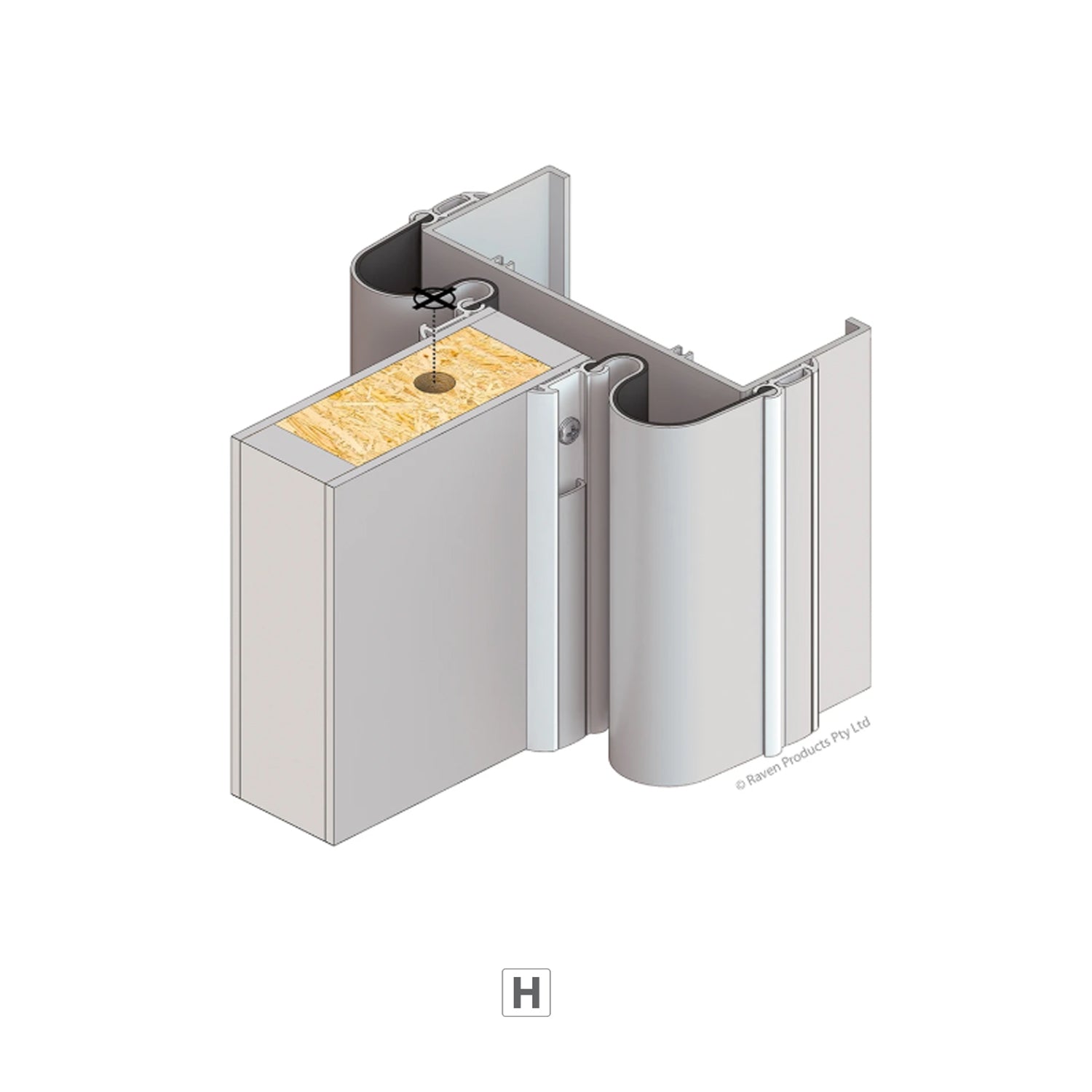

• A safety strip which prevents fingers being jammed on the hinge side of a door. It is fixed to the door and the jamb on the hinged side
• This product can also be used to cover the hinge-barrel side of the door (the side you can see the hinges from when the door is closed) where dimensions suit
• Note: It is recommended to fit RP62LGBK to the full height of the door/jamb for maximum protection. For longer lengths, butt join together

Specifications:

• Location: Door and jamb of 0-180 degree opening butt hinged or centre pivot doors.

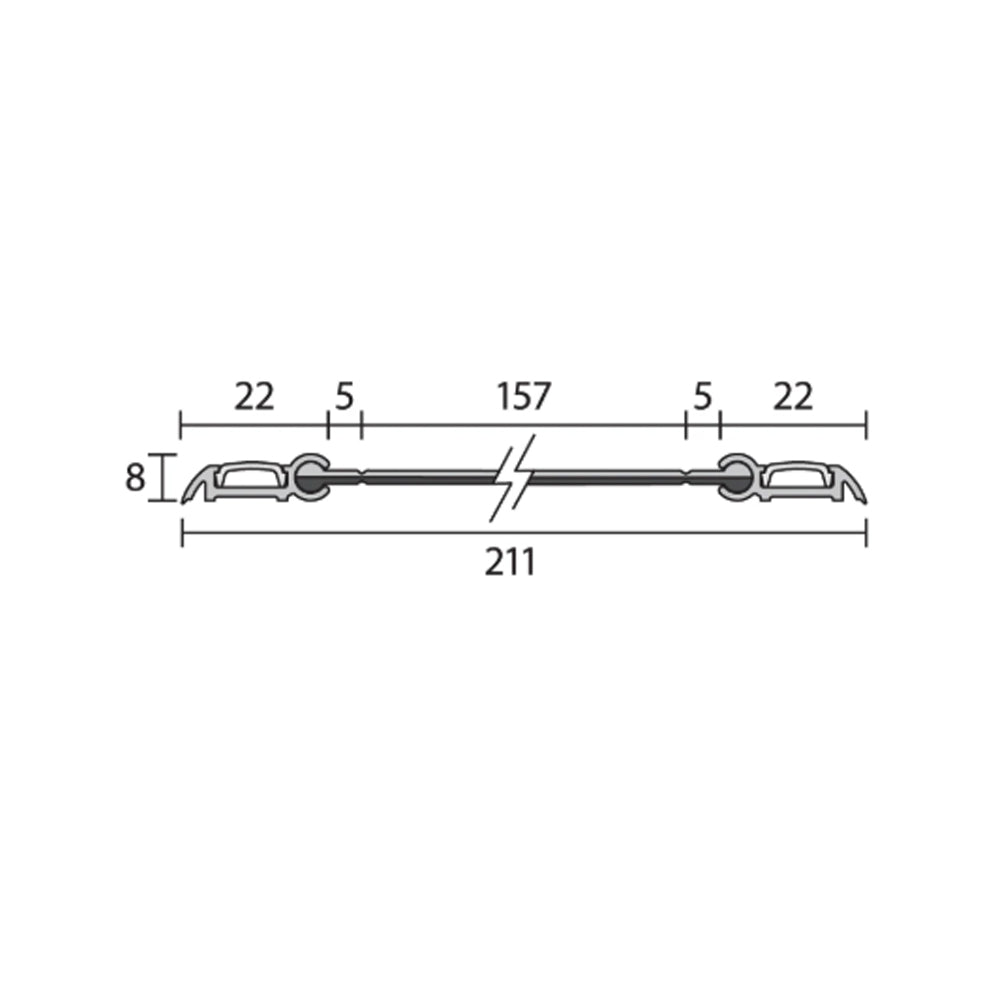

• Size/Length: 2500mm
• Fixing: Screw Fixed
  • Screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied
  • Fixing holes are pre-slotted.
• Replacement Seals: RP462 LGBK
• Material:
  • Aluminum
  • Anodised aluminum with reversible PVC rubber strip and PVC cover strips.
  • Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.
• Finish: Light Grey / Black

Approvals:

• Durability: Tested to BS 8613:2017 Class 1 Finger protection devices for pedestrian doors, Tested to over 200,000 operating cycles without failure
