SKU: RAVA62SLGBK2500
Raven RP62s Finger Guard Seal 2500mm Light Grey/Black A62SLGBK2500
RRP: $129.95
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Raven RP62s Finger Guard Seal
A62SLGBK2500
Finger Guard Seal used to protect against the terrible injuries that might result from catching fingers in hinged doors. Most commonly used in areas where young children are present like child care centres

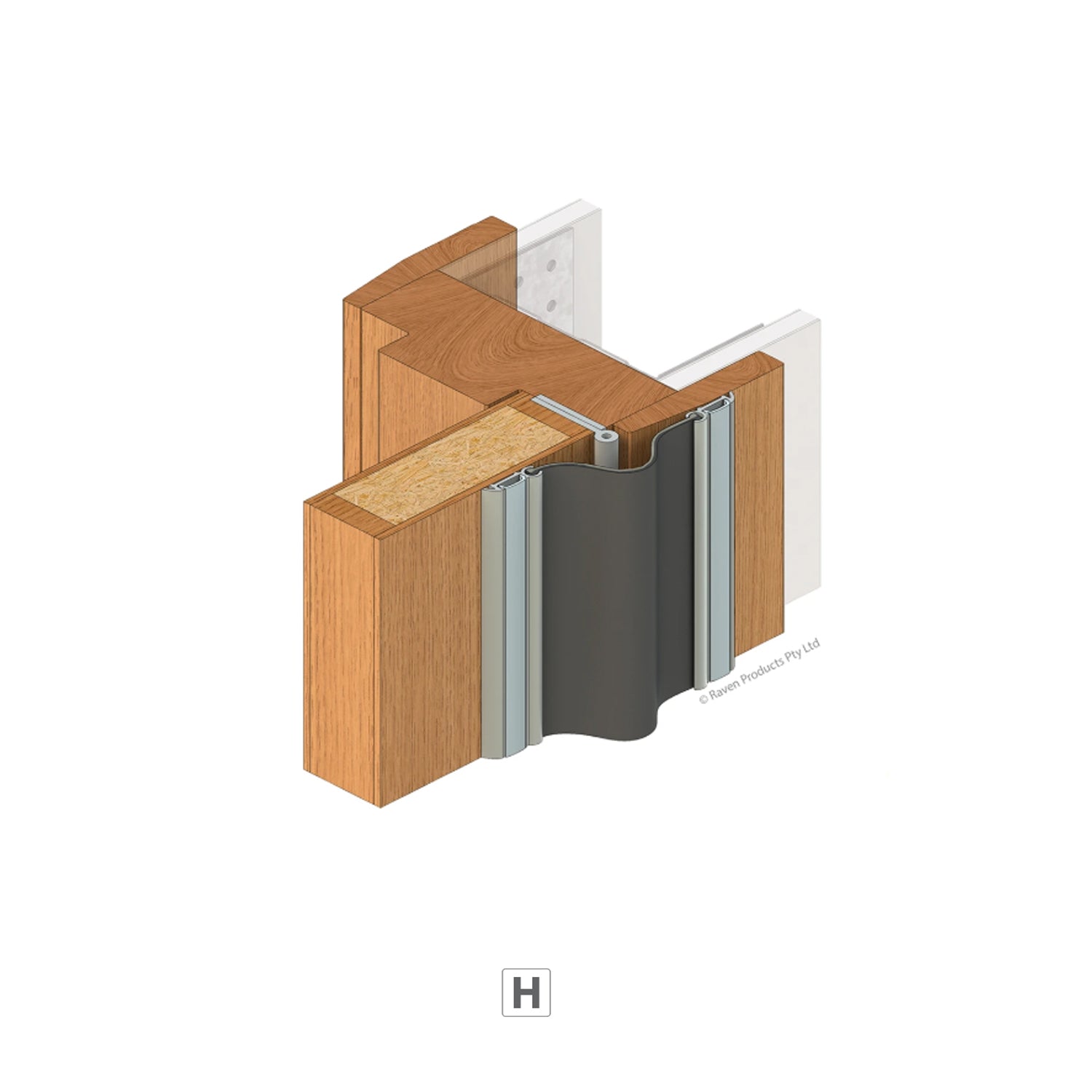

Finger Guard Seal Function - prevents fingers from becoming stuck on the door's hinge cavity side. On the side with the hinge cavity, the product is fastened to the door and the jamb.
Features:
- Prevents finger entrapment on the hinge side of doors
- Compact (smaller) guard for hinge barrel side protection
- Suitable for butt-hinged doors (up to 170 Degrees opening)
- Screw-fixed installation with pre-slotted holes and cover strip
- Durable anodised aluminium carrier with flexible PVC seal
- Reversible seal (light grey / black finish)
- Tested to BS 8613:2017 (Class 2 finger protection)
- Long-life performance (tested over 200,000 cycles)
- Can be used with RP62 series for full hinge-side protection (both sides)
- Recommended full-height installation for maximum safety
Specifications:
- Location: Door and jamb of 0-170 degree opening butt hinged doors. Note: Check dimensions for broad butt and parliament style hinges

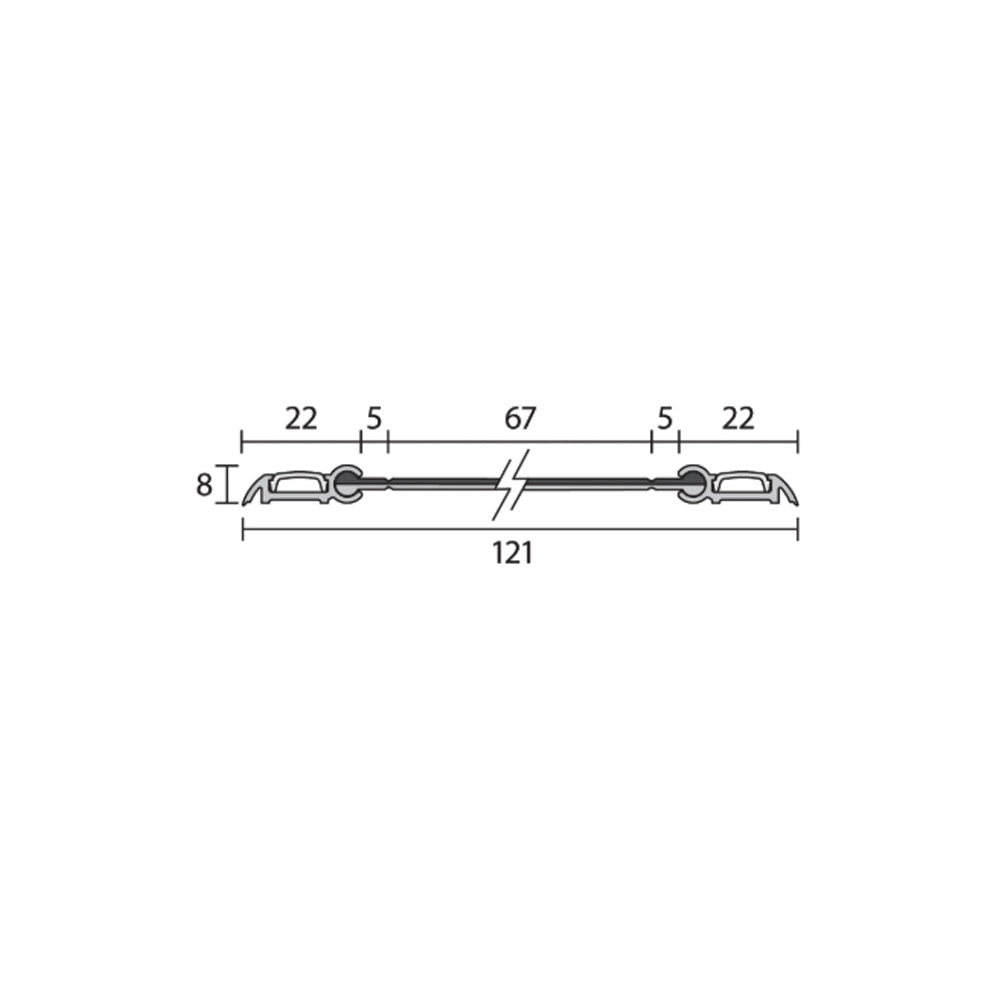

- Size/Length: 2500mm
-
Fixing:
- Screw Fixed
- Screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.
- Fixing holes are pre-slotted.
- Replacement Seals: RP462s LGBK
-
Material:
- Aluminium, Flexible PVC
- Anodised aluminium with reversible PVC rubber strip and PVC cover strips.
- Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.
- Door/Frame Construction: Aluminium, Timber
- Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening
- Finish: Light Grey / Black
Approvals:
- Durability: Tested to BS 8613:2017 Class 2 Finger protection devices for pedestrian doors, Tested to over 200,000 operating cycles without failure
