Raven RP65 Astragal Meeting Stile Seals 3000mm Silver Anodised A65C3000

Raven RP65 Astragal Meeting Stile Seals
A65C3000

Meeting Stile are seals for frameless glass sliding doors.

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

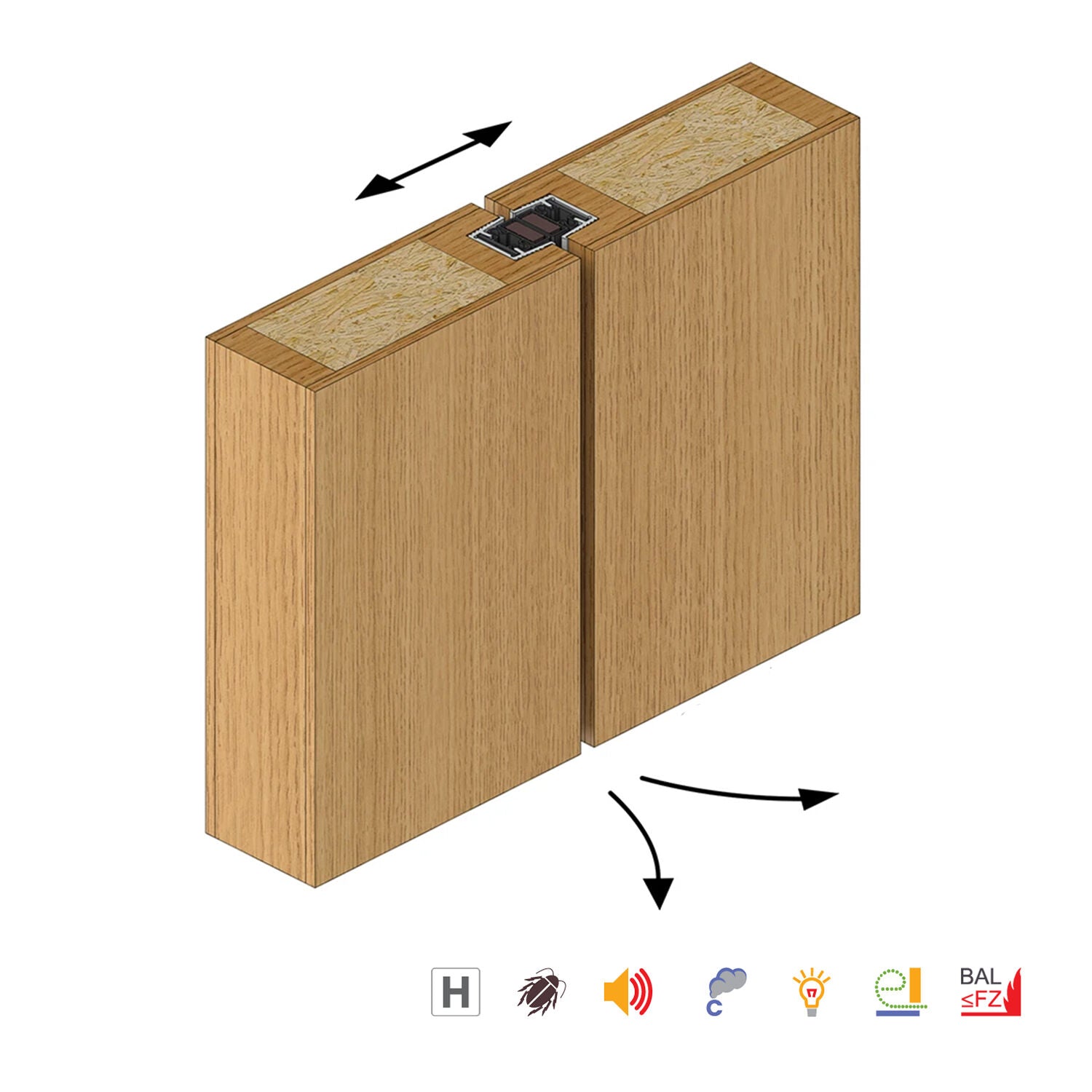

• A refrigeration type vinyl magnetic strip in an anodised aluminium channel which is morticed into the stiles of pivot, sliding or butt hinged double doors, to form an effective meeting stile seal
• The magnetic strip is locked in place to prevent creeping and has sufficient strength that latches may not be required
• Can be used in conjunction with Raven door bottom and perimeter seals

Specifications:

• Min and Max Gap: 5mm - 7mm
• Fixing: Adhesive Fix/Friction Fit

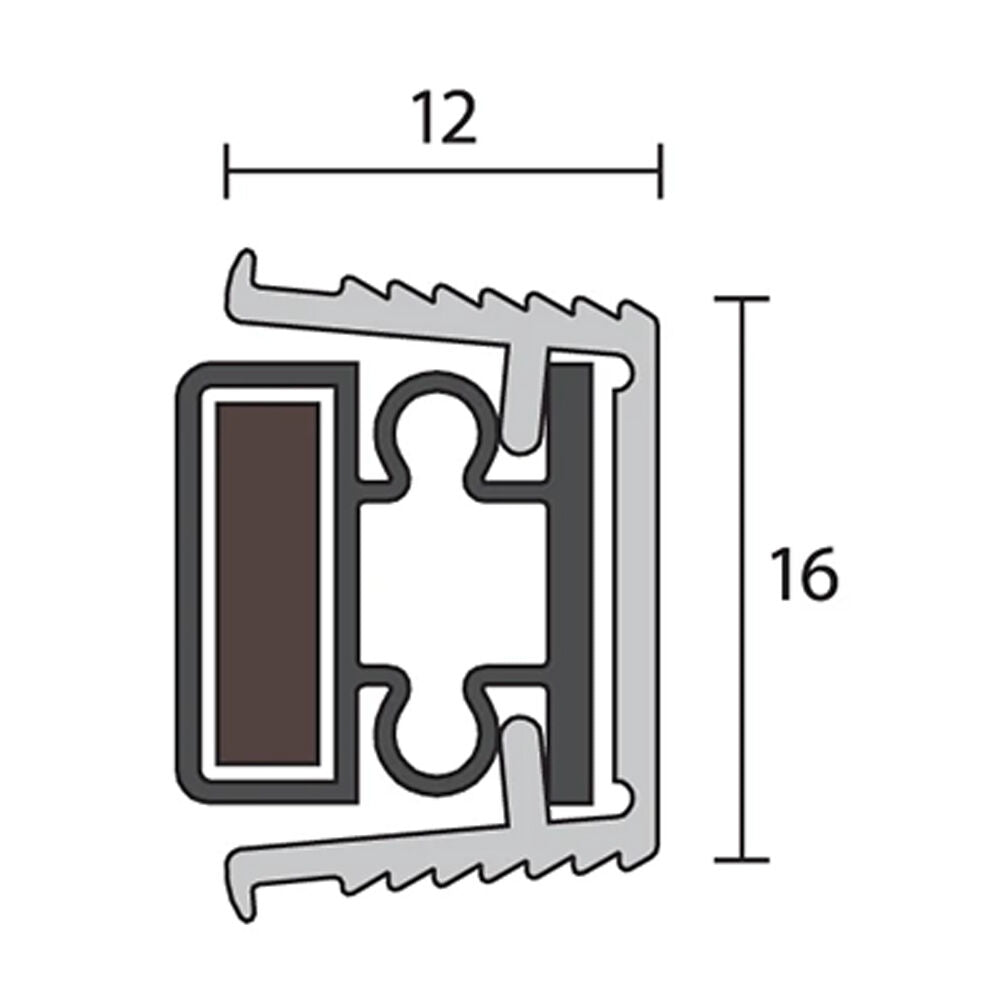

• Width: 16mm
• Depth: 12mm
• Length: 3000mm
• Finish: Silver Anodised

Approvals:

• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
