Raven RP66 Threshold Plate

Threshold Plate enable a smooth entrance for mobility equipment, wheelchairs, or scooters across uneven door thresholds.

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

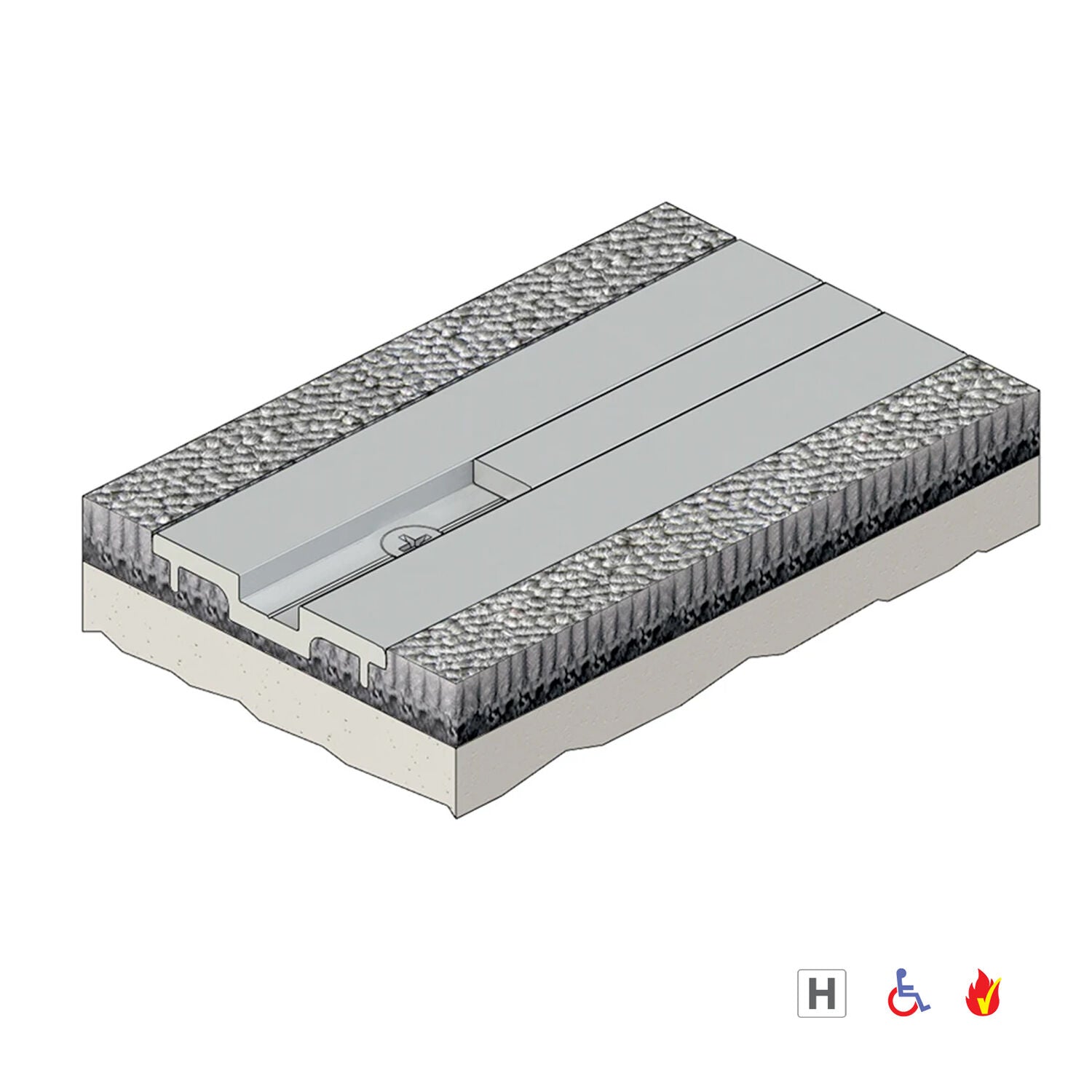

• A flush fitting threshold plate designed for use on internal doors with carpeted floors
• The RP66 can be used in conjunction with Raven door bottom seals such as the RP38Si to provide an optimum sealing surface as carpets can flatten and thus reduce sealing effectiveness.

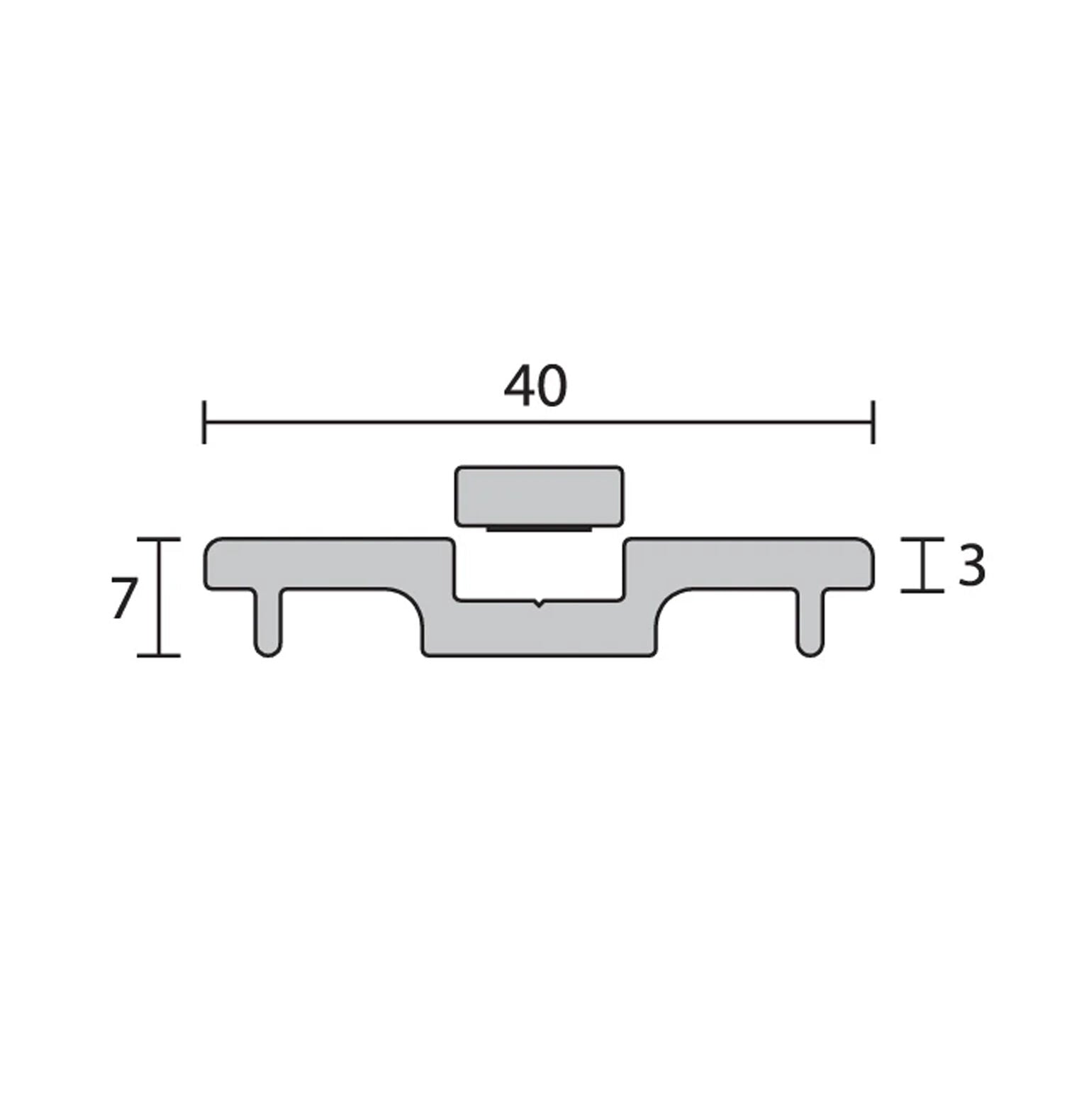

• RP66 has concealed fixings with self-adhesive aluminium insert
• Global GreenTag - Platinum

Specifications:

• Location: Door sill of internal doors with carpeted sills.
• Fixing: Screw Fixed (Screw fix with self-adhesive insert. Zinc plated, cross recess head CSK S.T. screws supplied.)
• Material: Aluminium
• Availabke Sizes:
  • 1000mm
  • 2000mm
• Finish: Clear Anodised

Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

Approvals:

• Access & Mobility AUS/NZ: NCC D3D16, NCC D4D4, AS1428.1:2009 Part 7.2. AS1428.1:2021 Part 4.2, NZBC D1/AS1 1.3.2
• Access & Mobility UK/EU: Approved Document M
• Accreditations: ANSI/BHMA: A156.21
• Fire AUS/N: AS 1905.1, NZBC C/AS2 4.16.2(a) & App C6.1.1, NCC S12C2, AS 1530.4
• Fire UK/EU: Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Fire Rating: Up to FRL & FRR-/240/30
