Raven RP70si Automatic Door Bottom Seal Clear Anodised - Available in Various Sizes

Raven RP70si Automatic Door Bottom Seal

Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

• A heavy duty, fully morticed, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened
• It is self levelling and reversible for left and right handed operation
• Acoustically designed, featuring a silicon gasket for smoke and fire door applications
• RP70Si is operated automatically by pressure against the door jamb on its adjustable brass strike

Specifications:

• Available Length:
  • 450mm
  • 920mm
  • 1070mm

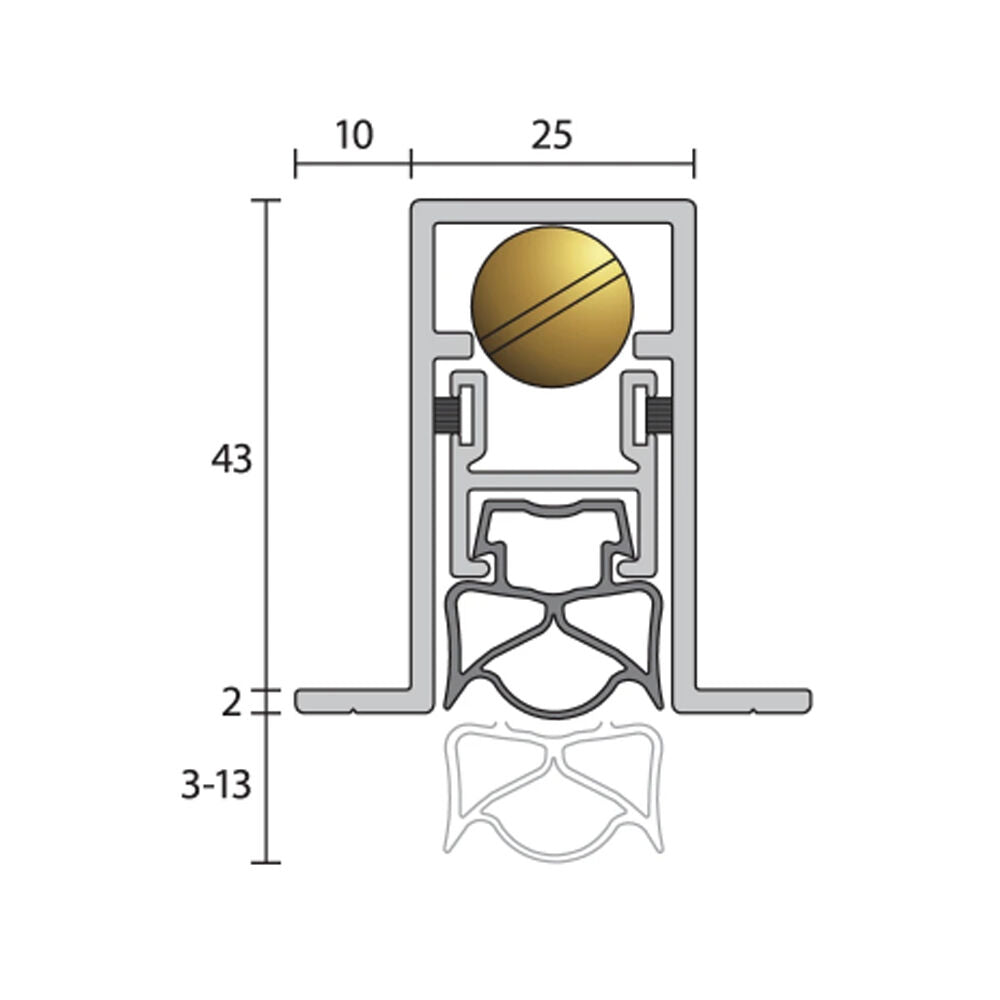

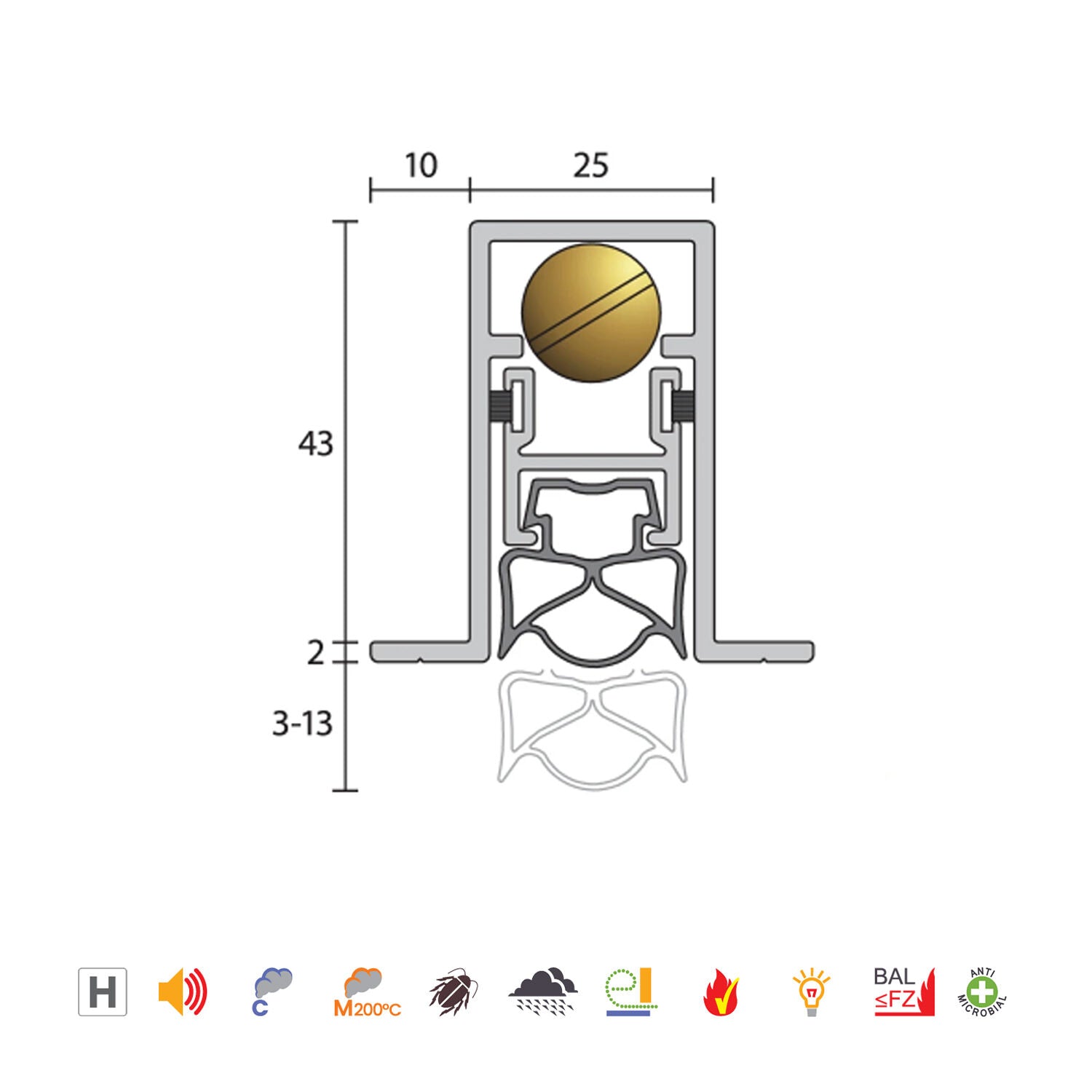

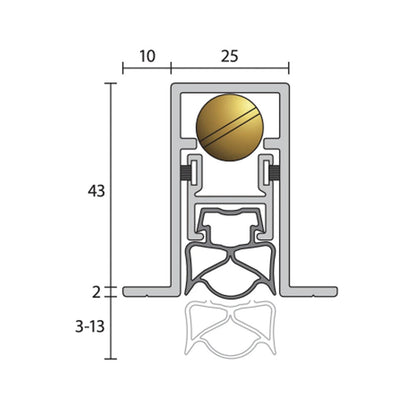

• Min and Max Gap: 3mm - 13mm
• Material: Anodised aluminium with silicon rubber (SE) gasket
• Door/Frame Construction: Timber, Aluminium
• Fixing: Fully Morticed, Screw Fixed
• Door Type:
  • Single Inward Opening
  • Single Outward Opening
  • Double Inward Opening
  • Double Outward Opening

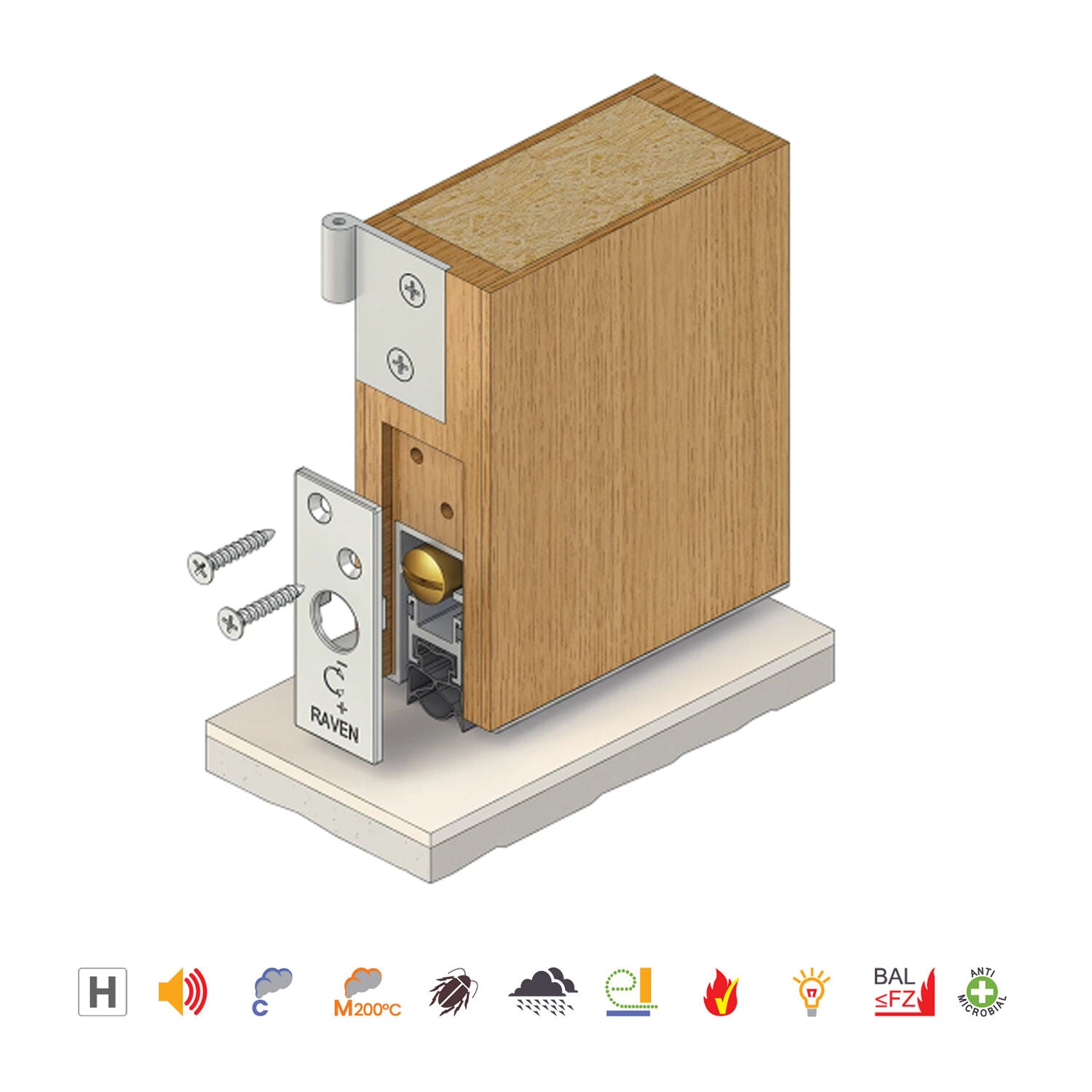

• Location: Fully morticed into the bottom of single and double butt hinged doors (minimum door thickness of 45mm). For double doors, plain meeting stiles are required
• Finish: Silver Anodised

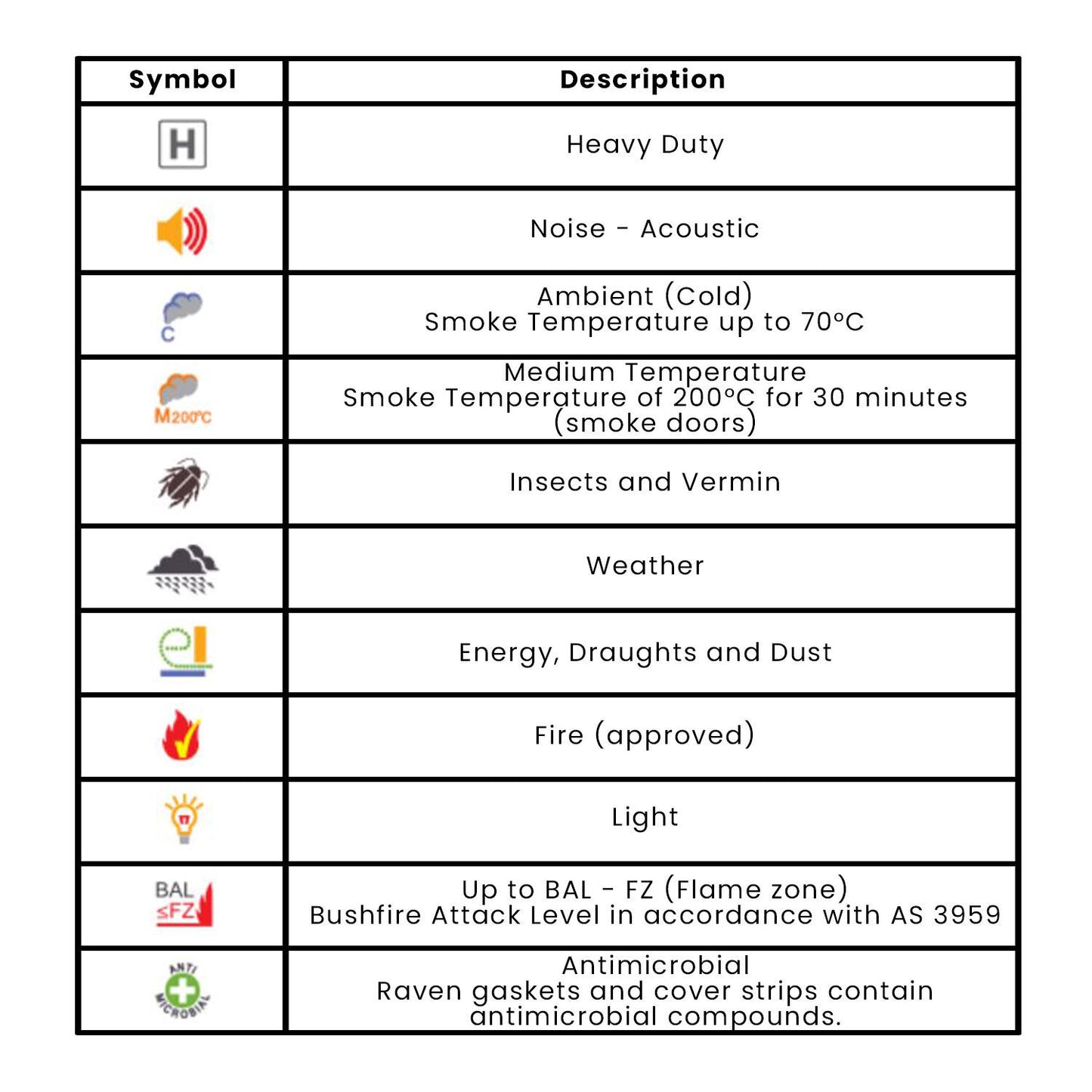

Approvals:
