Raven RP71 Astragal Meeting Style Seal - Available in Various Sizes

Raven RP71 Astragal Meeting Style Seal

Meeting Stile are seals for frameless glass sliding doors.

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

• A meeting stile seal (astragal) designed for plain or rebated meeting stiles of timber double doors where a centre latch bolt may be required or, where both doors are active

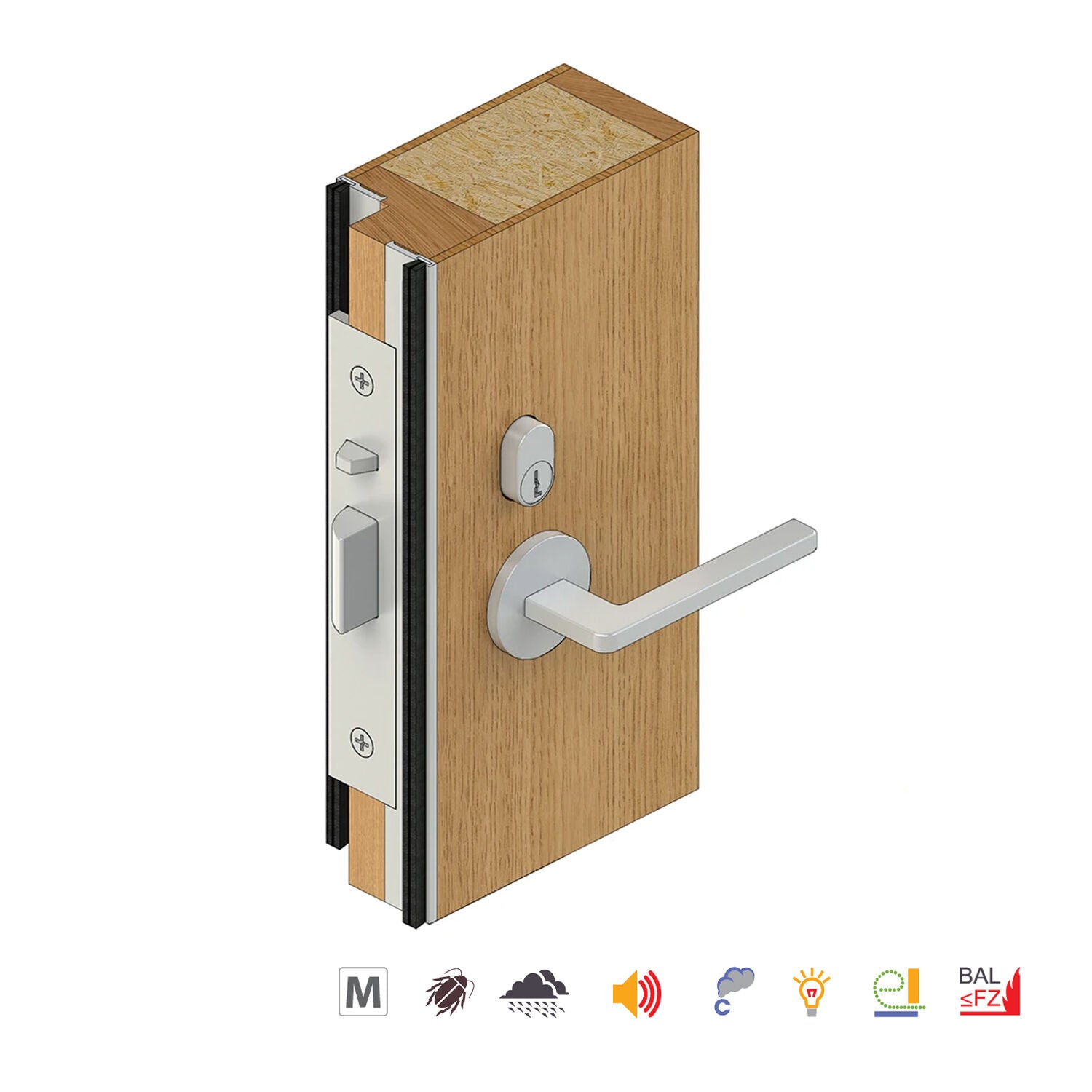

• The unique quiet fin of the RP71 is effective in acoustic and weather applications. Two RP71 seals are installed on to the one door stile which allows space for a latch between the two seal
• The legs of the seals can be checked out to accommodate the latch bolt front plate providing a continuous seal
• Global GreenTag - Platinum

Specifications:

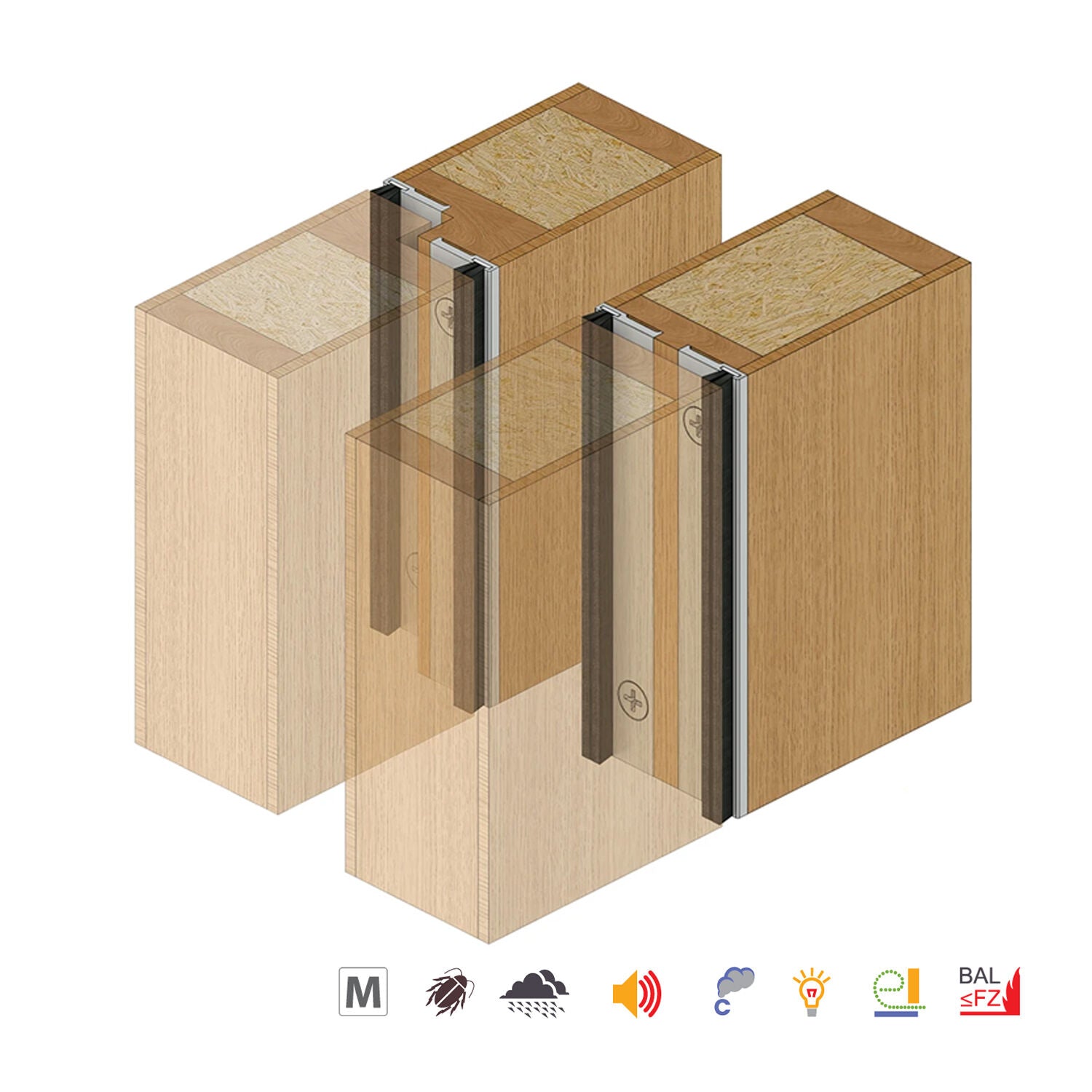

• Location: Meeting stiles of double butt hinged and centre pivot double acting doors.
• Fixing: Screw Fixed (Screw fix. Colour matched zinc plated, cross recess head CSK S.T. screws supplied. Fixing holes are pre-drilled and countersunk)

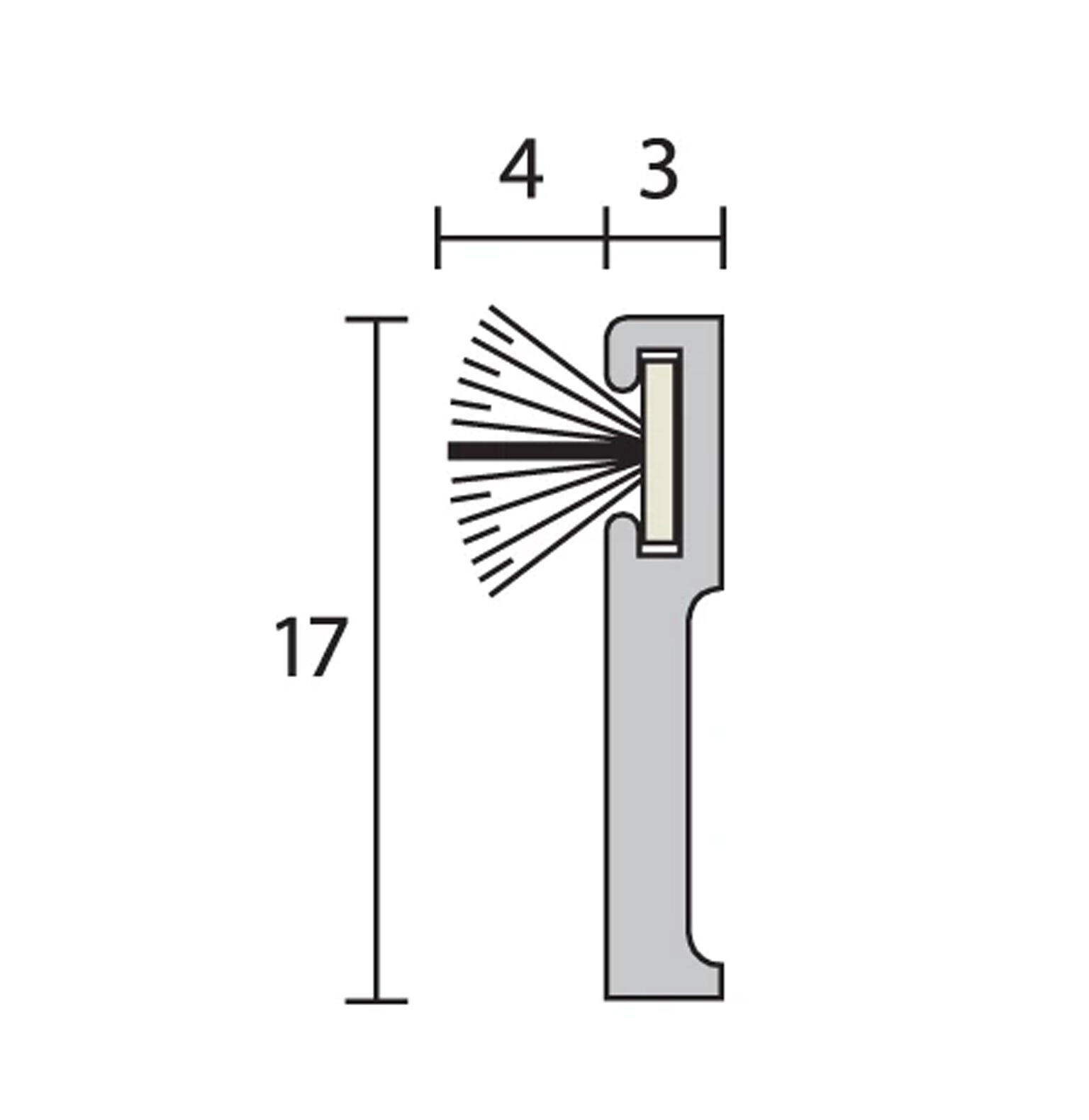

• Minimum and Maximum Gap: 3mm to 4mm
• Replacement Seals: RP71PP
• Door/Frame Construction: Timber
• Available Sizes:
  • 2500mm
  • 2750mm
• Material: Aluminium (Anodised aluminium with black polypropylene pile with felt weather fin)
• Finish: Clear Anodised

Note:

• Minimum door thickness subject to centre latch and dimensions of morticed door bottom seals.
• Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

Approvals:

• Acoustic AUS/NZ: NCC F7D6
• Acoustic UK/EU: Approved Document E, Rated to BS EN ISO 717-1
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
