SKU: RAVA74FBK3000
Raven RP74F Nylon Brush Strip Seals - Available in Various Sizes
RRP: $163.54
Payments accepted:
Couldn't load pickup availability
Raven RP74F Nylon Brush Strip Seals
Nylon Brush Strip Seal is a versatile and effective sealing solution that consists of nylon bristles attached to a backing strip. It's commonly used in various applications for its ability to provide a flexible, durable, and cost-effective seal.
Nylon Brush Strip Seal Function - They are often used in doors, especially for weatherproofing, to reduce air leaks and prevent dust, dirt, or insects from entering. Nylon brush strips is also used in garage doors to seal gaps, reduce noise, and maintain temperature control.
Features:

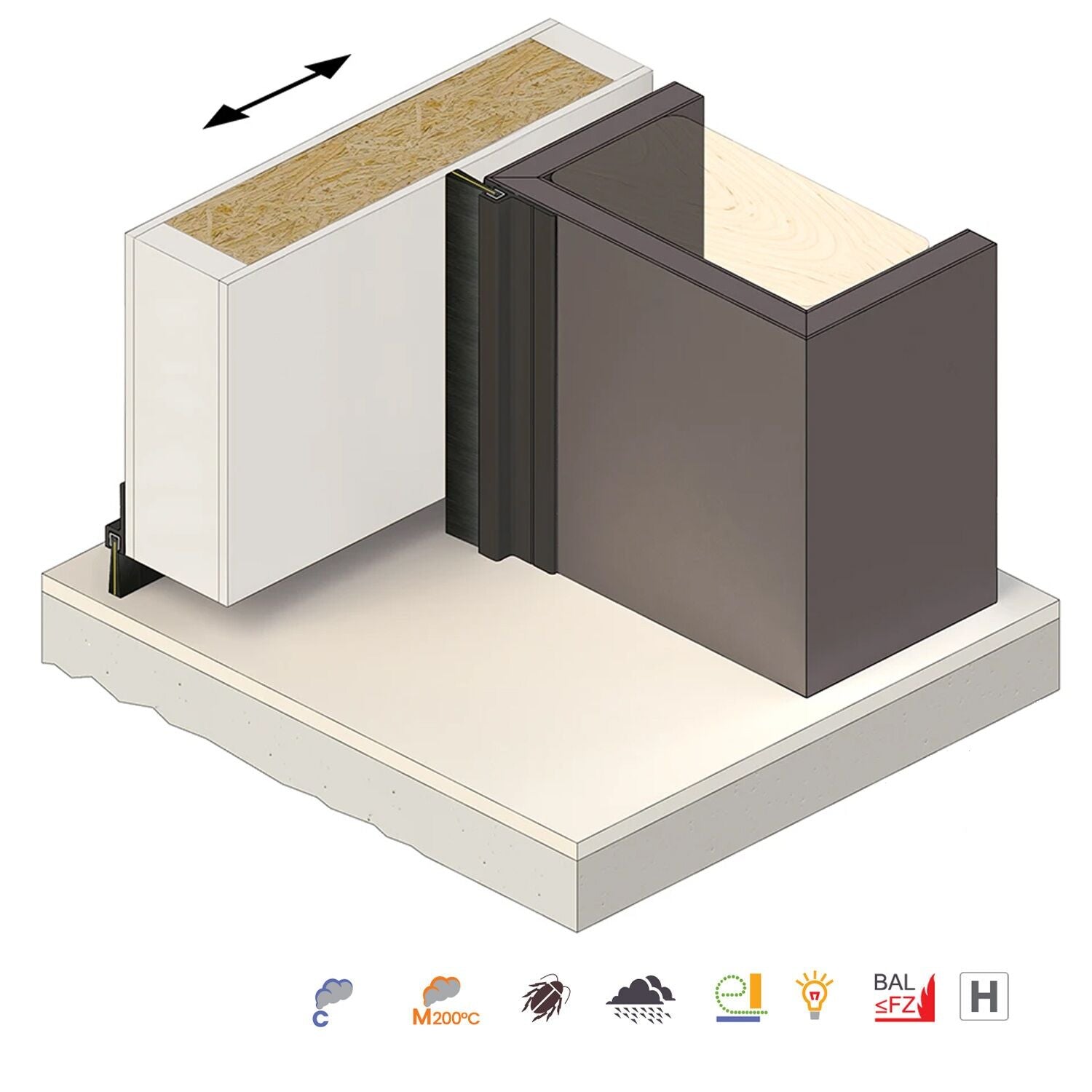

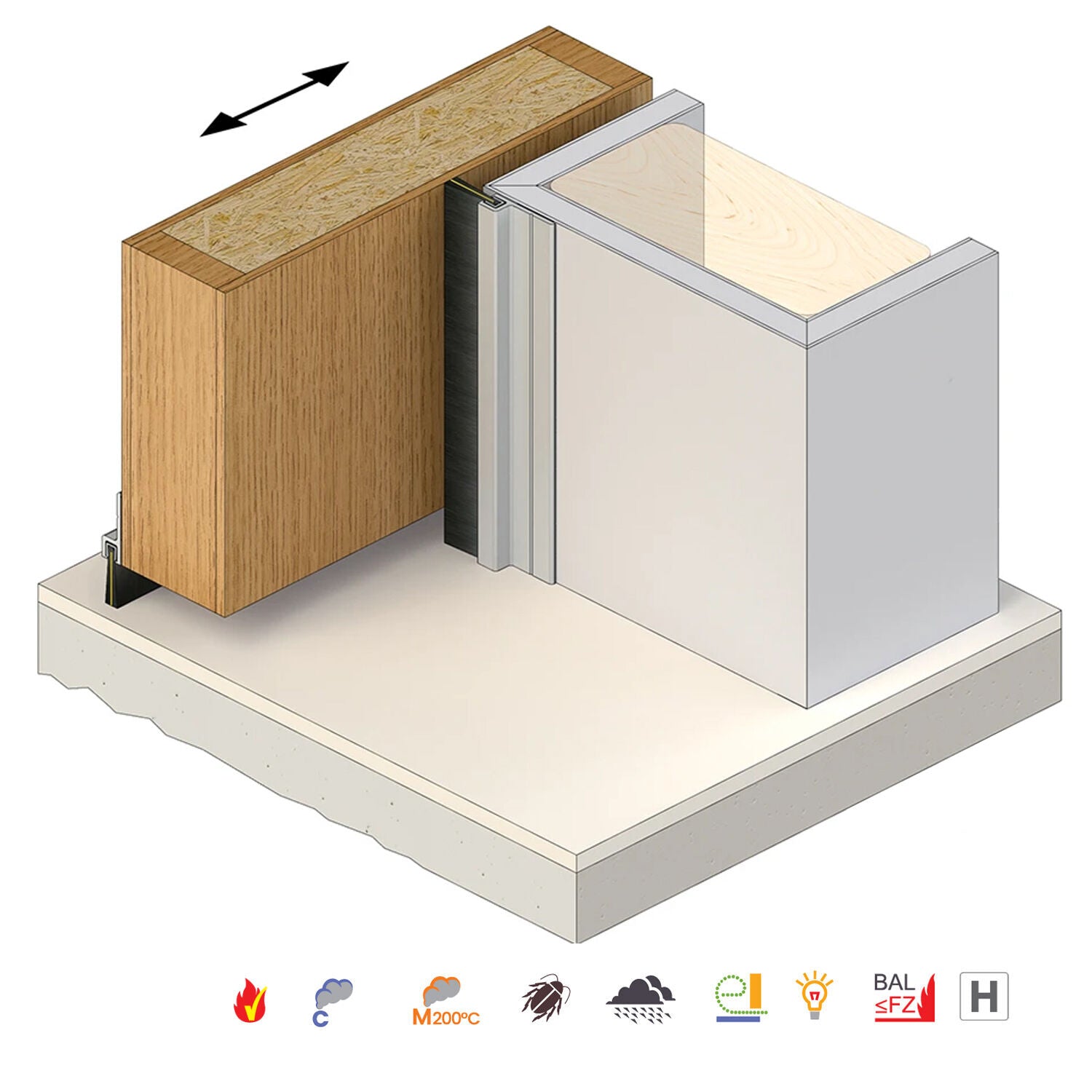

- A nylon brush strip seal that is ideal for sliding or double acting doors
- Can also be used for the stiles of tilt-up doors. The brush houses a unique medium temperature fin, which is effective in the sealing of medium temperature smoke, noise and weather
- Used in conjunction with Raven threshold plates
- Global GreenTag - Bronze
Specifications:
-
Door/Frame Construction: Timber, Aluminium
- Door Type: SSingle Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Sliding, Pivot
- Location: Frames or bottoms of single, double, sliding and double acting doors as well as stiles of tilt up doors. Suitable for hard, flat surfaces.
- Fixing: Screw Fixed (Self-adhesive)

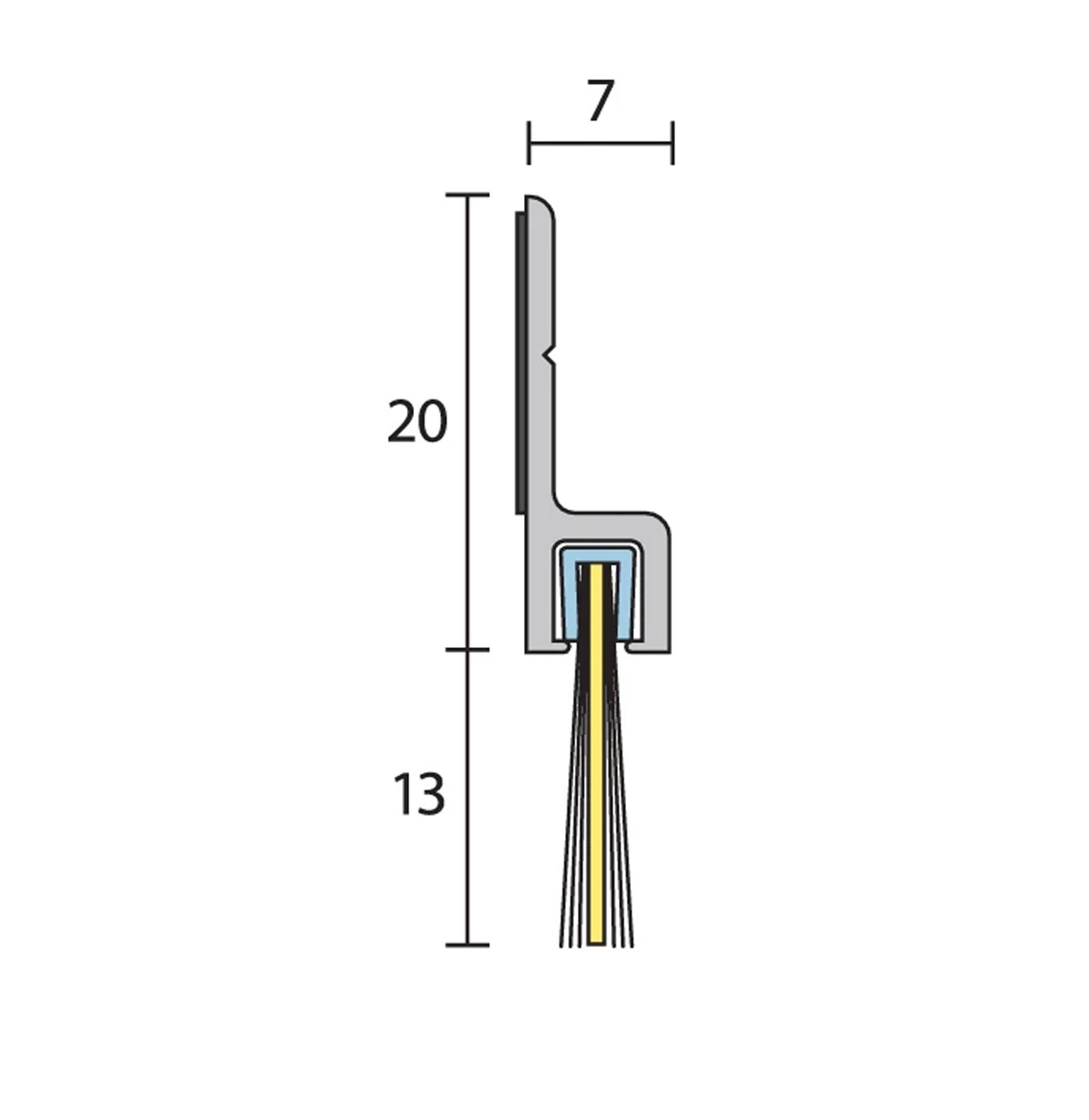

- Minimum and Maximum Gap: 0mm to 13mm
- Replacement Seals: RP52F
- Size: 3000mm
-
Available Finish:
-
Black
- Clear Anodised
-
Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.
Note: Contact surface must be clean, smooth and if painted, well cured. Self-adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces)
Approvals:
- Fire AUS/NZ: AS 1530.4, AS 1905.1, NCC S12C2
- Fire Rating: Up to FD120, Up to FRL & FRR-/120/30
- Fire Flammability Index: Brush Strip flammability index 1 when tested to AS1530.2
- Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
- BAL Statement: BAL FZ when used on an approved side hung fire door in accordance with AS 3959, BAL FZ when used on a garage in accordance with AS 3959
-
BAL Statement: BAL FZ when used with an approved proprietary fire rated door in accordance with AS 3959
Raven RP74F Nylon Brush Strip Seals
A74FBK3000
Nylon Brush Strip Seal is a versatile and effective sealing solution that consists of nylon bristles attached to a backing strip. It's commonly used in various applications for its ability to provide a flexible, durable, and cost-effective seal.
Nylon Brush Strip Seal Function - They are often used in doors, especially for weatherproofing, to reduce air leaks and prevent dust, dirt, or insects from entering. Nylon brush strips is also used in garage doors to seal gaps, reduce noise, and maintain temperature control.
Features:
- A nylon brush strip seal that is ideal for sliding or double acting doors
- Can also be used for the stiles of tilt-up doors. The brush houses a unique medium temperature fin, which is effective in the sealing of medium temperature smoke, noise and weather
- Used in conjunction with Raven threshold plates
- Global GreenTag - Bronze
Specifications:
- Door/Frame Construction: Timber, Aluminium
- Door Type: SSingle Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Sliding, Pivot
- Location: Frames or bottoms of single, double, sliding and double acting doors as well as stiles of tilt up doors. Suitable for hard, flat surfaces.
- Fixing: Screw Fixed (Self-adhesive)
- Minimum and Maximum Gap: 0mm to 13mm
- Replacement Seals: RP52F
- Size: 3000mm
- Finish: Black
Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.
Note: Contact surface must be clean, smooth and if painted, well cured. Self-adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces)
Approvals:
- Fire AUS/NZ: AS 1530.4, AS 1905.1, NCC S12C2
- Fire Rating: Up to FD120, Up to FRL & FRR-/120/30
- Fire Flammability Index: Brush Strip flammability index 1 when tested to AS1530.2
- Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
- BAL Statement: BAL FZ when used on an approved side hung fire door in accordance with AS 3959, BAL FZ when used on a garage in accordance with AS 3959
- BAL Statement: BAL FZ when used with an approved proprietary fire rated door in accordance with AS 3959
