SKU: RAVA77C1500
Raven RP77 Threshold Plates 1500mm Clear Anodised A77C1500
RRP: $118.60
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

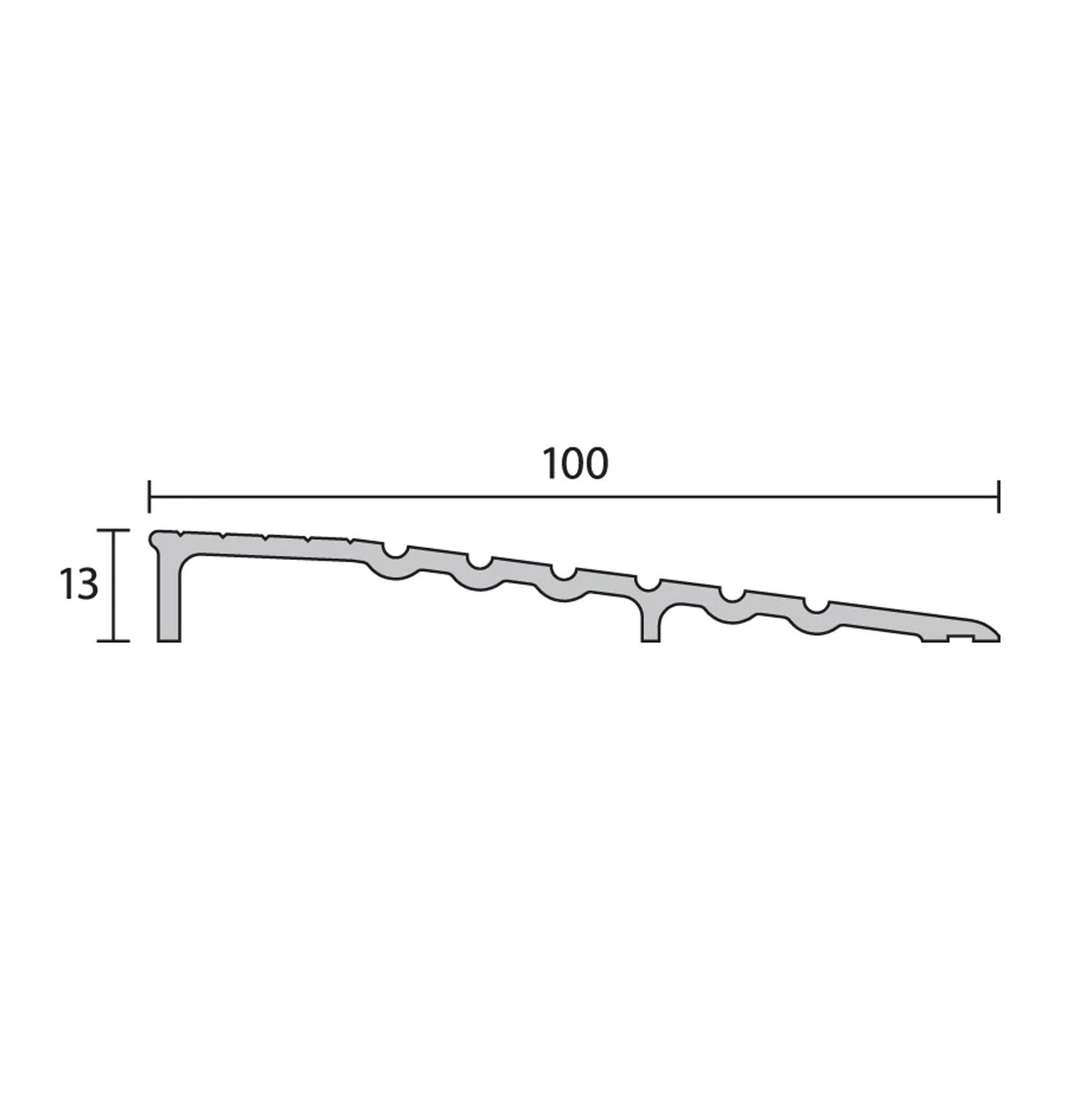

Raven RP77 Threshold Plates
A77C1500
Threshold Plate - enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

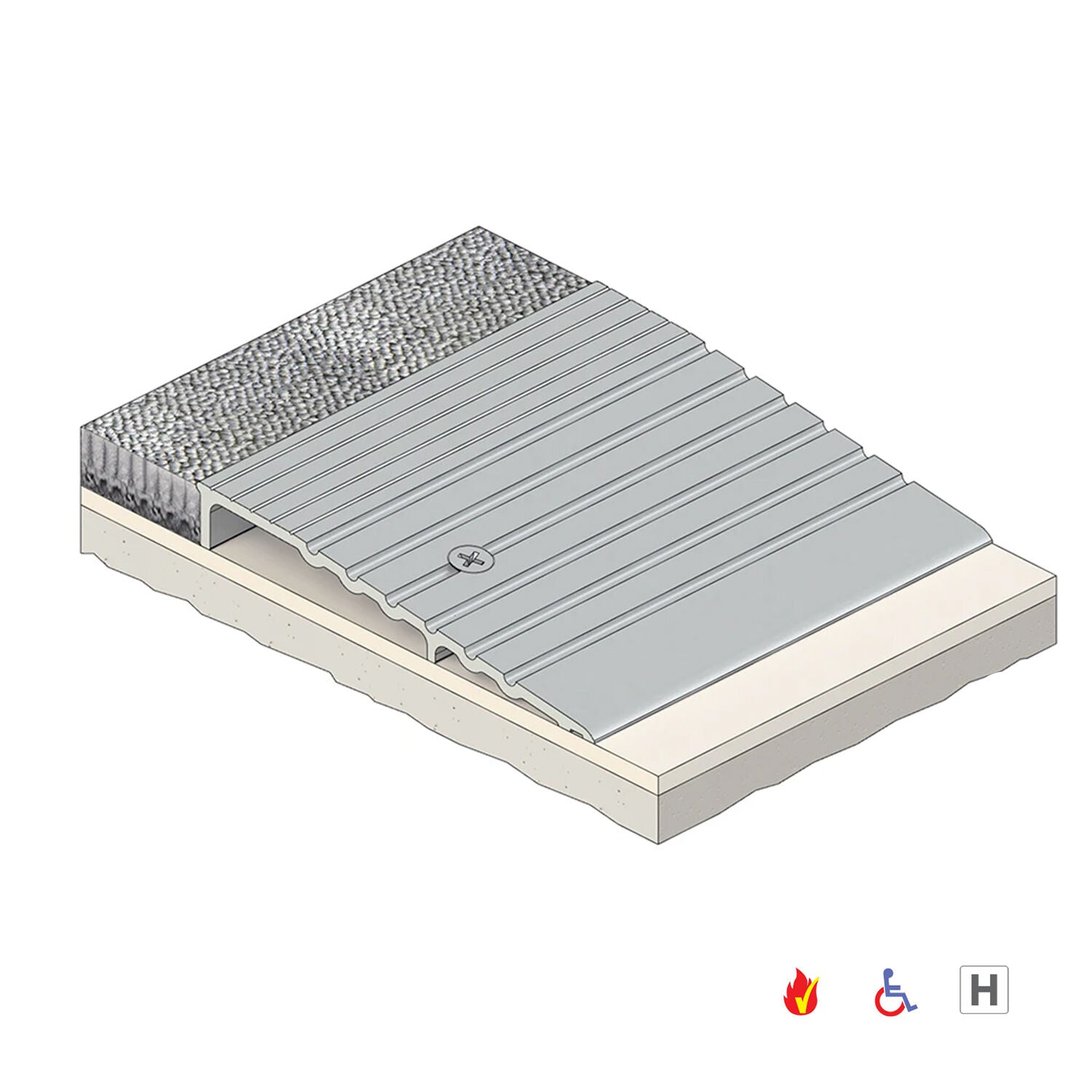

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.
Features:
- A heavy duty threshold ramp with a ribbed design which can be positioned back-to-back to form a two-way threshold ramp conforming to NCC D3D16 (b)
- Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration. Suitable for use with most floor pivots
- Ideal for commercial shop fronts providing a neat ramp detail between carpets or tiles at door ways
- Can also be used to provide a ramped frame for internal door mats
- Global GreenTag - Platinum
Specifications:
- Location: Door sill.
- Size: 1500mm
-
Fixing: Screw Fixed (Screw fix. Zinc plated, cross recess head CSK S.T. screws supplied)
- Material: Aluminium
- Finish: Clear Anodised
Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.
Approvals:
- Access and Mobility AUS/NZ: NCC D3D16, NCC D4D4, AS1428.1:2009 Part 7.2. AS1428.1:2021 Part 4.2, NZBC D1/AS1 1.3.2
- Access and Mobility UK/EU: Approved Document M
- Accreditations: ANSI/BHMA: A156.21
- Fire AUS/NZ: AS 1905.1, NCC S12C2, NZBC C/AS2 4.16.2(a) andamp; App C6.1.1, AS 1530.4
- Fire UK/EU: Approved Document B, BS 476 Pt. 20 andamp; 22 (similar to BS EN 1634-1)
- Fire Rating: Up to FD180, Up to FRL andamp; FRR-/240/30
- BAL Statement: BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959

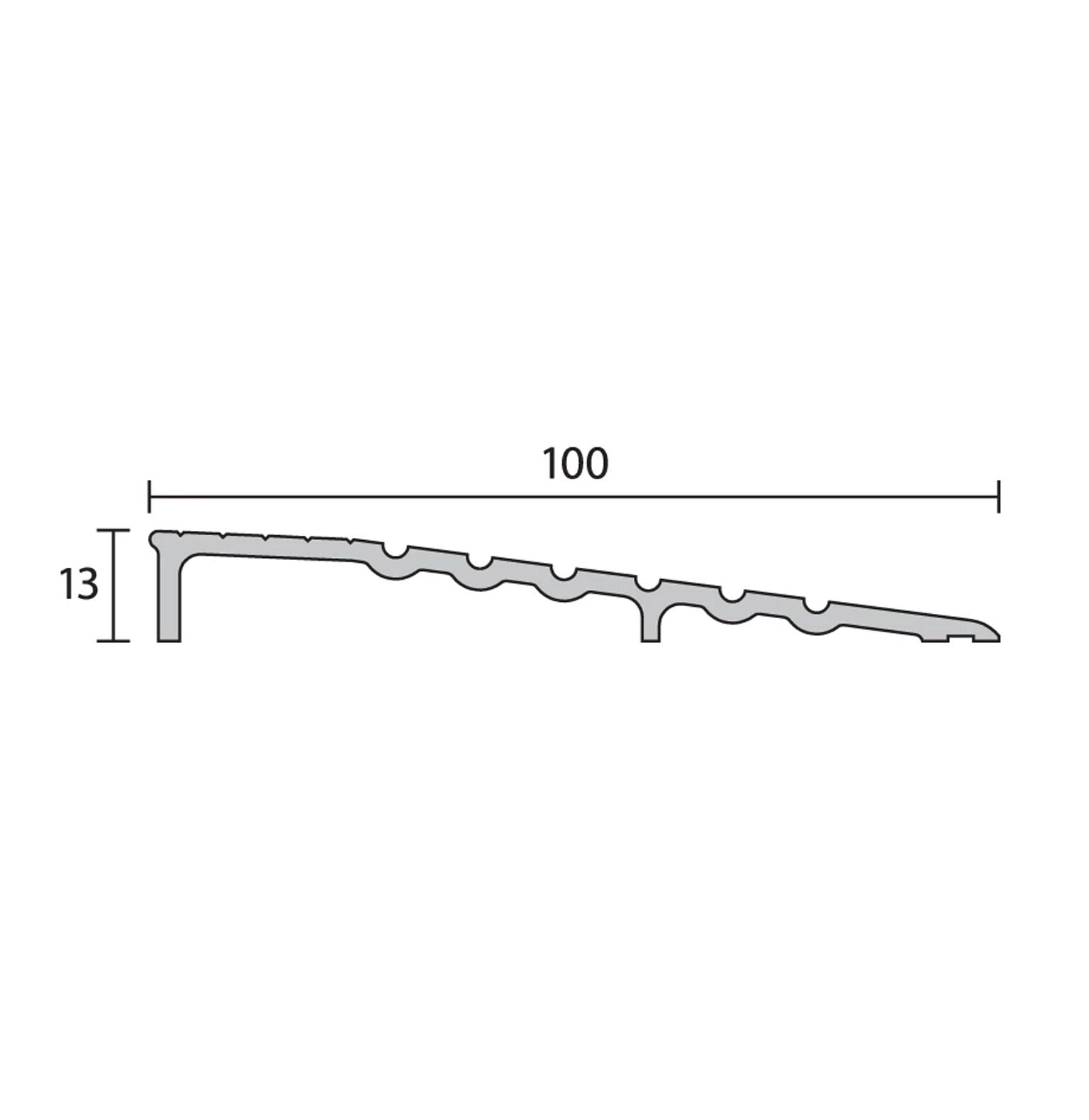

Raven RP77 Threshold Plates
