Raven RP78HSI Door Perimeter Seals - Available in Various Sizes

Raven RP78HSI Door Perimeter Seals

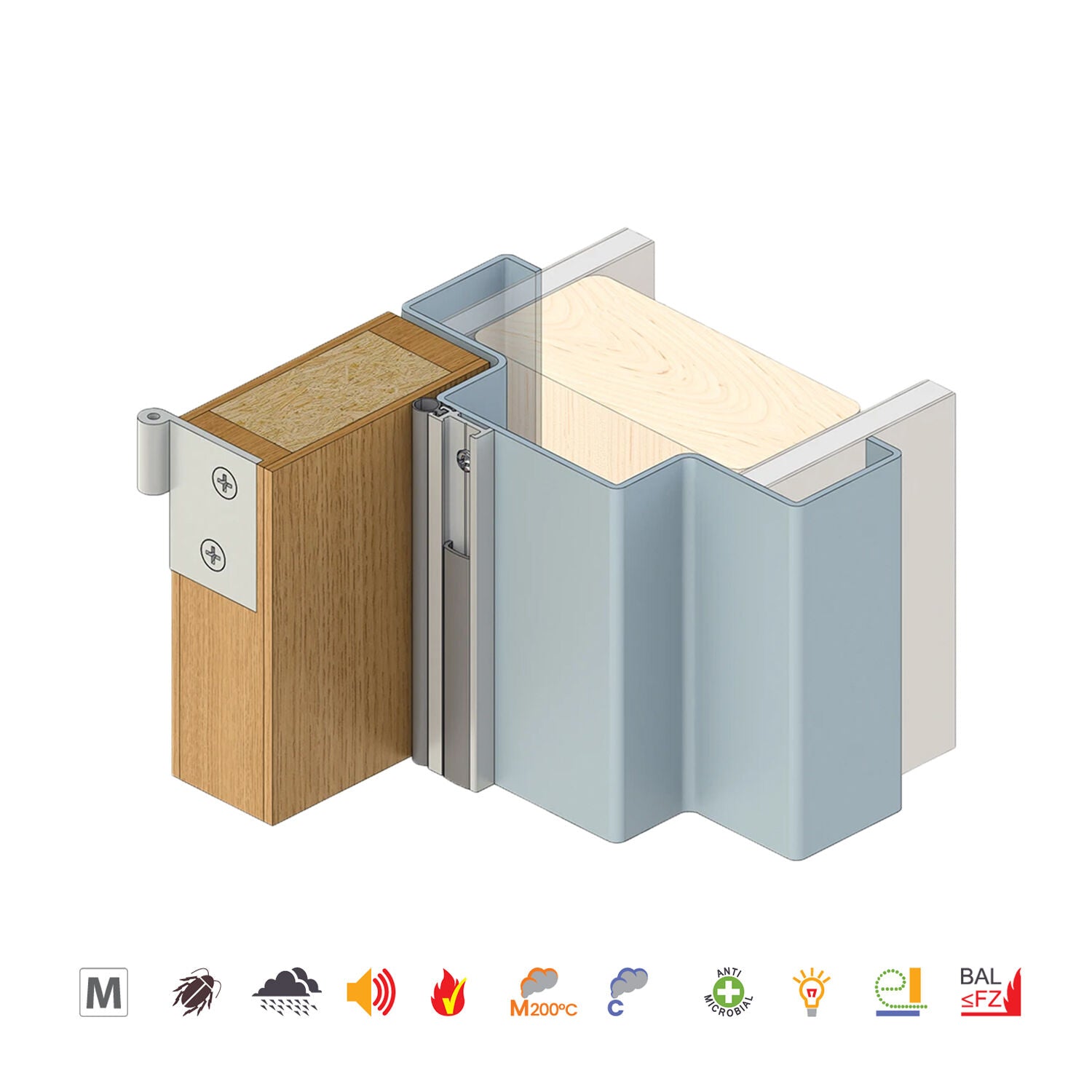

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• This medium temperature smoke seal is designed for clean room and health care facilities.
• RP78HSi has an easy wipe clean design where the smooth sealing gasket also contains an antimicrobial additive for maximum protection against surface bacteria
• Its aluminium carrier is sturdy and slotted for adjustment with concealed fixings
• Quick and easy to install around the jamb and head and can be fitted without removing the door
• The RP78Si can be mitred or butt jointed for a neat finish
• Can be used in conjunction with the Raven RP8Si, RP16Si, RP35Si, RP38Si, RP99Si, RP126Si, RP127Si or RP128Si automatic door bottom seals

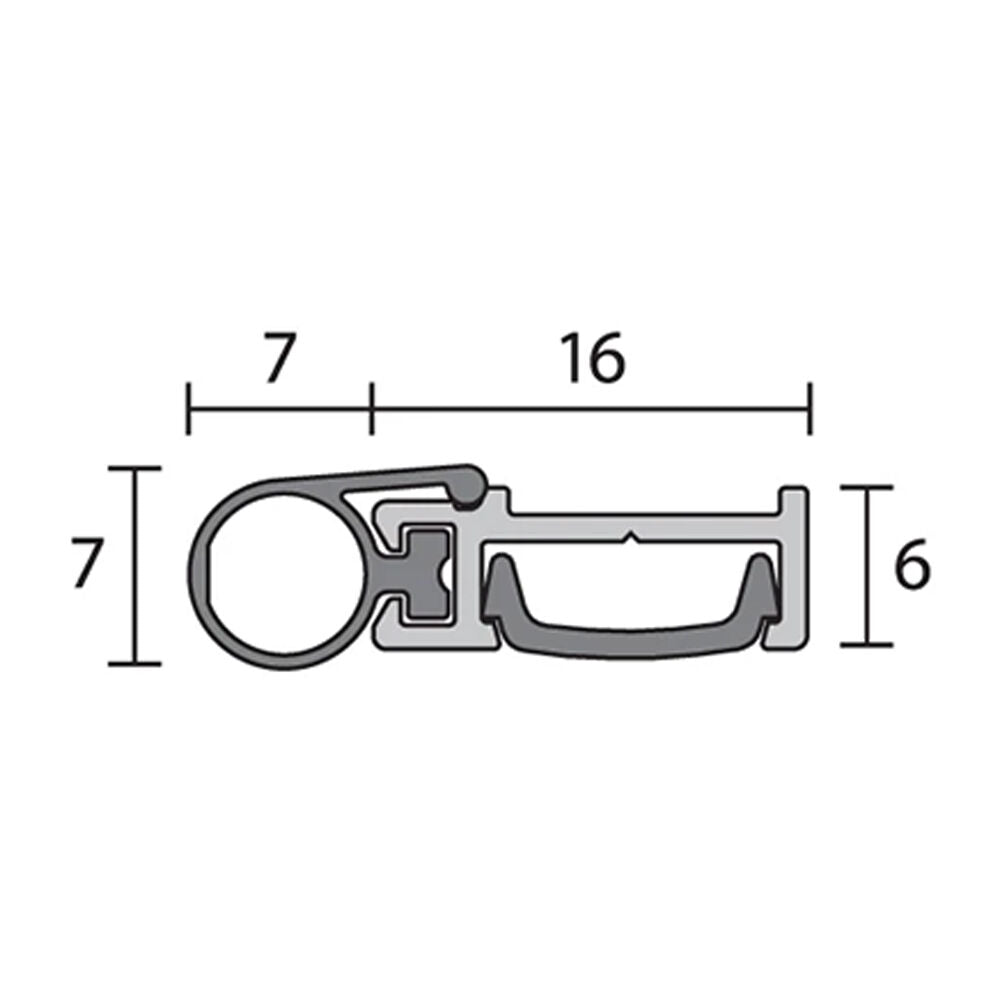

Specifications:

• Max Gap: 6mm
• Fixing: Screw Fix
• Width: 16mm
• Projection: 7mm
• Length:
  • Long Single Door Set (1 x 1000mm and 2 x 2750mm)
  • Single Door Set (1 x 1000mm and 2100mm)
• Finish: Silver Anodised

Approvals:

• Certifire: CF 5710
• AS 1530.4, AS 1905.1, NCC S12C2, NZBC C/AS2 4.16.2
• Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Up to FRL & FRR-/240/30, Up to FD240
• Gasket flammability index 1 when tested to AS1530.2
• NCC S12C4, AS 1530.7, BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
