SKU: RAVA78SICDS
Raven RP78Si Door Perimeter Seal - Available in Various Finishes and Sizes
RRP: $135.92
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

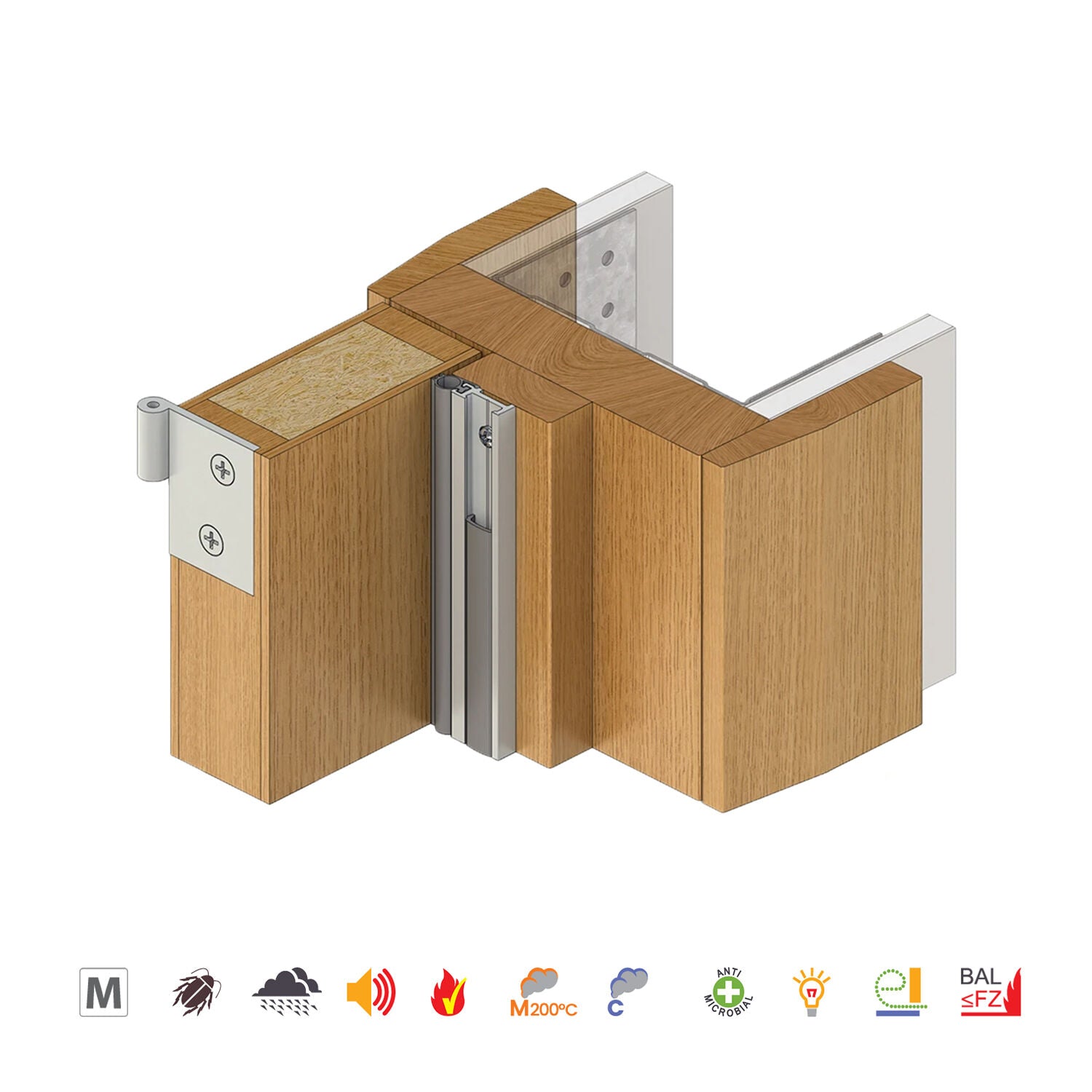

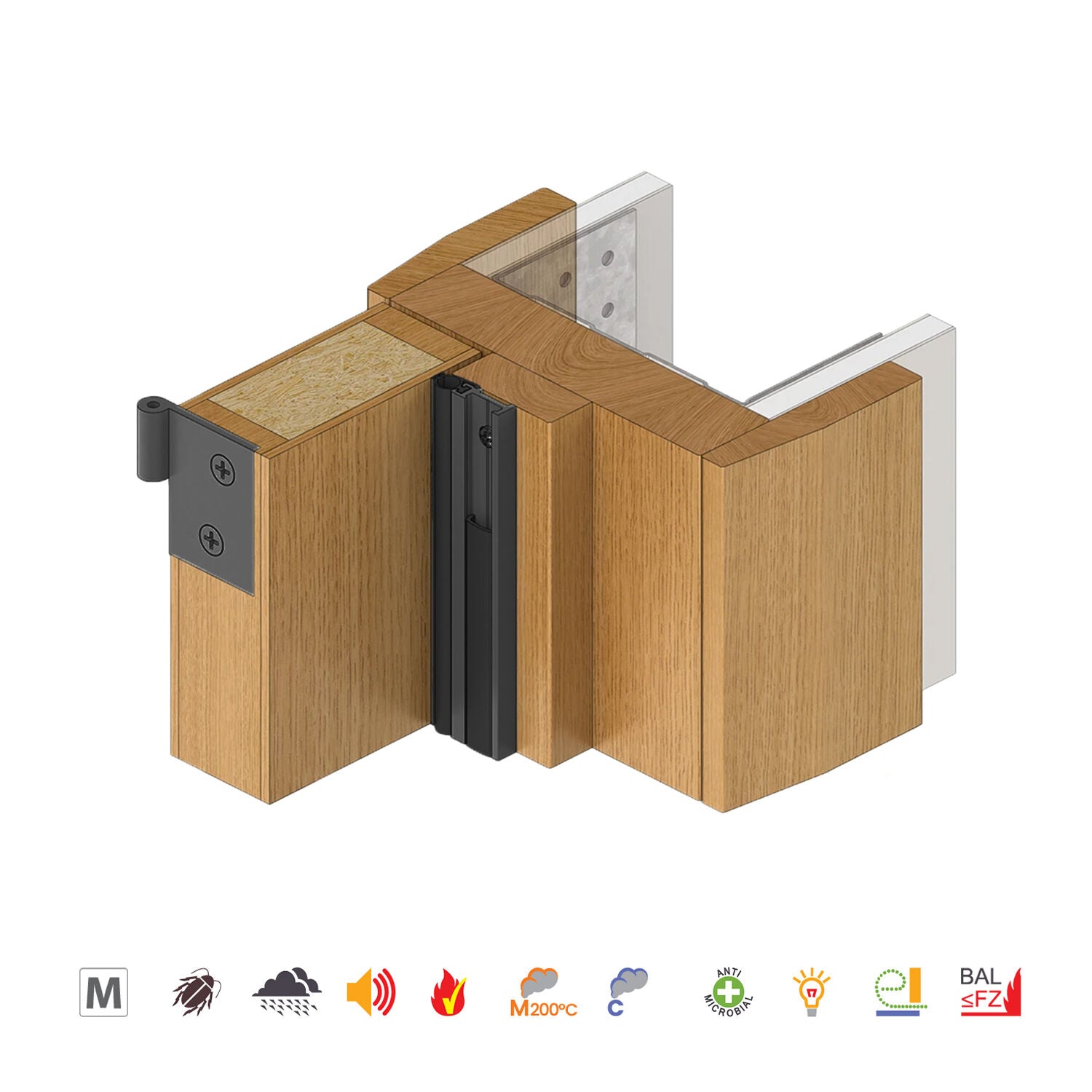

Raven RP78Si Door Perimeter Seal
Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.
Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.
Features:
- An acoustic medium-temperature smoke door frame seal designed for installation on door stops
- Its aluminium carrier is sturdy and slotted for adjustment with concealed fixings
- It is quick and easy to install around the jamb and head and can be fitted without removing the door
- The RP78Si can be mitered or butt-jointed for a neat finish.
- Can be used in conjunction with the Raven RP8Si, RP16Si, RP35Si, RP38Si, RP99Si, RP126Si, RP127Si or RP128Si automatic door bottom seals

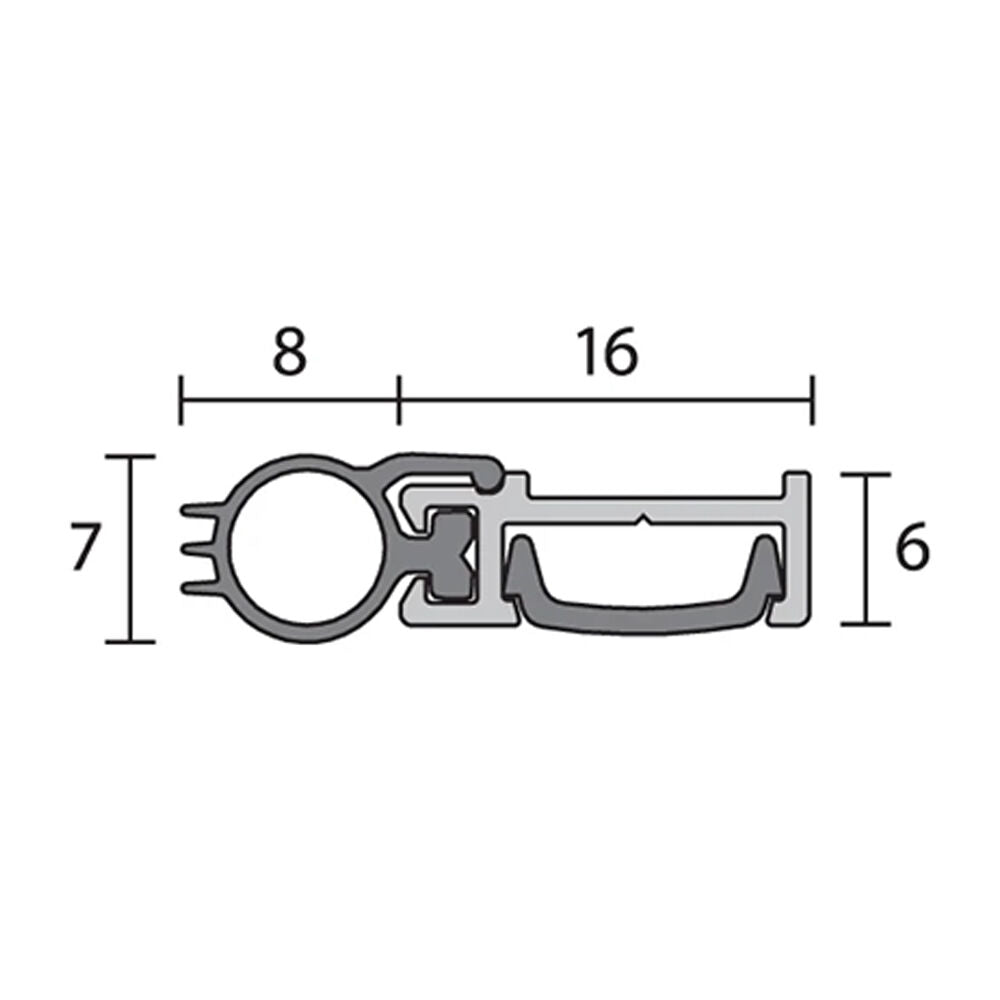

Specifications:
- Max Gap: 6mm
- Fixing: Screw Fix
- Width: 16mm
- Projection: 7mm
-
Length:
- 2250mm
- 3000mm
- Double Door Set (3 x 2100mm)
- Long Double Door Set (1 x 2100mm and 2 x 2750mm)
- Long Single Door Set (1 x 1000mm and 2 x 2750mm)
- Single Door Set (1 x 1000mm and 2 x 2100mm)
-
Available Finish:
- Black Anodised
- Bronze Anodised
- Silver Anodised
Approvals:
- UL R37913.
- Certifire CF 5710
- ANSI/BHMA A156.22.
- Acoustic AUS/NZ: NCC Spec. F5.5.
- UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
- Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 and AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 and App. C6.1.1.
- UK/EU: Approved Document B. BS 476 Pt. 20 and 22 (similar to BS EN 1634-1).
- FRL and FRR-/240/60 and FD240.Fire Approved
- Gasket flammability index 1 when tested to AS1530.2.
- Smoke NCC Spec. C3.4. AS1530.7 and BS EN 1634-3. Meets smoke leakage rates specified in AS6905 and EN 13501-2 (Sa), (Sm).
- Energy NCC Pt. 3.12.3.3 and J3.4.
Note: The Light Grey Silicon Rubber for Clear Anodised are Special Order
Raven RP78Si Door Perimeter Seal
A78SICDS
Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.
Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.
Features:
- An acoustic medium-temperature smoke door frame seal designed for installation on door stops
- Its aluminium carrier is sturdy and slotted for adjustment with concealed fixings
- It is quick and easy to install around the jamb and head and can be fitted without removing the door
- The RP78Si can be mitered or butt-jointed for a neat finish.
- Can be used in conjunction with the Raven RP8Si, RP16Si, RP35Si, RP38Si, RP99Si, RP126Si, RP127Si or RP128Si automatic door bottom seals
Specifications:
- Max Gap: 6mm
- Fixing: Screw Fix
- Width: 16mm
- Projection: 7mm
- Length: Double Door Set (3 x 2100mm)
- Finish: Silver Anodised
Approvals:
- UL R37913.
- Certifire CF 5710
- ANSI/BHMA A156.22.
- Acoustic AUS/NZ: NCC Spec. F5.5.
- UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
- Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 and AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 and App. C6.1.1.
- UK/EU: Approved Document B. BS 476 Pt. 20 and 22 (similar to BS EN 1634-1).
- FRL and FRR-/240/60 and FD240.Fire Approved
- Gasket flammability index 1 when tested to AS1530.2.
- Smoke NCC Spec. C3.4. AS1530.7 and BS EN 1634-3. Meets smoke leakage rates specified in AS6905 and EN 13501-2 (Sa), (Sm).
- Energy NCC Pt. 3.12.3.3 and J3.4.
Note: The Light Grey Silicon Rubber for Clear Anodised are Special Order
