SKU: RAVA79C3000
Raven RP79 Astragal Meeting Stile Seals 3000mm Silver Anodised A79C3000
RRP: $68.22
Payments accepted:
Couldn't load pickup availability
Raven RP79 Astragal Meeting Stile Seals
A79C3000

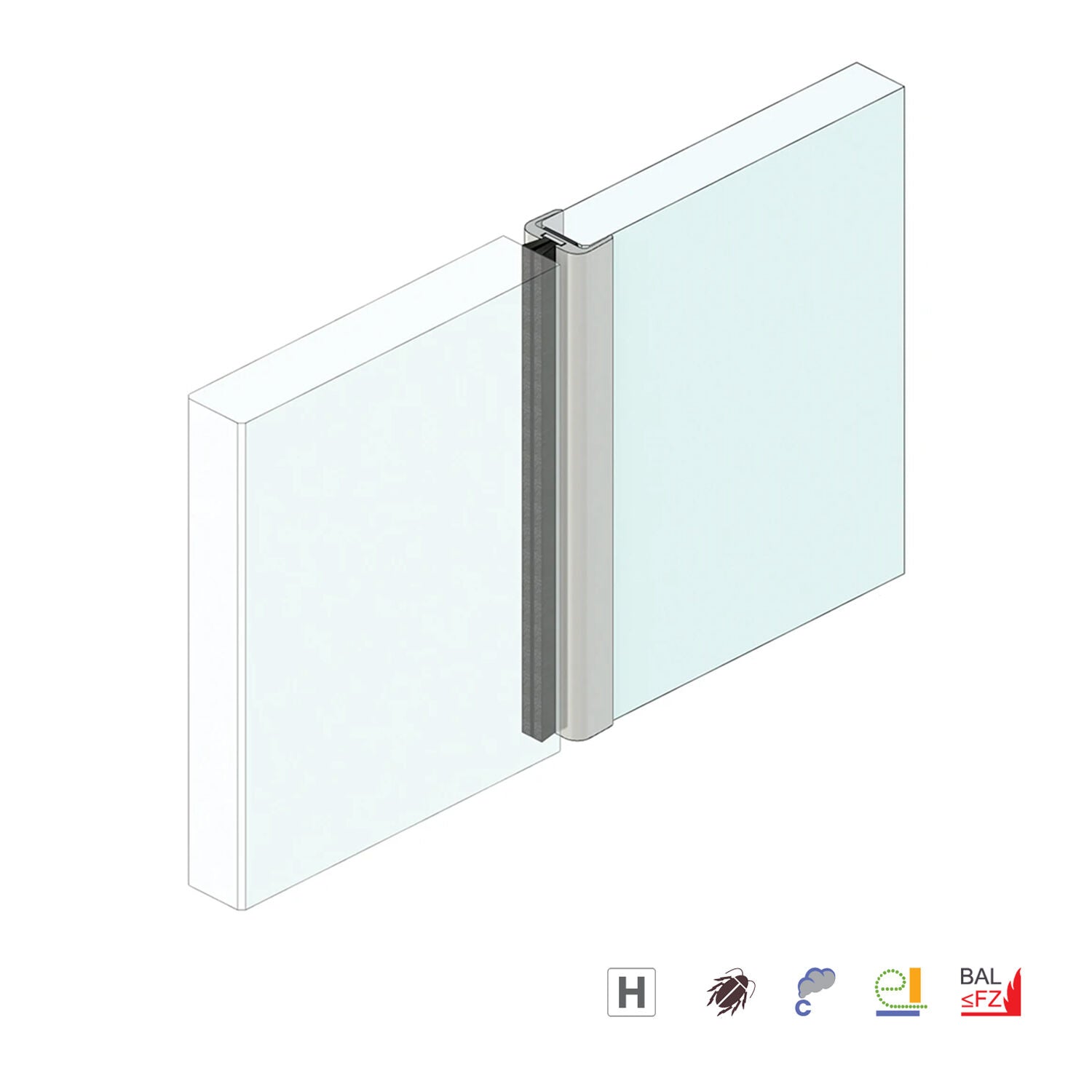

Meeting Stile are seals for frameless glass sliding doors.
Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.
Features:
- An aluminium meeting stile seal (astragal) designed for frameless glass doors
- The woven pile sealing strip is combined with a weather fin to form an effective weather and energy seal
- Use in conjunction with Raven brush strip door bottom seals RP2b, RP74 and threshold plates

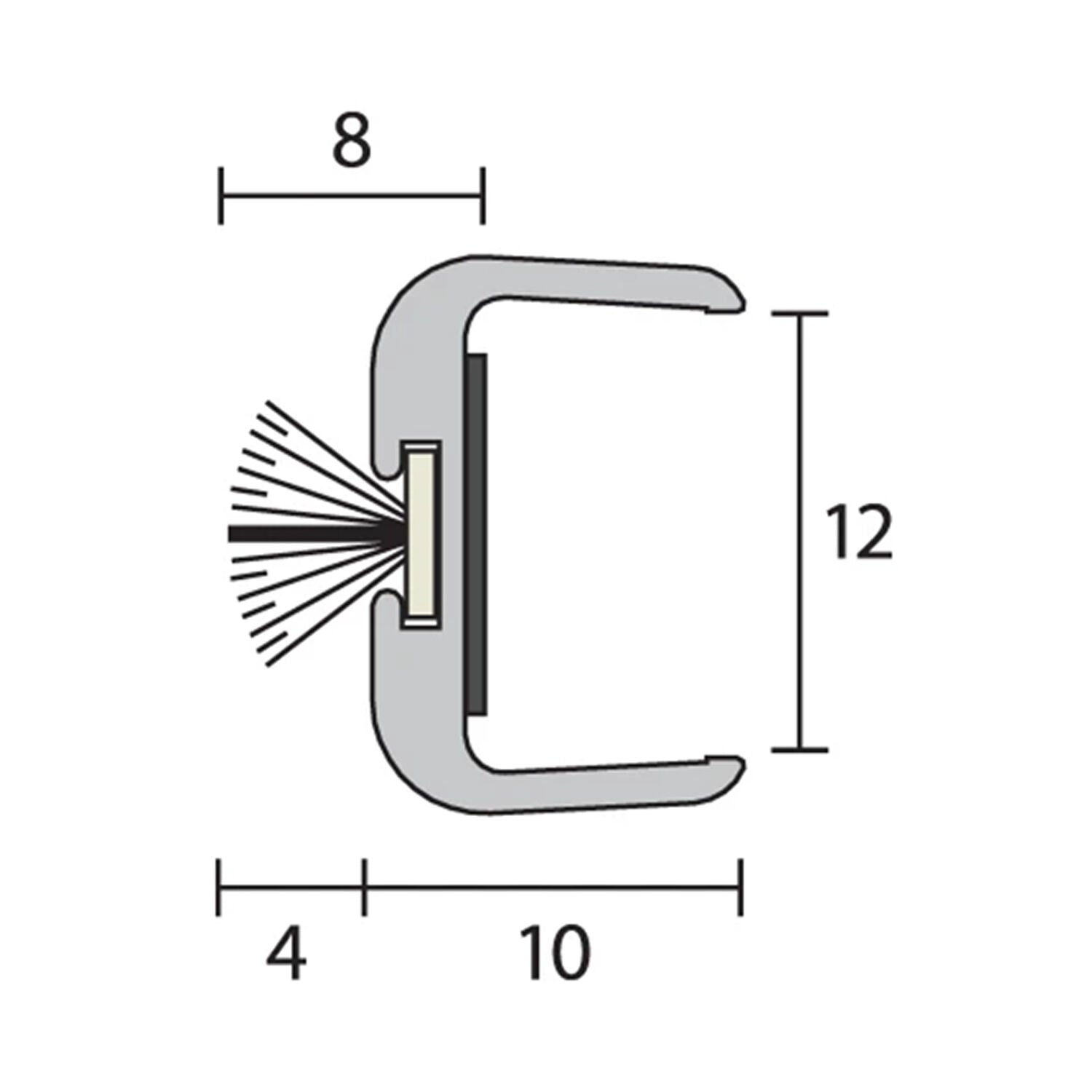

Specifications:
- Min and Max Gap: 8mm - 9mm
-
Fixing: Self-adhesive
- Depth: 10mm
- Projection: 4mm
- Width: 12mm
- Length: 3000mm
- Finish: Silver Anodised
Approvals:
- ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
Raven RP79 Astragal Meeting Stile Seals
A79C3000
Meeting Stile are seals for frameless glass sliding doors.
Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.
Features:
- An aluminium meeting stile seal (astragal) designed for frameless glass doors
- The woven pile sealing strip is combined with a weather fin to form an effective weather and energy seal
- Use in conjunction with Raven brush strip door bottom seals RP2b, RP74 and threshold plates
Specifications:
- Min and Max Gap: 8mm - 9mm
- Fixing: Self-adhesive
- Depth: 10mm
- Projection: 4mm
- Width: 12mm
- Length: 3000mm
- Finish: Silver Anodised
Approvals:
- ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
