Raven RP84Si Door Frame Perimeter Seal Silicon Gasket Silver Anodised - Available in Various Sizes

Raven RP84Si Door Frame Perimeter Seal With Silicon Gasket

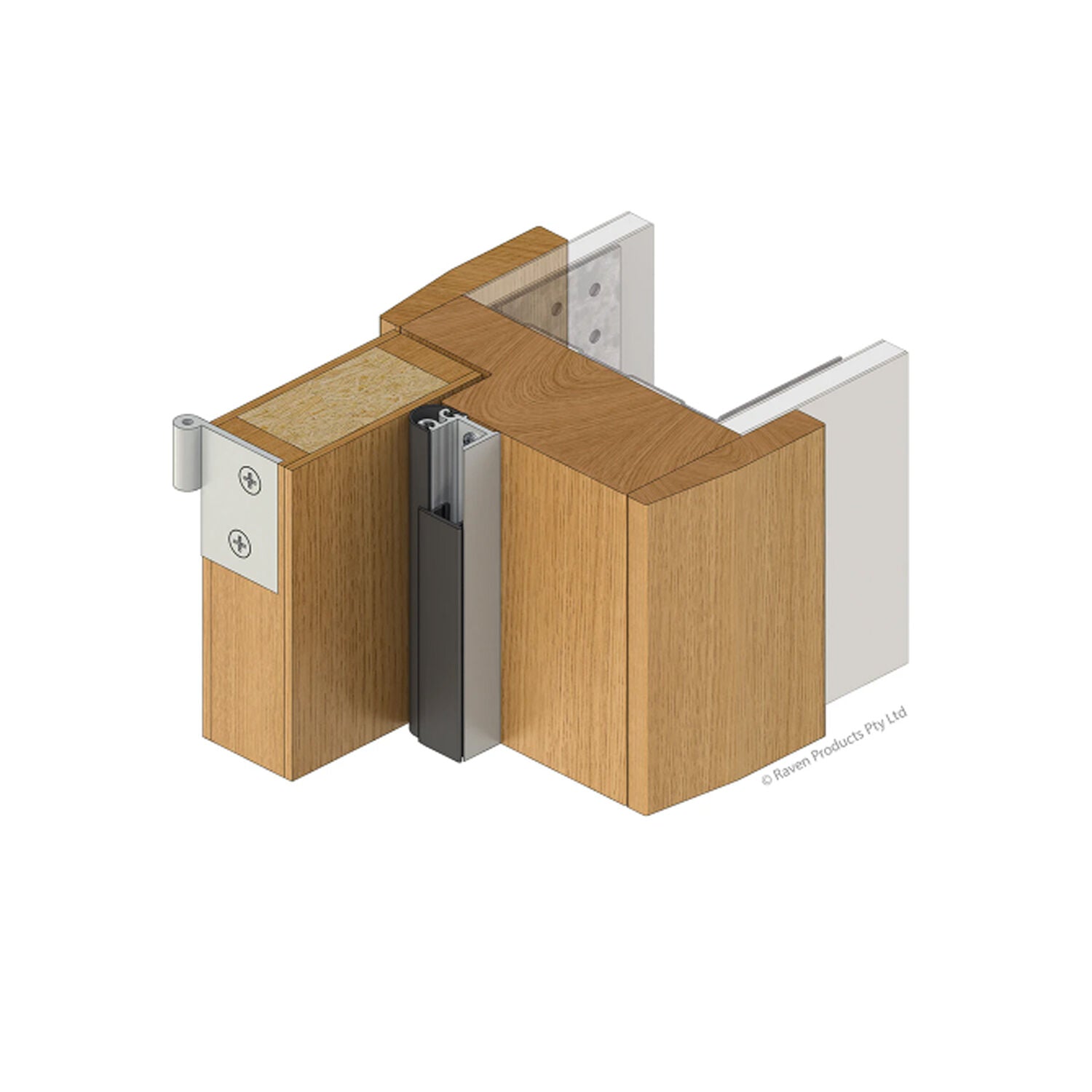

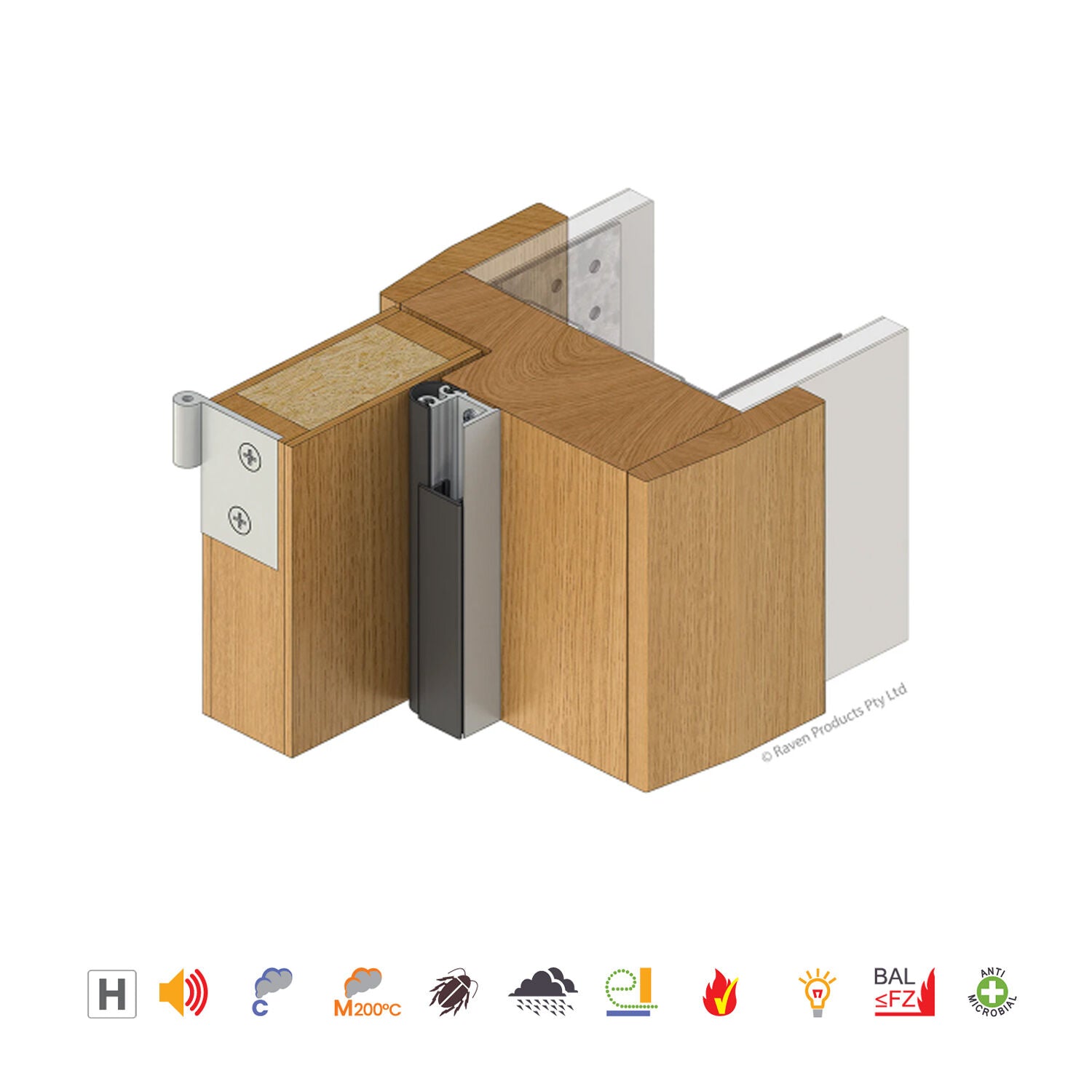

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• Medium temperature smoke seal is designed specifically for clean room and health care facilities.
• Easy clean smooth bulb which also contains an antimicrobial additive for maximum protection against surface bacteria.
• Significantly reduces sound transmission and helps prevent the movement of airborne contaminates allowing for controlled air ventilation.
• Ideal for use in conjunction with Raven door bottom seals and meeting stile seals (astragals).
• Global GreenTag - Platinum
• Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.

Specifications:

• Min and Max Gap: 0mm - 7mm
• Fixing: Screw Fix

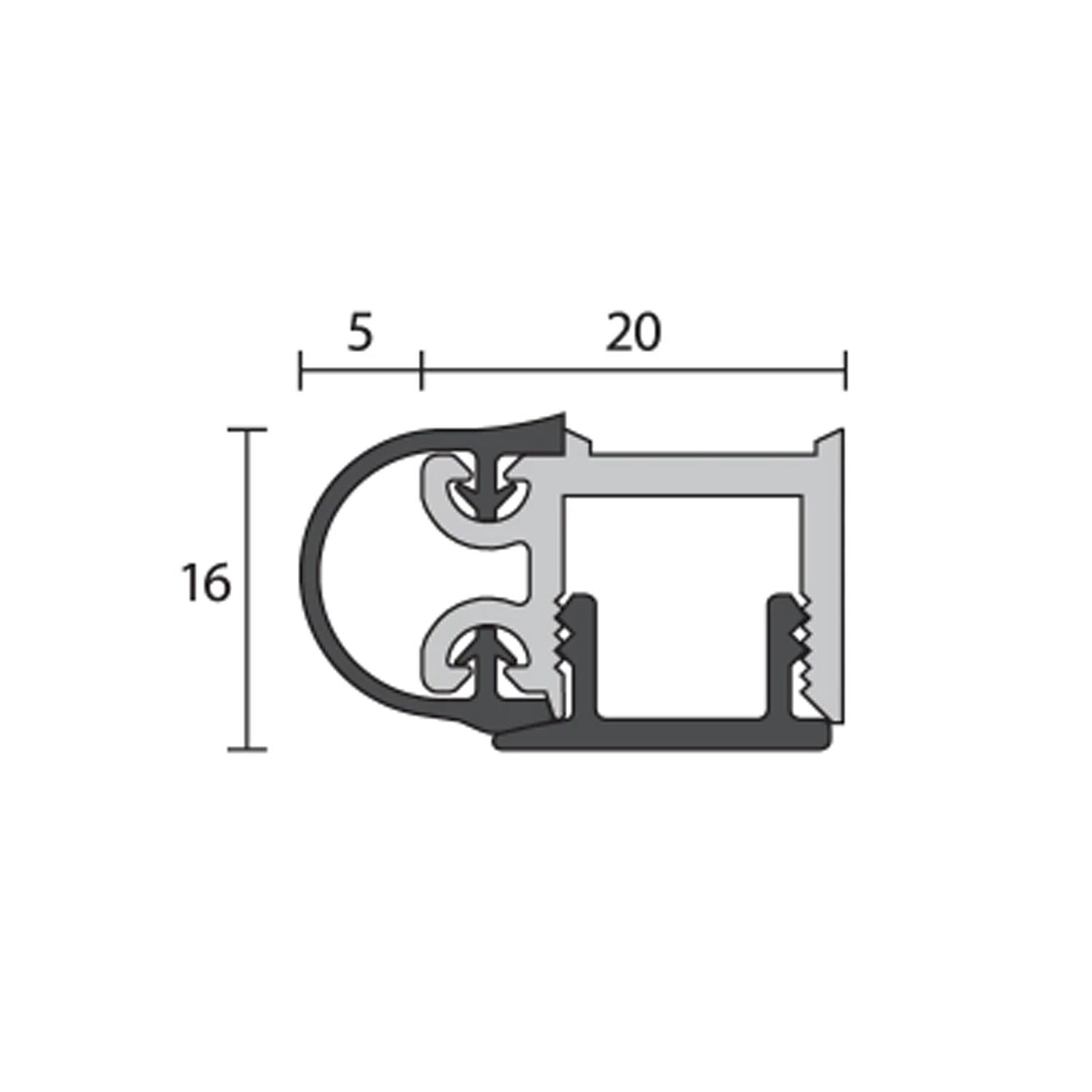

• Width: 20mm
• Projection: 16mm
• Finish: Silver Anodised
• Length:
  • Long Double Door Set (1 x 2000mm and 2 x 2750mm)
  • Long Single Door Set (1 x 1000mm and 2 x 2750mm)
  • Single Door Set (1 x 1000mm and 2 x 2100mm)

Approvals:

• Accreditations: UL: R37913, Certifire: CF 5710
• Acoustic AUS/NZ: NCC F7D6
• Acoustic UK/EU: Approved Document E, Rated to BS EN ISO 717-1
• Fire AUS/NZ: NCC S12C2, AS 1530.4, AS 1905.1
• Fire Rating: Up to FRL & FRR-/120/30, Up to FD240
• Fire Flammability Index: Gasket flammability index 1 when tested to AS1530.2
• Smoke AUS/NZ: NCC S12C4, AS 1530.7, BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
