SKU: RAVA87HSICLS
Raven RP87HSi Door Frame Perimeter Seal Silicon Gasket Long Single Door Set 6500mm Silver Anodised
RRP: $647.68
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Raven RP87HSi Door Frame Perimeter Seal With Silicon Gasket
A87HSICLS
Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.
Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.
Features:
- Designed for clean room and health care facilities
- RP87HSi has an easy wipe clean design where the smooth silicon sealing gasket also contains an antimicrobial additive for maximum protection against surface bacteria.
- Effective door stop seal for noise, light and medium temperature smoke.
- It can be butt jointed for a neatly finished continuous seal, replacing the conventional doorstop on metal or timber framed doors.
- Tamper proof concealed fixings
- Utilises independently adjustable screws to achieve up to 6mm sealing adjustment for maximum noise control.
- The silicon seal only requires normal door closing force.
- Global GreenTag - Platinum
- Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.

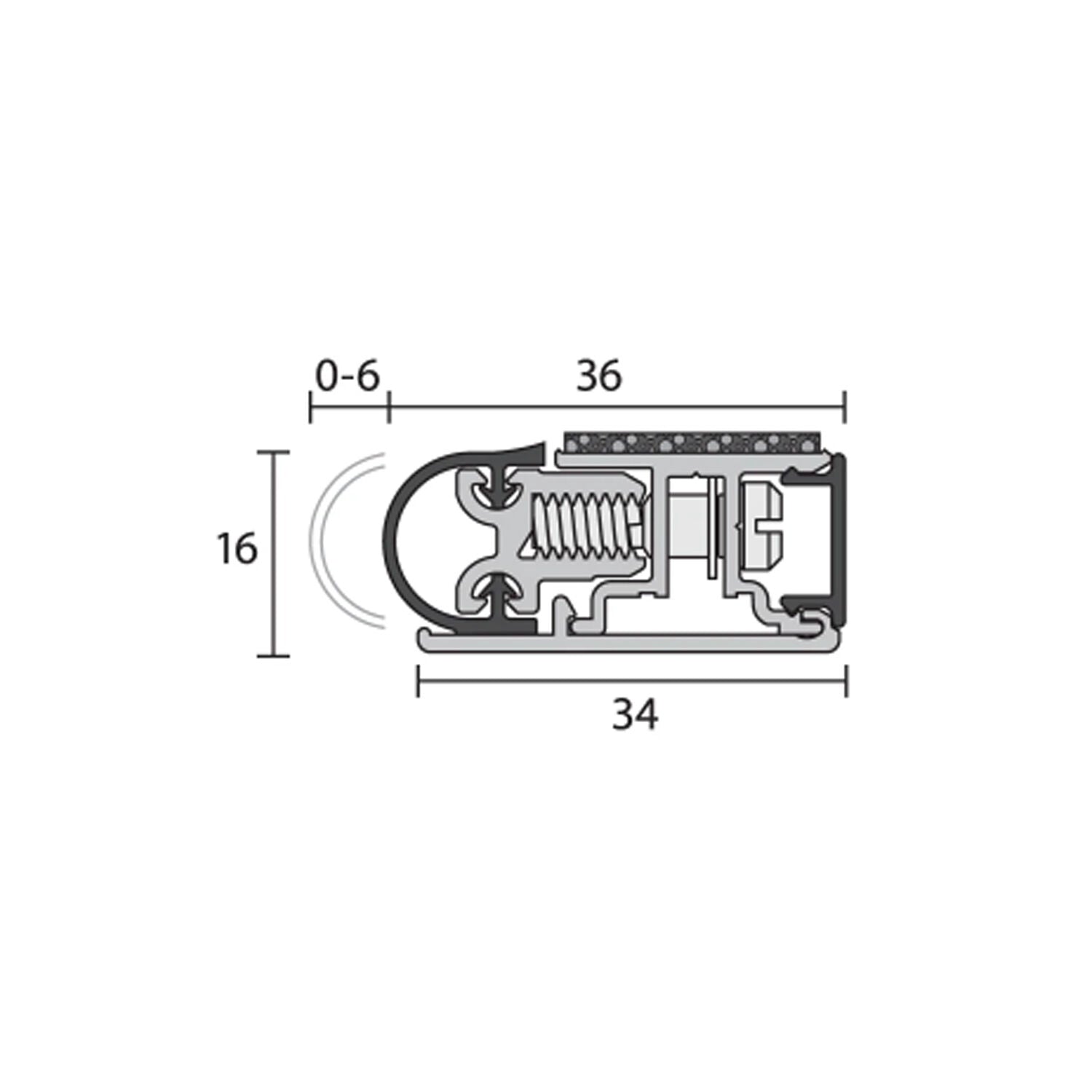

Specifications:
- Min and Max Gap: 0mm - 6mm
- Fixing: Screw Fix
- Width: 36mm
- Projection: 16mm
- Material: Aluminium

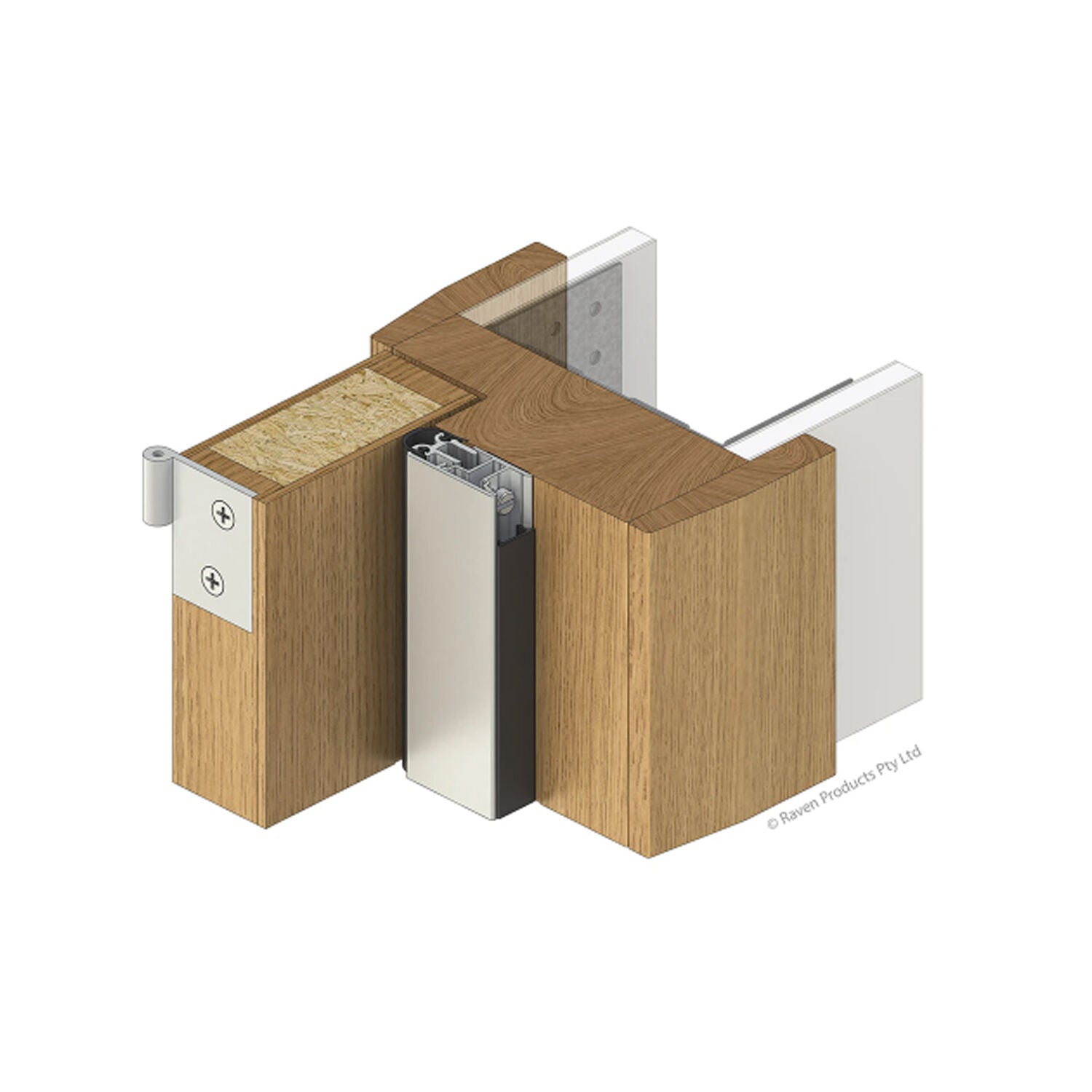

- Location: Head and jambs of single and double butt hinged doors.
- Door/Frame Construction: Timber, Aluminium
- Finish: Silver Anodised
- Length: Long Single Door Set 6500mm (1 x 1000mm and 2 x 2750mm)
Approvals:
-
Accreditations: UL: R37913, Certifire: CF 5710
- Acoustic AUS/NZ: NCC F7D6
- Acoustic UK/EU: Approved Document E, Rated to BS EN ISO 717-1
- Fire AUS/NZ: NCC S12C2, AS 1530.4, AS 1905.1
- Fire Rating: Up to FRL & FRR-/120/30, Up to FD240
- Fire Flammability Index: Gasket flammability index 1 when tested to AS1530.2
- Smoke AUS/NZ: NCC S12C4, AS 1530.7, BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”
-
Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
Note:
- If fixing to rebated frames of single doors, specify a long backset door latch.
Raven RP87HSi Door Frame Perimeter Seal With Silicon Gasket
A87HSICLS
Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.
Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.
Features:
- Designed for clean room and health care facilities
- RP87HSi has an easy wipe clean design where the smooth silicon sealing gasket also contains an antimicrobial additive for maximum protection against surface bacteria.
- Effective door stop seal for noise, light and medium temperature smoke.
- It can be butt jointed for a neatly finished continuous seal, replacing the conventional doorstop on metal or timber framed doors.
- Tamper proof concealed fixings
- Utilises independently adjustable screws to achieve up to 6mm sealing adjustment for maximum noise control.
- The silicon seal only requires normal door closing force.
- Global GreenTag - Platinum
- Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.
Specifications:
- Min and Max Gap: 0mm - 6mm
- Fixing: Screw Fix
- Width: 36mm
- Projection: 16mm
- Material: Aluminium
- Location: Head and jambs of single and double butt hinged doors.
- Door/Frame Construction: Timber, Aluminium
- Finish: Silver Anodised
- Length: Long Single Door Set 6500mm (1 x 1000mm and 2 x 2750mm)
Approvals:
- Accreditations: UL: R37913, Certifire: CF 5710
- Acoustic AUS/NZ: NCC F7D6
- Acoustic UK/EU: Approved Document E, Rated to BS EN ISO 717-1
- Fire AUS/NZ: NCC S12C2, AS 1530.4, AS 1905.1
- Fire Rating: Up to FRL & FRR-/120/30, Up to FD240
- Fire Flammability Index: Gasket flammability index 1 when tested to AS1530.2
- Smoke AUS/NZ: NCC S12C4, AS 1530.7, BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Saâ€, “S200â€
- Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
Note:
- If fixing to rebated frames of single doors, specify a long backset door latch.
