Raven RP87Si Door Frame Perimeter Seal Silicon Gasket Silver Anodised - Available in Various Sizes

Raven RP87Si Door Frame Perimeter Seal With Silicon Gasket

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• RP87Si is an effective door stop seal for noise, light and smoke.

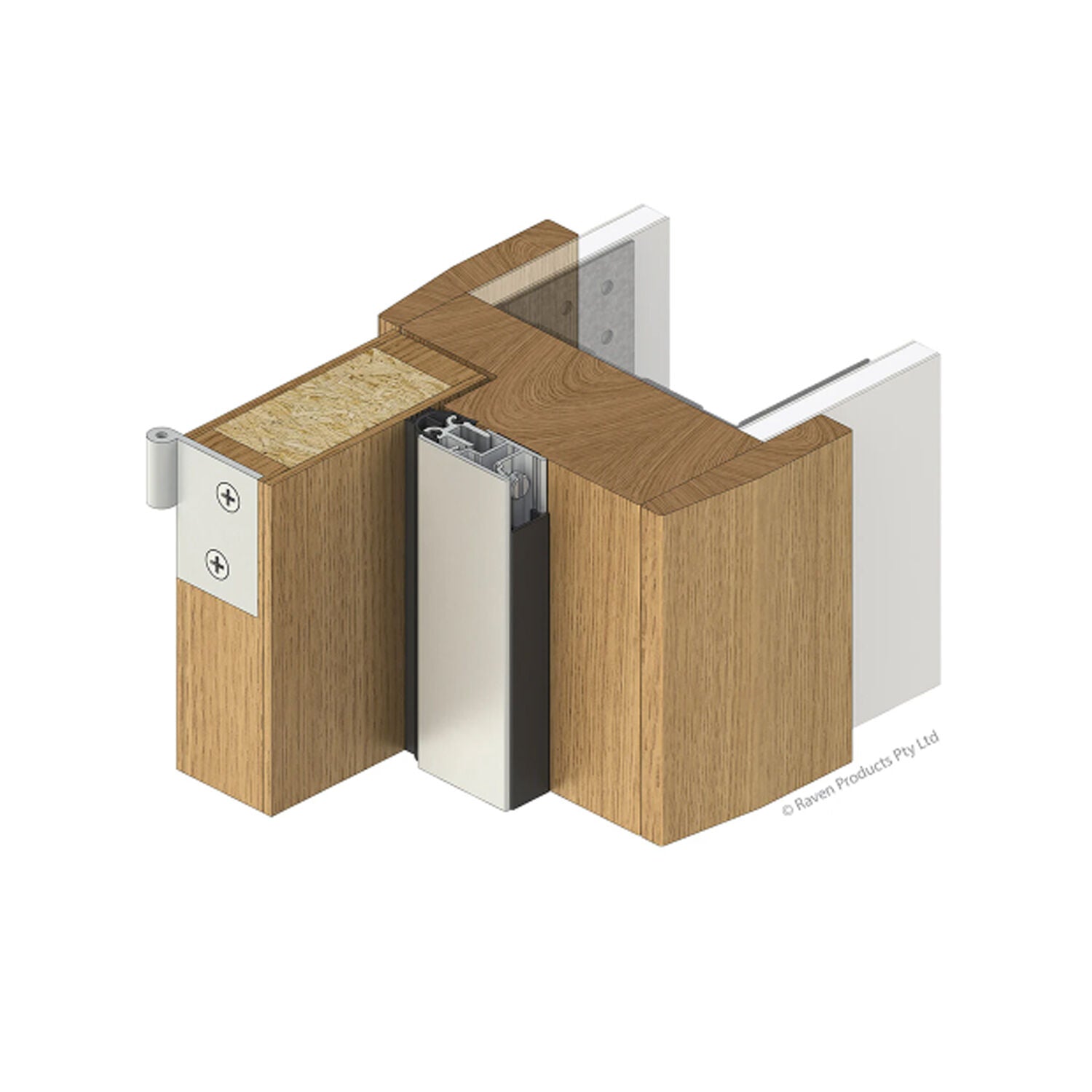

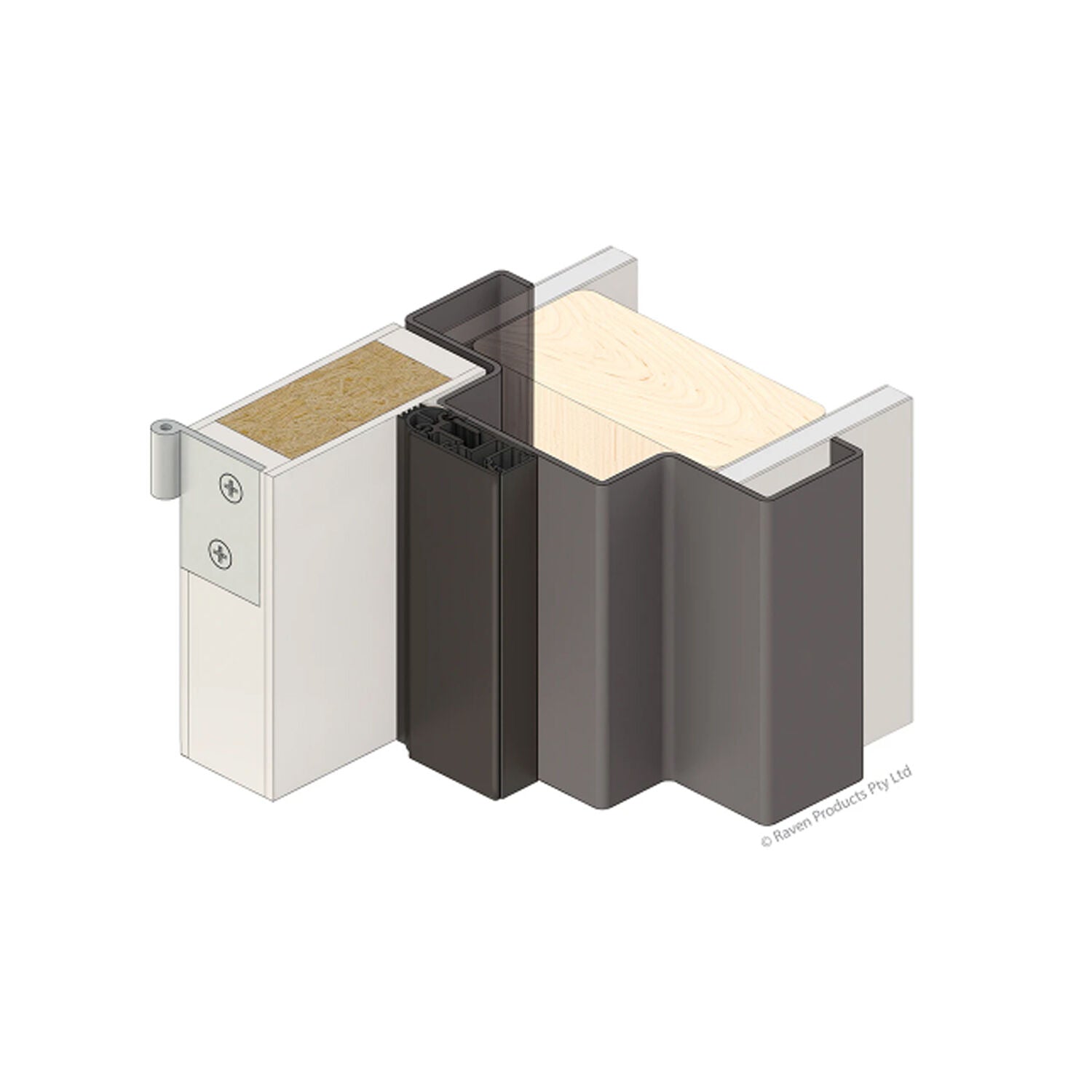

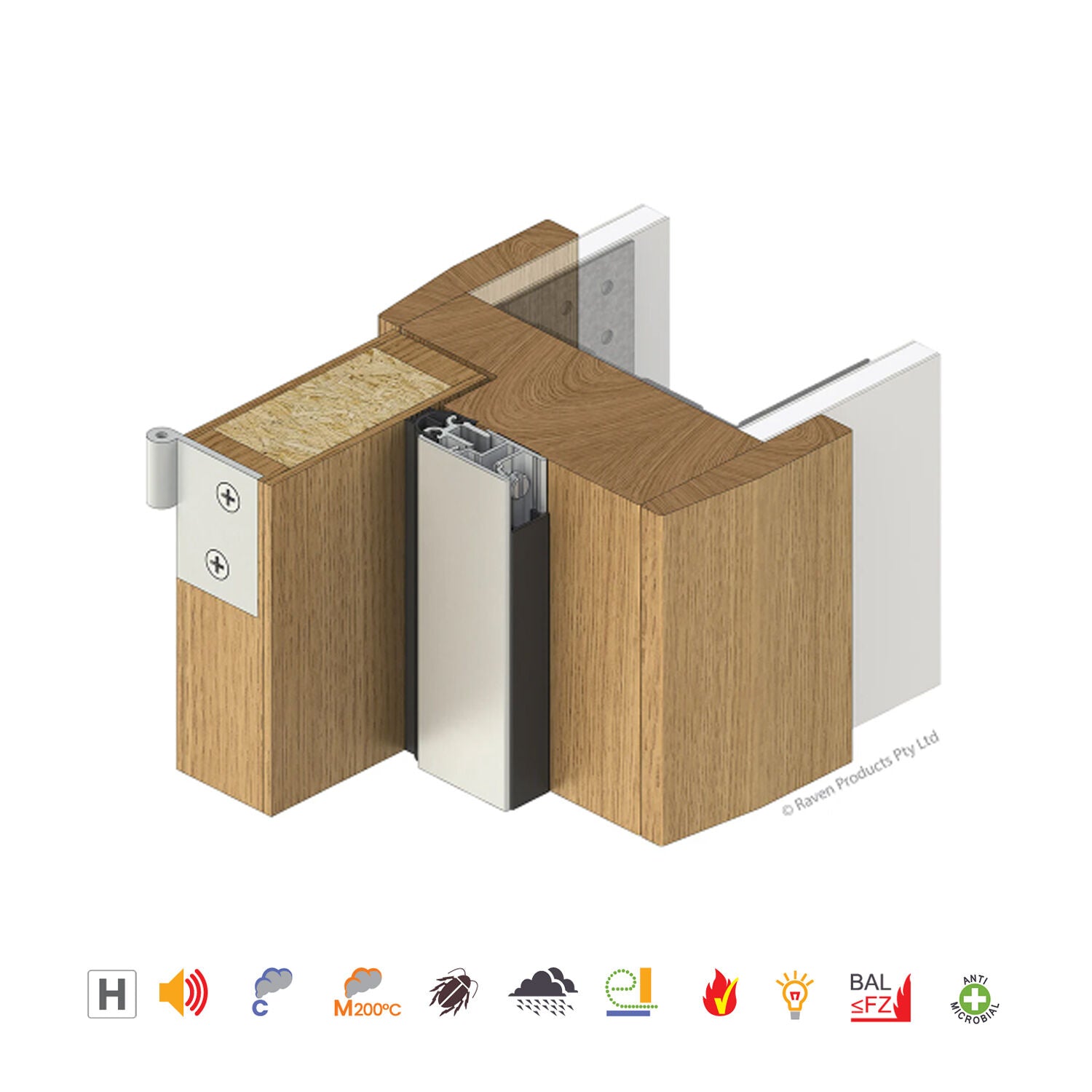

• It can be butt jointed for a neatly finished continuous seal, replacing the conventional doorstop on metal or timber framed doors.
• With tamper proof concealed fixings, the RP87Si utilises independently adjustable screws to achieve up to 6mm sealing adjustment for maximum noise control.
• The silicon rubber seal only requires normal door closing force.
• Global GreenTag - Platinum
• Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.

Specifications:

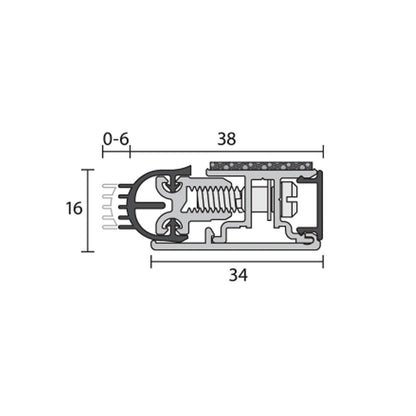

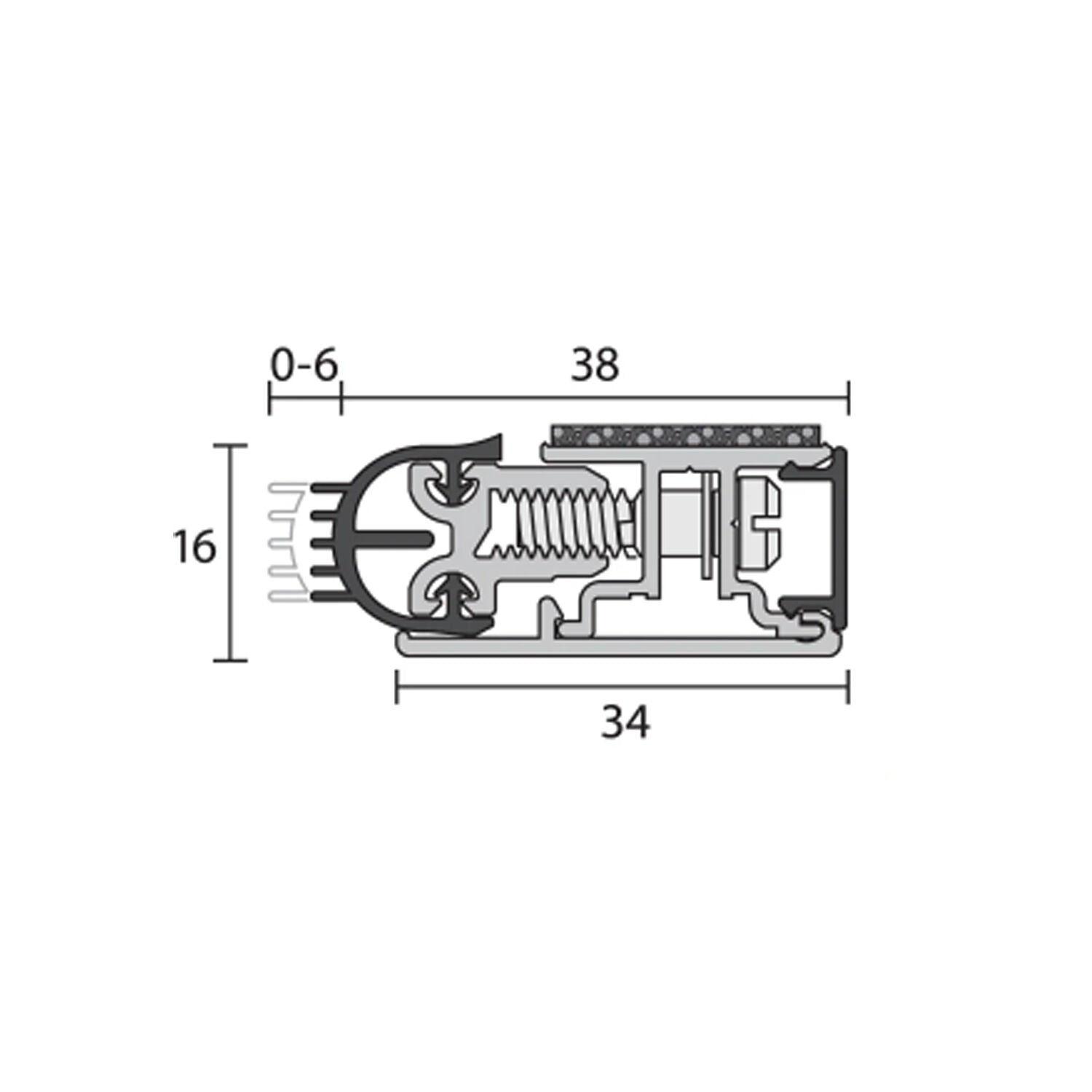

• Min and Max Gap: 0mm - 6mm
• Fixing: Screw Fix
• Width: 38mm
• Projection: 16mm
• Material: Aluminium
• Location: Head and jambs of single and double butt hinged doors.
• Door/Frame Construction: Timber, Aluminium
• Available Finishes:
  • Black Anodised
  • Silver Anodised
• Available Length:
  • 2500mm
  • Double Door Set (3x 2100mm)
  • Long Single Door Set (1x 1000mm & 2 x 2750mm)

Approvals:

• Accreditations: UL: R37913, Certifire: CF 5710
• Acoustic AUS/NZ: NCC F7D6
• Acoustic UK/EU: Approved Document E, Rated to BS EN ISO 717-1
• Fire AUS/NZ: NCC S12C2, AS 1530.4, AS 1905.1
• Fire UK/EU: Approved Document B, BS EN 1634-1
• Fire Rating: Up to FD240, Up to FRL & FRR-/240/30
• Fire Flammability Index: Gasket flammability index 1 when tested to AS1530.2
• Smoke AUS/NZ: NCC S12C4, AS 1530.7, BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5

Note:

• If fixing to rebated frames of single doors, specify a long backset door latch.
