SKU: RAVA88C3000
Raven RP88 Astragal Meeting Stile Seal for Frameless Glass Door 3000mm Clear Anodised A88C3000
RRP: $73.53
Payments accepted:
Couldn't load pickup availability

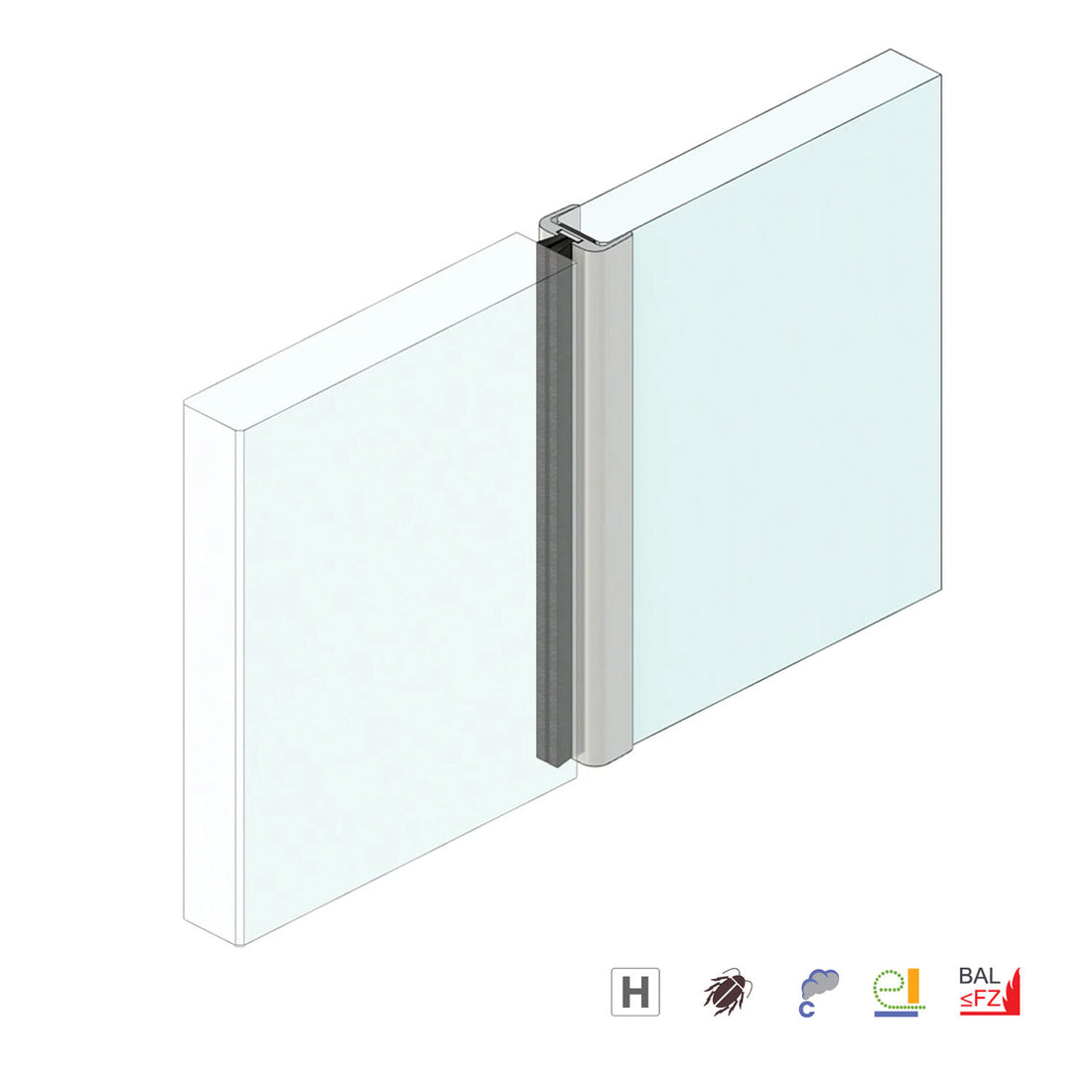

Raven RP88 Astragal Meeting Stile Seal
A88C3000
Meeting Stile are seals for frameless glass sliding doors.
Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.
Features:
- An aluminium meeting stile seal (astragal) designed for frameless glass doors. The woven pile sealing strip is combined with a weather fin to form an effective weather and energy seal
- Use in conjunction with Raven brush strip door bottom seals RP2b, RP74 and threshold plates
- Global GreenTag - Platinum
Specifications
- Location: Meeting stiles of 10mm thick frameless glass doors.
- Size: 3000mm
- Fixing: Self-adhesive (Self-adhesive. Note: Contact surface must be clean, smooth and if painted, well cured. Self-adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces
- Minimum and Maximum Gap: 8mm to 9mm (Gap is determined prior to installation)
- Replacement Seals: RP71PP
- Material: Aluminium (Anodised aluminium with black polypropylene pile with weather fin)
- Door/Frame Construction: Glass
- Door Type: Double Inward Opening, Double Outward Opening, Sliding, Pivot
- Finish: Celar Anodised
Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.
Approvals:
- Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
