Raven RP88 Astragal Meeting Stile Seal for Frameless Glass Door 3000mm Clear Anodised A88C3000

Raven RP88 Astragal Meeting Stile Seal
A88C3000

Meeting Stile are seals for frameless glass sliding doors.

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

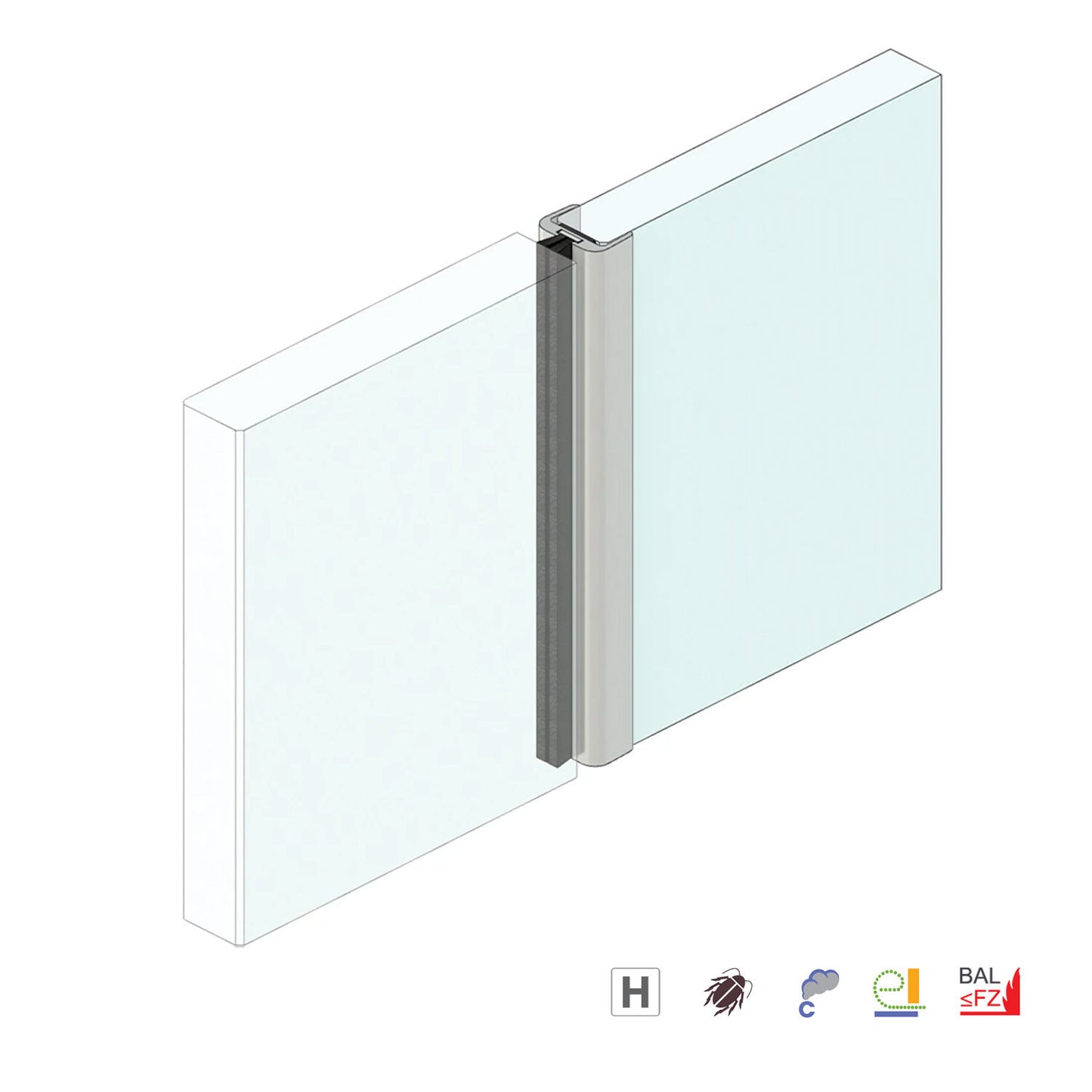

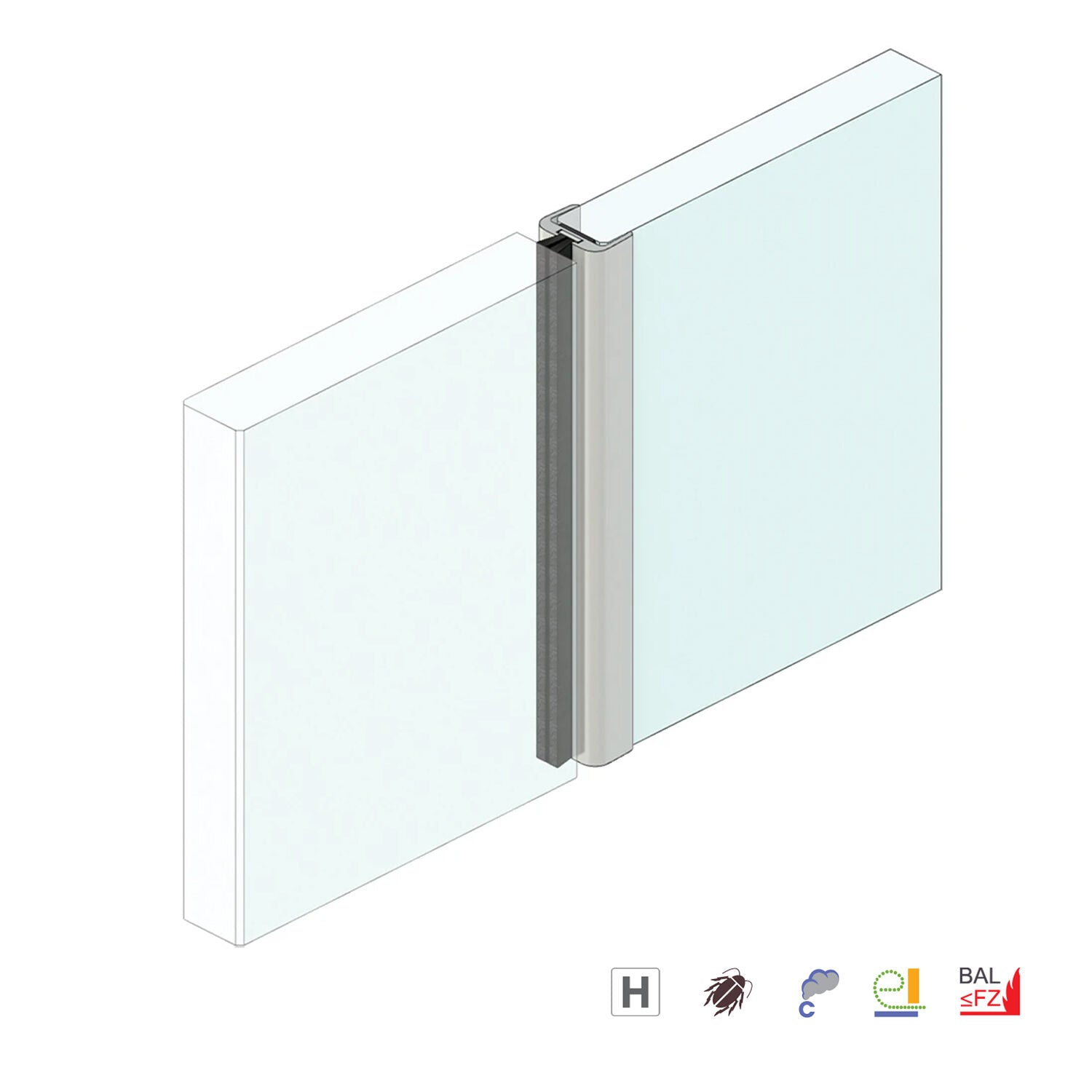

• An aluminium meeting stile seal (astragal) designed for frameless glass doors. The woven pile sealing strip is combined with a weather fin to form an effective weather and energy seal
• Use in conjunction with Raven brush strip door bottom seals RP2b, RP74 and threshold plates
• Global GreenTag - Platinum

Specifications

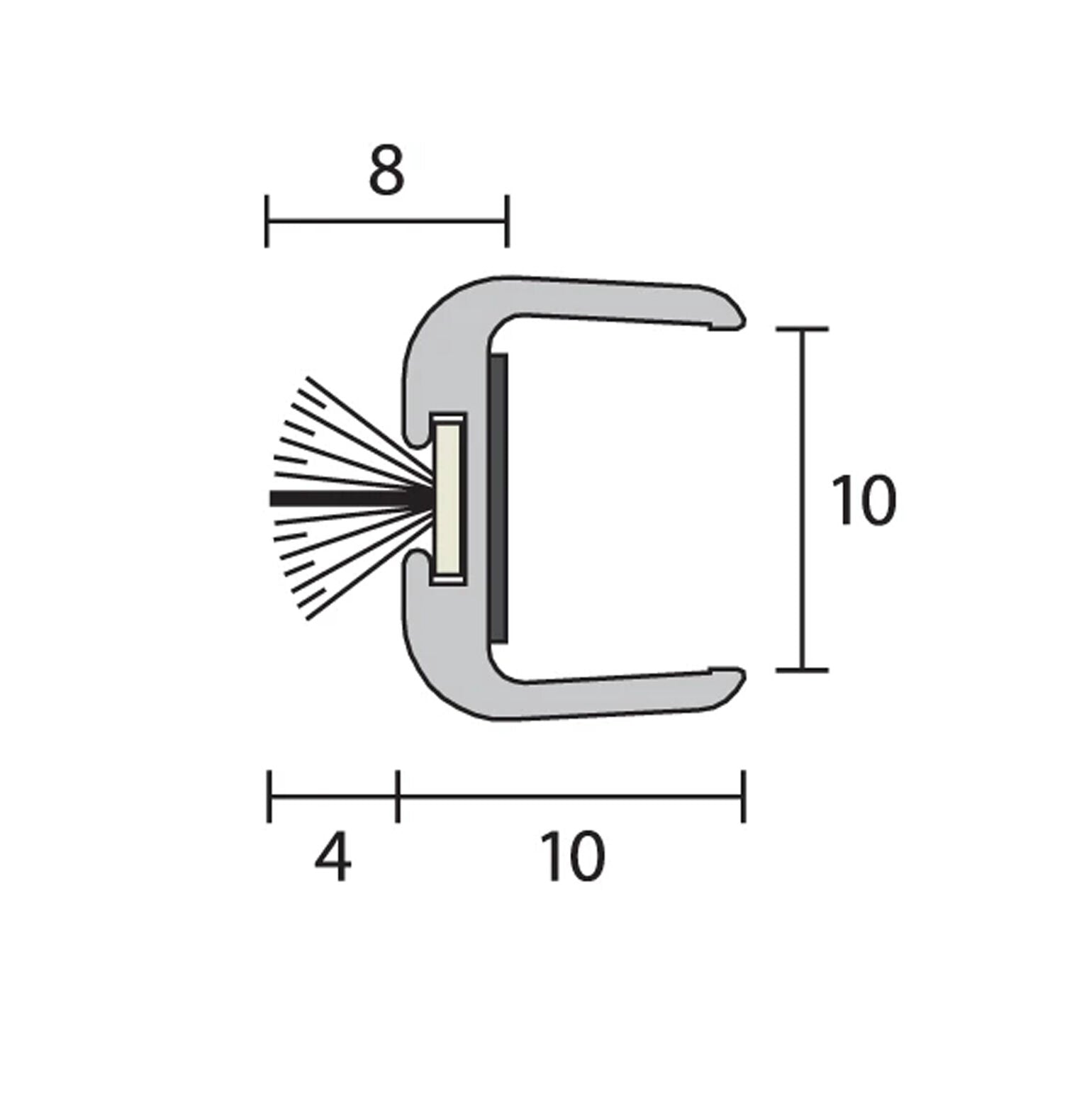

• Location: Meeting stiles of 10mm thick frameless glass doors.
• Size: 3000mm
• Fixing: Self-adhesive (Self-adhesive. Note: Contact surface must be clean, smooth and if painted, well cured. Self-adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces
• Minimum and Maximum Gap: 8mm to 9mm (Gap is determined prior to installation)
• Replacement Seals: RP71PP
• Material: Aluminium (Anodised aluminium with black polypropylene pile with weather fin)
• Door/Frame Construction: Glass
• Door Type: Double Inward Opening, Double Outward Opening, Sliding, Pivot
• Finish: Celar Anodised

Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

Approvals:

• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
