Raven RP8FZ Automatic Door Bottom Seals - Available in Various Sizes

Raven RP8FZ Automatic Door Bottom Seals

Door Bottom Seal - used to close gaps between the bottom edge of a door and the floor. Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

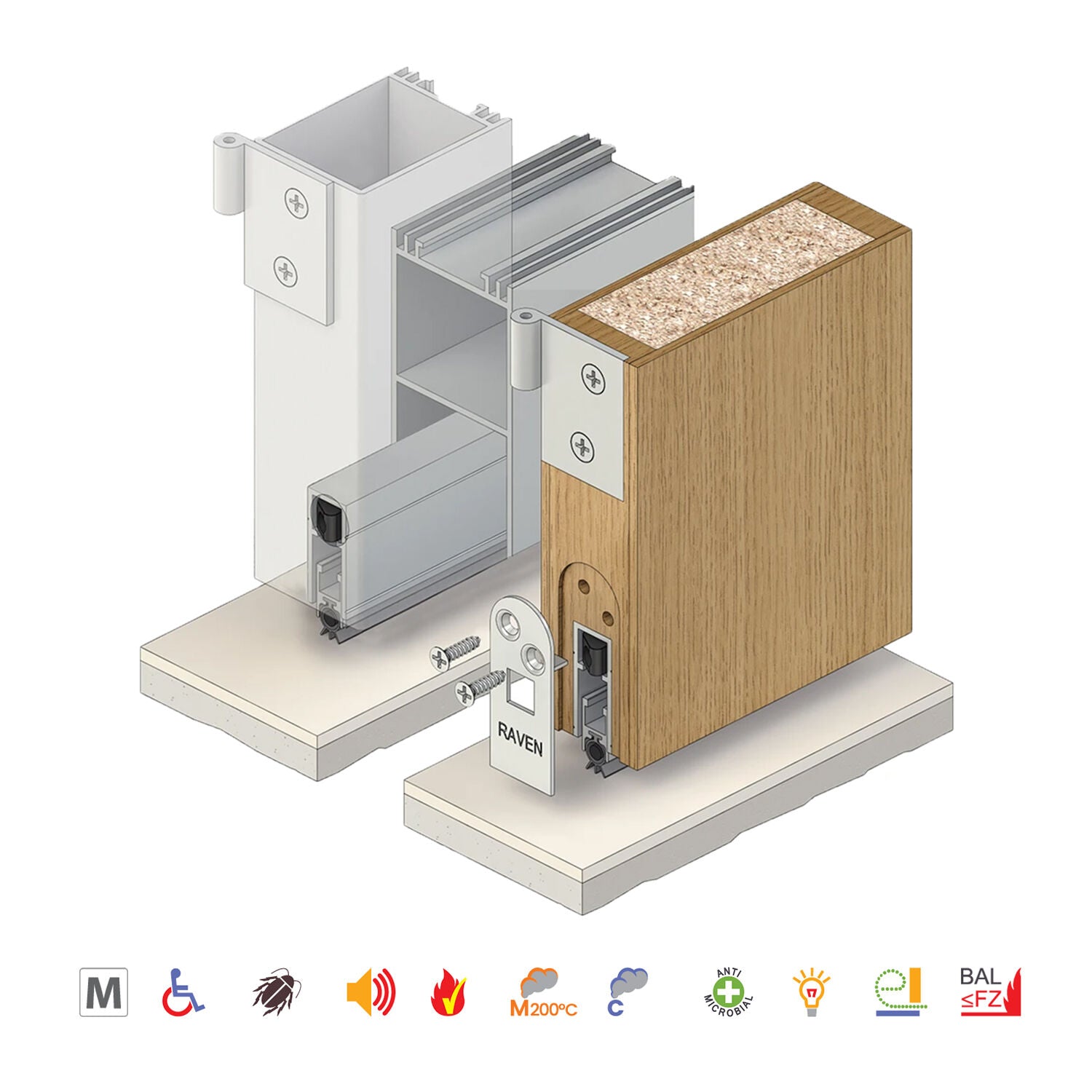

• A concealed automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened
• Acoustically designed the seal has a silicon gasket with an intumescent insert for maximum fire protection at the door bottom
• Ideal for Fire Engineered applications
• Suitable for fire rated doors, Solid core timber doors and hollow bottom rail metal doors
• Operates automatically by pressure against the door jamb on its adjustable strike
• The seal has a level adjustment to achieve an optimum seal

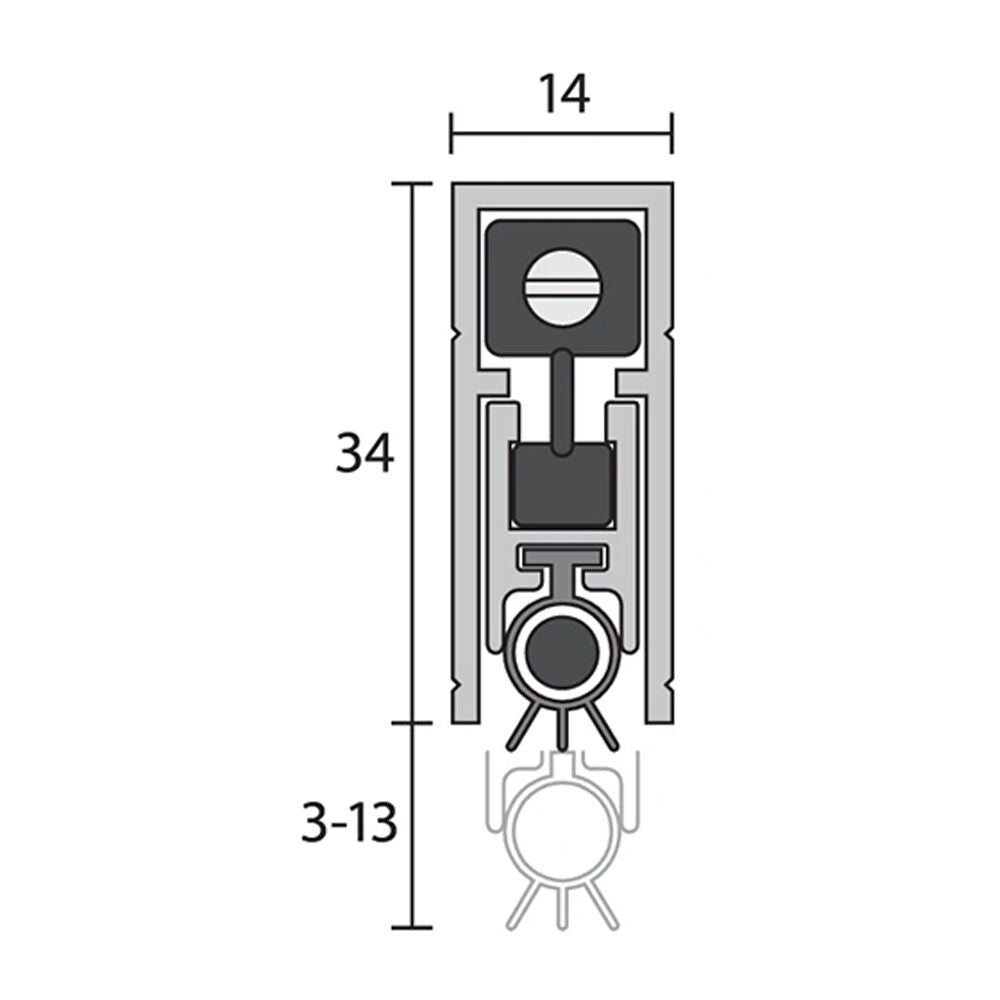

Specifications:

• Min and Max Gap: 3mm - 13mm
• Fixing: Screw Fix
• Depth: 34mm
• Width: 14mm
• Length:
  • 820mm
  • 920mm
• Finish: Silver Anodised

Approvals:

• ANSI/BHMA: A156.22
• NCC F7D6
• Approved Document E, Rated to BS EN ISO 717-1
• NCC S12C2, AS 1530.4, AS 1905.1, NZBC C/AS2 4.16.2
• Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Up to FRL & FRR-/120/30, Up to FD240
• Gasket flammability index 1 when tested to AS1530.2
• BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, NCC S12C4, AS 1530.7
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• Tested to over 1,000,000 operating cycles without failure
• AS 4674 Sect. 2.1.7, AS 4674 Sect. 2.1.5 Pt. (iv)
