SKU: RAVA94SIC1000
Raven RP94Si Perimeter Seals - Available in Various Sizes
RRP: $35.85
Buy In Bulk & Save!
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Raven RP94Si Perimeter Seals

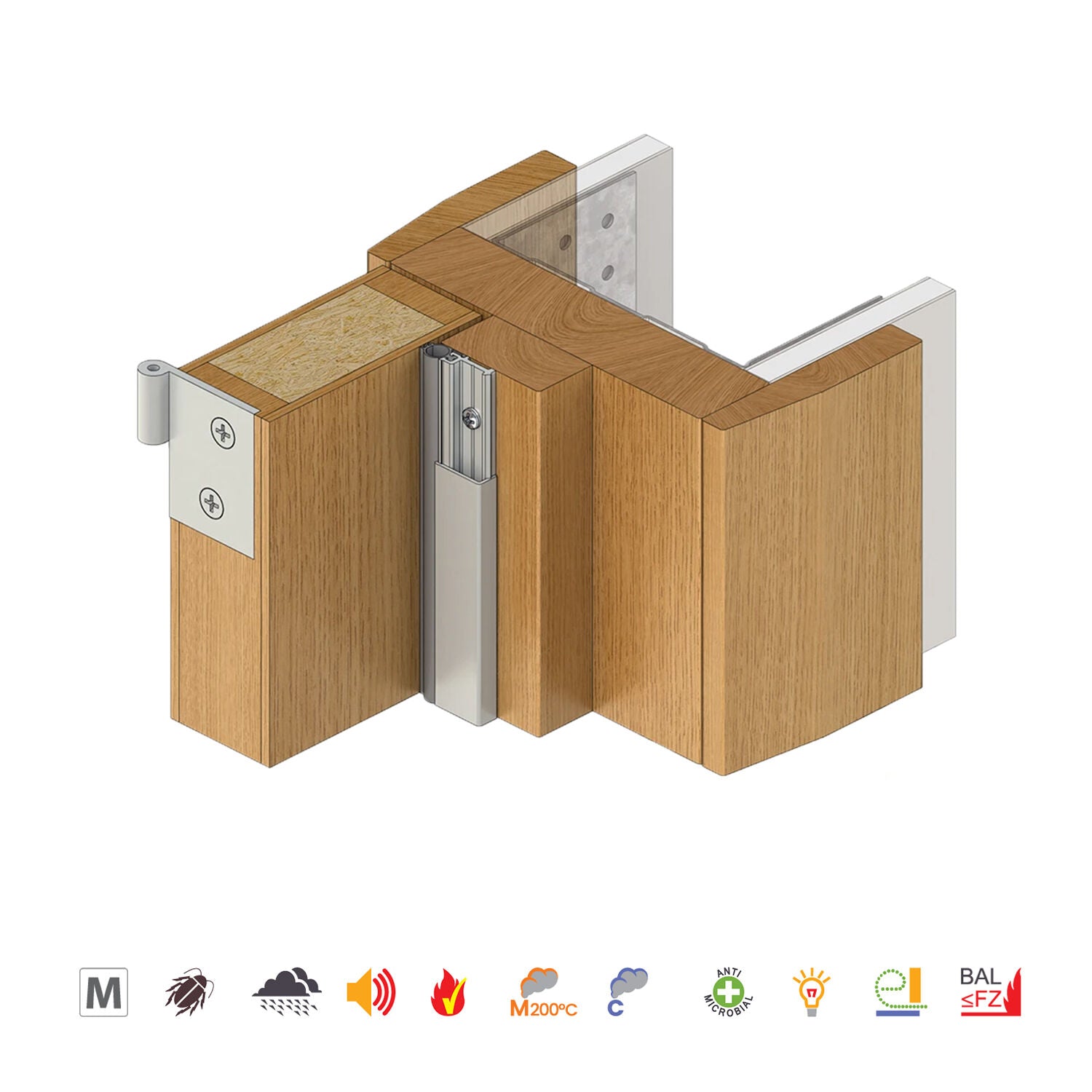

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.
Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.
Features:
- A weather and acoustic seal, suitable for rebated frames
- Quick and easy to install, either mitred or butt jointed to the head and jambs without removing the door
- Slotted for installation adjustment, the soft silicon bulb accommodates a tighter seal and with a tamper proof cover strip, provides a fit and forget feature
- Can be used in conjunction with Raven door bottom seals, meeting stile seals (astragals) and threshold plates

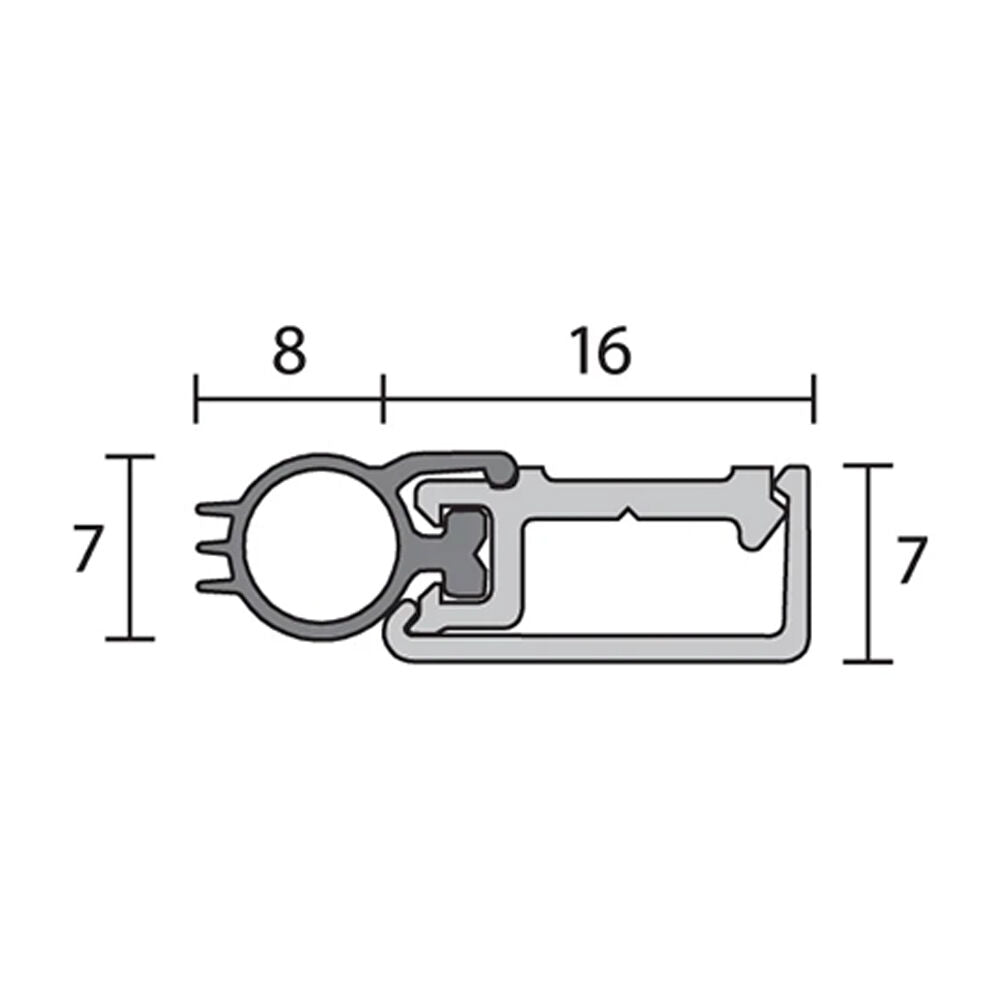

Specifications:
- Max Gap: 6mm
- Fixing: Screw Fix
- Projection: 16mm
- Width: 7mm
-
Length:
- 1000mm
- 3000mm
- Long Single Door Set (1 x 1000mm and 2 x 2750mm)
- Finish: Silver Anodised
Approvals:
- UL: R37913, Certifire: CF 5710
- NCC F7D6
- Approved Document E, Rated to BS EN ISO 717-1
- NCC S12C2, NZBC C/AS2 4.16.2, AS 1530.4, AS 1905.1
- Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
- Up to FD240, Up to FRL & FRR-/240/30
- Gasket flammability index 1 when tested to AS1530.2
- NCC S12C4, AS 1530.7, BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”
- ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
Raven RP94Si Perimeter Seals
A94SIC1000
Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.
Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.
Features:
- A weather and acoustic seal, suitable for rebated frames
- Quick and easy to install, either mitred or butt jointed to the head and jambs without removing the door
- Slotted for installation adjustment, the soft silicon bulb accommodates a tighter seal and with a tamper proof cover strip, provides a fit and forget feature
- Can be used in conjunction with Raven door bottom seals, meeting stile seals (astragals) and threshold plates
Specifications:
- Max Gap: 6mm
- Fixing: Screw Fix
- Projection: 16mm
- Width: 7mm
- Length: 1000mm
- Finish: Silver Anodised
Approvals:
- UL: R37913, Certifire: CF 5710
- NCC F7D6
- Approved Document E, Rated to BS EN ISO 717-1
- NCC S12C2, NZBC C/AS2 4.16.2, AS 1530.4, AS 1905.1
- Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
- Up to FD240, Up to FRL & FRR-/240/30
- Gasket flammability index 1 when tested to AS1530.2
- NCC S12C4, AS 1530.7, BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”
- ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
