Raven RP95 Threshold Plate Ramp 1000mm Black A95BK1000

Raven RP95 Threshold Plate Ramp
A95BK1000

Threshold Plate enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

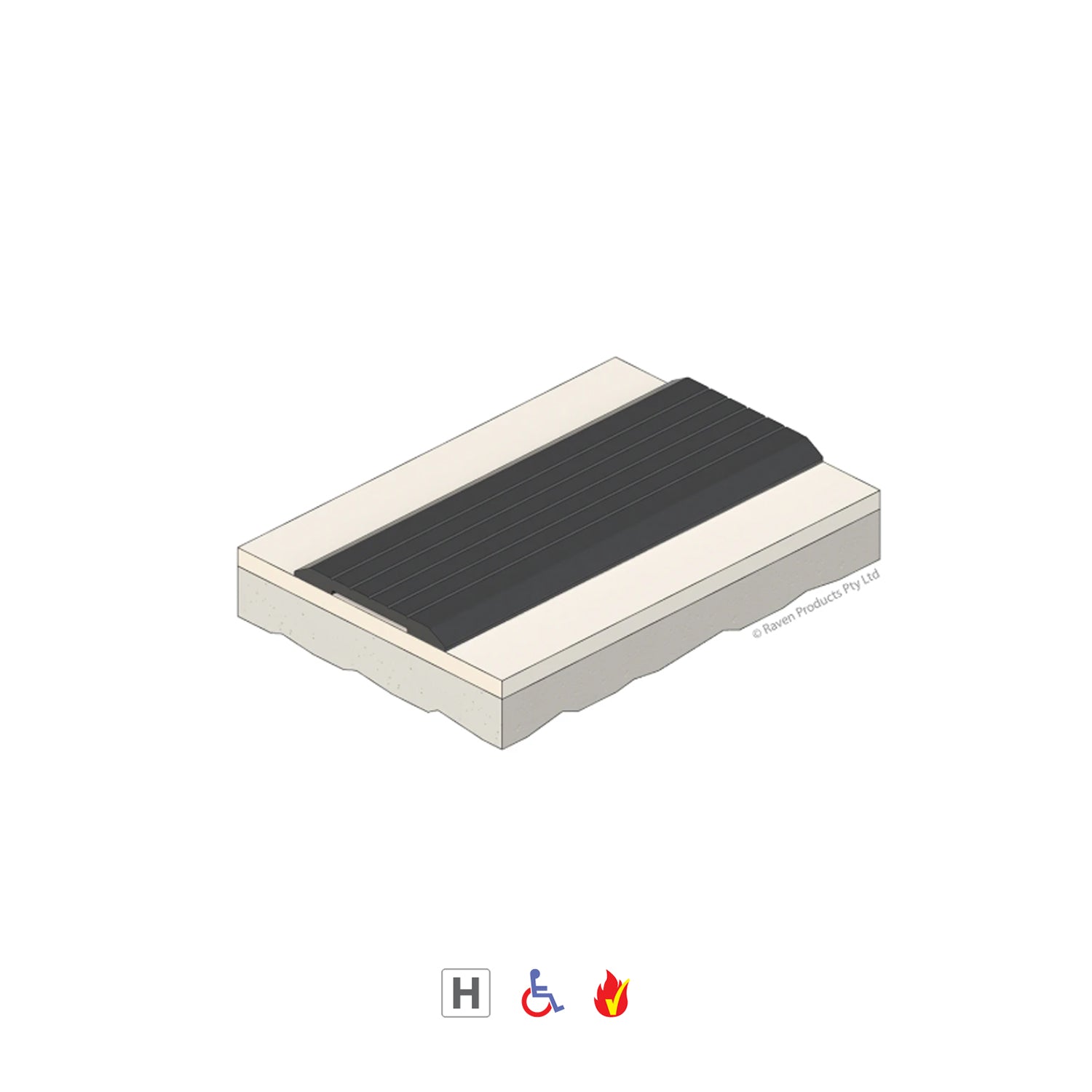

• Low-profile aluminium threshold plate installed on the door sill
• Designed to work with Raven door bottom seals to improve sealing performance
• Helps prevent rain, draught, noise, and smoke infiltration
• Made from anodised aluminium for durability and corrosion resistance
• Screw-fix or adhesive installation with supplied fixing screws

Specifications:

• Location: Door sill

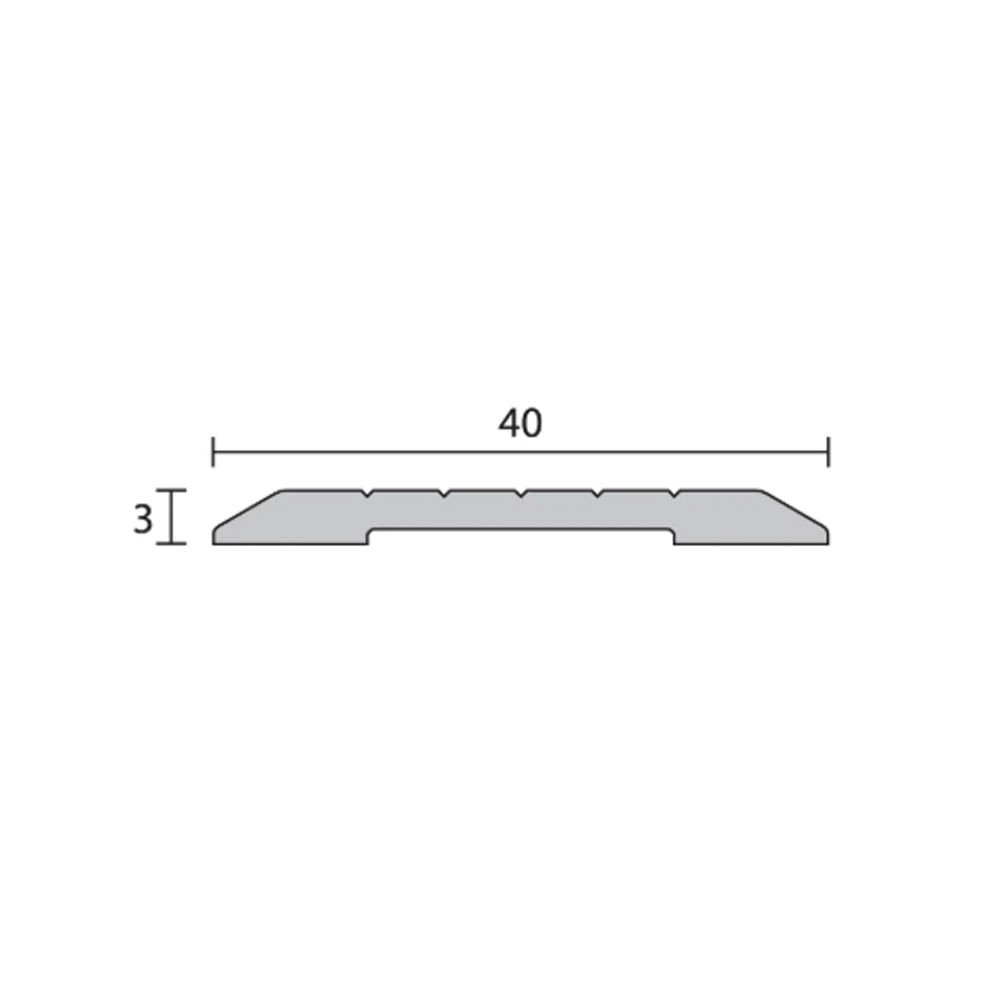

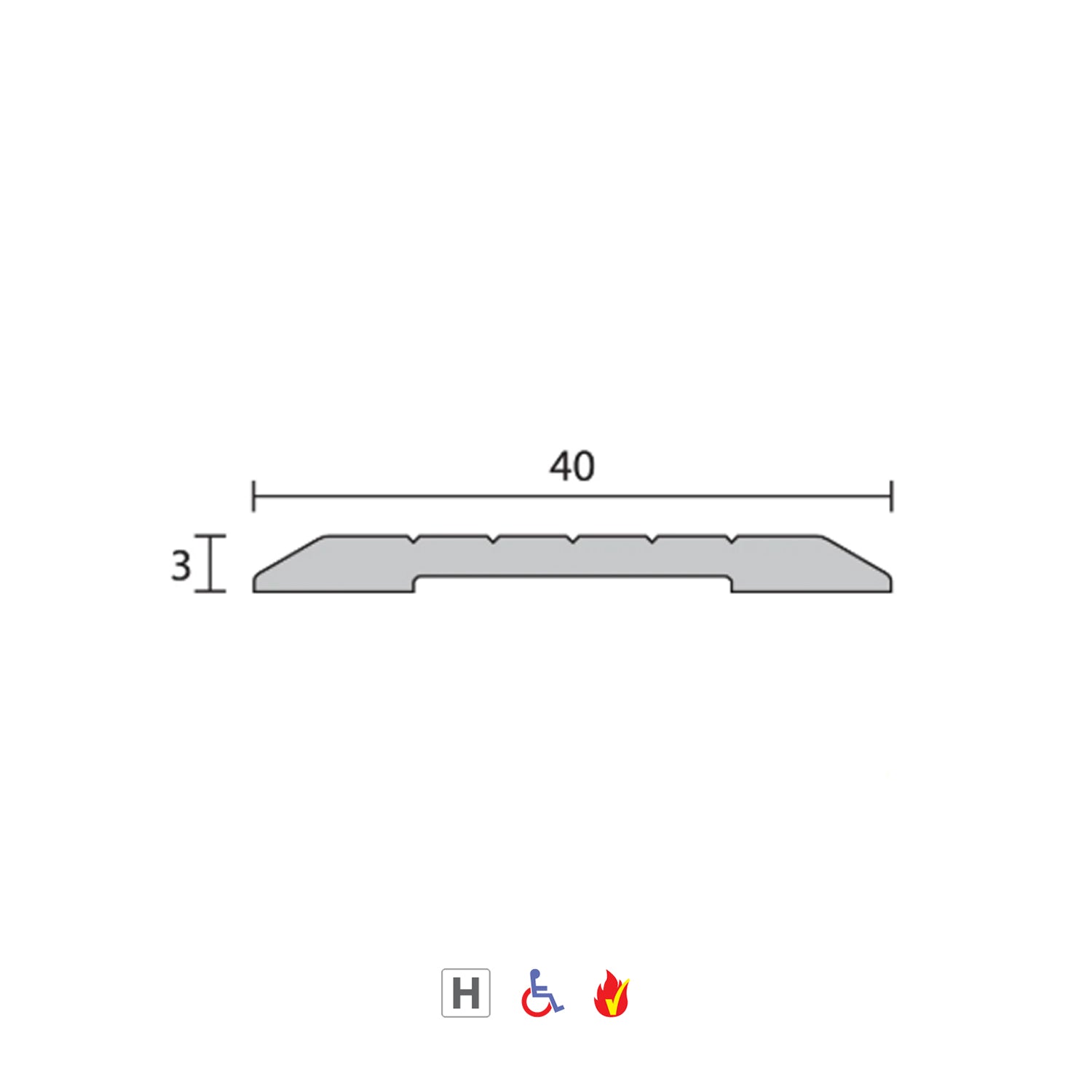

• Size/Length: 1000mm
• Fixing:
  • Screw Fixed, Adhesive Fixed
  • Screw fix or builders adhesive for concealed fixing (user determined)
  • Colour matched zinc plated, cross recess head CSK S.T. screws supplied.
• Material: Aluminum
• Finish: Black

Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

Approvals:

• Access & Mobility AUS/NZ: NCC D3D16, NCC D4D4, AS1428.1:2009 Part 7.2. AS1428.1:2021 Part 4.2, NZBC D1/AS1 1.3.2
• Access & Mobility UK/EU: Approved Document M
• Accreditations: UL: R37913, ANSI/BHMA: A156.21
• Fire AUS/NZ: AS 1530.4, AS 1905.1, NCC S12C2, NZBC C/AS2 4.16.2(a) & App C6.1.1
• Fire UK/EU: Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Fire Rating: Up to FRL & FRR-/240/30, Up to FD240
• BAL Statement: BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959
