Raven RP97SI Threshold Plate Seal 1000mm Silver Anodised A97SIC1000

Raven RP97SI Threshold Plate Seal
A97SIC1000

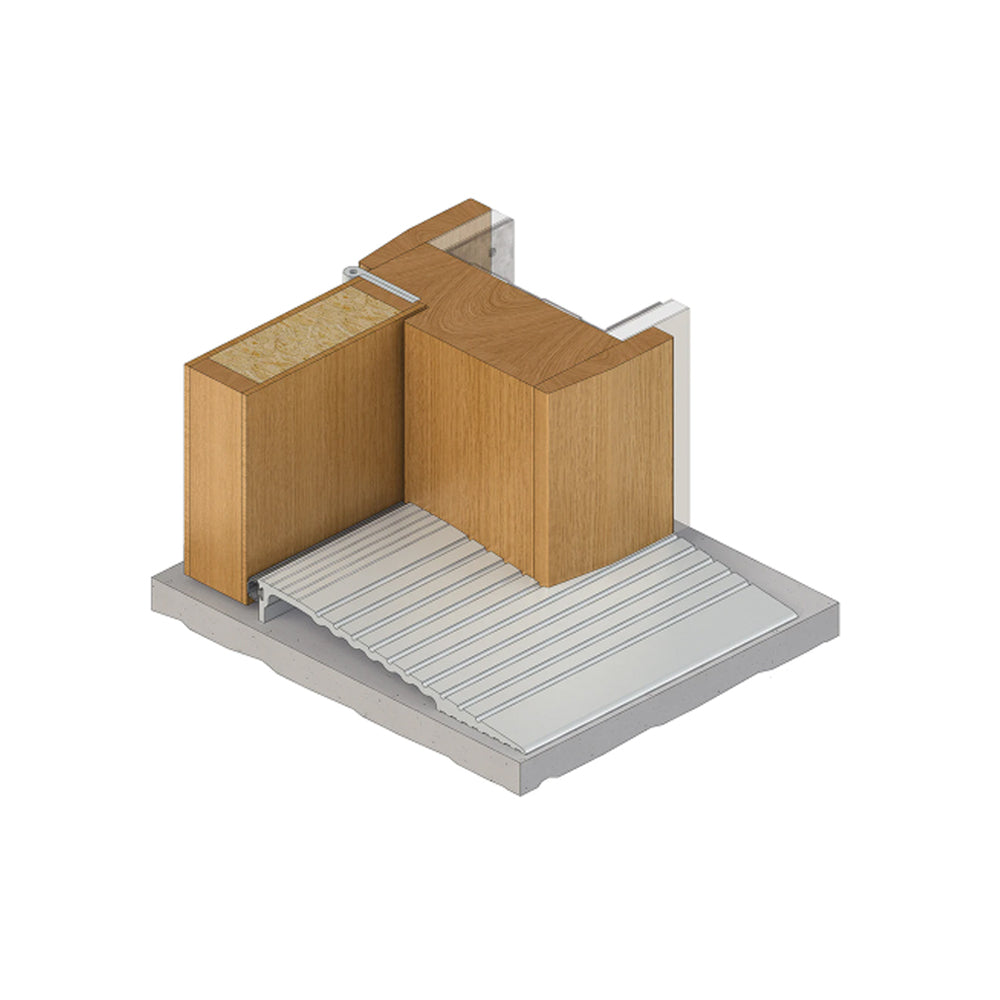

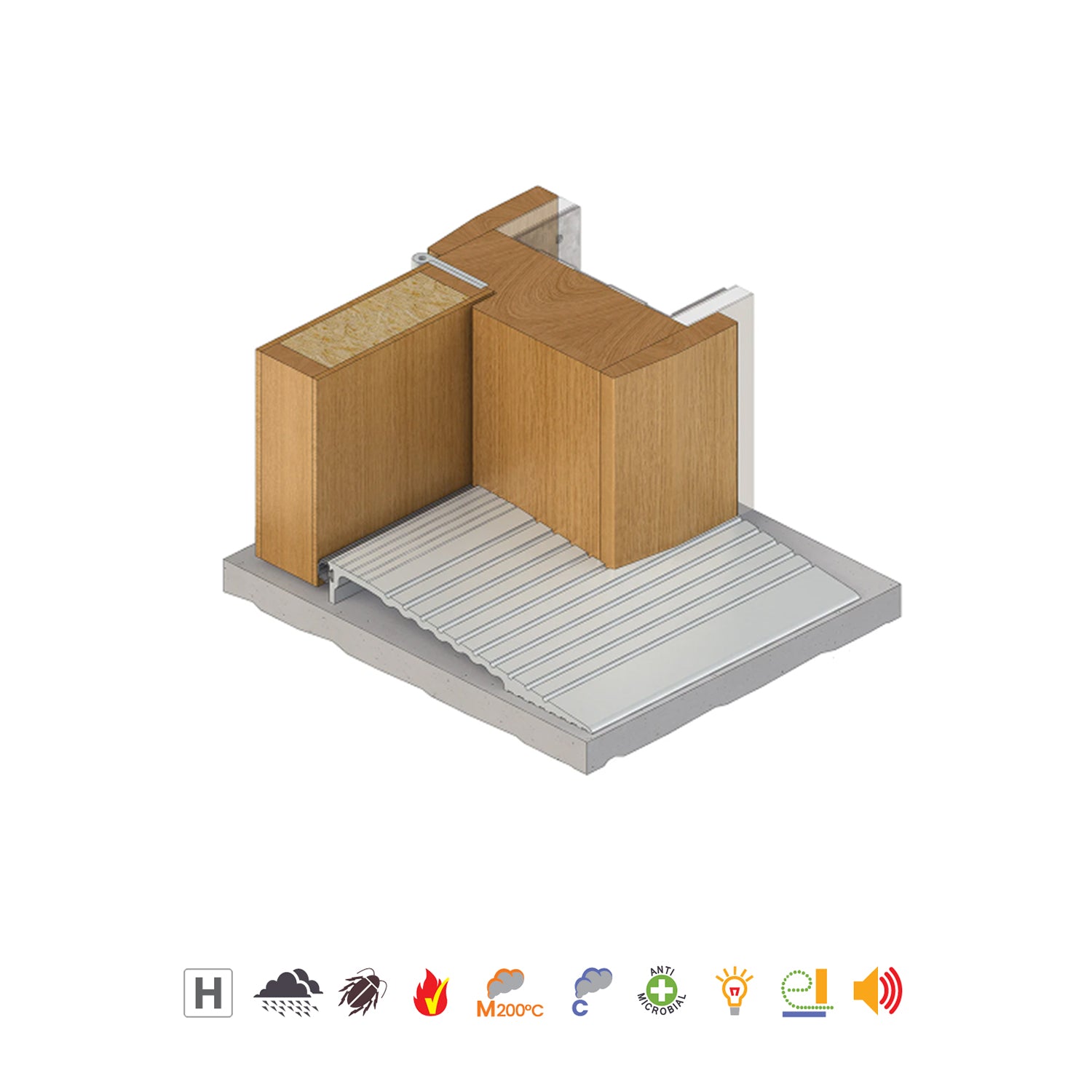

Threshold Ramp Plate enable a smooth entrance for mobility equipment, wheelchairs, or scooters across uneven door thresholds.

Threshold Ramp Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• For outward-opening hinged doors
• Threshold plate with integrated silicon seal (may replace door bottom seal)
• Improves smoke, acoustic, and weather sealing
• Screw or adhesive fixing options
• Suitable for commercial/fire-rated door systems

Specifications:

• Location: Door sills abutting outward opening butt hinged doors. Not recommended for pedestrian entry doors.

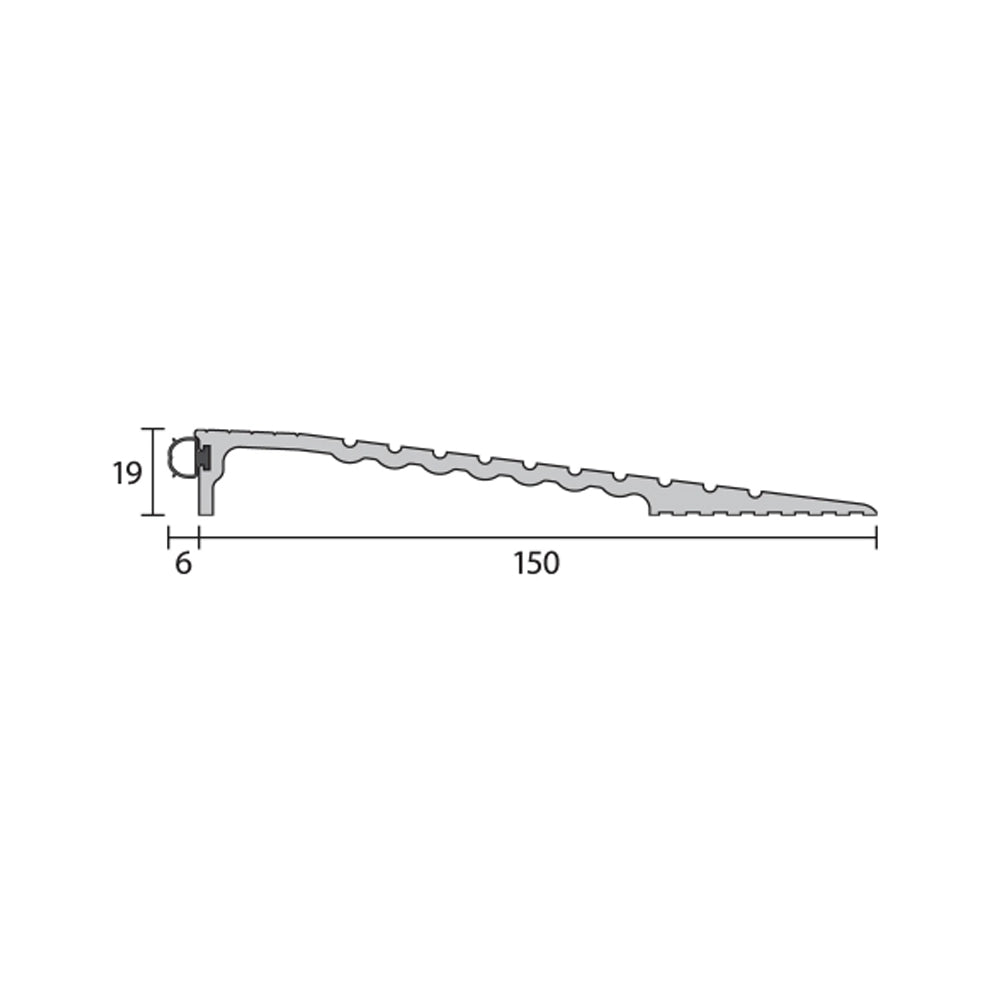

• Size/Length: 1000mm
• Fixing:
  • Screw Fixed, Adhesive Fixed
  • Screw fix or builders adhesive for concealed fixing (user determined). Zinc plated, cross recess head CSK S.T. screws supplied.
• Replacement Seals: RP393Si
• Material:
  • Aluminum
  • Anodised aluminum with silicone rubber (SE) gasket
• Door Type: Single Outward Opening, Double Outward Opening
• Finish: Silver Anodised

Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

Approvals:

• Access & Mobility AUS/NZ: NCC D3D16, NZBC D1/AS1 1.3.2
• Accreditations: UL: R37913, Certifire: CF 5710, ANSI/BHMA: A156.21
• Acoustic AUS/NZ: NCC F7D6
• Acoustic UK/EU: Rated to BS EN ISO 717-1, Approved Document E
• Fire & Smoke AUS/NZ: NCC S12C2, AS 1530.4, AS 1905.1, NZBC C/AS2 4.16.2 & App C6.1.1 & App C6.1.2
• Fire & Smoke UK/EU: Approved Document B
• Fire Rating: Up to FRL & FRR-/180/30Fire Flammability Index: Gasket flammability index 1 when tested to AS1530.2
• Energy AUS/NZ: ABCB Housing Proviions Standard 2022 13.4.4, NCC J5D5
• BAL Statement: BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959
