SKU: RAVA99SIB36
Raven RP99Si Automatic Door Bottom Seals - Available in Various Finishes and Sizes
RRP: $177.59
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Raven RP99Si Automatic Door Bottom Seals
Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:
- A heavy duty, adjustable, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened
- Acoustically designed, with a silicon gasket for medium temperature smoke applications
- Operated automatically by pressure on the door jamb or stop by its adjustable strike
- Includes aluminium cover for concealed fixing for face mounted installation
- Global GreenTag - Platinum
Specifications:

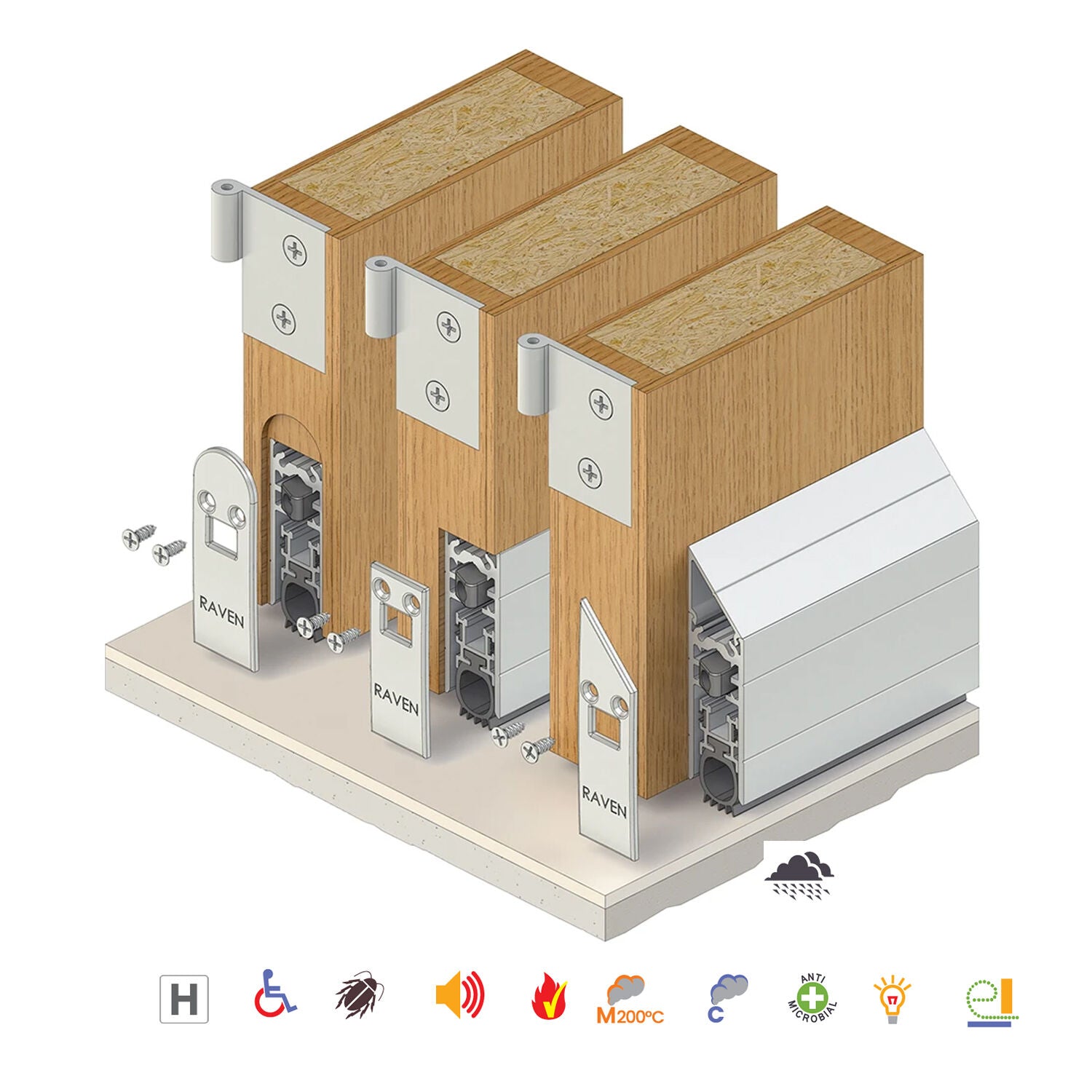

- Fixing: Face Mounted, Semi-morticed, Fully Morticed, Screw Fixed (Concealed screw fix. Zinc plated, cross recess head S.T. screws supplied. Colour matched escutcheon plates and face mount aluminium angle included.)
- Minimum and Maximum Gap: 3mm to 19mm
- Replacement Seals: RP347Si
- Material: Aluminium (Anodised aluminium with silicon rubber (SE) gasket.)
-
Available Size:
- 600mm
- 720mm
- 820mm
- 920mm
- 1070mm
- 1220mm
-
Available Finish:
- Bronze Anodised
- Black
- Clear Anodised
Approvals:
-
Acoustic AUS/NZP: NCC F7D6
-
Fire Rating: Up to FD120, Up to FRL and FRR-/120/30
-
Insects and Vermin AUS/NZ: AS 4674 Sect. 2.1.7, AS 4674 Sect. 2.1.5 Pt. (iv)
-
Fire and Smoke AUS/NZ: NCC S12C2, AS 1530.4, AS 1905.1, NZBC C/AS2 4.16.2 and App C6.1.1 and App C6.1.2
-
Fire and Smoke UK/EU: Approved Document B, BS 476 Pt. 20 and 22 (similar to BS EN 1634-1)
-
Fire Flammability Index: Gasket flammability index 1 when tested to AS1530.2
-
Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
-
BAL Statement: BAL FZ when used with an approved proprietary fire rated door in accordance with AS 3959
Raven RP99Si Automatic Door Bottom Seals
A99SIB36
Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:
- A heavy duty, adjustable, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened
- Acoustically designed, with a silicon gasket for medium temperature smoke applications
- Operated automatically by pressure on the door jamb or stop by its adjustable strike
- Includes aluminium cover for concealed fixing for face mounted installation
- Global GreenTag - Platinum
Specifications:
- Fixing: Face Mounted, Semi-morticed, Fully Morticed, Screw Fixed (Concealed screw fix. Zinc plated, cross recess head S.T. screws supplied. Colour matched escutcheon plates and face mount aluminium angle included.)
- Minimum and Maximum Gap: 3mm to 19mm
- Replacement Seals: RP347Si
- Material: Aluminium (Anodised aluminium with silicon rubber (SE) gasket.)
- Size: 920mm
- Finish: Bronze Anodised
Approvals
- Acoustic AUS/NZP: NCC F7D6
- Fire Rating: Up to FD120, Up to FRL and FRR-/120/30
- Insects and Vermin AUS/NZ: AS 4674 Sect. 2.1.7, AS 4674 Sect. 2.1.5 Pt. (iv)
- Fire and Smoke AUS/NZ: NCC S12C2, AS 1530.4, AS 1905.1, NZBC C/AS2 4.16.2 and App C6.1.1 and App C6.1.2
- Fire and Smoke UK/EU: Approved Document B, BS 476 Pt. 20 and 22 (similar to BS EN 1634-1)
- Fire Flammability Index: Gasket flammability index 1 when tested to AS1530.2
- Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
- BAL Statement: BAL FZ when used with an approved proprietary fire rated door in accordance with AS 3959
