SKU: ASS110151010M

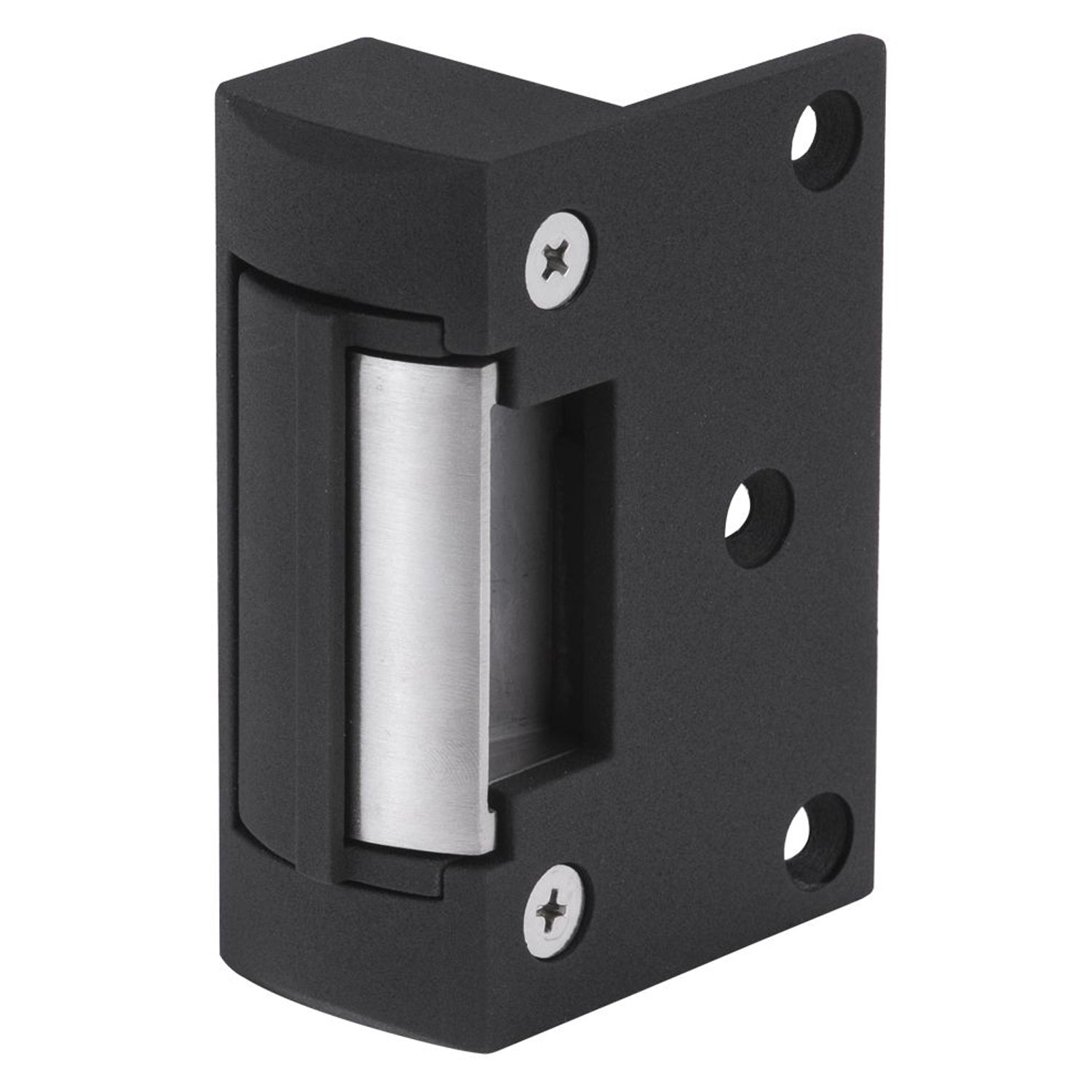

Trimec ES151 Electric Strike 12/24VDC PTL/PTO Surface Mount IP56 110151-010M
Restocking Soon: ETA End November
RRP: $506.68
Buy In Bulk & Save!
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Trimec ES151 Electric Strike
110151-010M
Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.
Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.
- ES151 is a surface mounted electric strike suitable for use with rim or surface type dead latches.
- This strike is easy to install and can be simply controlled by a keypad, keyswitch or integrated into any access control system.
- ES151 offers high levels of security and features usually provided by more expensive electric locking solutions. The electric strike can be easily installed on steel and wooden door frames.
Features:
- Fail safe/fail secure changeable on site
- Easy installation suitable for steel and wooden door frames
- Stainless steel striker for extra strength and durability
- Multi Voltage 12VDC & 24VDC
- Solenoid rated for continuous use
- IP56 weather resistant version available
- Australian designed
- TRICARE 5 Year Warranty
Applications:
- Surface or rim mounted applications
- Suitable for use with all access control systems
- Exposed areas
Specifications:
- Voltage: 12V DC or 24V DC
- Current Draw: 250mA at 12V DC, 125mA at 24V DC
- Holding Force: 680kg
- Endurance: 1,000,000 operations
- Operational Temperature: -20 degrees to +60 degrees celsius
- Weather Rating: IP56
Standards and Compliance:
- CE approved (EMC, ROHS & REACH)
- Regulatory Compliance Mark (RCM) approved
- IP56 Rated
