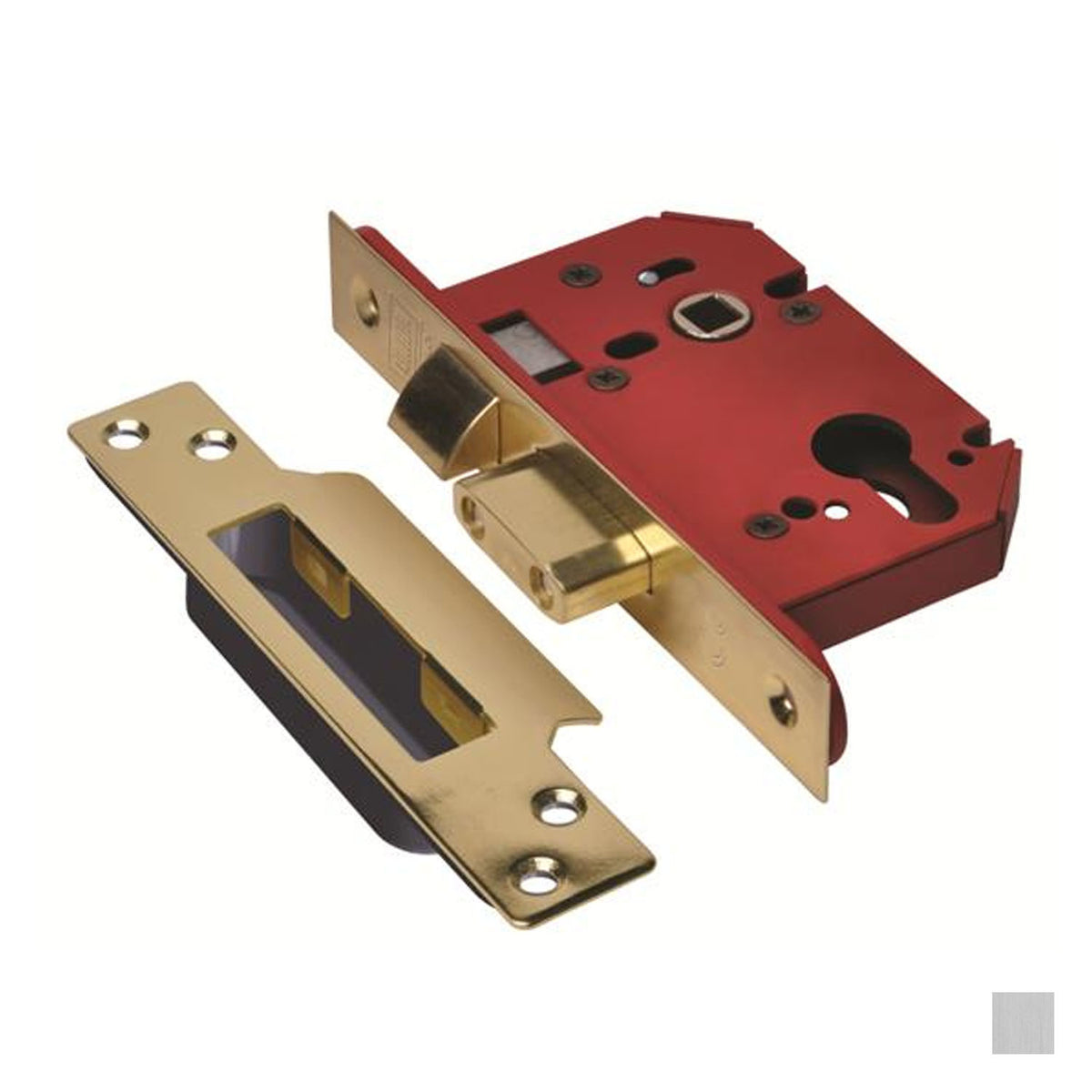

Union Strongbolt Euro Sashlock - Available in Various Finishes and SIzes

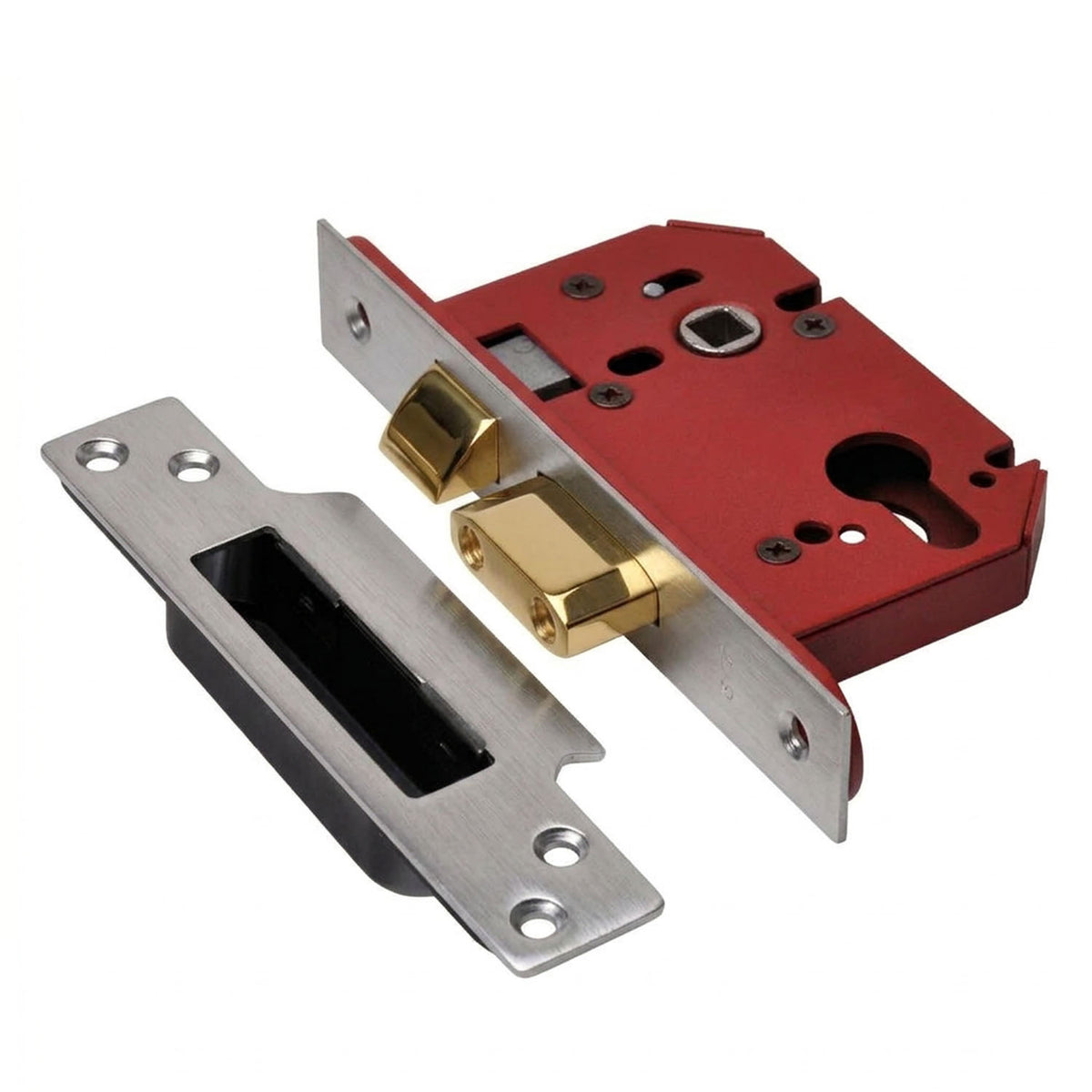

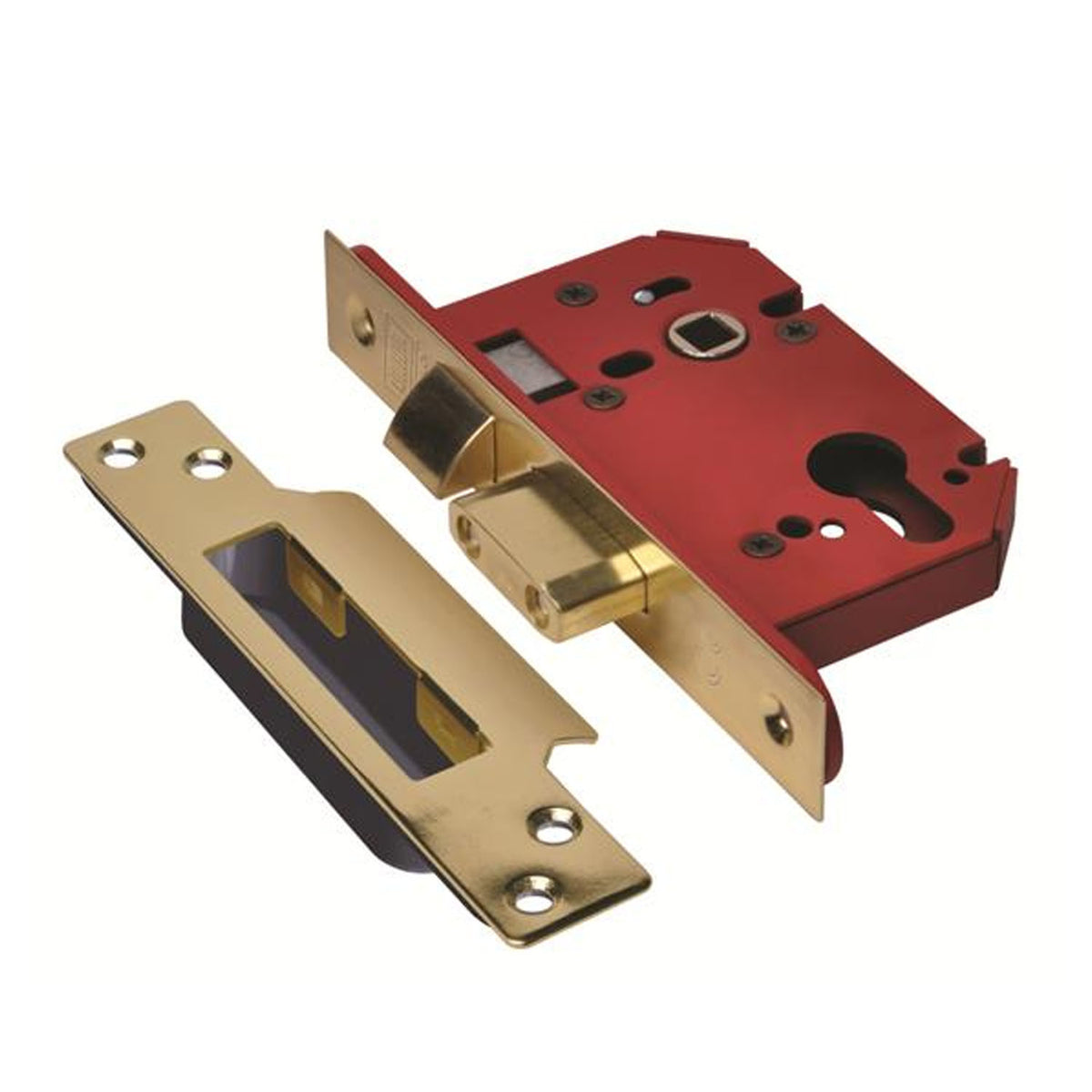

Union Strongbolt Euro Sashlock

Euro Sashlock is a mortice door lock designed to provide security and privacy. It combines a latch and a deadbolt in one locking mechanism and is commonly used with a Euro-profile cylinder.

Euro Sashlock Function - uses a spring-loaded latch to keep the door closed and a deadbolt to secure the door when locked using a key or compatible locking mechanism. It allows the door to be opened and closed conveniently while providing additional security when locked.

Features:

• Ideal for timber doors hinged on the left or right and suitable for doors up to 54mm thick. It is designed for use with an Euro profile cylinder.
• The deadbolt is locked or unlocked by key or cylinder turn, and measures 14mm for secure positive deadlocking
• Has hardened steel pins to give increased resistance to sawing attacks. The chamfered bolt design increases the performance of the lock under side load testing

Specifications:

• Case: Steel, Red powder coat
• Forend: Stainless steel or brass plated
• Striking Plate: Finished to match forend
• Faceplate: Supplied with square faceplate which covers a radius inner forend
• Deadbolt: Zinc with hardened steel rollers
• Latch Bolt: Zinc
• Follower: Sintered Steel
• Rebate Kit: 2200REB 13mm (0.5")

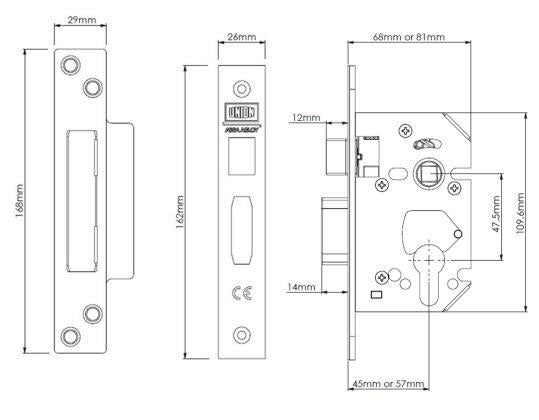

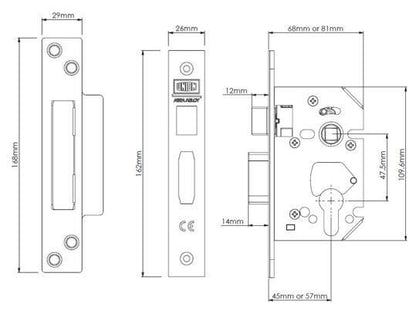

• Available Sizes:
  • 45mm
  • 57mm

• Available Finish:
  • Polished Brass
  • Stainless Steel
