SKU: ASSW615200
Whitco Window Balance Accessory TFD Foot Spiral Sash W615200
RRP: $4.44
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

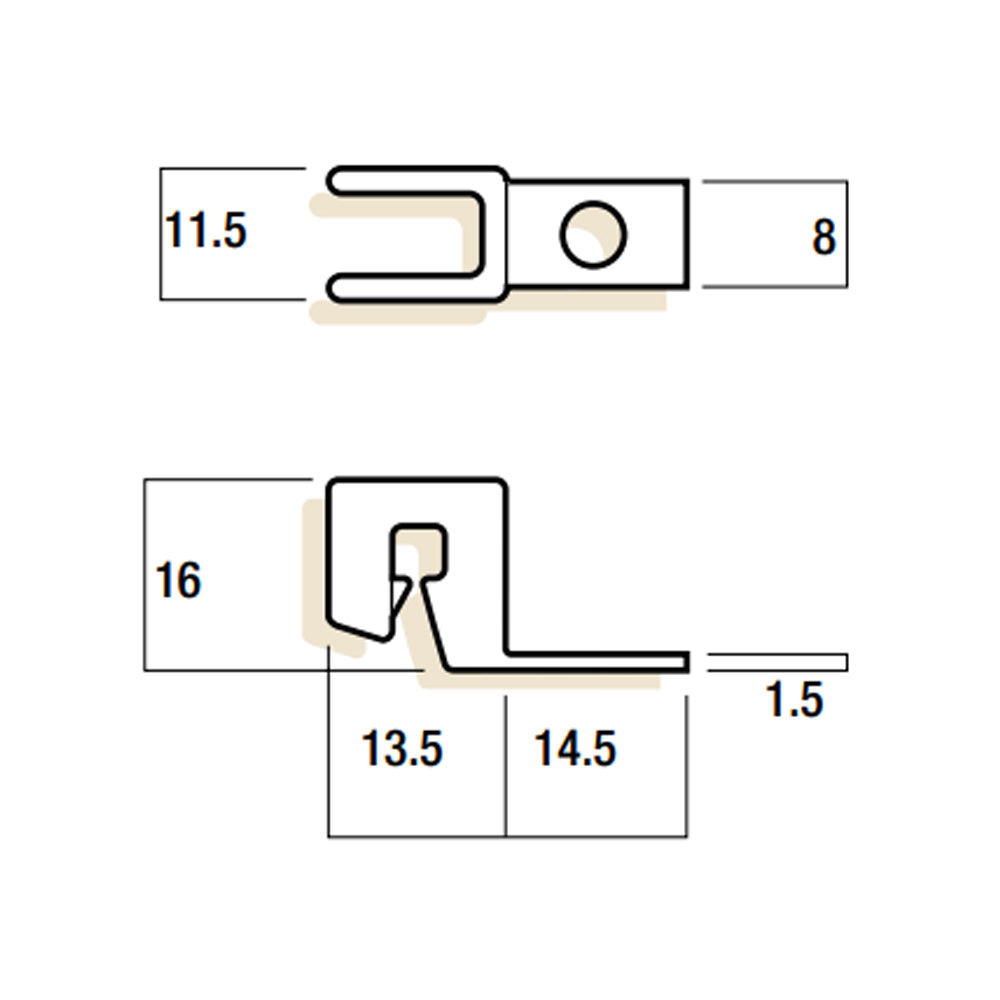

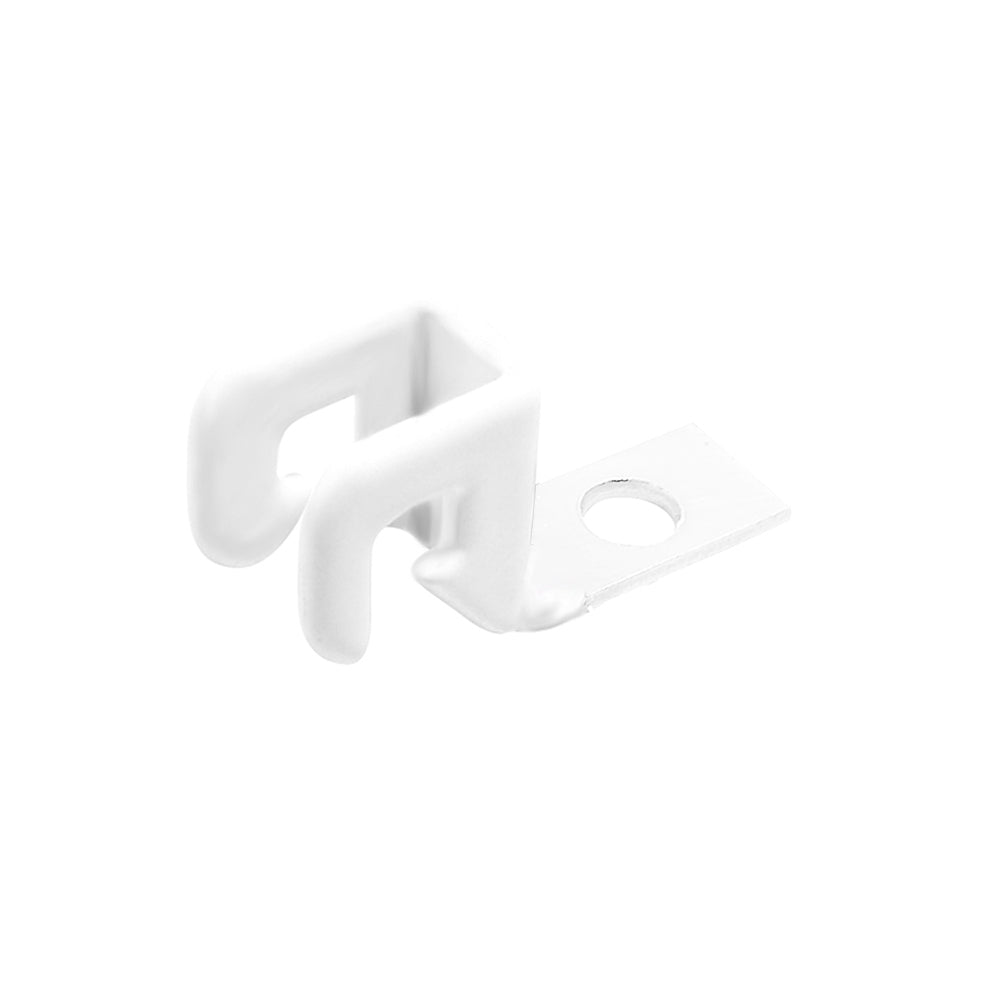

Whitco Window Spiral Sash Balance Accessory TFD Foot
W615200
Features:
- Standard adjustable foot for Weight Range 1-3 (2.25 to 14 kg)
If you need further help selecting your spiral sash balance :
Step B1 - Top Sash Balances
1. Measure the overall height of the top sash (including horns, if used). This is the Closed "C" Dimension.
2. Refer to appropriate Closed "C" dimensions on size chart and select the Balance Number matching the Closed "C" Dimension.
3. If there is not an exact match to Closed "C" Dimension go to the next smaller Balance Number e.g. - For Closed "C" dimension of 341mm select balance number 110.
Step B2 - Bottom Sash Balances
1. Measure the overall window opening height from sill to head. This is the Extended Dimension "E"
2. Refer to appropriate Extended Dimensions "E" on size chart and select the Balance Number matching the Extended "E" Dimension.
3. If there is not an exact match to Extended ‘E’ Dimension go to the next larger Balance Number size.
e.g. – For Extended ‘E’ dimension of 546mm select balance number 110.
For more information, there is a great PDF on the WHITCO website search WINDOW BALANCE SYSTEMS
Whitco Window Spiral Sash Balance Accessory TFD Foot
W615200
Features:
- Standard adjustable foot for Weight Range 1-3 (2.25 to 14 kg)
If you need further help selecting your spiral sash balance :
Step B1 - Top Sash Balances
- 1. Measure the overall height of the top sash (including horns, if used). This is the Closed Dimension.
- 2. Refer to appropriate Closed dimensions on size chart and select the Balance Number matching the Closed Dimension.
- 3. If there is not an exact match to Closed Dimension go to the next smaller Balance Number e.g. For Closed dimension of 341mm select balance number 110.
Step B2 - Bottom Sash Balances
- 1. Measure the overall window opening height from sill to head. This is the Extended Dimension
- 2. Refer to appropriate Extended Dimensions on size chart and select the Balance Number matching the Extended Dimension.
- 3. If there is not an exact match to Extended Dimension go to the next larger Balance Number size. e.g. For Extended dimension of 546mm select balance number 110.
For more information, there is a great PDF on the WHITCO website search WINDOW BALANCE SYSTEMS
