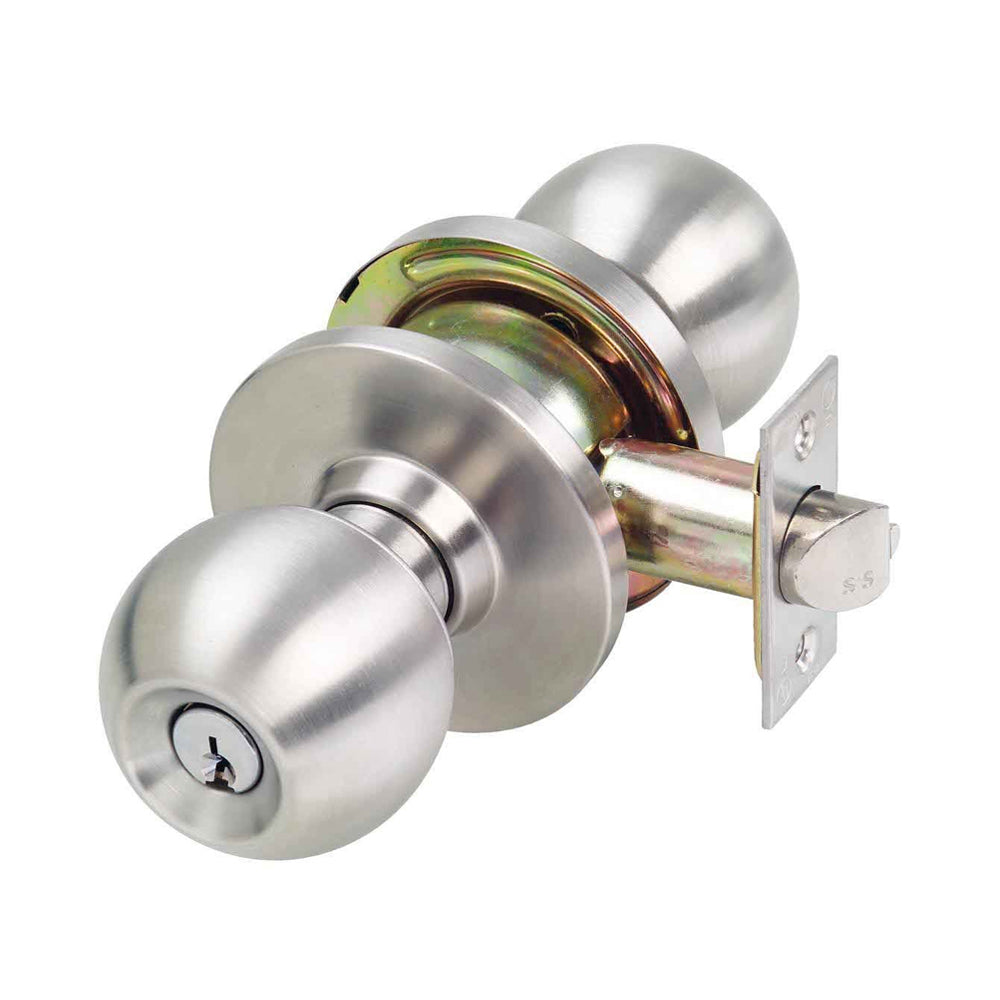

Yale Commercial Key in Knob Lockset
Door Knob used to open up or shut a door. commonly used on commercial or residential area.
Door Knob Function - are a common type of keyed entrance hardware with a traditional look and feel. They have a latch that disengages when the knob is turned. The latch cannot be disengaged from the outside without a key if the knob is locked.
- The Yale Commercial Series Locksets incorporate a cylindrical chassis design housing a PD cylinder.
- The Yale Commercial Series offers a wide range of functions to accommodate a broad range of applications.
- For added security it is recommended that Yale Commercial Series Knob and Lever Locksets are used in conjunction with Yale Commercial Deadbolts.
Features:
- Yale Commercial Series cylindrical locksets have been successfully tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS-1905 Part 1, Fire Resistant Doorsets
- Stainless steel latch bolt
- Standard "PD" type cylinder keyed to C4 profile with two keys
- Supplied individually keyed with two keys per lock
Specifications:
-
Available Door Function:
- Entrance Set

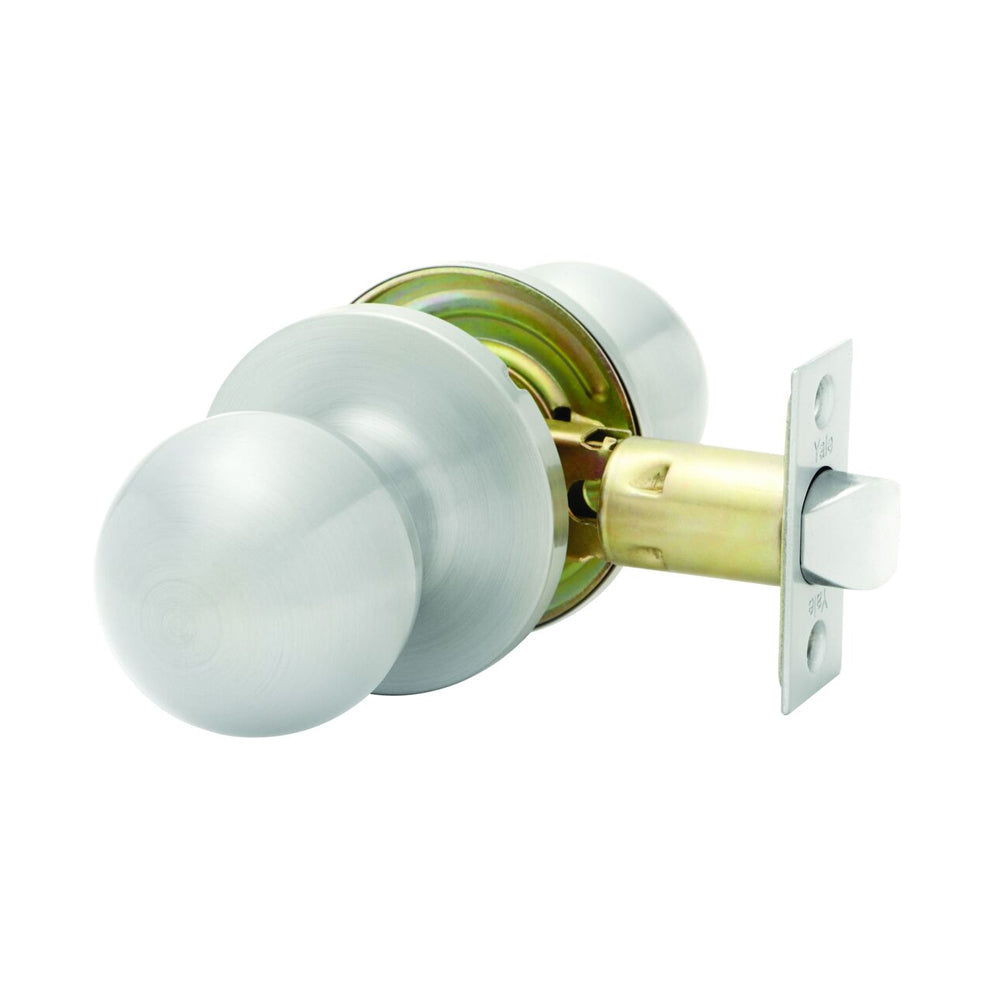

- Passage Set

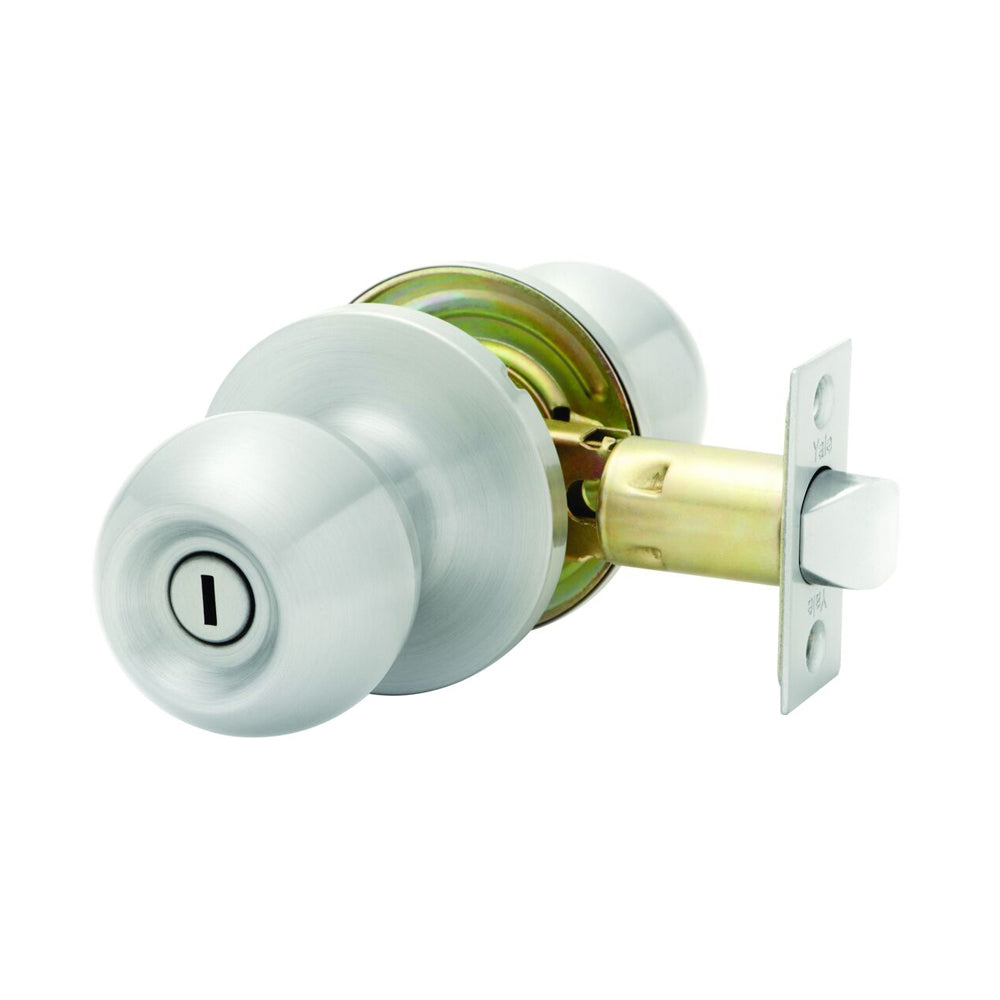

- Privacy Set
- Storeroom Set
- Key Blanks: V06 5PIN C4 (Standard)
-
Available Backset:
- 60mm
- 70mm
- Door Thickness: 32mm - 46mm
- Fire Rated: Yes
- Finish: Satin Stainless Steel
Yale Commercial Key in Knob Entrance Set
YK16/EXT/SS
Entrance Knob are have a key and are used at entrances to buildings or other spaces such as offices or conference rooms.
Entrance Knob Function - Outside key unlocks outside knob. Inside knob free at all times, push button locks outside knob.
- The Yale Commercial Series Locksets incorporate a cylindrical chassis design housing a PD cylinder.
- The Yale Commercial Series offers a wide range of functions to accommodate a broad range of applications.
- For added security it is recommended that Yale Commercial Series Knob and Lever Locksets are used in conjunction with Yale Commercial Deadbolts.
Features:
- Yale Commercial Series cylindrical locksets have been successfully tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS-1905 Part 1, Fire Resistant Doorsets
- Stainless steel latch bolt
- Standard "PD" type cylinder keyed to C4 profile with two keys
- Supplied individually keyed with two keys per lock
Specifications:
- Door Function: Entrance Set
- Diameter Rose: 75mm
- Knob Projection: 69.5mm
- Strike: 70mm x 27mm x 1.2mm
- Latch Face Plate: 57mm x 25mm
- Cylinder: LW5 profile
- Door Handing: Non-handed
- Key Blanks: V06 5PIN C4 (Standard)
- Backset: 60mm
- Door Thickness: 32mm - 46mm
- Fire Rated: Yes
- Finish: Satin Stainless Steel
