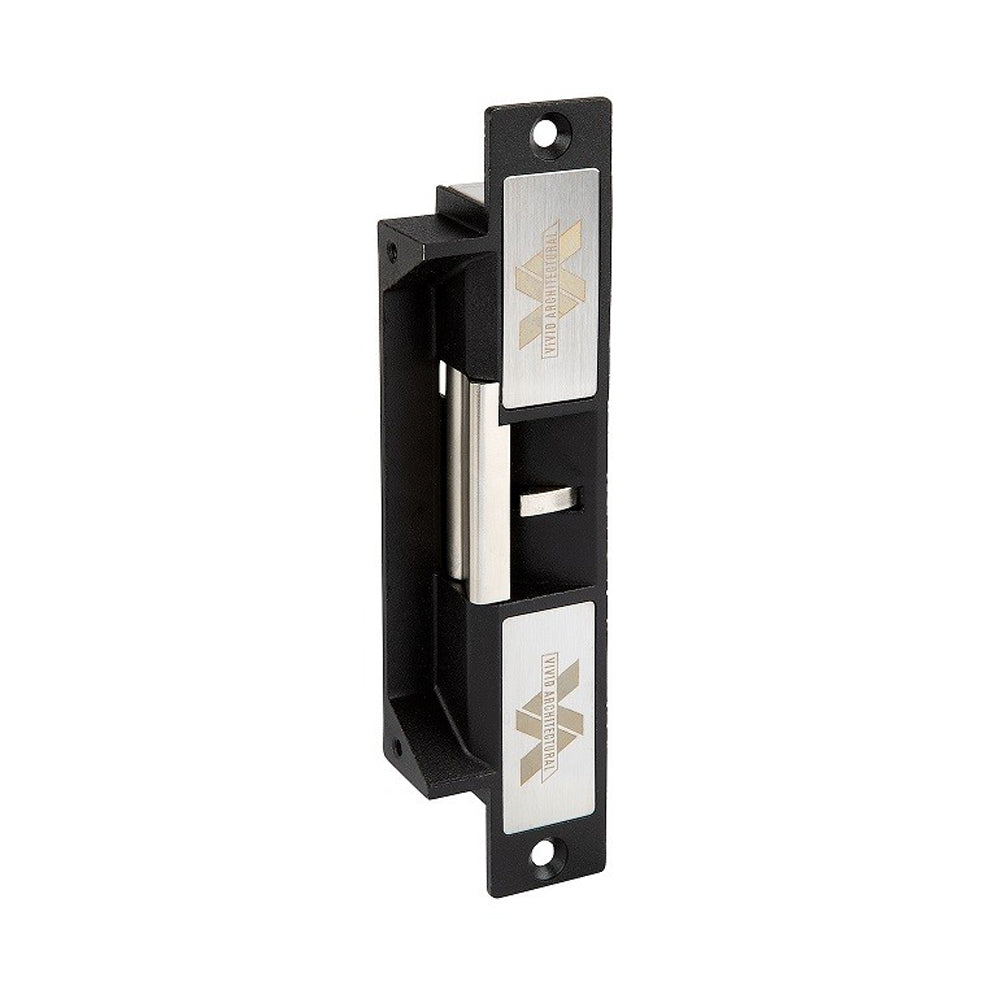

Zanda Electric Strike 12/24V Non-Monitored Non-Fire Rated PTL/PTO ESV.200

Zanda Electric Strike
ESV.200

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

Features:

• Stainless steel face plate and keeper
• Easily change from Power to Lock / Power to Open
• Field Interchangeable
• Non-handed
• Fully Reversible
• Approvals CE tick, ROHS Compliant
• Non Fire Rated

Specifications:

• Length: 174mm
• Width: 29mm
• Depth: 30mm
• Voltage: 12Vdc and 24Vdc
• Monitoring: Non-Monitored
• Holding Force: 680 kg Static Strength Rating
• Latch: Compatible with latch depth up to 18mm
