SKU: ZANEML550SE

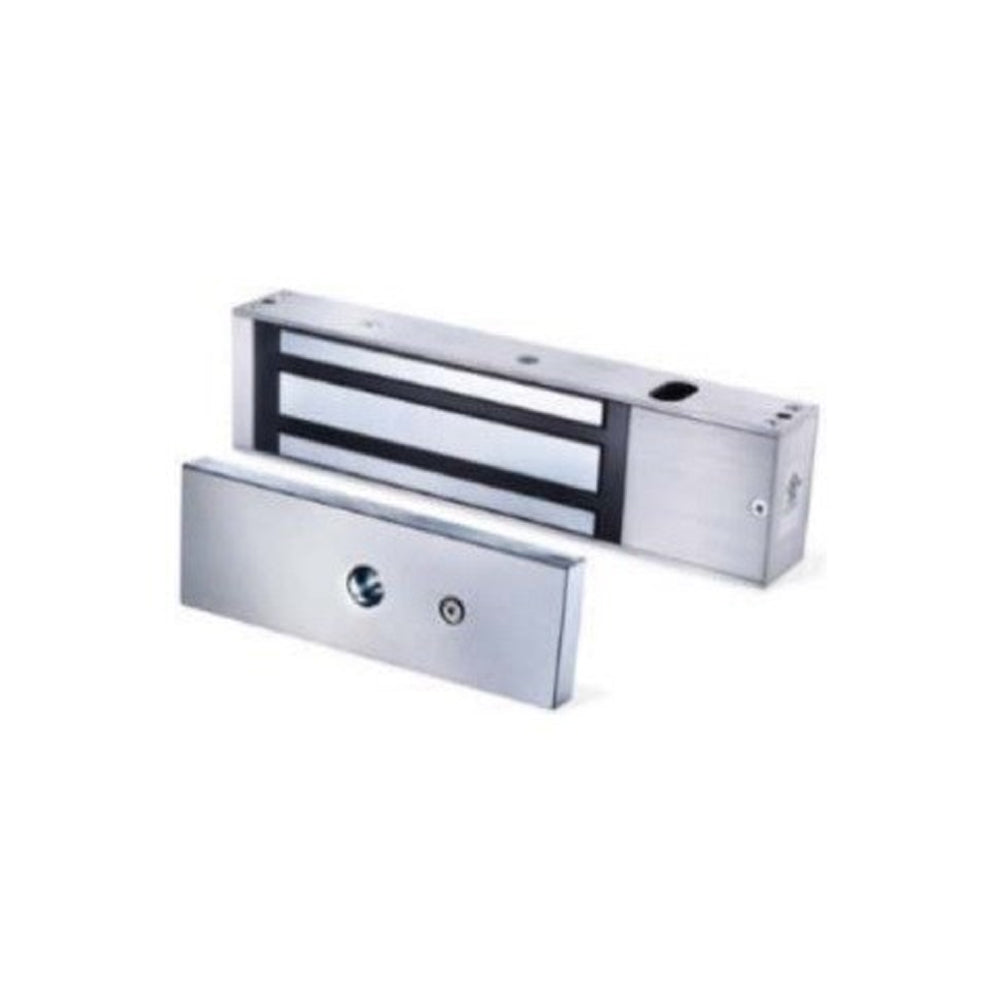

Zanda Electromagnetic Maglock - 550Kg Holding Force Silver EML.550.SE
RRP: $492.80
Payments accepted:
Couldn't load pickup availability
Zanda Electromagnetic Maglock
EML.550.SE
Electromagnetic Maglock is commonly used in various security applications, including commercial buildings, government facilities, schools, hospitals, airports, and other high-security environments where controlled access is essential.
Electromagnetic Maglock Function - use electricity to create a magnetic field that securely locks doors with an armature plate, which releases when power is interrupted, often integrating with access control systems and offering fail-safe or fail-secure options for enhanced security.
Features:
- Monitored – door & lock status sensor
- Configurable large red/green LED indicator 37x15mm
- Optional relock time delay
- Anti tamper adjustable mounting plate for easy installation
- Reversible for left or right handed doors
- Aluminium anodized casing
- Approvals CE tick, ROHS Compliant
Specifications:
- Holding Force: Up to 550 Kg.
- Holding Strength: 680 Kg.
- Dual Voltage: 12/24 VDC field selectable
-
Magnet:
- Length: 267mm
- Height: 68mm
- Depth: 40mm
-
Armature Plate (including surround):
- Length: 214.7mm
- Height: 67mm
- Depth: 20mm
-
Mounting Plate:
- Length: 267mm
- Height: 8mm
- Depth: 40mm
- Finish: Silver
Zanda Electromagnetic Maglock
EML.550.SE
Electromagnetic Maglock is commonly used in various security applications, including commercial buildings, government facilities, schools, hospitals, airports, and other high-security environments where controlled access is essential.
Electromagnetic Maglock Function - use electricity to create a magnetic field that securely locks doors with an armature plate, which releases when power is interrupted, often integrating with access control systems and offering fail-safe or fail-secure options for enhanced security.
Features:
- Monitored – door & lock status sensor
- Configurable large red/green LED indicator 37x15mm
- Optional relock time delay
- Anti tamper adjustable mounting plate for easy installation
- Reversible for left or right handed doors
- Aluminium anodized casing
- Approvals CE tick, ROHS Compliant
Specifications:
- Holding Force: Up to 550 Kg.
- Holding Strength: 680 Kg.
- Dual Voltage: 12/24 VDC field selectable
- Magnet:
- Length: 267mm
- Height: 68mm
- Depth: 40mm
- Armature Plate (including surround):
- Length: 214.7mm
- Height: 67mm
- Depth: 20mm
- Mounting Plate:
- ​​​​​​​Length: 267mm
- Height: 8mm
- Depth: 40mm
- Finish: Silver
