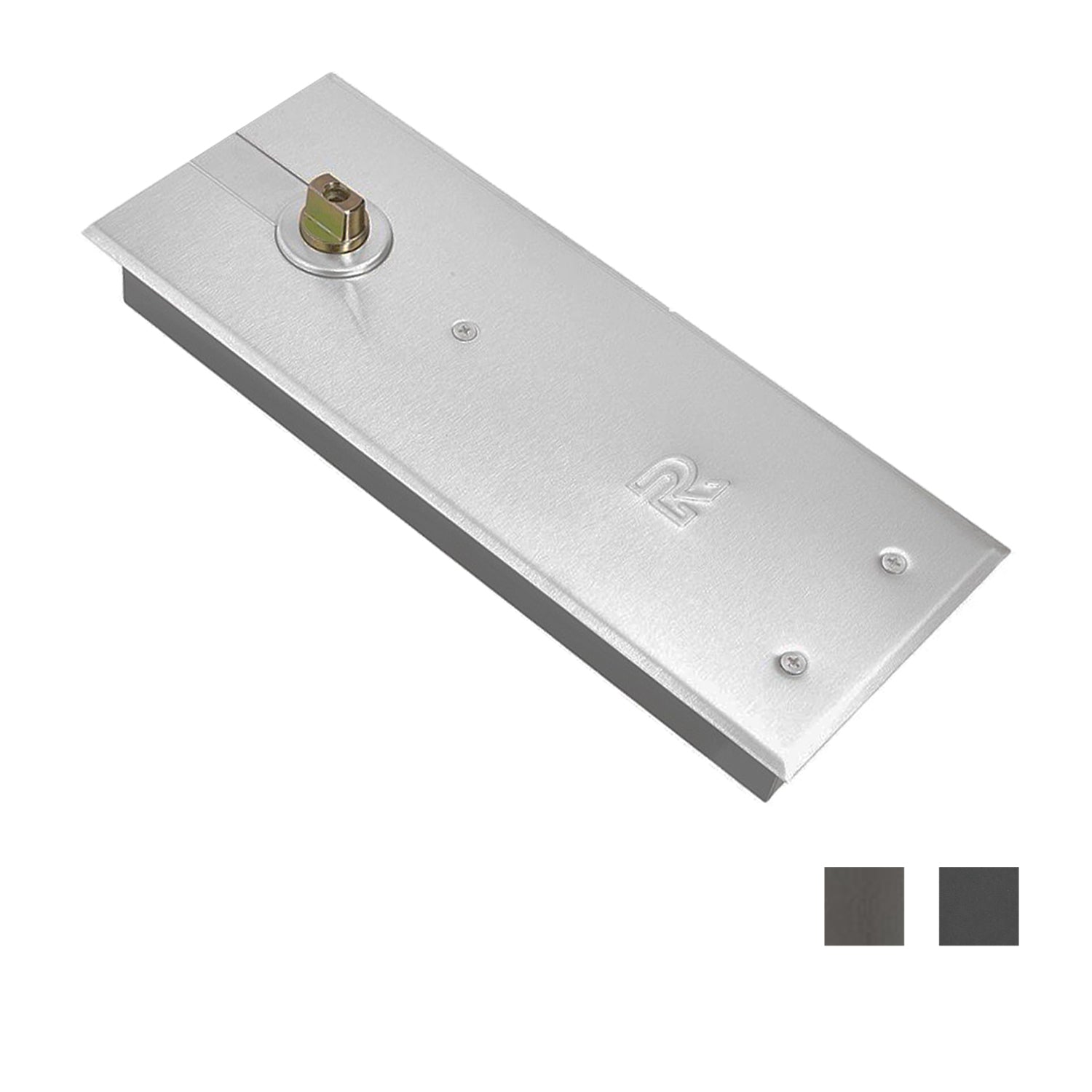

Zanda TS7004 EN-4 Floor Spring Double Action - Available in Various Finishes and Functions

Zanda TS7004 EN-4 Floor Spring

Floor Spring is commonly used in architectural and commercial applications to control the movement of heavy glass doors.

Floor Spring Function - designed for heavy doors, particularly glass doors and other commercial applications. Its primary function is to control the movement of these doors, allowing for smooth and controlled opening and closing.

Features:

• Enhanced with their powerful but easy to use cam and roller action mechanisms
• Commonly used on timber and aluminum pivot doors with great effect
• Ideally suited for use in hospitals, surgeries, nursing homes etc, where easy opening is required
• Can be used in temperatures from -15 degree Celsius to 40
• Fire tested EN1634

Specifications:

• Material: 316 Stainless Steel
• Opening Angle: 130 Degrees
• Power Size: EN4
• Max Door Weight: 150kg
• Max Door Width: 1200mm
• Available Closer Options:
  • Hold Open
  • Non Hold Open
• Pivot Set: Double Action
• Adjustable Closing Speed: Yes
• Adjustable Latch Action: Yes
• Adjustable Back Check: Yes
• Available Finish:

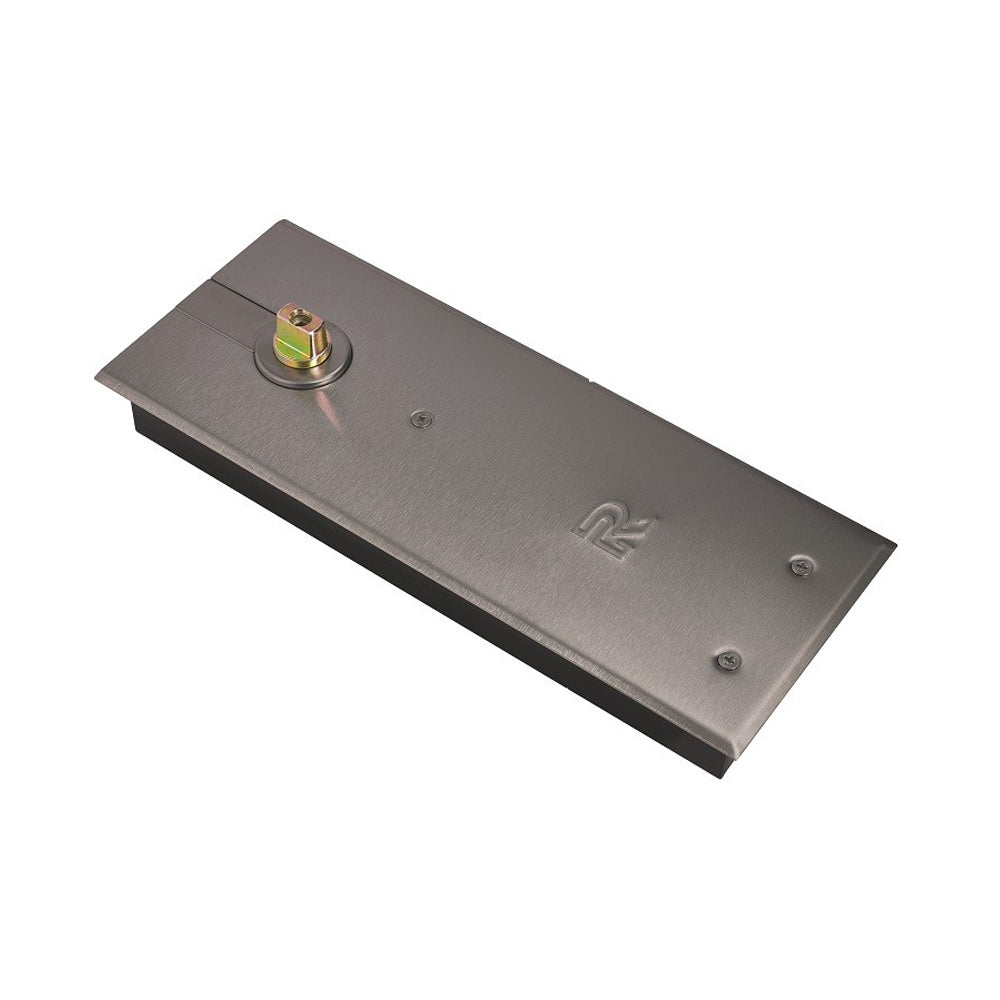

  • Graphite Nickel

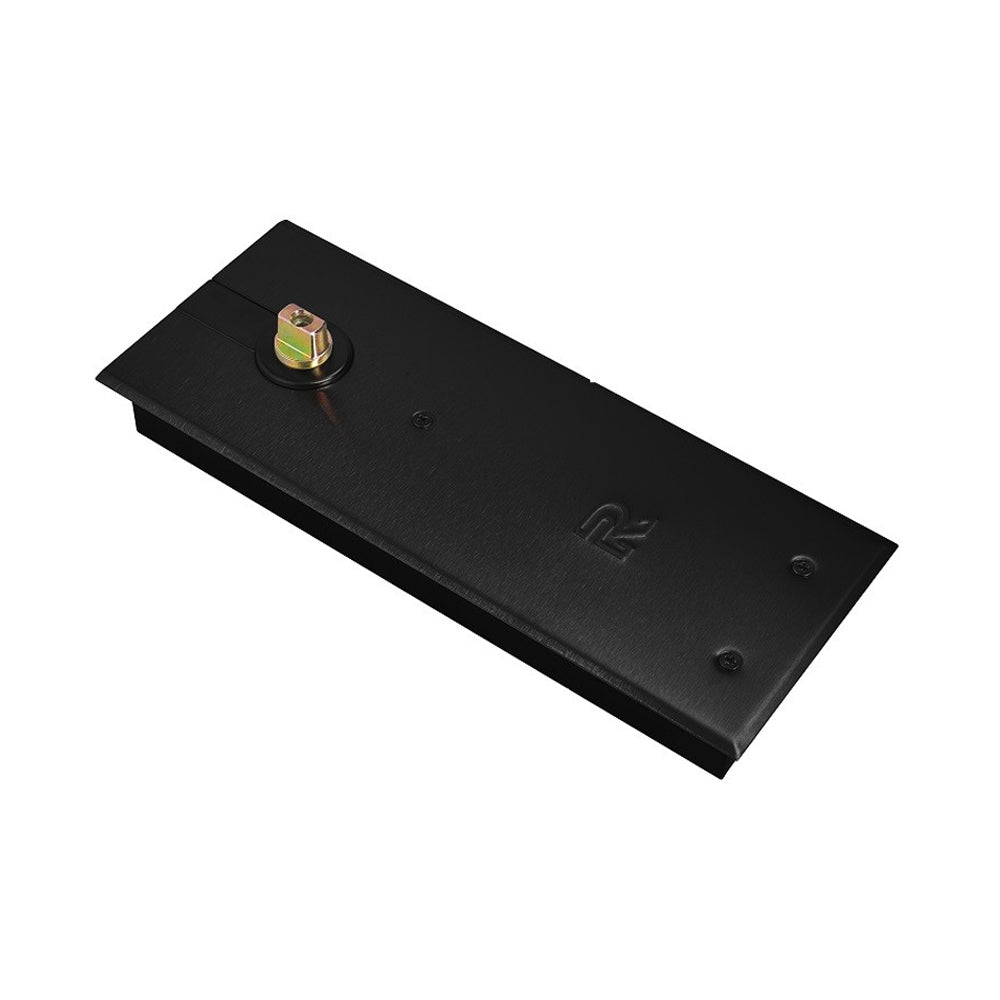

  • Matt Black

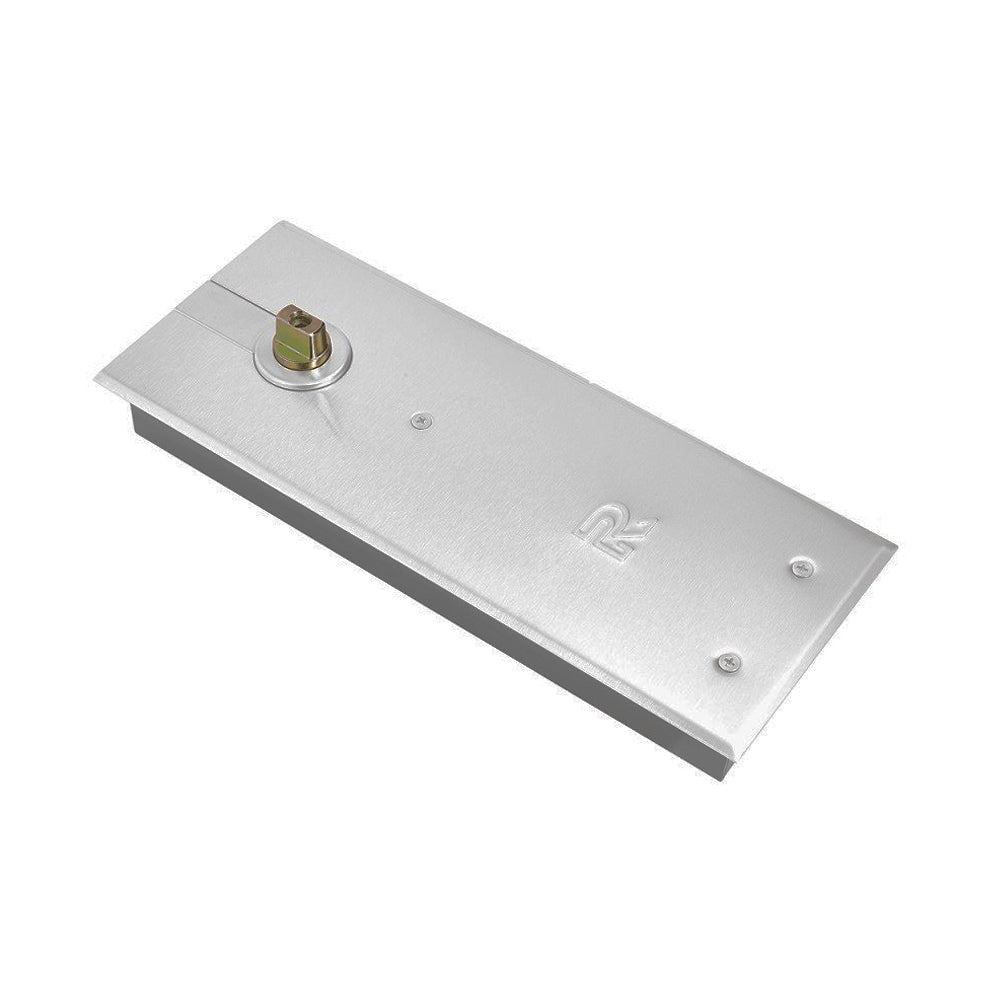

  • Stainless Steel

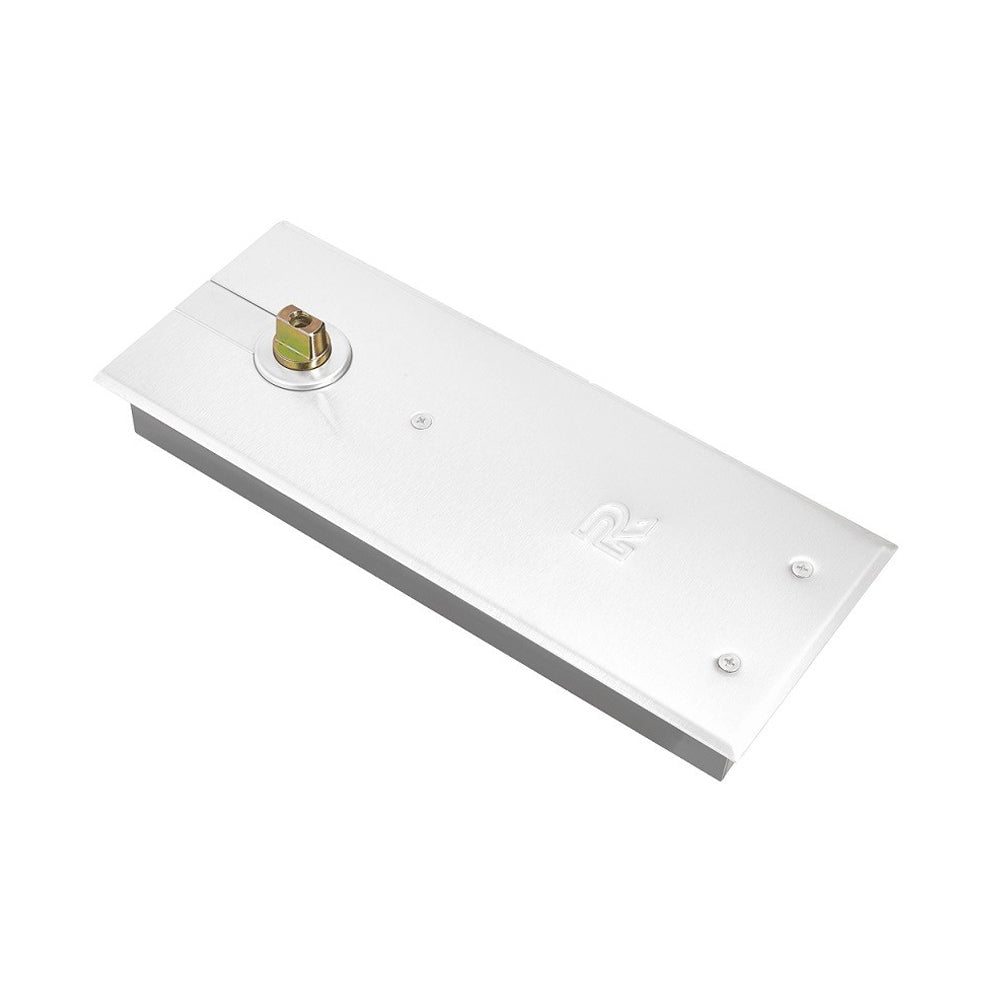

  • White
