SKU: ZANTS9205SRFBEB

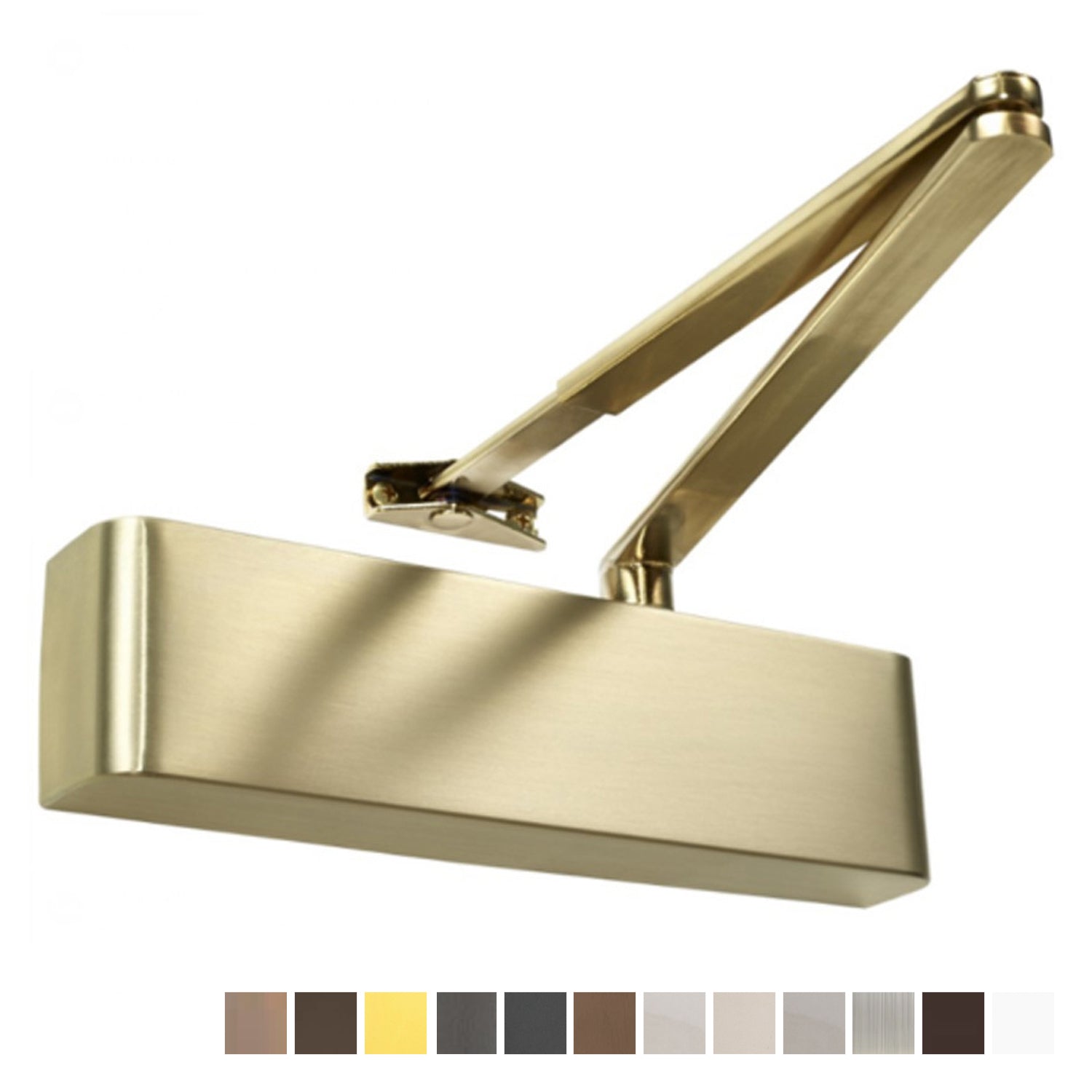

Zanda TS9205 Door Closer Combined Unit Flat Bar Armset - Available in Various Finishes
RRP: $516.56
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Zanda Door Closer Combined Unit - Flat Bar Armset
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
Includes:
- 1 x TS9205 mechanism
- 1 x Flat Bar Armset
- 1 x Semi-Radiused Cover
Features:
- Variable power adjustable EN2-5
- Suits doors up to 110kg and 1250mm wide
- Universal application can be fitted in Standard, Parallel arm or Transom fitting position
- Comes standard with delayed action and back check.
- Unique semi-radius cover for an architectural look make your project stand out
- Fire tested to Australian standards
- Ideal for disability compliant projects due to its ease of opening and efficiency
- Closing and latching speeds can be adjusted from the front of the mechanism
- Suitable for timber, metal and aluminium doors
Specifications:
- Strength: EN2-5
- Mechanism: Rack and Pinion
- Adjustable Closing Speed: Yes
- Adjustable Latch Action: Yes
- Adjustable Delayed Action: Optional
- Adjustable Back Check: Yes
- Door Width: 850mm to 1250mm
- Door Weight: 45kg to 110kg
- Opening Angle: 180 degrees
- Left Hand and Right Hand Doors Universal Application: Yes
- Fire Rated (BS EN 1634-1: 2000): Yes
- Tested to BS EN1154: 1997: Yes
-
Available Finishes:

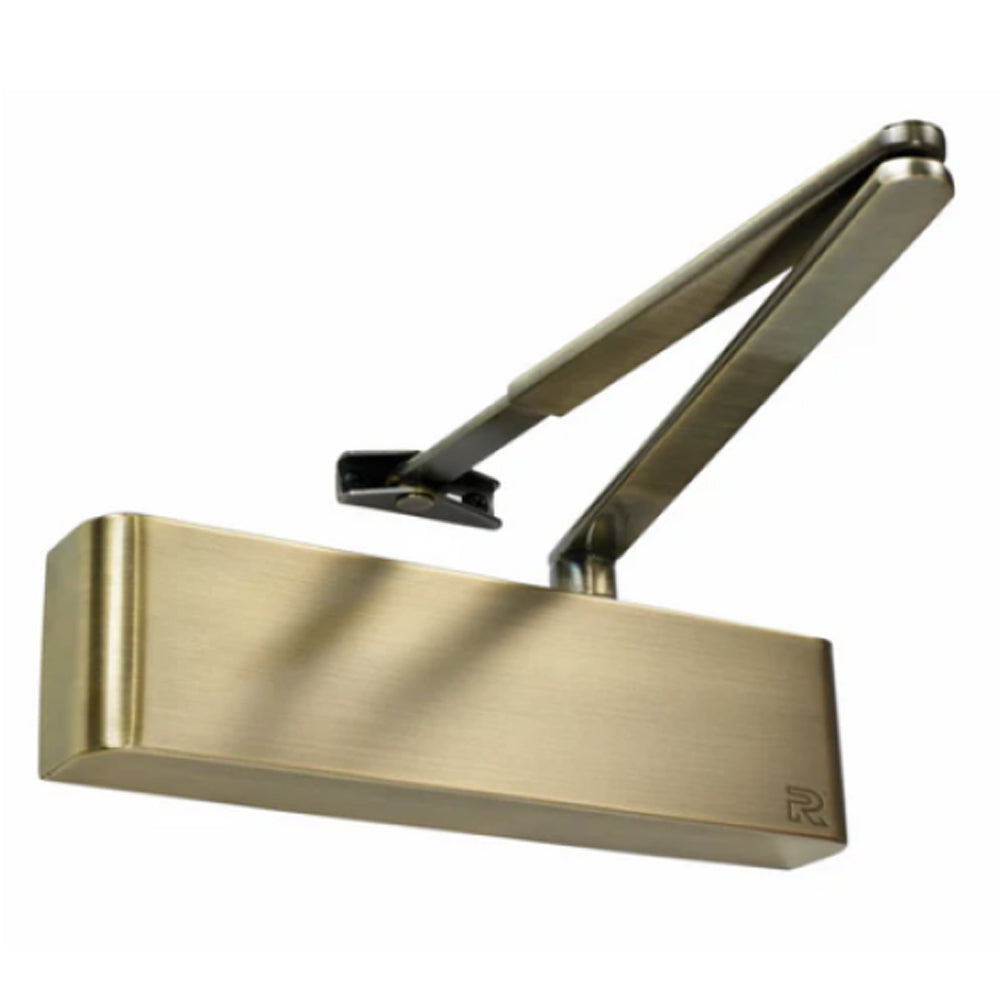

- Antique Brass
- Electro Brass

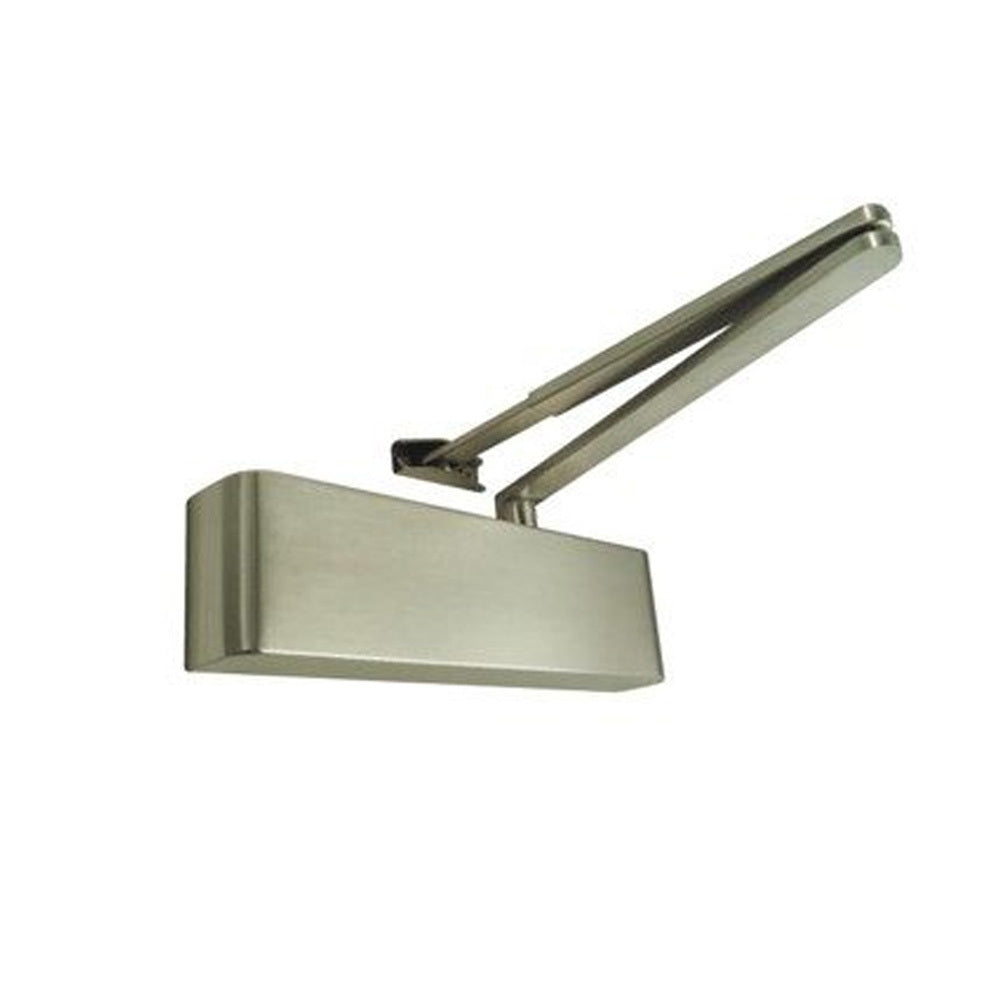

- Graphite Nickel

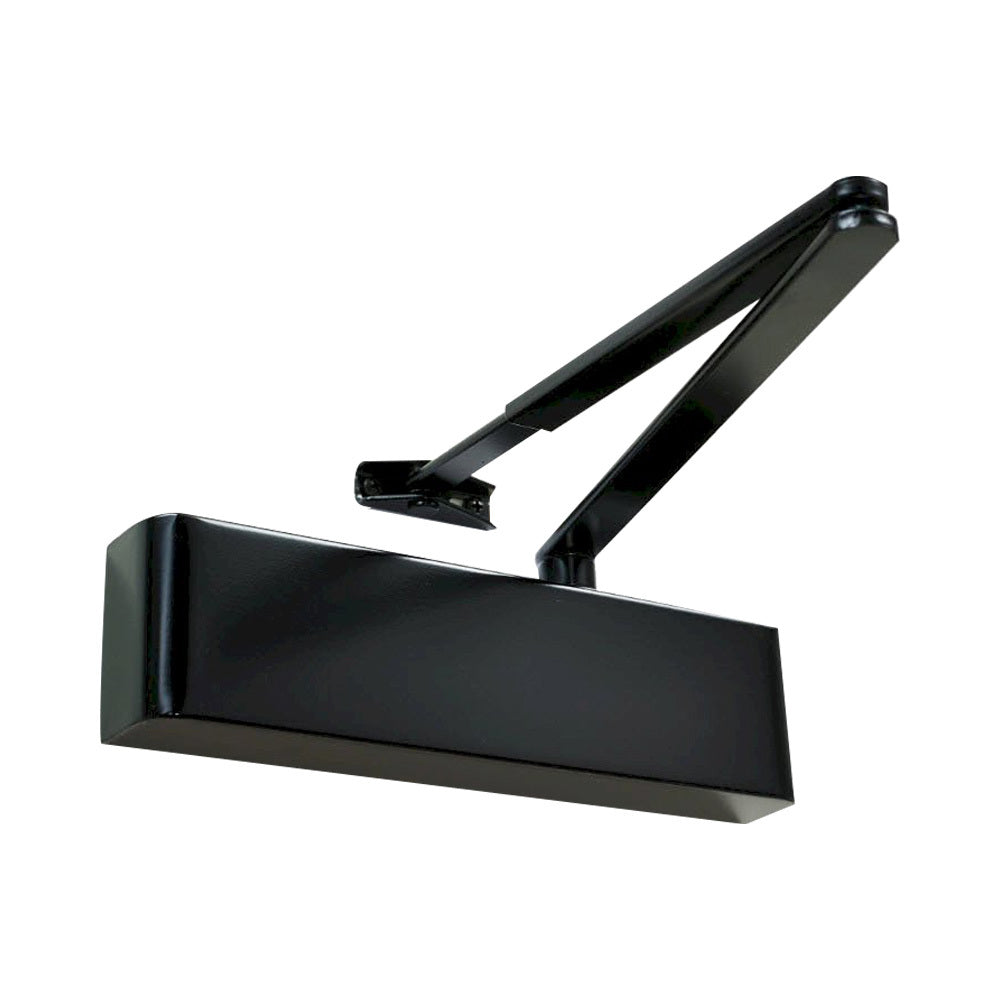

- Matt Black

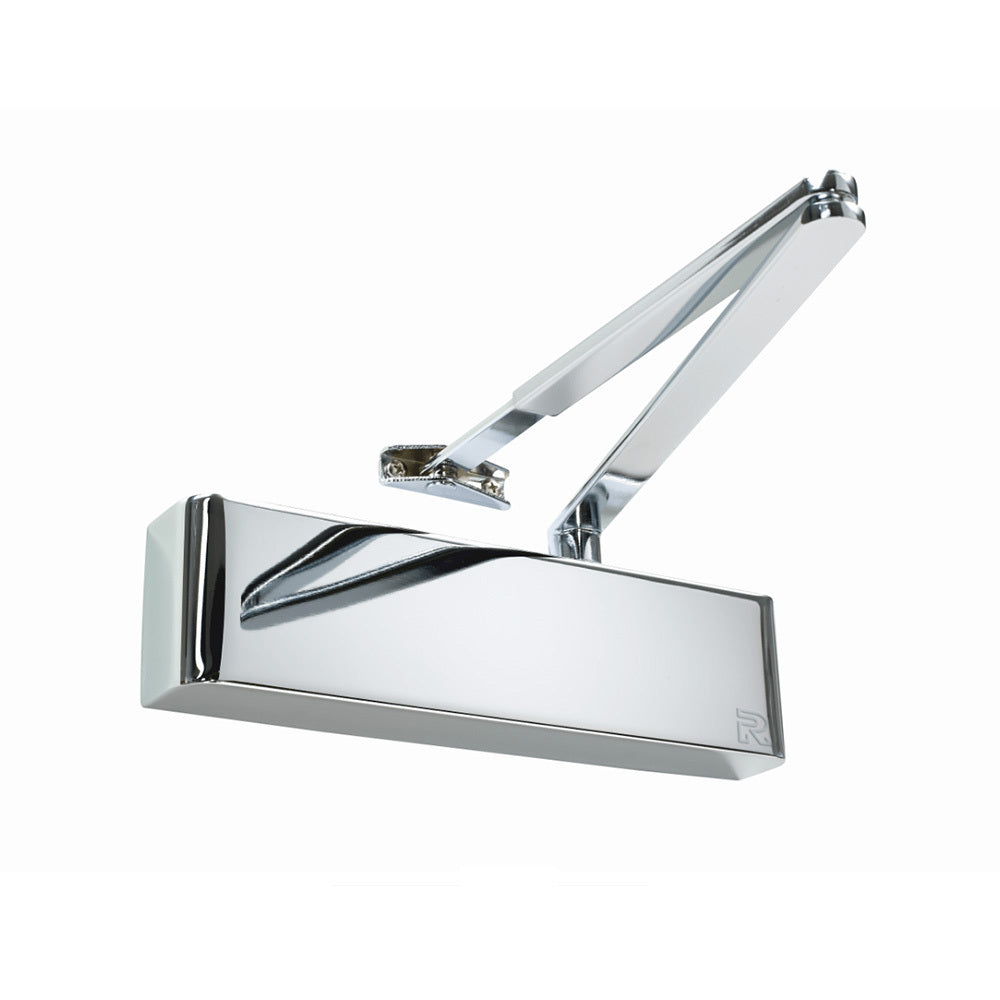

- Polished Nickel Plate

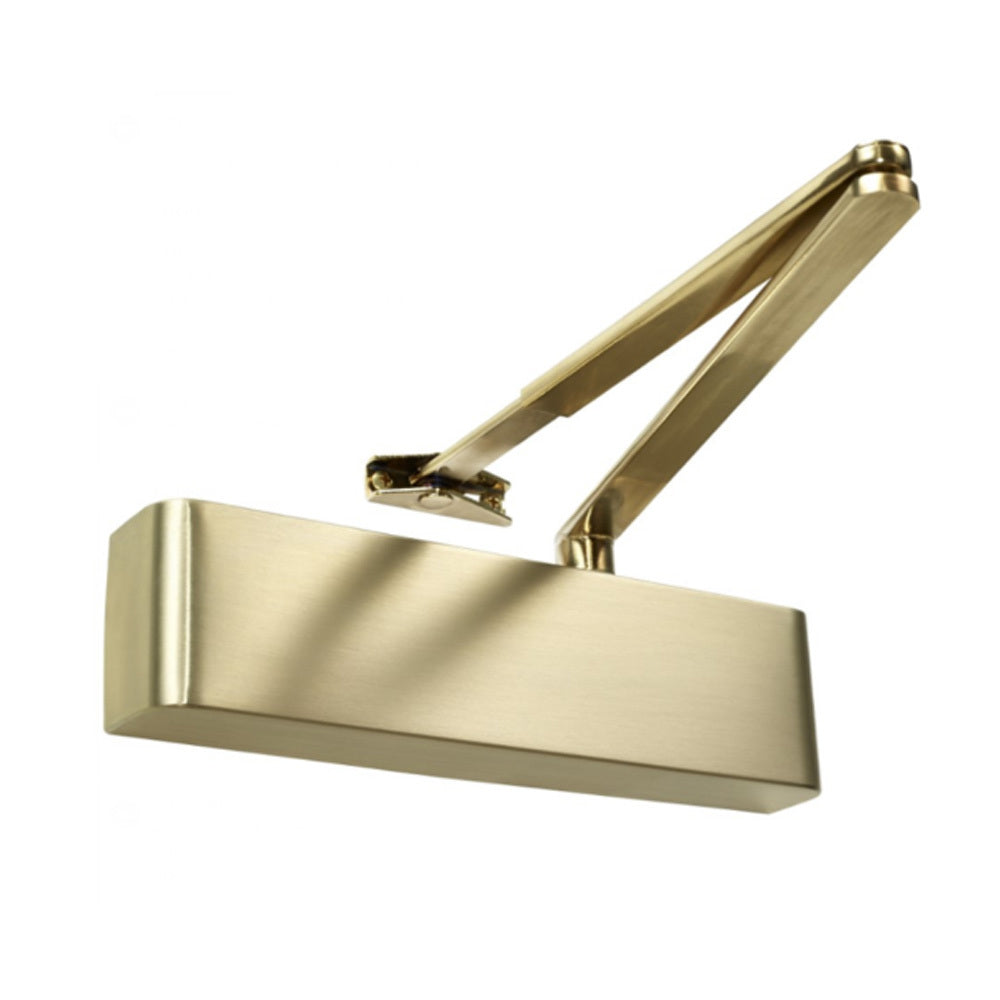

- Satin Brass

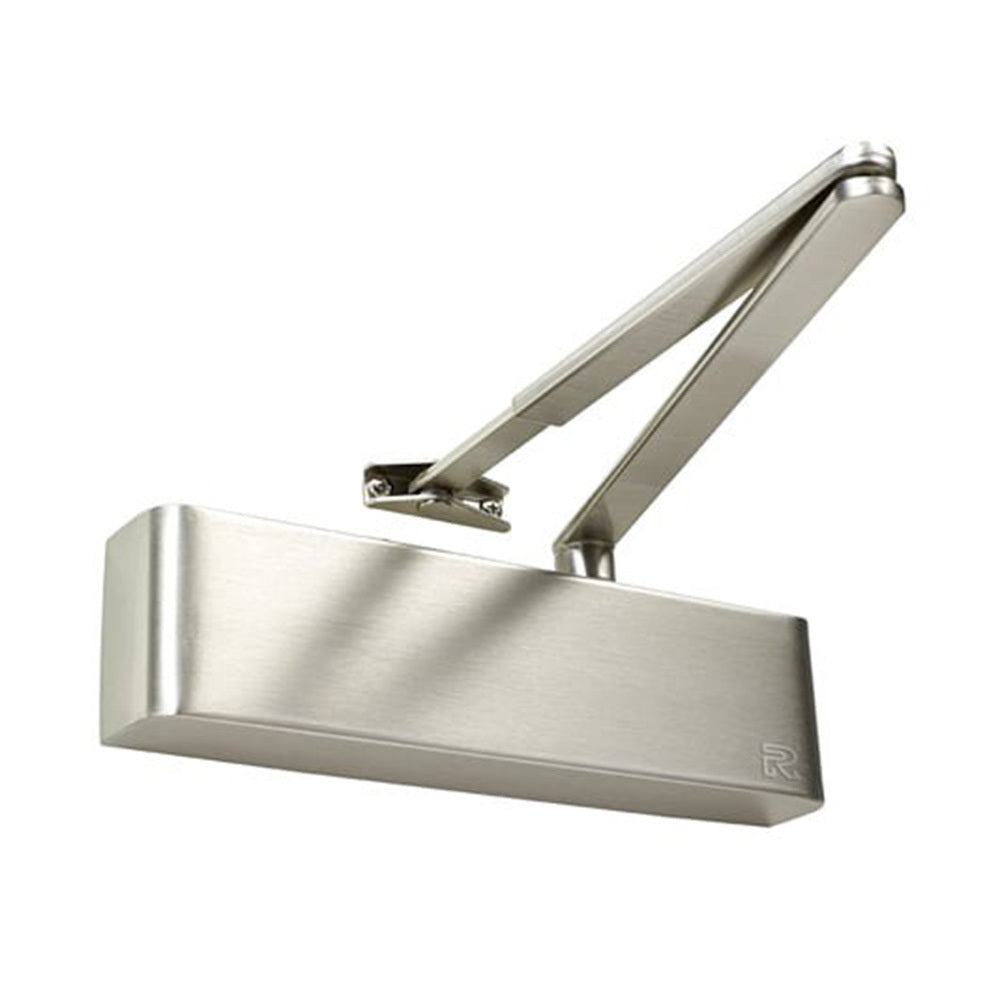

- Satin Nickel Plate

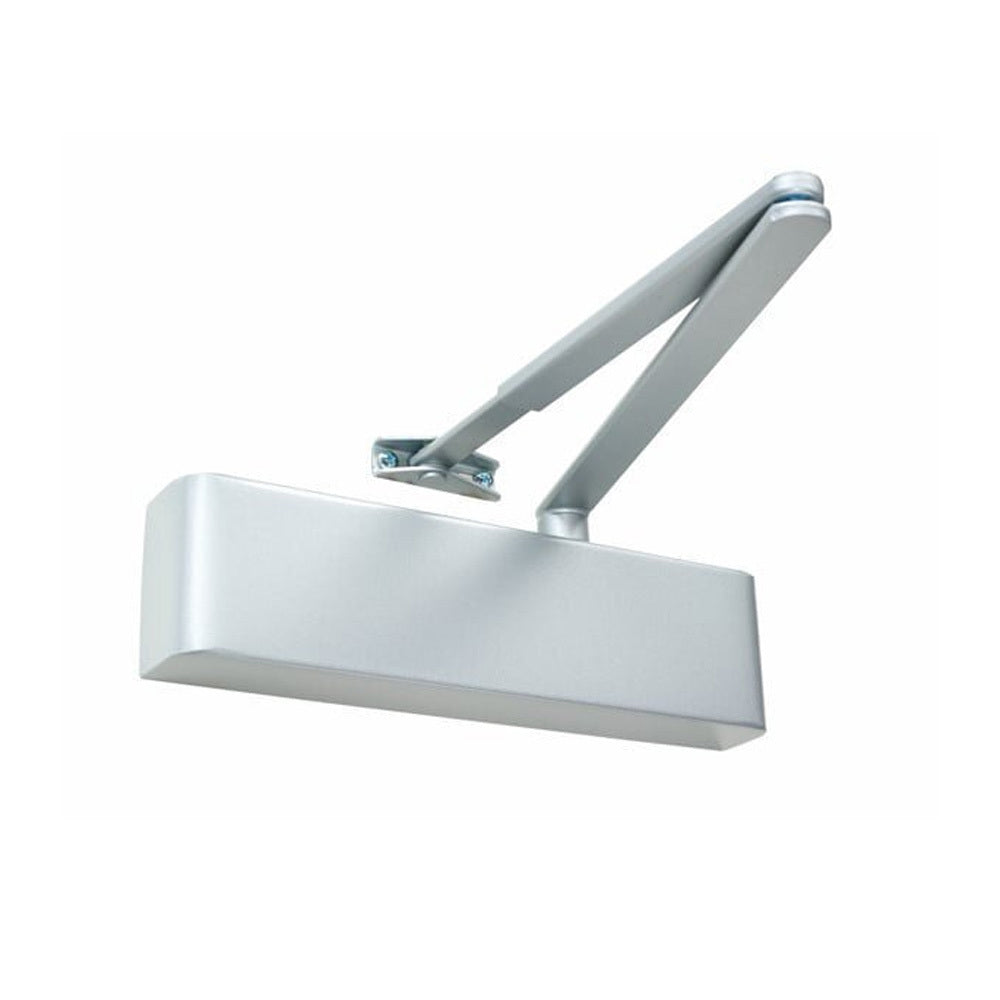

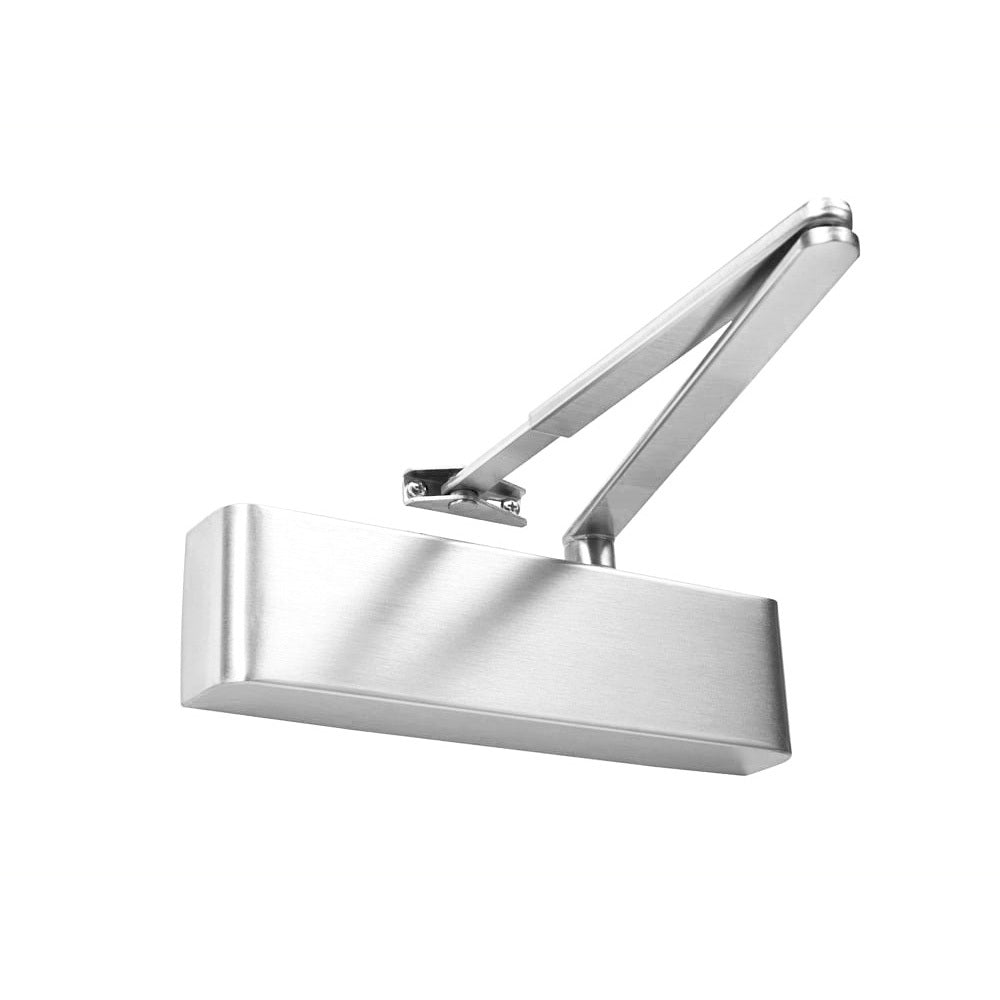

- Silver
- Stainless Steel

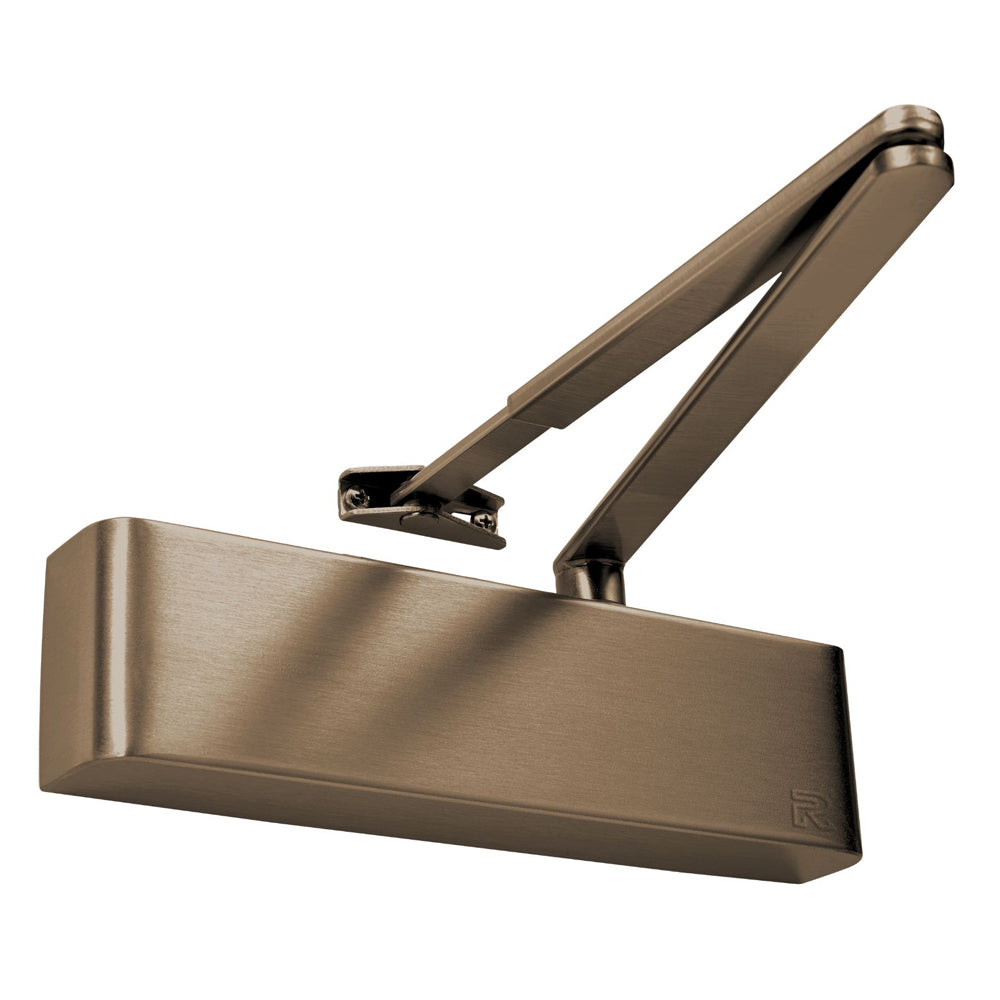

- Weather Bronze

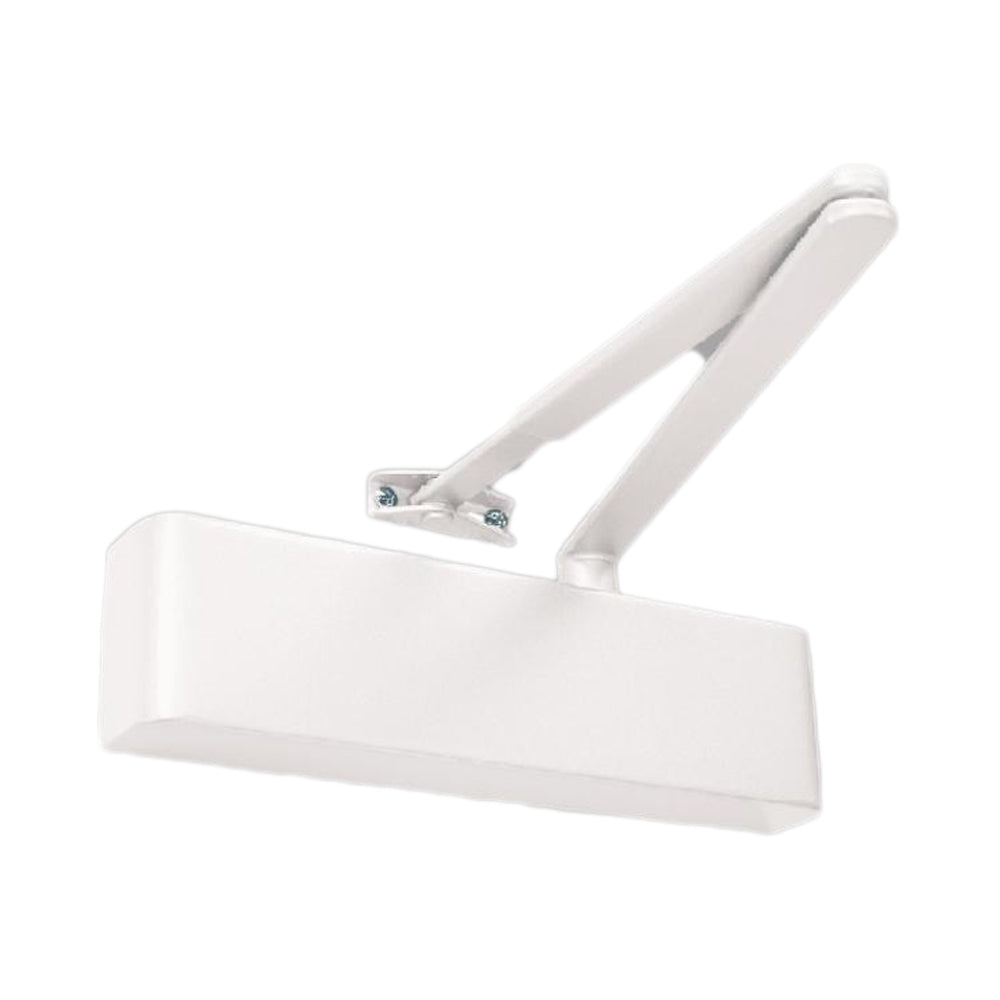

- White
Zanda Door Closer Combined Unit - Flat Bar Armset
TS.9205.SRFB.EB
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
Includes:
- 1 x TS9205 mechanism
- 1 x Flat Bar Armset
- 1 x Semi-Radiused Cover
Features:
- Variable power adjustable EN2-5
- Suits doors up to 110kg and 1250mm wide
- Universal application can be fitted in Standard, Parallel arm or Transom fitting position
- Comes standard with delayed action and back check.
- Unique semi-radius cover for an architectural look make your project stand out
- Fire tested to Australian standards
- Ideal for disability compliant projects due to its ease of opening and efficiency
- Closing and latching speeds can be adjusted from the front of the mechanism
- Suitable for timber, metal and aluminium doors
Specifications:
- Strength: EN2-5
- Mechanism: Rack and Pinion
- Adjustable Closing Speed: Yes
- Adjustable Latch Action: Yes
- Adjustable Delayed Action: Optional
- Adjustable Back Check: Yes
- Door Width: 850mm to 1250mm
- Door Weight: 45kg to 110kg
- Opening Angle: 180 degrees
- Left Hand and Right Hand Doors Universal Application: Yes
- Fire Rated (BS EN 1634-1: 2000): Yes
- Tested to BS EN1154: 1997: Yes

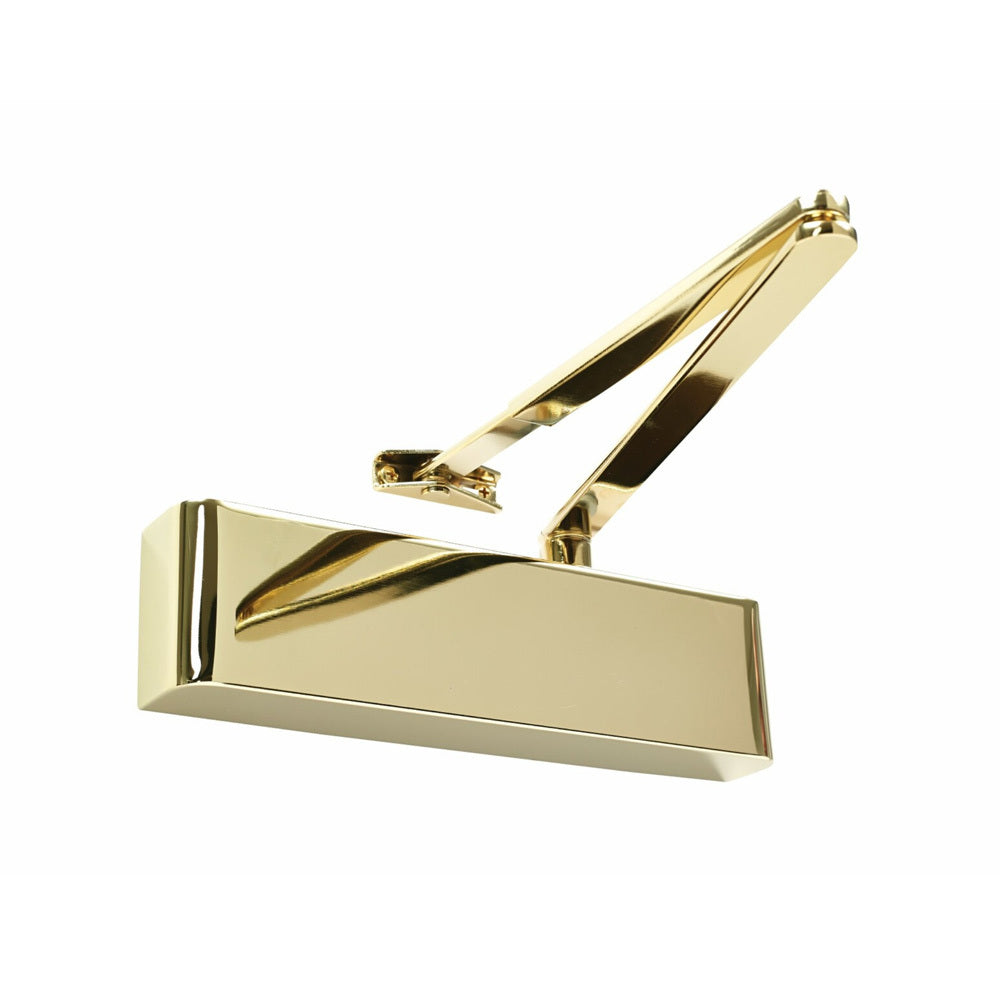

- Finish: Electro Brass
