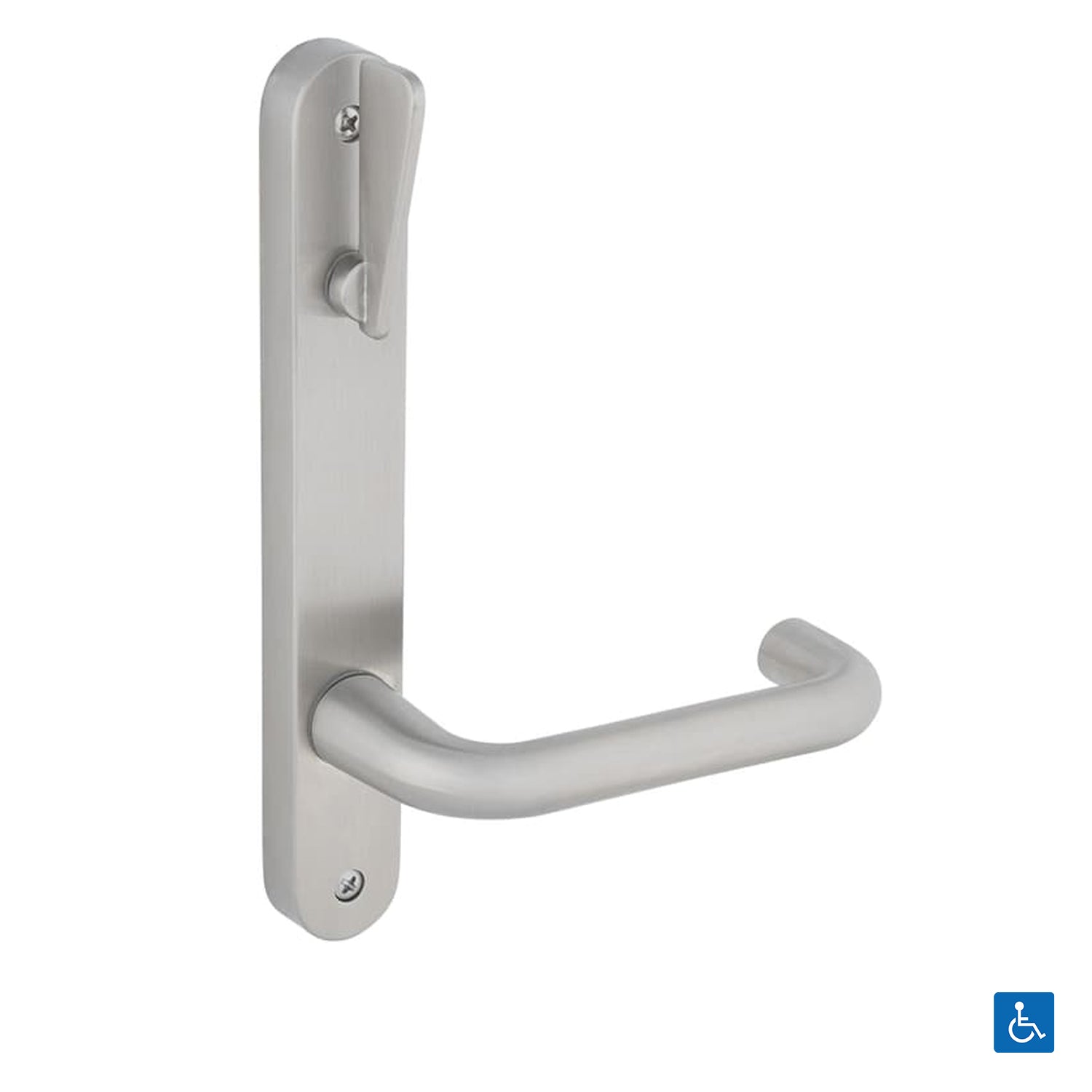

Dormakaba Lever on Narrow Style Round End Plate Disabled Turn Visible Fix Satin Stainless Steel

Dormakaba 6507/30 Lever on Narrow Style Round End Plate Disabled Turn

Square End Plate Furniture designed for use with dormakaba DKMS2602SSS series locks. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Furniture Function - external plates with lever designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

• Rectangular exterior round end plate
• Plain plate with Noosa 30 series lever.
• Disabled access AS1428.1 compliant lever.
• Manufactured using 316 corrosion resistant solid stainless steel

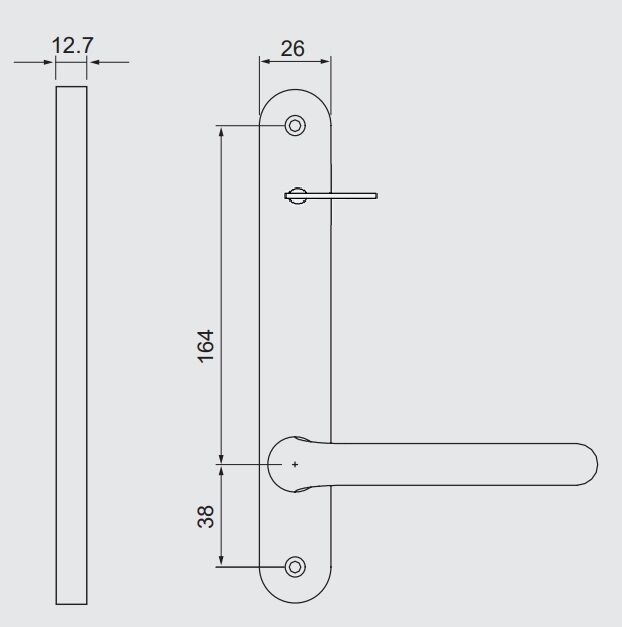

Specifications:

• Door Thickness: 32mm - 50mm
• Height: 185mm
• Width: 26mm
• Thickness:12mm
• Fixing Centres: 159mm
• Fixing: Visible
• AS1428.1 Compliant Lever (AS1428.1CO): Yes
• Internal / External: External
• Plate Type: Round End
• Material: 316 Stainless Steel
• Grade of Stainless Steel: 316
• Plate Has A Lever: Yes
• Available Handing:
  • Left Hand
  • Right Hand
• Finish: Satin Stainless Steel

Ratings/Compliance:

• A selection of the narrow stile Series plate furniture complies with AS1428 - Design for Access and Mobility, depending on turn snib selection.
