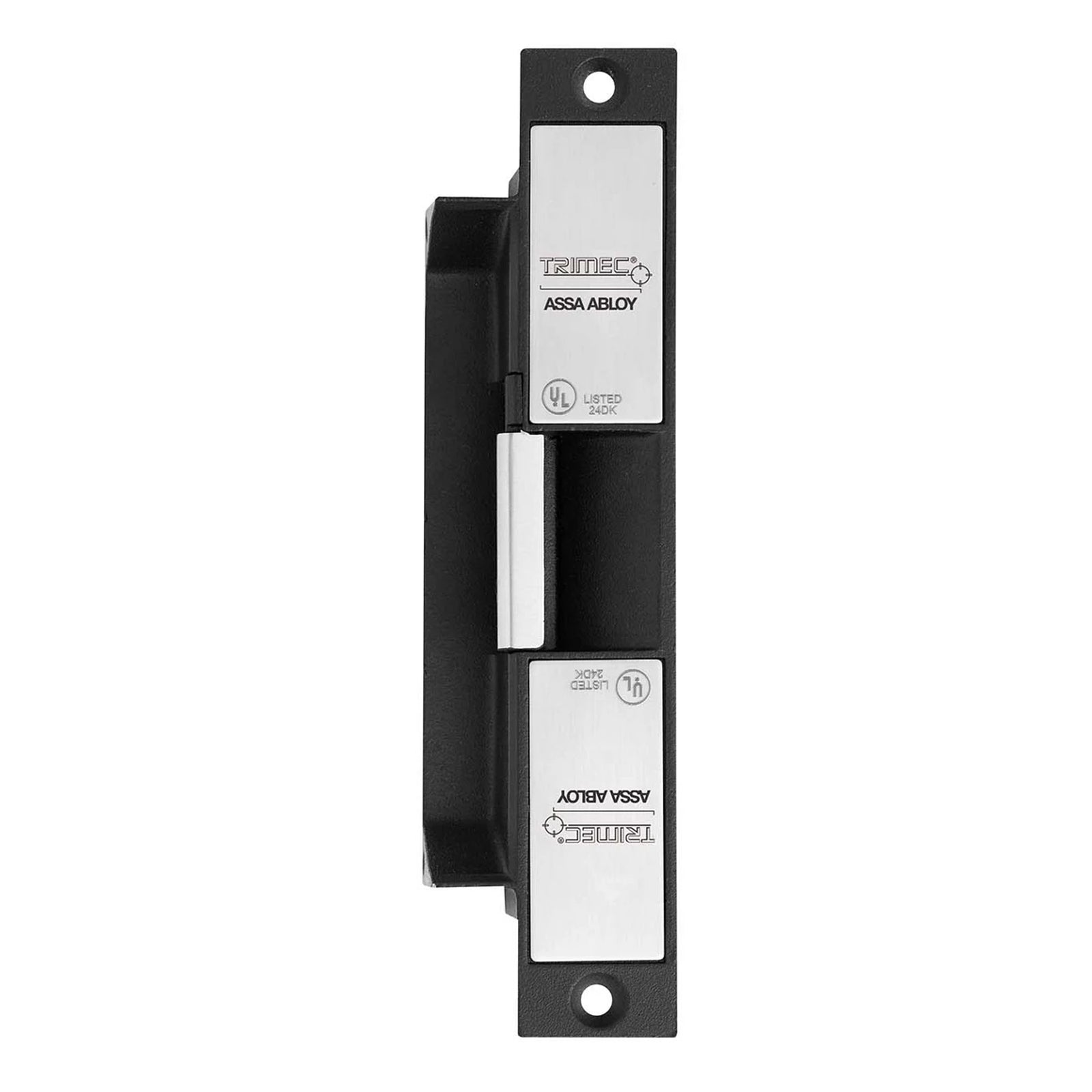

*WHILE SUPPLY LAST* Trimec ES200 Electric Strike 12VDC Non Monitored Fail Secure 110202-000

Trimec ES200 Electric Strike 12VDC Non Monitored Fail Secure
110202-000

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

Features:

• Fail secure
• High security
• 4 Hour fire rating
• 850kg holding force
• 1 million cycles endurance rating
• Cast stainless steel body
• Stainless steel locking pins
• Low Current consumption – Max 175mA @12Vdc
• Mounting kit supplied as standard
• Australian designed
• 5 Year Warranty

Applications:

• High traffic areas
• Fire rated door sets
• Open in/open out doors
• Suitable for use with all access control systems

Specifications:

• Voltage: 12 or 24Vdc
• Current: 175 mA @ 12Vdc - 88 mA @ 24Vdc
• Solenoids: Solenoids are rated for continuous use
• Monitoring: None
• Holding Force: 850kg Static Strength Rating
• Endurance: Cycle tested to 1,000,000 operations
• Latch: Suitable for 15mm latch bolt with 3mm door gap
• Environment: Operational temperature range -20 Degrees Celsius to +60 Degrees Celsius
• Body: Solid Stainless Steel Construction
• Keeper: Stainless Steel
