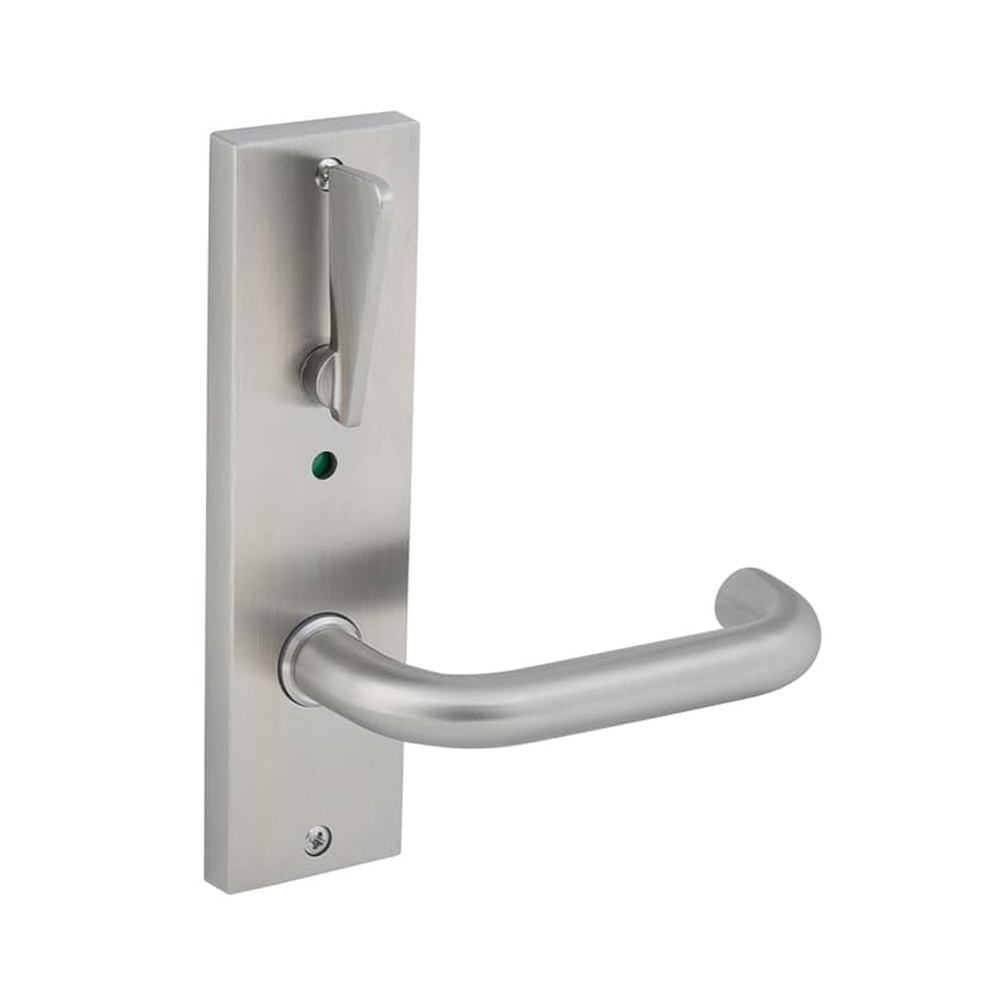

Dormakaba Door Lever On Square End Plate
6657/30GR

Door Lever can be found on all types of doors including exterior doors of  internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• A true rectangular plate displaying clean modern lines with bevelled edges
• A characteristic feature of Stainless Steel door furniture is the naturally gleaming finish
• Concealed fixed external plates with visible fixed internal plates connected with bolt through fixings
• Extensive range of optional plate functions
• Designed with bolt through the door fixing for use with the dormakaba MS2602 series mortice locks and latches
• Heavy duty spring mechanism manufactured using the highest grade materials
• Nylon bush preventing metal to metal wear and providing a smoother friction free movement
• Compatible with all Coastal and Urban lever designs
• Internal Visible Fix with Lever
• Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Specifications:

• Door Thickness: 32mm to 50mm
• AS1428.1 Compliant Lever (AS1428.1CO): Yes

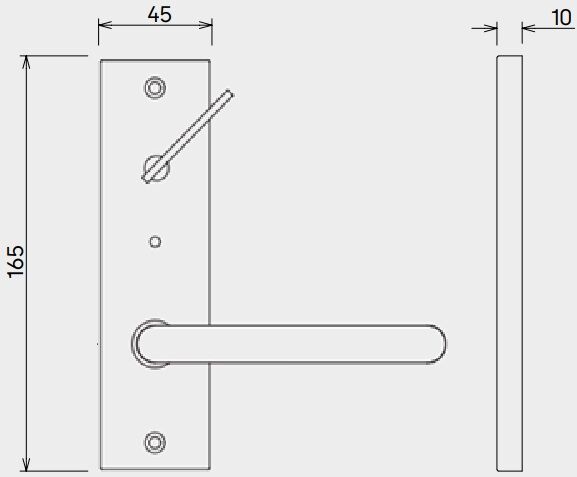

• Size: 165mm x 45 mm
• Plate Type: Square End
• Fire Rated: Yes
• Material: 316 Stainless Steel
• AS1428.1 Compliant Turnsnib: Yes
• Handing: Right Hand
• Plate Has A Disabled Turnsnib: Yes
• Finish: Satin Stainless Steel
