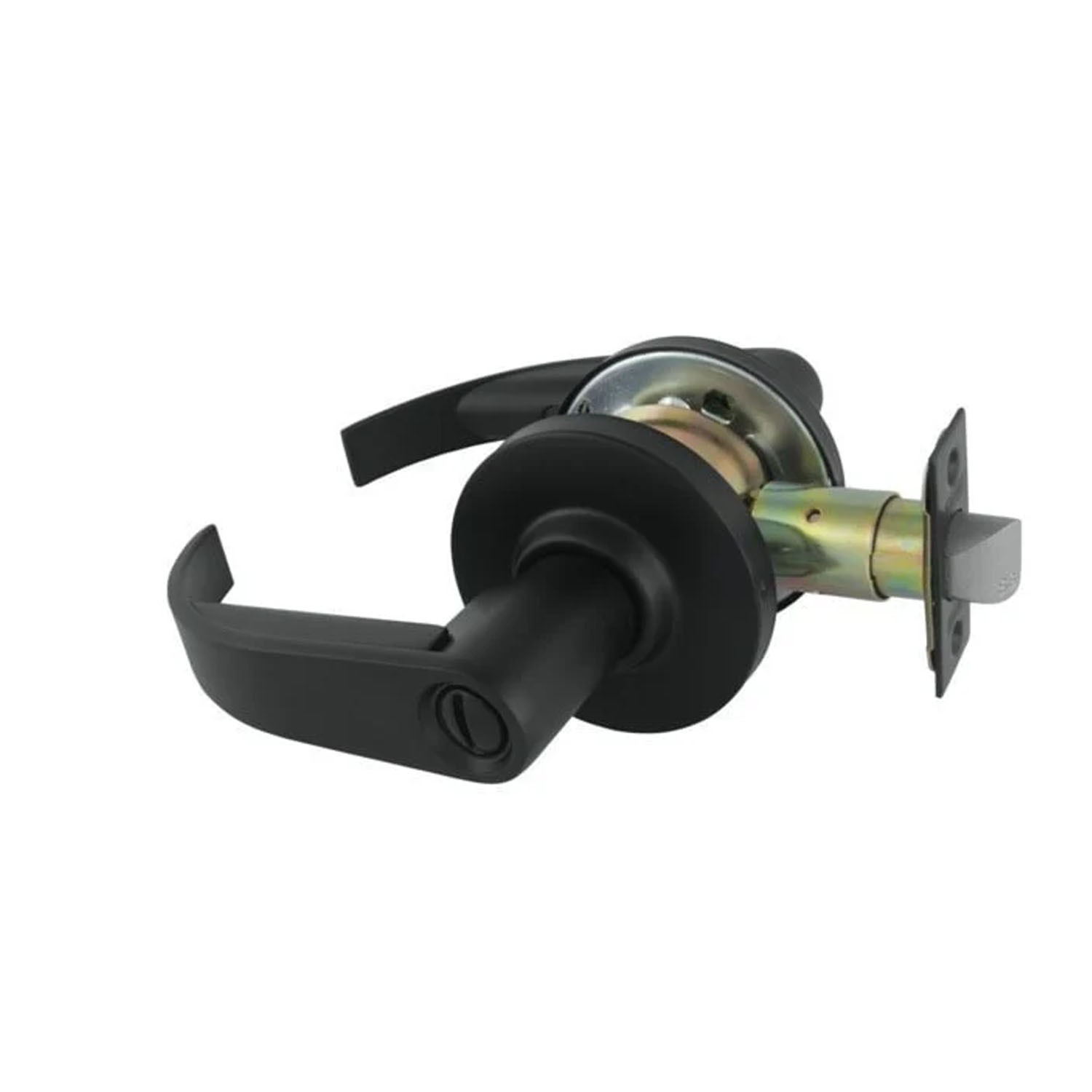

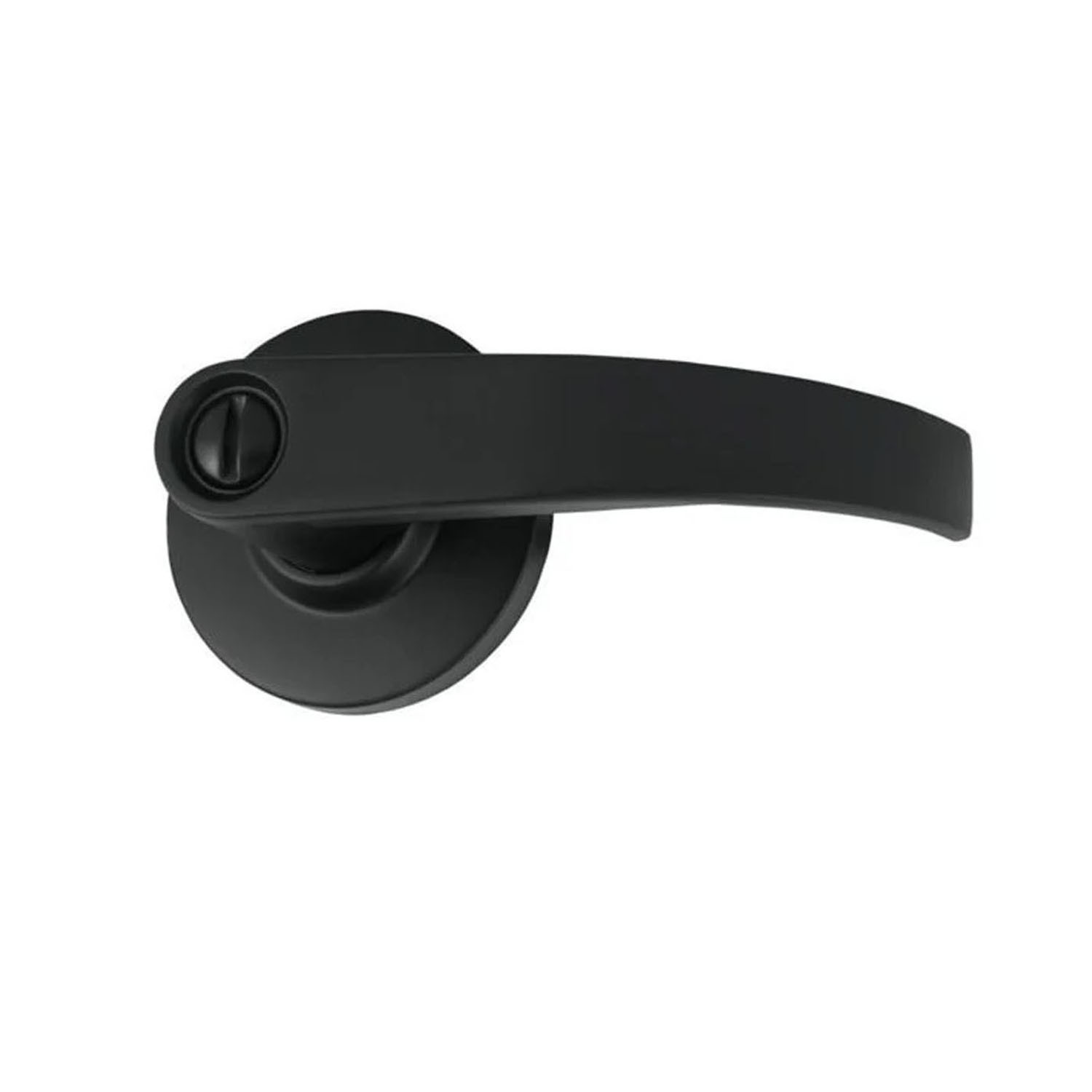

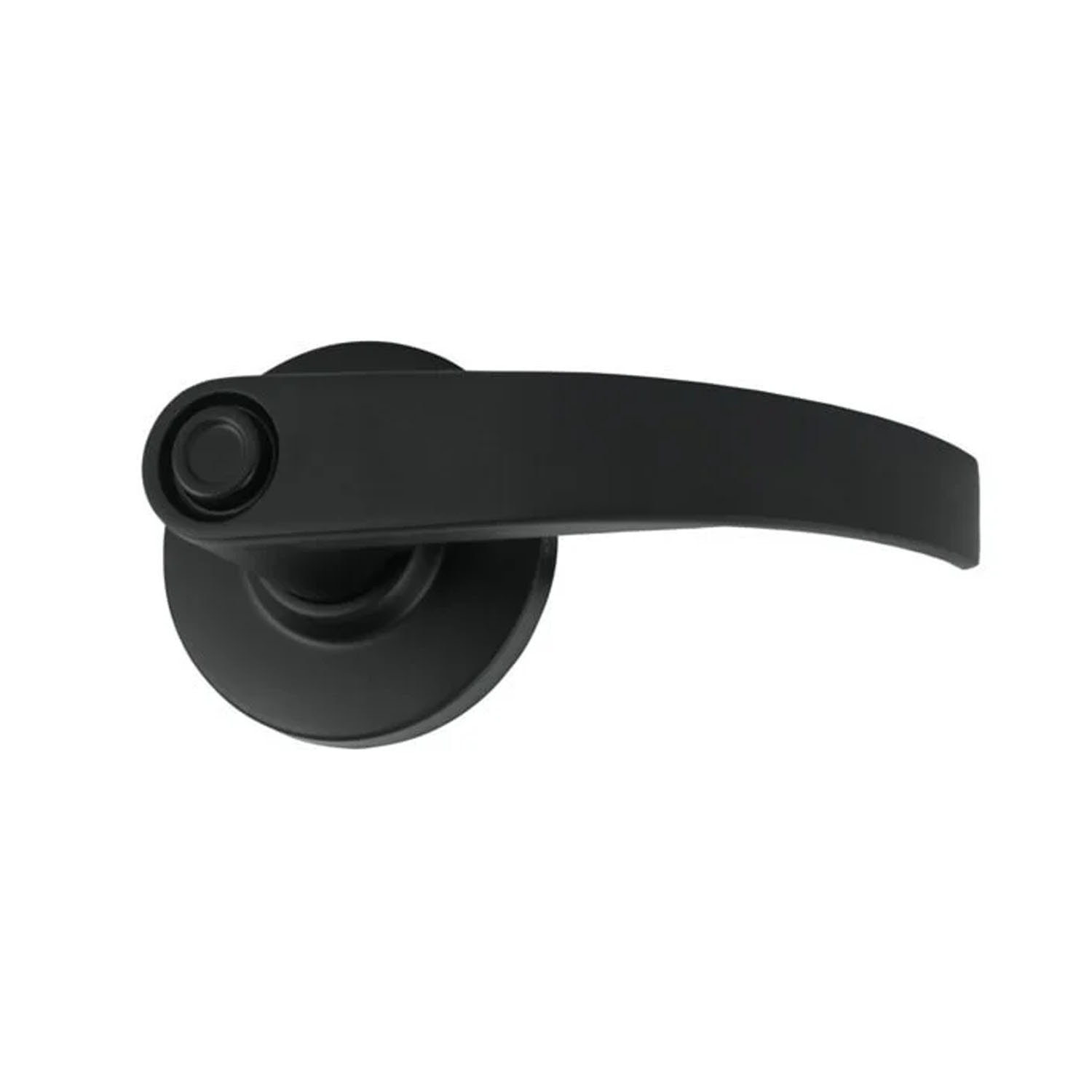

Legge Sparta G2 Privacy Lever G40S
G2SPRIMB

Privacy Lever Function - Push-button locking locks outside lever. Turning inside lever releases button. Outside lever has emergency release.

Features:

  • Legge has long been associated with providing Australasia industry-leading safety, security, style and convenience and the G2 cylindrical lockset is no exception.
  • The G2 lockset offers ANSI/BHMA Grade 2 certification and the Sparta lever, with it's 35mm to 45mm clearance, makes it suitable for both residential and light commercial applications requiring compliance with AS1428:1-2009 design for access and mobility code
  • G2 Series functions include entrance, passage, privacy, patio and dummy trim. Commercial functions such as classroom, storeroom and Vanguard options are also available for added security and safety.

Specifications:

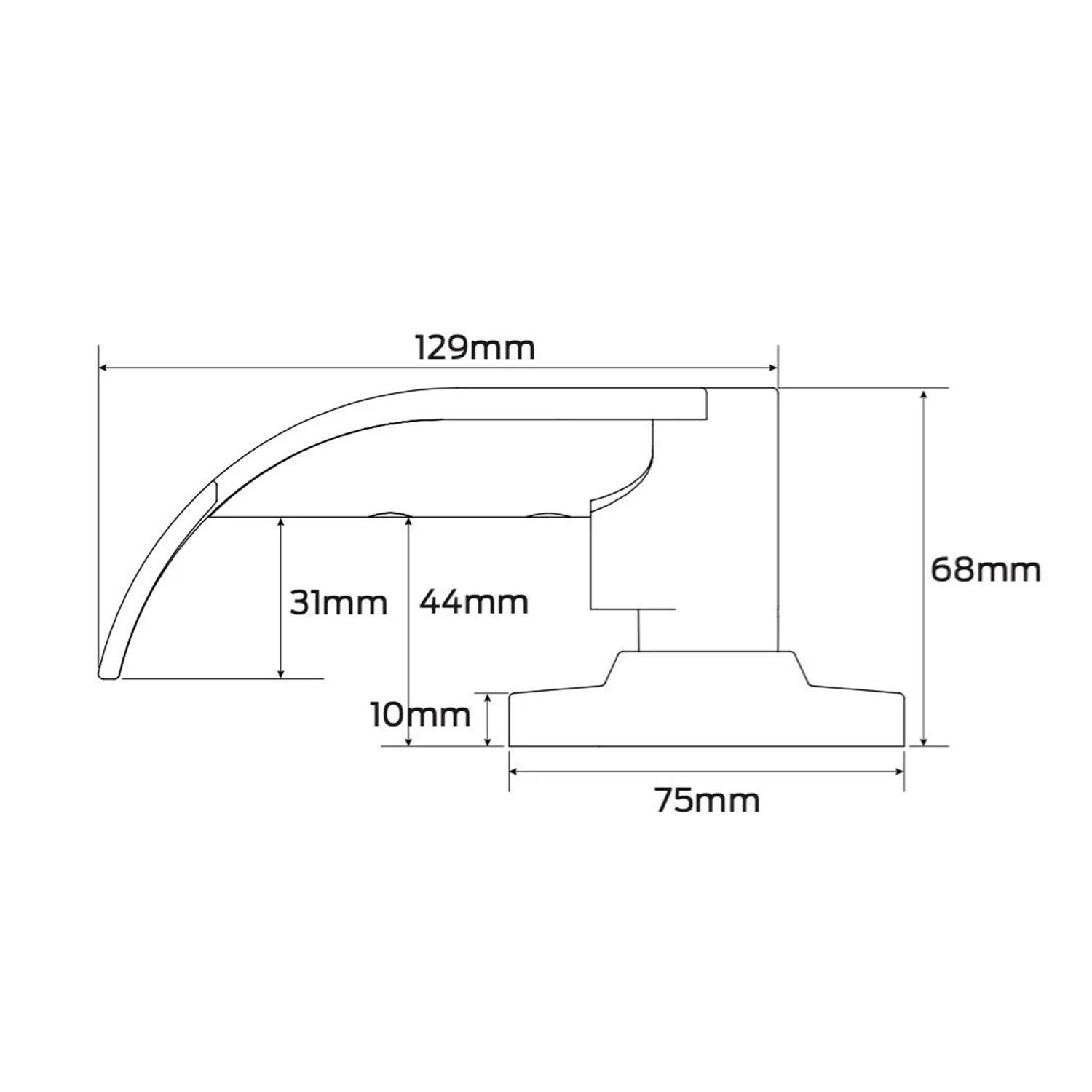

  • Rose Diameter: 75mm
  • AS1428 Compliant: Yes
  • Finger Clearance: 44mm
  • Backset: 70mm
  • Keyway: C4 6 Pin and Schlage C 6 Pin
  • Material: Stainless Steel and Zinc
  • Function: Privacy
  • Finish: Matt Black

Compliance:

  • Fire Rated: Tested on fire door assemblies in accordance with Australian Standards, refer fire door manufacturer for specific approval details.
SKU ALLG2SPRIMB
Barcode # 9312574238552
Brand Legge
