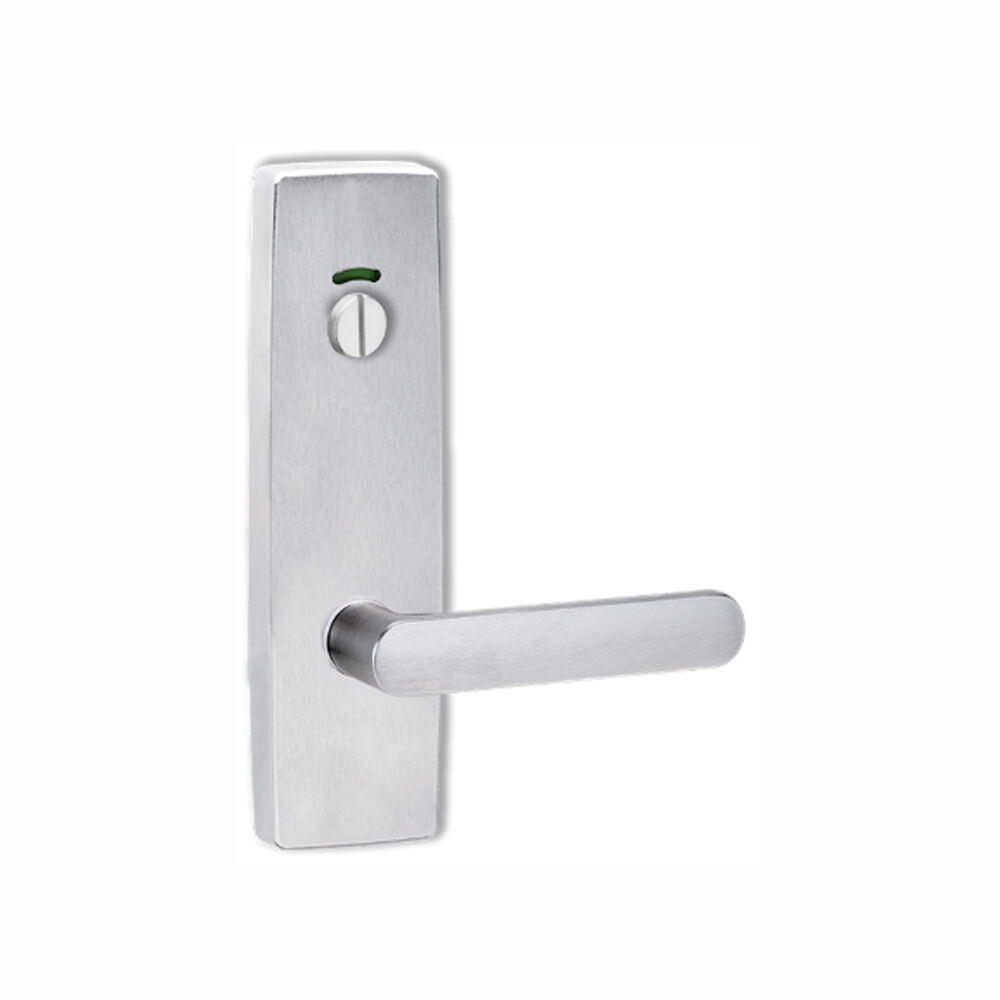

Lockwood Door Handle Square End Plate w/ Privacy Indicator Emergency Turn & 106 Lever
1814/106SC

PLEASE NOTE: This item is Non returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 10 business days after payment is made.

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

  • Style and versatility are combined in this range which comprises of architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.
  • Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.
  • The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture.
  • Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.
  • Privacy indicating emergency turn
  • Minimalism enhanced.
  • Lever Only
  • Supplied in trade pack
  • Non-handed



Specification:

  • Lockwood lever: 106
  • Finish: Satin Chrome
  • Material: Solid Brass
  • Fixing Centres: 148mm
  • Cylinder pitch: 64mm

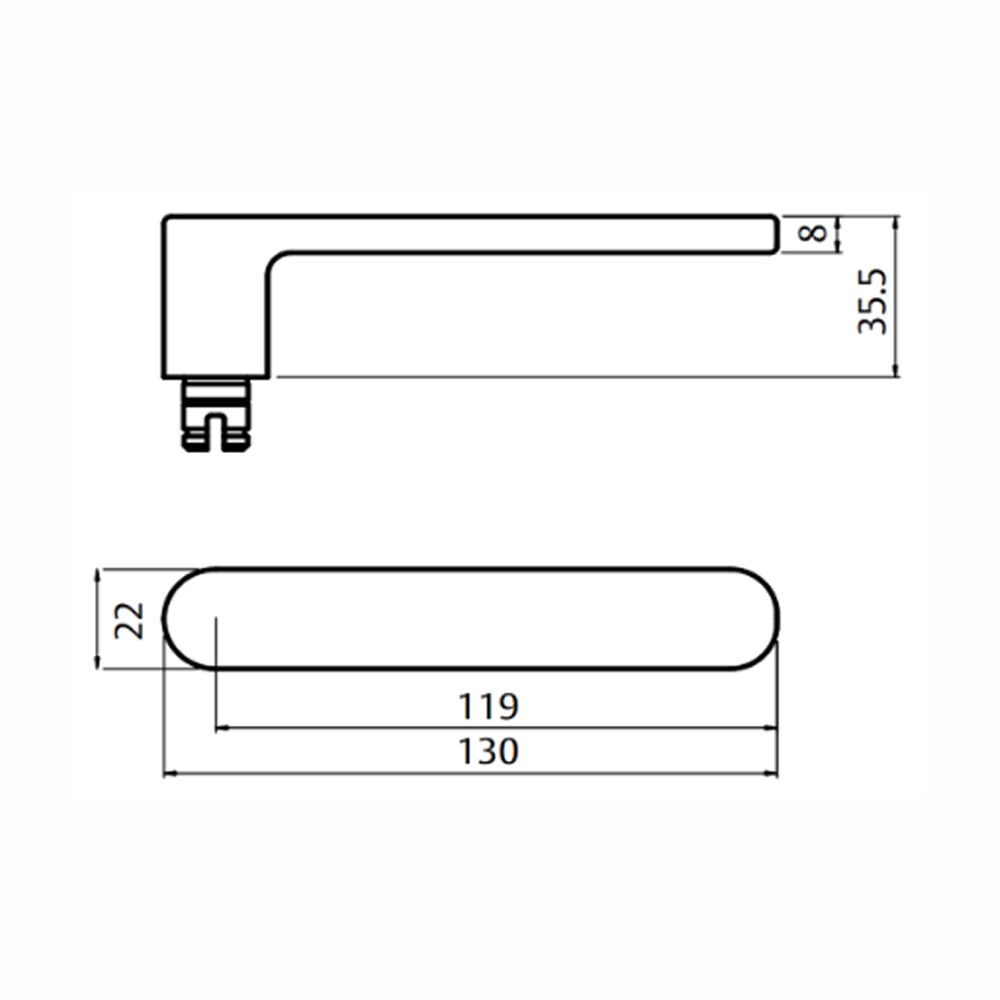

  • Lever Dimensions
    • Length: 130mm
    • Projection: 48mm
    • Finger Clearance: 40mm
  • Plate Dimensions
    • Height: 166mm
    • Width: 48mm
    • Depth: 12mm

Note:

  • The 1800 Series features a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.
  • When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
  • Fixing
    Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.
  • Handing
    Symmetrical levers may be reversed by removing the stop screw.
SKU ASS1814106SC
Barcode # 9340116076683
Brand Lockwood
