Raven RP150 Door Frame Perimeter Seal
A150LDS

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications

Features:

• Global GreenTag - Platinum

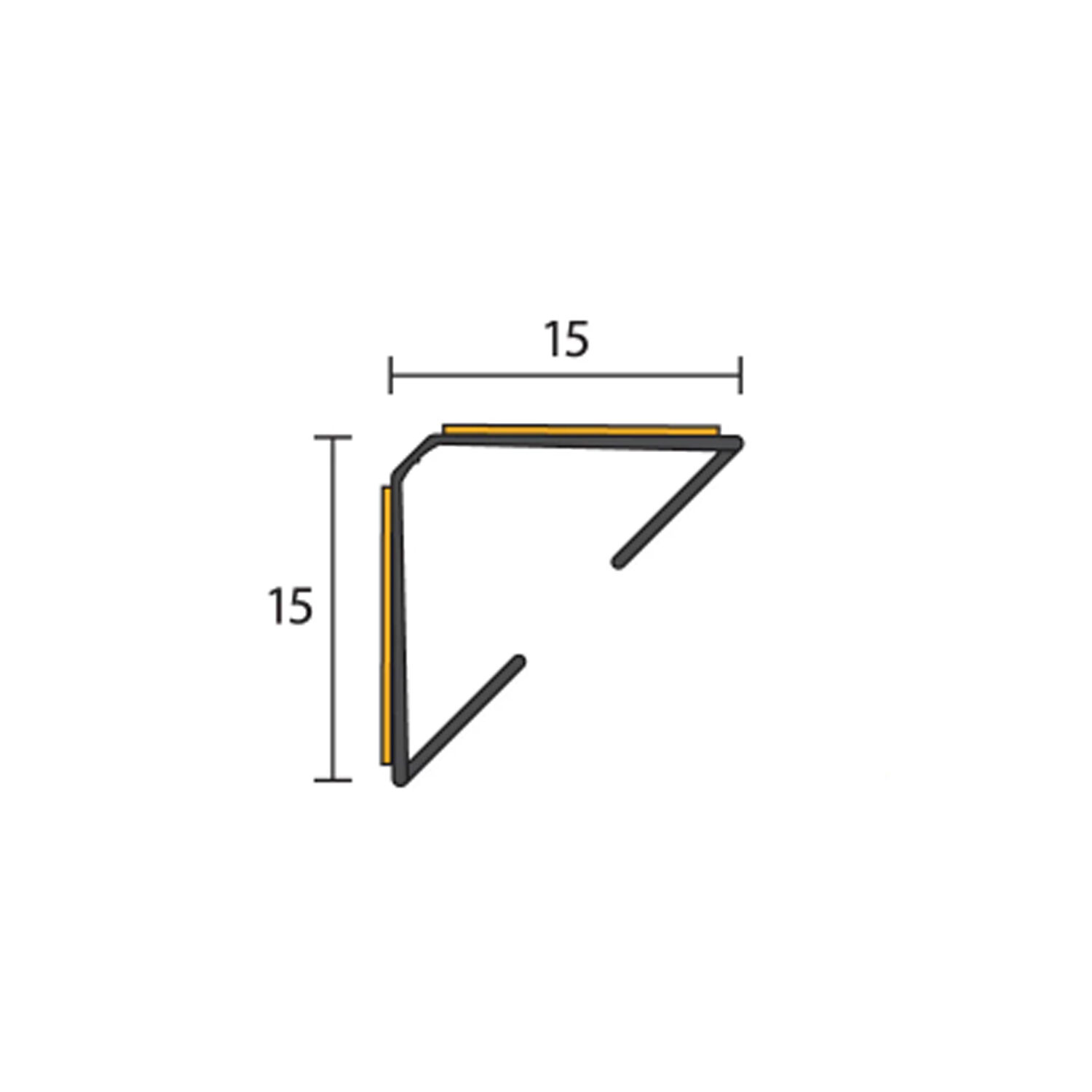

• RP150 is a co-extruded PVC acoustic and smoke seal that is discreetly located in the protected corners of rebated timber or steel door and window frames.
• RP150 is suitable for both new and retrofit applications.
• Can be used in conjunction with Raven door bottom seals, meeting stile seals (astragals) and threshold plates.
• Aggressive self-adhesive backing tape on both sides of the carrier.
• Contact surface must be clean, smooth and if painted, well cured. Self-adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.

Specification:

• Min/Max Gap: 3mm to 5.5mm
• Fixing: Self-adhesive
• Material: Rigid and Flexible PVC
• Door/Frame Construction: Timber, Aluminium
• Finish: Black
• Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening
• Window Type: Awning (Outward Opening), Casement (Side Hung), Hopper (Inward Opening)

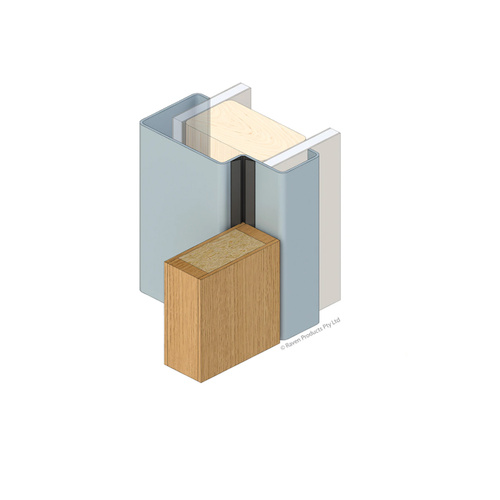

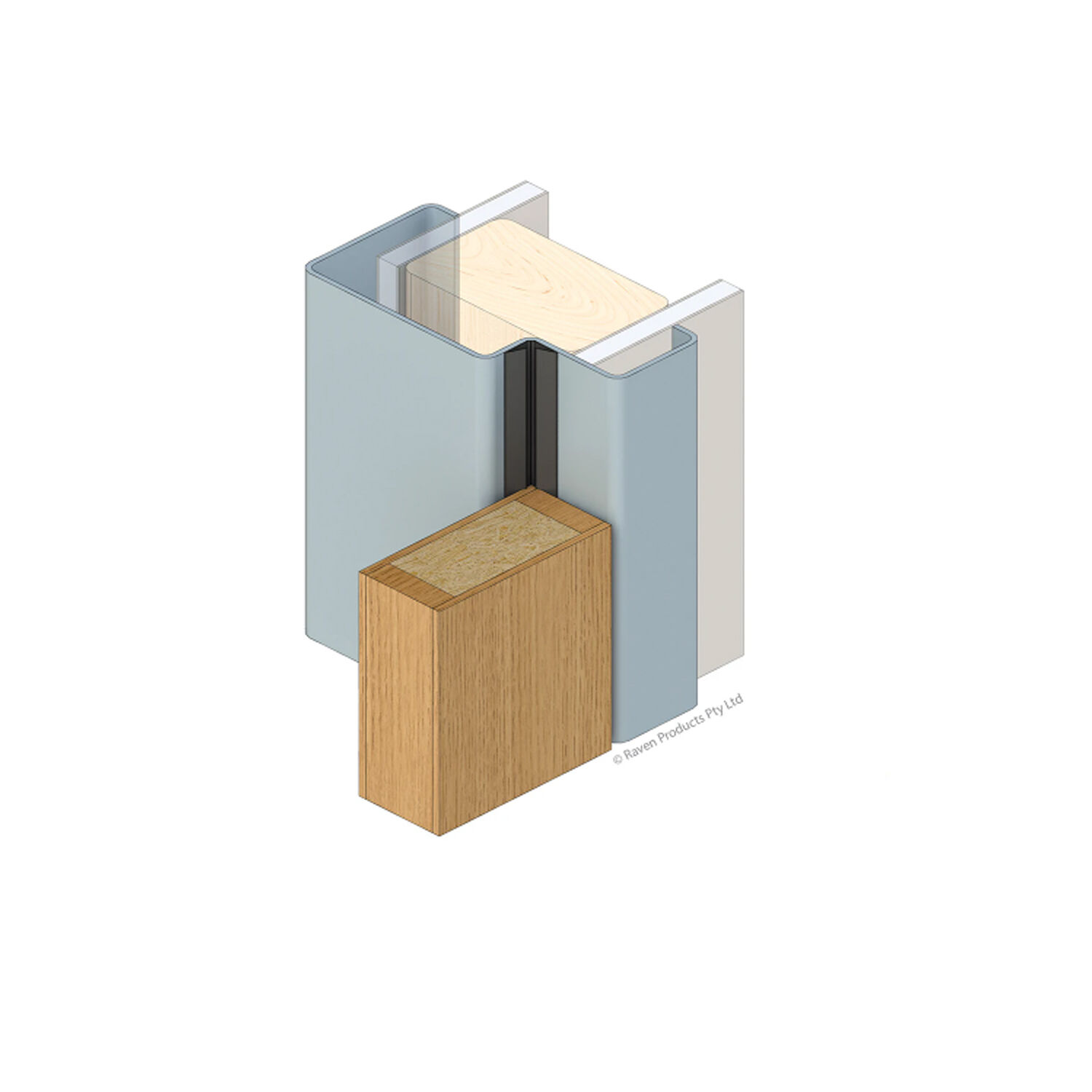

• Location: Around rebated frames of single and double butt hinged doors and windows.
• Size: Long Double Door Set

Approval/s:

• UL: R37913, Certifire: CF 5710
• Acoustic AUS/NZ: NCC F7D6
• Acoustic UK/EU: Approved Document E, Rated to BS EN ISO 717-1
• Fire AUS/NZ: NZBC C/AS2 4.16.2, NCC S12C2, AS 1530.4, AS 1905.1
• Fire UK/EU: Approved Document B, Tests above are similar to BS EN 1634-1 & BS 476 Pt. 20 & 22
• Fire Rating: Up to FD240, Up to FRL & FRR-/180/30
• Smoke AUS/NZ: BS EN 1634-3, NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, NCC S12C4, AS 1530.7
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
