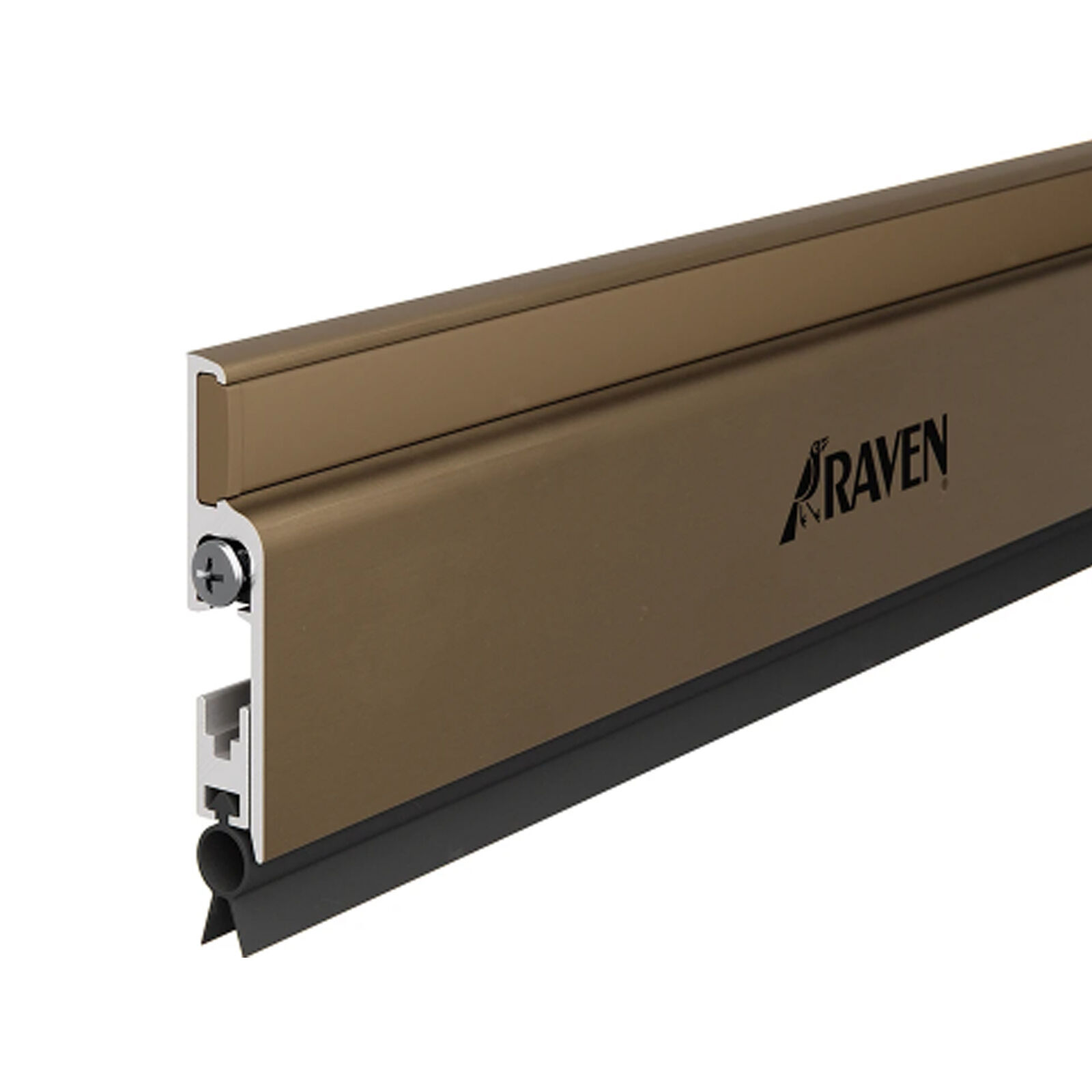

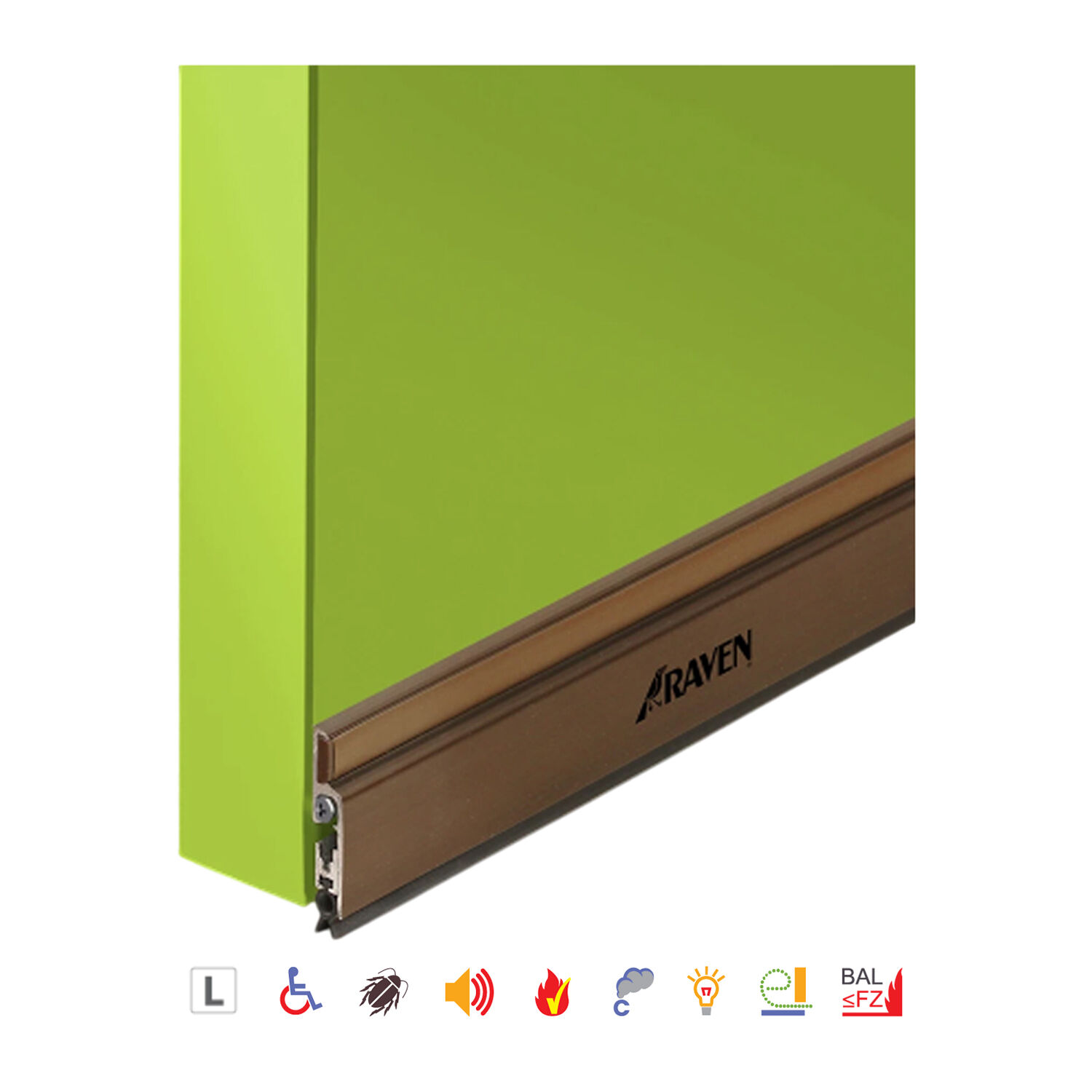

Raven Automatic Door Bottom Seal
R60B

Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

• Automatically lifts to clear carpet
• Seals tight when door closes
• Ideal for single or double, butt hinged doors up to 920mm
• Easy fit, fixings included
• For double doors, use two seals
• Quality long life anodised aluminium. UV treated rubber seal and cover strip

Specifications:

• Length: 920mm

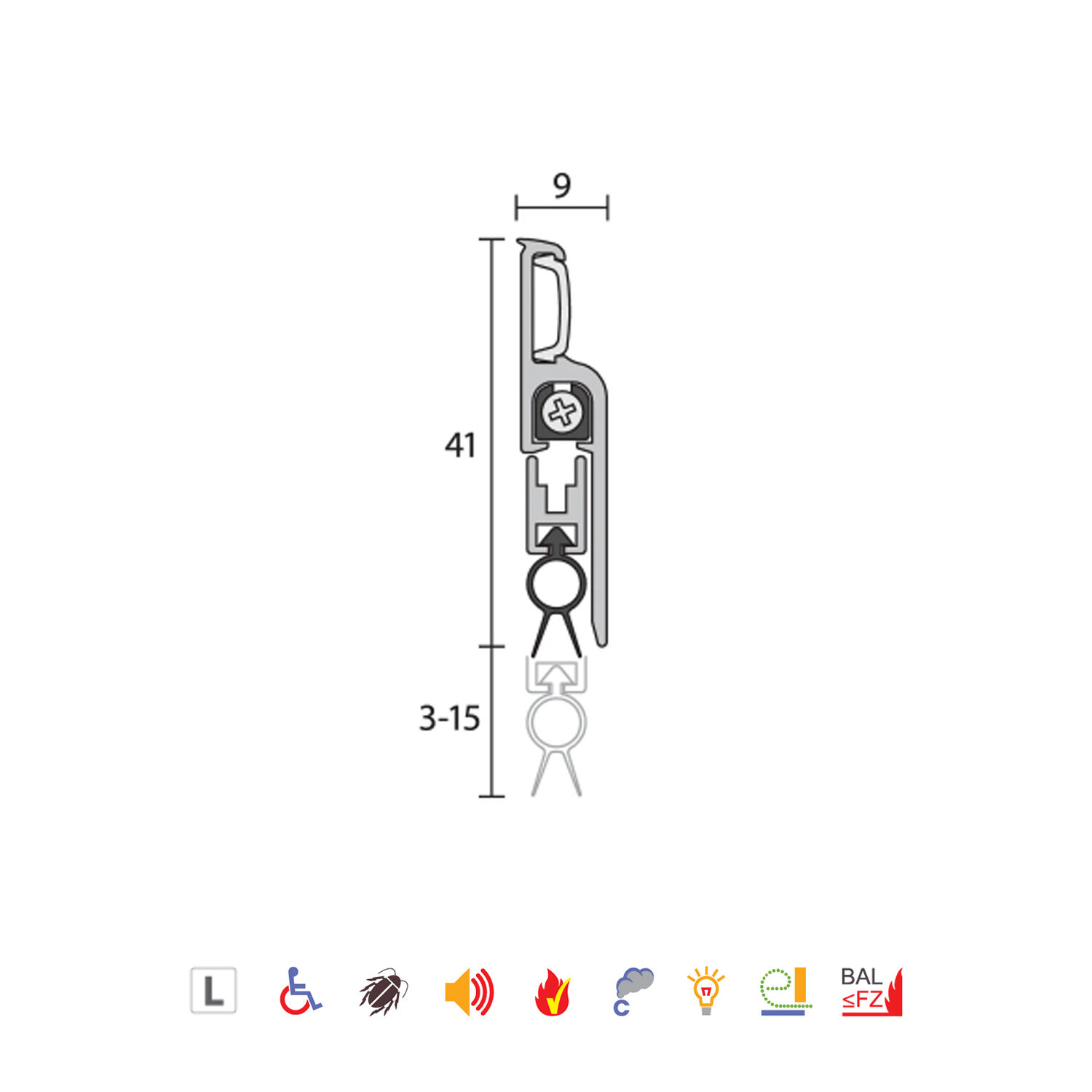

• Min and Max Gap: 0mm - 15mm
• Material: Anodised aluminium, UV treated rubber seal and cover strip
• Door/Frame Construction: Timber
• Fixing:
  • Face Mounted, Screw Fixed
  • Easy fit, fixings included
• Door Type:
  • Single Inward Opening
  • Double Inward Opening
• Location: Door Bottom
• Finish: Bronze Anodised
