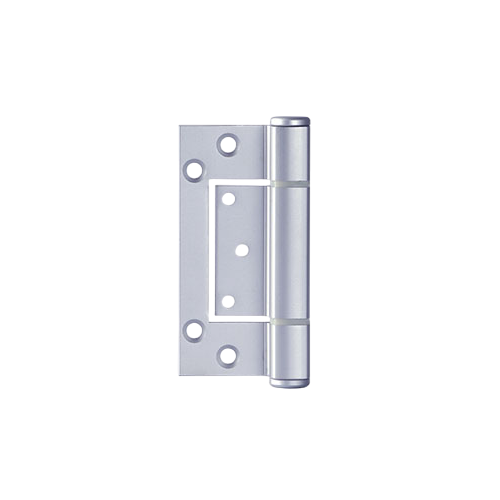

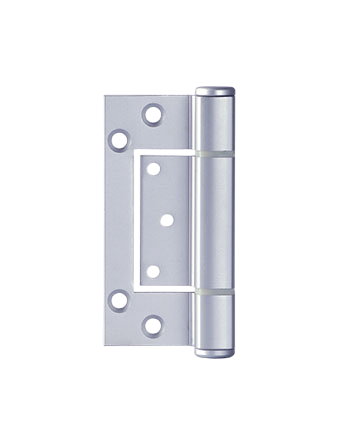

10 Pack McCallum Aluminium Offset Interfold Hinge A107RF
- 10 x Hinge w/ screws
- Suitable for aluminium doors in high usage situations.
- Suitable for some timber door applications.
- Offset Knuckle
- Alloy: High strength T.6 minimum tensile 254 mpa.
- Pin Dia: 6mm 304 Stainless Steel with machined chamfer both ends
- Bushes: Flanged nylon.
- Knuckle: Squareline - Heavy Duty
- Aluminum Endcaps: Pressed-in interference fit
- Maximum Weight Capacity: 50kg
- FOR HEAVIER DOORS, SEE THE LARGER VERSION, A107. IT IS 130MM LONG AND HAS A WEIGHT CAPACITY OF 80KG.

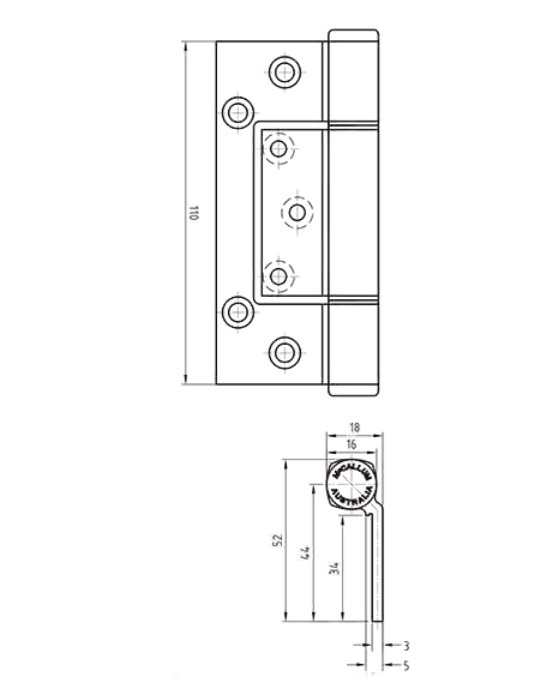

- Dimensions: 110mm x 34mm
Installation Guide Only:
- Door Thickness: Minimum 34mm
- When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required.
- Standard Door: 2040 (Height) x 820 (Width)
- Locator allows for fast fixing
- Fastening Screws supplied
- Pop rivets are not recommended.
- SNA - Satin Natural Anodised
- Black - Black Powder Coat
- White - White Powder Coat
