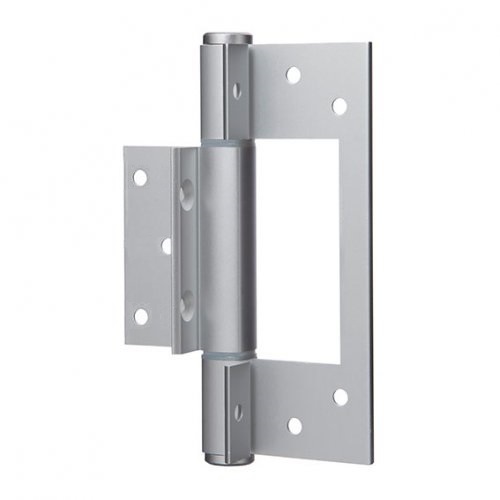

McCallum Heavy Duty Aluminium Fast-Fix Hinge

  • 10 x Hinge w/ screws


  • Suitable for aluminium entrance doors in high usage situations
  • Suitable for either centre pocket or front edge glazing systems
  • Suitable for some timber door applications
  • Pre-drilling of the holes in the timber may be required


  • Alloy: High strength T.6 minimum tensile 254 mpa
  • Pin Dia: 6mm stainless steel with machined chamfer both ends
  • Bushes: Flanged nylon
  • Knuckle: Squareline - Heavy duty
  • Aluminium Endcaps: Pressed-in interference fit

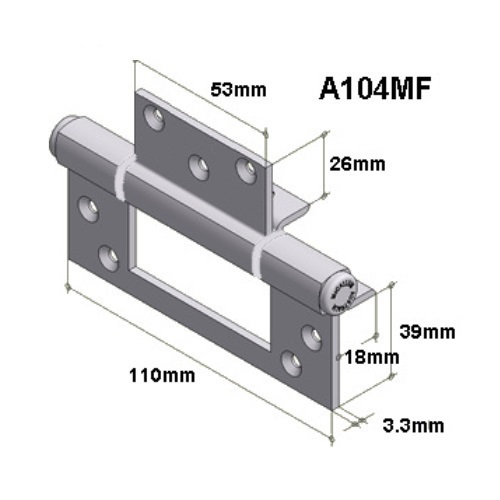

  • Size: 110mm

Installation Guide Only:

  • Door Thickness: Minimum 40mm
    When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage a fourth hinge may be required.
  • Standard Door: 2040 high x 820 wide x 60 kgs 3 hinges.
  • Please consider using A104F, A104WF, A105F or A107RLF
  • Locator allows for fast fixing


  • Fastening screws supplied
  • Two directional.
  • Pop rivets are not recommended


  • Satin Natural Anodised
Brand McCallum
