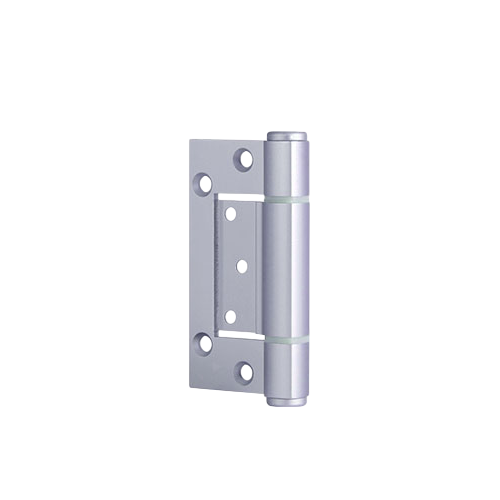

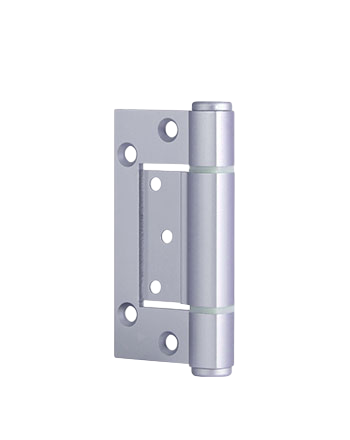

10 Pack McCallum Heavy Duty Aluminium Interfold Hinge A105MF
A115

  • 10 x Hinge w/ screws

Application:

  • Aluminium doors in high usage situations
  • Suitable for either centre pocket or front edge glazing systems.
  • Suitable for some timber door applications
  • Pre-drilling of the holes in the timber may be required.

Specification:

  • Alloy: High strength T.6 minimum tensile 254 mpa.
  • Pin Dia: 6mm 304 Stainless Steel with machined chamfer both ends
  • Bushes: Flanged nylon.
  • Knuckle: Squareline - Heavy Duty
  • Aluminum Endcaps: Pressed-in interference fit
  • Maximum Weight Capacity: 40kg
  • Dimensions: 110mm x 36mm

Installation Guide Only:

  • Door Thickness: Minimum 35mm (due to use of inner leaf size)
  • When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required.
  • Standard Door: 2040 (Height) x 820 (Width)
  • The wing locator allows for fast fixing.

Fixing:

  • Fastening Screws supplied
  • Pop rivets are not recommended.

Finish:

  • SNA - Satin Natural Anodised
  • Black - Black Powder Coat
  • White - White Powder Coat
SKU MCCA115_
Brand McCallum
