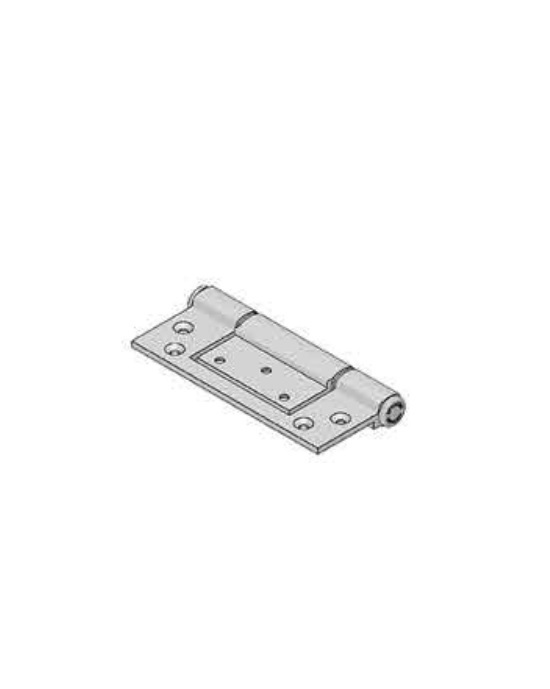

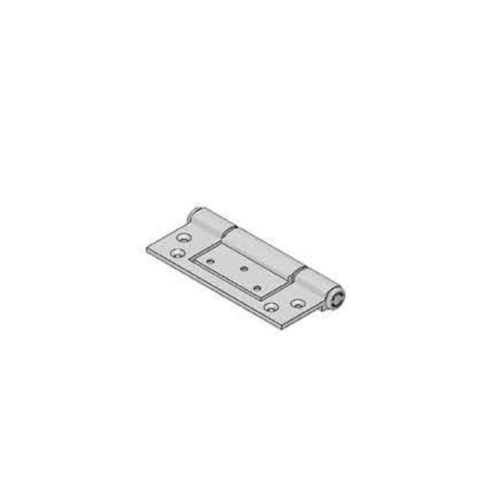

10 Pack McCallum Heavy Duty Aluminium Interfold Hinge White A105F
A105WHT

  • 10 x Hinge w/ screws

Application:

  • Suitable for aluminium entrance doors in high usage situation
  • Suitable for either centre pocket or front edge glazing systems
  • Suitable for some timber door applications
  • Pre-drilling of the holes in the timber may be required.

Specifications:

  • Alloy: High strength T.6 minimum tensile 254 mpa.
  • Pin Dia: 6mm 304 Stainless Steel with machined chamfer both ends
  • Bushes: Flanged nylon
  • Knuckle: Squareline - Heavy Duty
  • Aluminium Endcaps: Pressed-in interference fit
  • Maximum Weight Capacity: 80 kg (turn over for further information)
  • Finish: White

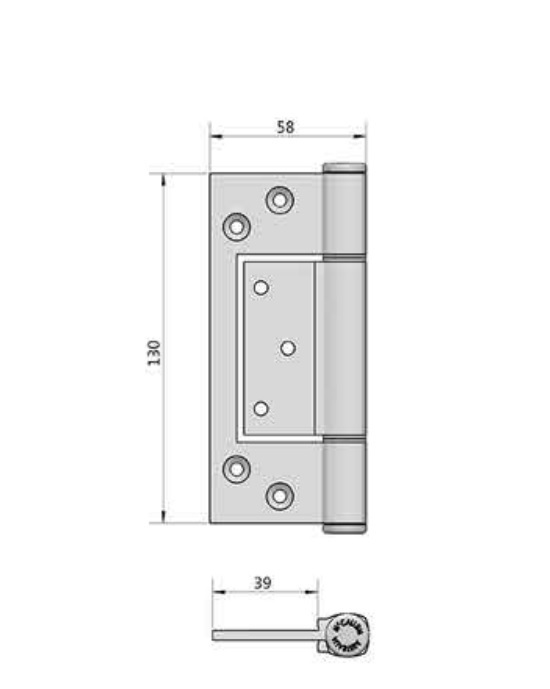

  • Size: 130mm

Installation Guide Only:

  • Door thickness: Minimum 38mm (due to use of inner leaf size)
  • When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible For excessive usage, a fourth hinge may be required.
  • Standard Door: 2040 (h) x 820 (W) Oversize Door: Turn over for further information
  • Locator allows for fast fixing
  • THIS HINGE IS DESIGNED WITH NO OFF-SET, UNLIKE THE PREVIOUS A105F

Fixing

  • Fastening screws supplied
  • Pop rivets are not recommended
SKU MCCA105WHTP10
Brand McCallum
