10 Pack McCallum Heavy Duty Aluminium Interfold Hinge White A104WF
A154WHT

  • 10 x Hinge

Application:

  • Suitable for aluminum entrance doors in medium usage situations
  • Suitable for either centre pocket or front edge glazing systems
  • Suitable for some timber door applications
  • Pre drilling of the holes in the timber may be required
  • The A154WF will be more suitable for timber doors than the A104 because the fixing holes on the wings are approx. 13mm away from the edge of the door

Specification:

  • Alloy: High strength T.6 minimum tensile 254 mpa.
  • Pin Dia: 6mm 304 Stainless Steel with machined chamfer both ends
  • Bushes: Flanged nylon
  • Knuckle: Squareline - Heavy Duty
  • Aluminum Endcaps: Pressed-in interference fit
  • Maximum Weight Capacity: 100kg

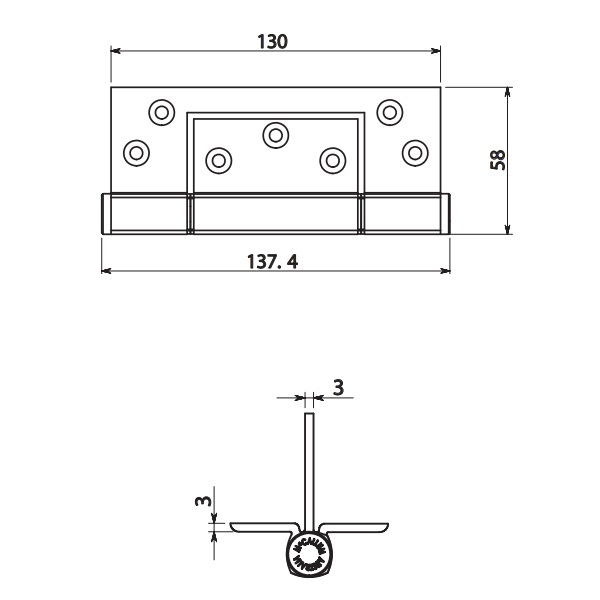

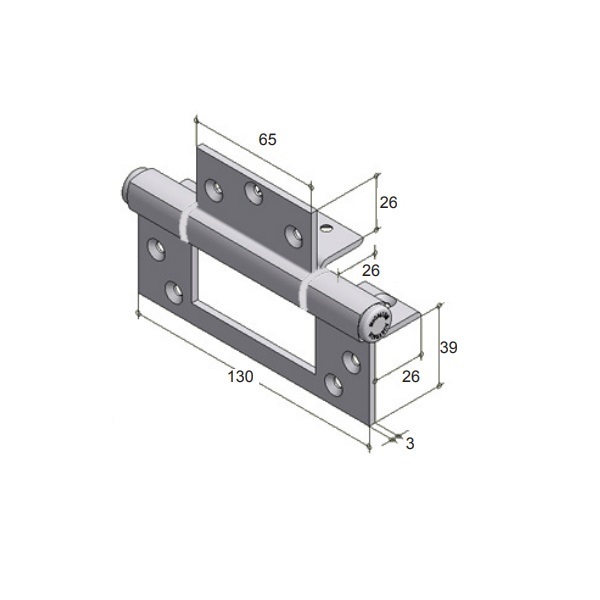

  • Size: 130mm

Installation Guide Only:

  • Door Thickness: Minimum 40mm
  • When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required.
  • Standard Door: 2040 (Height) x 820 (Width)
  • Locator allows for fast fixing
  • The 1.0mm aluminum packer, placed under the wings, allows for better alignment of the door, and for the correct positioning against the rubber seal, if required. The packer A104 spacer, is available as a seperate item from your supplier

Fixing:

  • Fastening Screws supplied
  • Pop Rivets are not recommended

Finish:

  • White - White powder coat
SKU MCCA154WHTP10
Brand McCallum
