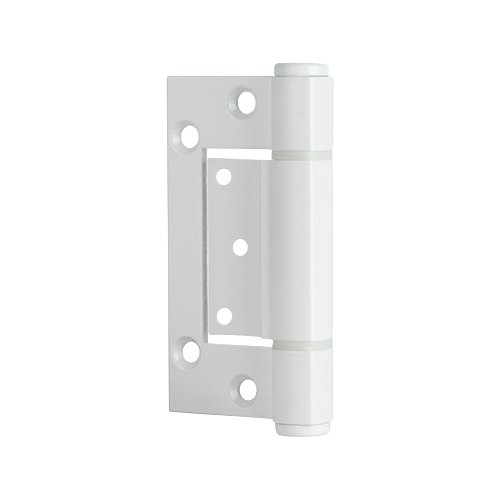

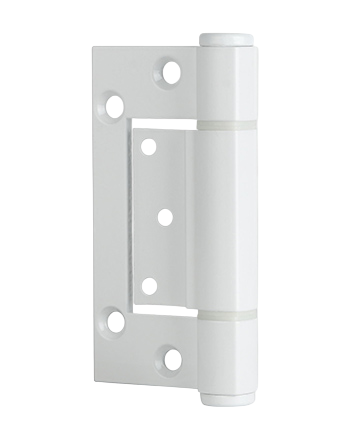

10 Pack McCallum Heavy Duty Aluminium Interfold Hinge White A74HBF

  • 10 x Hinge


  • Suitable for Aluminum Entrance Doors in high usage situation
  • Suitable for some timber door applications
  • Pre-drilling of the holes in the timber may be required


  • Alloy: High strength T.6 minimum tensile 254 mpa
  • Pin Dia: 6mm 304 Stainless Steel with machined chamfer both ends
  • Bushes: Flanged nylon
  • Knuckle: Squareline - Heavy Duty
  • Aluminum Endcaps: Pressed-in interference fit
  • Maximum Weight Capacity: 40 kg
  • Size: 100mm

Installation Guide Only:

  • Door thickness: Minimum 34mm
  • When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required.
  • Standard Door: 2040 (Height) x 820 (Width)
  • Locator allows for fast fixing.
  • This Hinge is designed with a 1.0mm (Approx.) offset.
  • You need to allow a 4.5mm space between the door and the jamb due to the offset. This may help compensate for a distorted door when closed. The A115 should be considered if an offset hinge is not required.


  • Fastening screws supplied
  • Pop rivets are not recommended.


  • White - White Powder Coat
Brand McCallum
