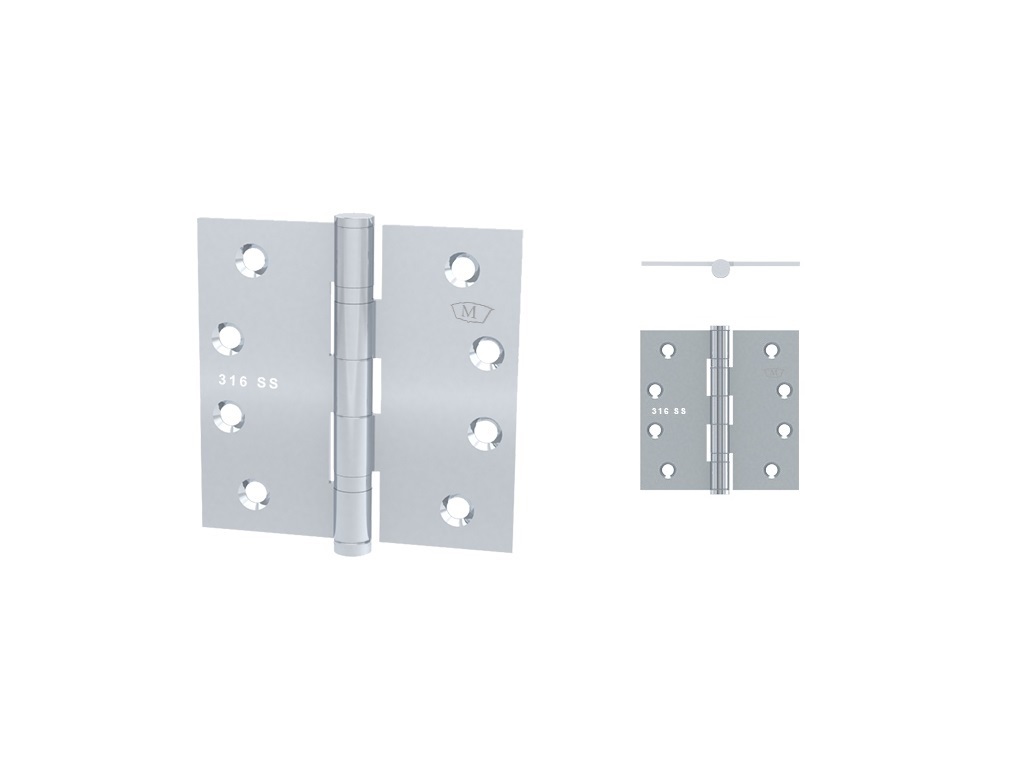

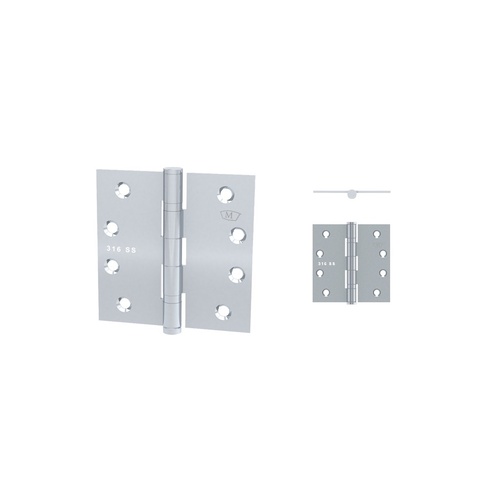

**10 Pack** McCallum Stainless Steel Ball Bearing Butt Hinge Satin S254
SKU : MCCS254P10
Available:
LEAVES WAREHOUSE IN 3-5 BUSINESS DAYS
WAS $163.62
NOW $147.26
RRP $181.80
YOU SAVE 19%!
Sale Ends in
00:00 am, 7 December 2024
Pack of 10
10 Pack McCallum Stainless Steel Ball Bearing Butt Hinge Satin
S254
- 10 x Hinge
Application:
- Suitable for aluminium and timber doors with aluminium, steel and timber frames
Specifications:
- Material: Stainless Steel 316 Grade
- Pin Dia: 6.9mm - Stainless Steel 316 Grade
- Knuckle: Round Endcaps: Pressed-in interference fit
- Stainless Steel 316 Grade
- Stamped with McCallum crest
- Fixed Pin
- Bearings: 2 Stainless Steel Off-Cage Ball Bearings

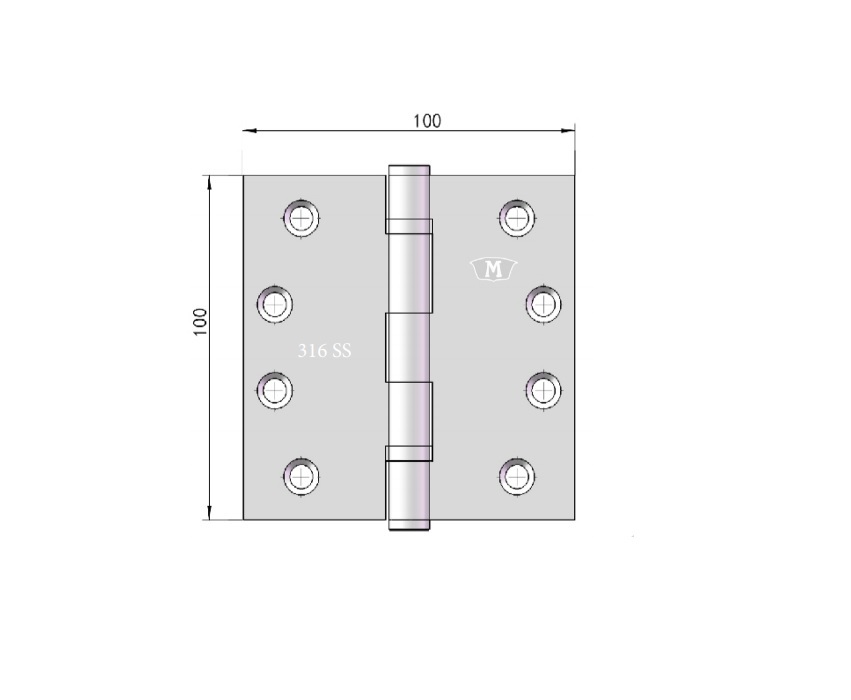

- Dimensions: 100mm x 100mm
Installation Guide Only
- Door thickness: Minimum 35mm
- When using a door closer, we recommend a minimum of 4 hinges be used, with the top hinge located as high as possible
- Standard Door: 2040 (H) x 820 (W) - 3 hinges
Fixing:
- 32mm x 10g stainless steel fasteners for timber (supplied)
- 12mm x M5 stainless steel metal fasteners (supplied)
- Pop rivets are not recommended
- Not recommended for Bi-Fold door systems
Finish:
- Satin finish
SKU | MCCS254P10 |
Brand | McCallum |
